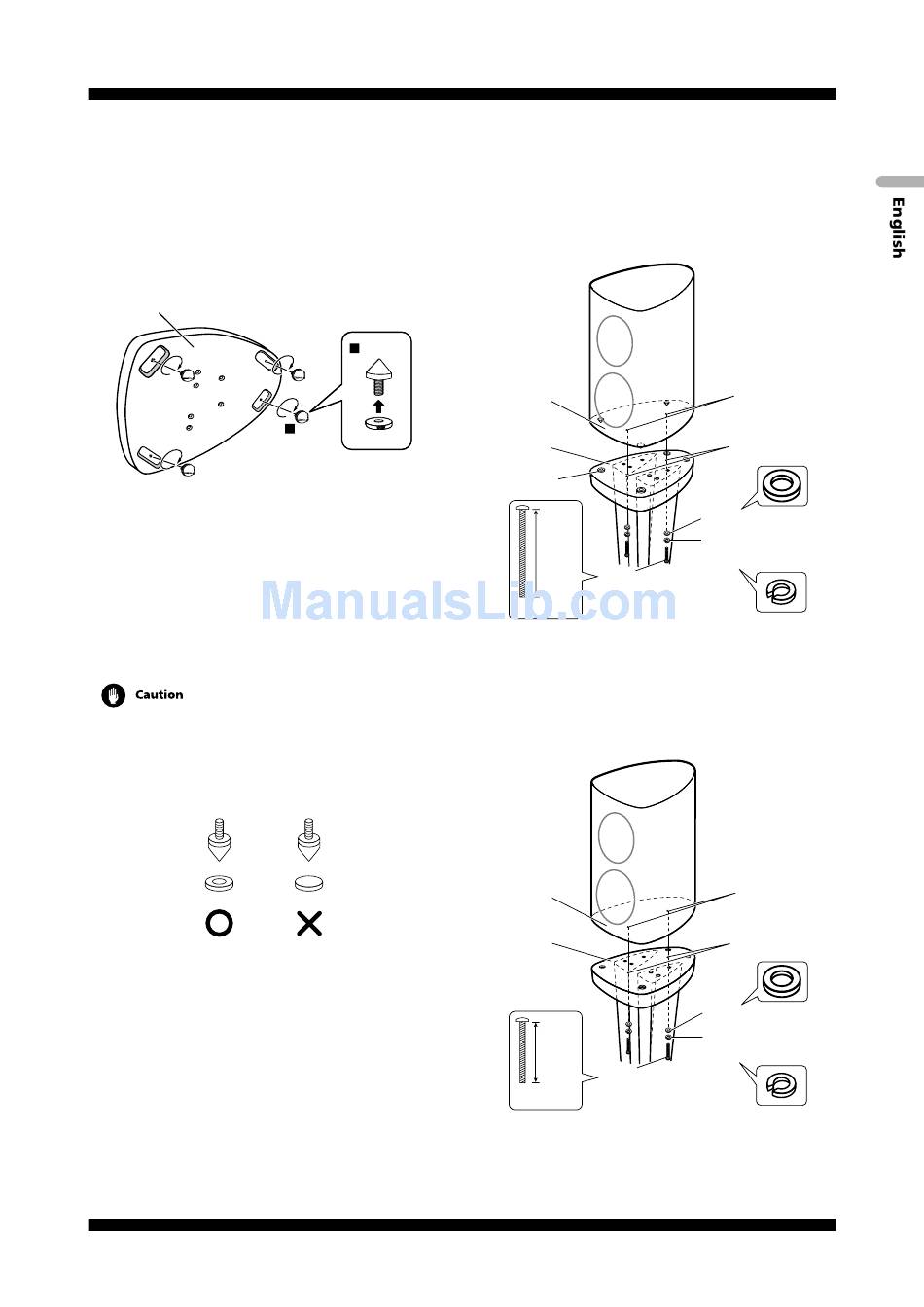

Using the spikes
The speaker stands include spikes that you can use to isolate
the speaker from the floor. Spikes are recommended when
placing the stand on a thick carpet (for added stability), or for
better sound when placing the stand on a hard reverberant
surface (such as a concrete or wood floor). Use the supplied
spike bases to avoid scratching the floor or other surface
where the stand is placed.
Stand base plate
1
Attach the spikes to the nuts provided.
2
Attach all four spikes to the threaded metal inserts
at the base of the speaker stand.
3
Choose the location for speaker placement then put
the spike bases on the floor.
4
Place the stand so that the spikes are resting on the
spike bases on the floor.
Before placing the speaker on the speaker stand, make sure
the stand is stable and resting squarely on all four spikes.
• Note that these spikes are sharp metal and can cause
damage to flooring. Make sure to lay down a cloth or
suitable base before setting up.
• The spike bases should be placed as shown below (with
the depression on the top side).
• Make sure to use the spike bases provided to avoid
damaging the surface where you place the stand.
Attaching speakers to the stands
To avoid accident or injury, please use screws to secure the
speakers to the speaker stands.
Assembly with the S-2EX speaker system
If you are using the S-2EX speaker system, note that there is
a fastening nut provided on the speaker base (see below).
Spike
1
2
Nut
When using speaker spikes:
Place the speaker spike bases in the four holes provided on
the speaker support, then secure the speaker to the speaker
support using the washer, spring washer and the 62 mm
screws as shown below.
Speaker
base
Speaker
support
Speaker
spike base
62 mm
Screws
Black
(Bind head, M5xL62)
(SBA6050)
When not using speaker spikes:
Secure the speaker to the speaker support using the washer,
spring washer and the 36 mm screws as shown below.
Speaker
base
Speaker
support
36 mm
Screws
Black
(Bind head, M5xL36)
(SBA6048)
Fastening nut
Screw holes
for securing
speaker
Washer (SBE6006)
Spring washer
(SBE6005)
Fastening nut
Screw holes
for securing
speaker
Washer (SBE6006)
Spring washer
(SBE6005)
3
En
