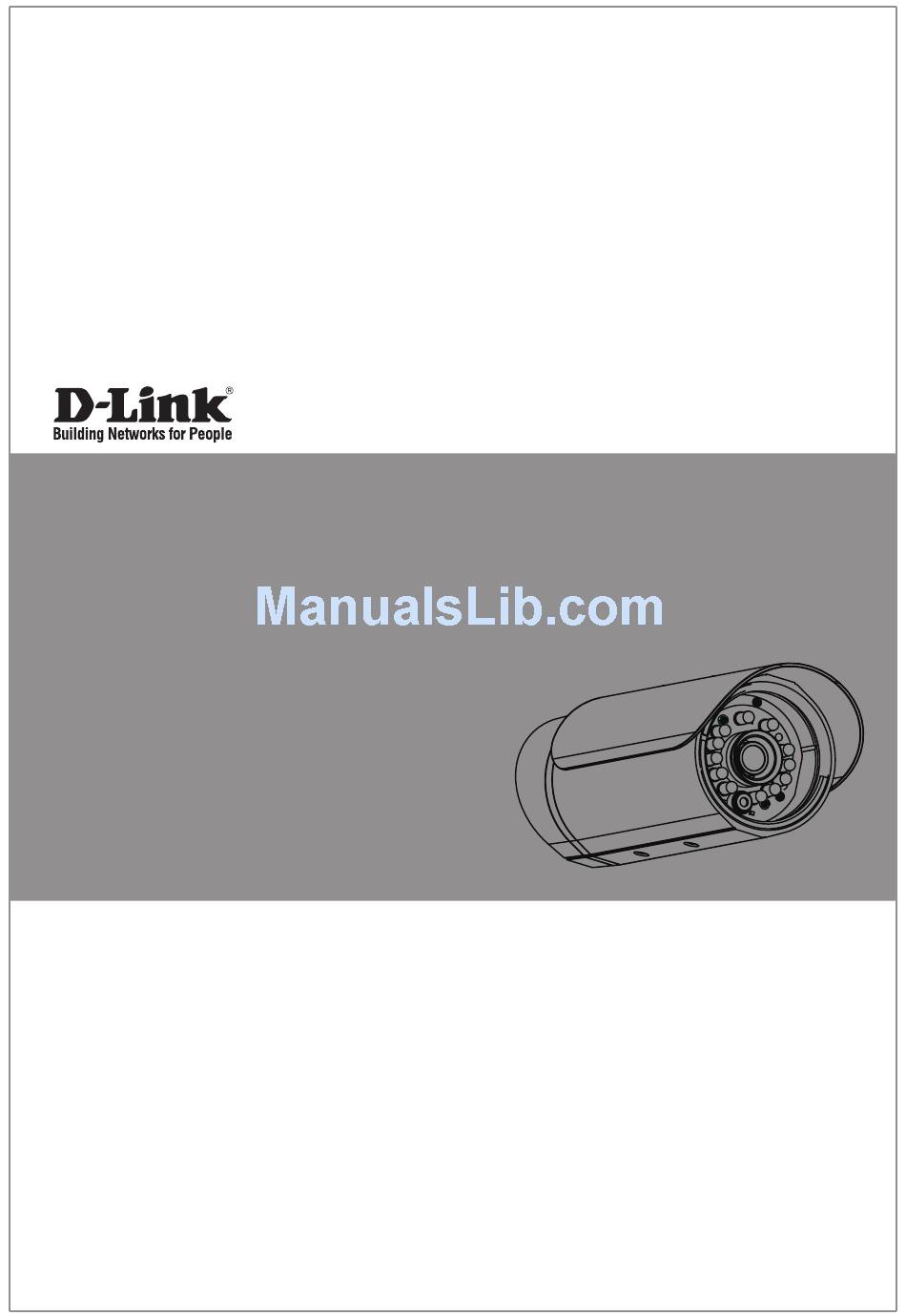

Page 1: Quick Installation Guide
Quick Installation Guide Full HD Day & Night Network Camera This document will guide you through the basic installation process for your new D-Link Network Camera. DCS-7110... -
Page 2: Installation Steps
Installation This installation guide provides basic instructions for installing the DCS-7110 Network Camera on your network. For additional information about how to use the camera, please see the User Manual which is available on the CD included in this package or from the D-Link website. -
Page 3: Hardware Overview
Connects a 12 V power adapter (not included) to the camera. 24 V Power Connector Connects to 24V AC power. DI/DO Connectors DI/DO connectors provide a physical interface to send and receive digital signals to and from a variety of external devices. D-Link DCS-7110 Quick Installation Guide... - Page 4 Hardware Overview Reset Button After removing the weatherproof cover, use a paperclip or similar tool to press and hold the recessed button for 10 seconds to reset the camera back to the factory default settings. D-Link DCS-7110 Quick Installation Guide...
-
Page 5: Cable Connections
3. Connect the power adapter to a power outlet. Note: Once the camera is receiving power, the LED will turn red. When the device has obtained an IP address and is accessible, the LED will turn green. D-Link DCS-7110 Quick Installation Guide... - Page 6 2. The unsheathed part of the wire connectors should be positioned at a downward-facing angle when they extend out of the rear of the camera, not upward. The unsheathed part of the wire connectors must either be sealed or enclosed in a junction box. D-Link DCS-7110 Quick Installation Guide...
- Page 7 Insert the DCS-7110 CD into your computer's CD-ROM drive to begin the installation. If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click the Start button and type D:\autorun.exe, where D: represents the drive letter of your CD-ROM drive.
- Page 8 Click Finish to complete the installation. Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > D-Link > Setup Wizard SE The Setup Wizard will appear and display the MAC address and IP address of your camera(s). If you have a DHCP server on your network, a valid IP Address will be displayed.
- Page 9 DHCP server such as a router. Select Static IP if you want to manually enter the IP settings for the camera. Click Next to continue. Take a moment to confirm your settings and click Restart. D-Link DCS-7110 Quick Installation Guide...
-
Page 10: Viewing Camera Via Web Browser
Viewing Camera via Web Browser Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > D-Link > Setup Wizard SE Select the camera and click the Link button to access the web configuration. - Page 11 This section shows your camera’s live video. You can select a video profile, remotely view or control the camera. For additional information about web configuration, refer to the User Manual included on the CD-ROM or go to the D-Link website. D-Link DCS-7110 Quick Installation Guide...
-
Page 12: Mounting The Camera
Step 3: The camera cables can be installed through a separate large hole drilled in the wall, or by using an external cable conduit. D-Link DCS-7110 Quick Installation Guide... - Page 13 Notes D-Link DCS-7110 Quick Installation Guide...
- Page 14 Notes D-Link DCS-7110 Quick Installation Guide...
- Page 15 Notes D-Link DCS-7110 Quick Installation Guide...
-
Page 16: Technical Support
January 8, 2016 625023001G ©2016 D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link or its subsidiaries in the United States and/or other countries. Other trademarks or registered trademarks are the property of their respective owners. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted on the package.
