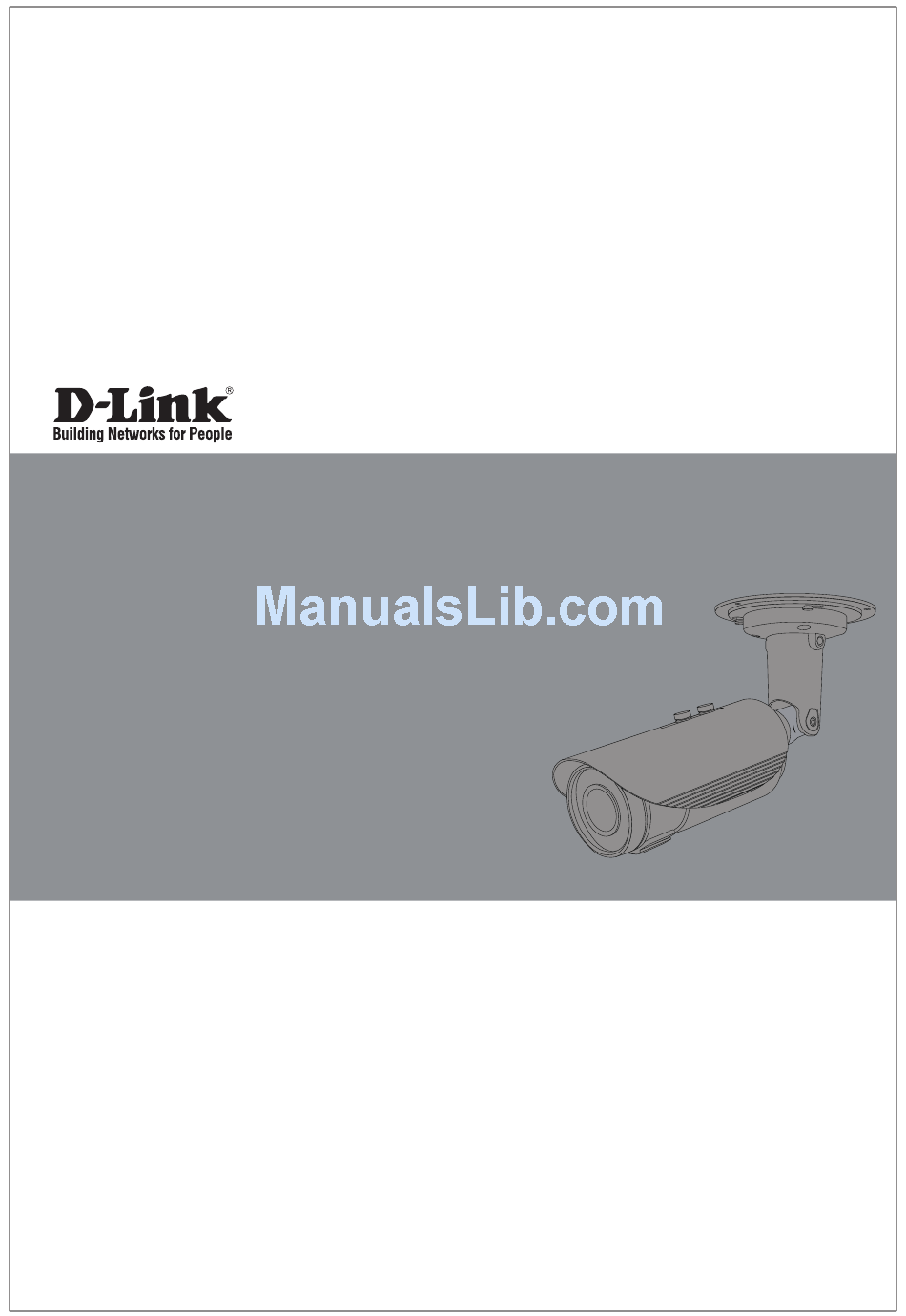

Quick Installation Guide

5 Megapixel Day & Night Outdoor Network Camera
This document will guide you through the
basic installation process for your new
D-Link Network Camera.
DCS-7517
Quick Installation Guide
Краткое руководство по установке
Guía de Instalación Rápida
Guia de Instalação Rápida
快速安裝指南
Petunjuk Pemasangan Cepat
Documentation also available on CD
and via the D-Link Website

Advertisement

Table of Contents
loading

Summary of Contents for D-Link DCS-7517

  • Page 1: Quick Installation Guide

    This document will guide you through the basic installation process for your new D-Link Network Camera. DCS-7517 Quick Installation Guide Краткое руководство по установке Guía de Instalación Rápida Guia de Instalação Rápida 快速安裝指南 Petunjuk Pemasangan Cepat Documentation also available on CD and via the D-Link Website...
  • Page 2: Quick Install Guide

    This installation guide provides basic instructions for installing the Network Camera on your network. For additional information about how to use the camera, please see the User’s Manual which is available on the CD included in this package or from the D-Link support website.
  • Page 3: Hardware Overview

    Power over Audio Out Ethernet (PoE) Connects to speakers Audio In Connects to a microphone DI/DO Wiring I/O connectors for external devices Reset Button Resets camera to factory default settings Analog video output D-Link DCS-7517 Quick Install Guide...
  • Page 4: Hardware Installation

    Connection with a PoE Hub If you are using a PoE hub, connect the IP camera to the hub via an Ethernet cable, which will provide transmission of both power and data over a single cable. D-Link DCS-7517 Quick Install Guide...
  • Page 5: Configuration With Wizard

    Insert the DCS-7517 CD into your computer's CD-ROM drive to begin the installation. If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive letter of your CD-ROM drive.
  • Page 6 Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > D-Link > Setup Wizard SE The Setup Wizard will appear and display the MAC address and IP address of your camera(s). If you have a DHCP server on your network, a valid IP Address will be displayed.
  • Page 7 Viewing Your Camera via a Web Browser Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu (Start > D-Link > Setup Wizard SE). Select the camera and click the button labeled "Link" to access the web configuration.
  • Page 8: Micro Sd Card Installation

    Push the microSD card into the camera with the gold contacts oriented towards the base of the camera. To eject the microSD card, push the microSD card into the slot. Note: Users are advised to ensure that the weatherproof seals are secured firmly in place. D-Link DCS-7517 Quick Install Guide...
  • Page 9: Mounting Instructions

    Connect the power and Ethernet cables, or just the Ethernet cable if you are using a PoE connection. If the cable bundle is not required, it can be detached from the camera, and the socket sealed with a weatherproof cable cover. D-Link DCS-7517 Quick Install Guide...
  • Page 10 Additional Information Additional help is available through our offices listed at the back of the User’s Guide or online. To know more about D-Link products or marketing information, please visit the website http://www. dlink.com.
  • Page 11 Notes D-Link DCS-7517 Quick Install Guide...
  • Page 12 Ver.1.00(WW)_130x183 2015/05/19...
