Summary of Contents for iiNet MobiiConnect 4G

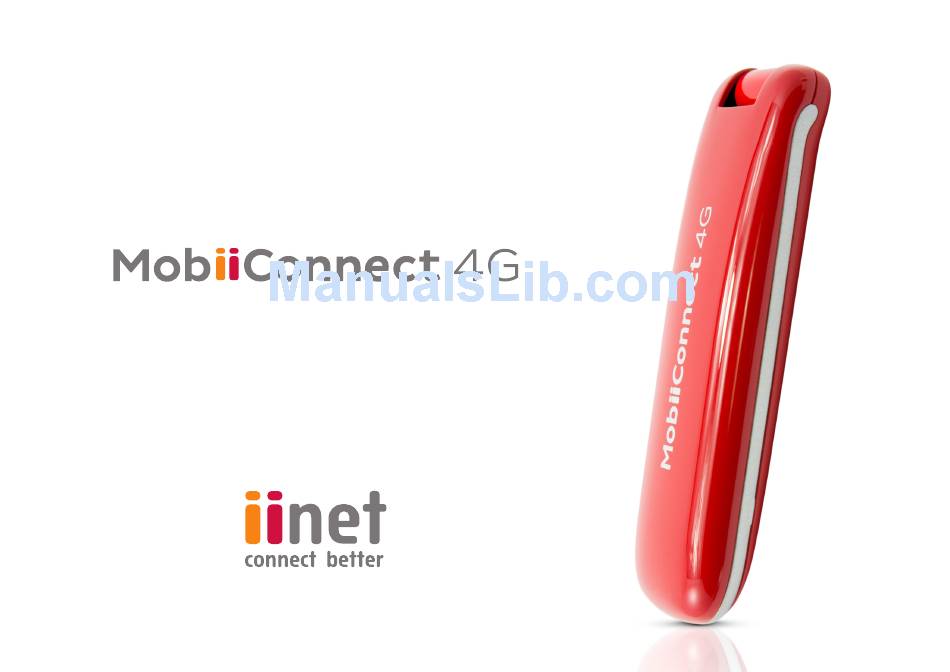

  • Page 1 Manual...

  • Page 2: Table Of Contents

    MobiiConnect 4G Manual MobiiConnect 4G Overview LED indicators guide Manually running the installation software Logging in to the Web Management page Web Management - Status icons Web Management Home Page Web Management - Information tab Information > Statistics Information > Data Limit Settings Web Management - SD Card tab Web Management –...
  • Page 3 Settings > DMZ Settings > Firewall > Router Settings Settings > Firewall > Internet Wi-Fi Using the External Antenna Ports How to Factory Reset the MobiiConnect 4G Uninstalling the MobiiConnect 4G software Precautions and Safety Information RF Safety Information Radio Frequency Energy...

  • Page 4: Mobiiconnect 4G Overview

    MobiiConnect 4G Manual MobiiConnect 4G Overview USB plug for computer, AC adapter or car charger adapter Reset button microSD™ memory card slot SIM card slot (Standard size only) LED status lights...

  • Page 5: Led Indicators Guide

    MobiiConnect 4G Manual LED indicators guide Wi-Fi Status Light Meaning Not Lit Wi-Fi is Off. Use Web Management page to turn back on Blue solid WPS (Wi-Fi Protected Setup) is active Blue blinking Wi-Fi is active 4G Status Light Meaning...

  • Page 6: Manually Running The Installation Software

    If use Microsoft Windows and you see an AutoPlay window pop up, click Open folder to view files. Otherwise, you’ll need to open My Computer (Windows) or Macintosh HD (Mac) and double click on the USB drive that the MobiiConnect 4G is plugged into e.g. CD Drive (E:) MobiiConnect 4G Double click Autorun.exe...

  • Page 7: Logging In To The Web Management Page

    MobiiConnect 4G Manual Logging in to the Web Management page Open your internet browser and go to http://192.168.0.1 Log in with the default password admin. If you’ve changed your password from the default, use your custom password instead.

  • Page 8: Web Management - Status Icons

    MobiiConnect 4G Manual Web Management - Status icons You’ll see these icons in the upper right-hand corner of the Web Management page. Status Icon Meaning No SIM, PIN locked, PUK locked or faulty SIM SIM card is inserted No Network signal...

  • Page 9: Web Management Home Page

    MobiiConnect 4G Manual Web Management Home Page The Disconnect button on the Home page will take MobiiConnect 4G offline.

  • Page 10: Web Management - Information Tab

    MobiiConnect 4G Manual Web Management - Information tab You can view the device information on this page. Click Change to customise your Wi-Fi network name (SSID).

  • Page 11: Information > Statistics

    Select Statistics from the left-hand column to view your data usage on this page. Please note that data usage shown here is approximate. Always refer to usage records provided by your Mobile Broadband provider. iiNet Group customers will find their usage records available in toolbox.iinet.net.au or their equivalent account management page.

  • Page 12: Information > Data Limit Settings

    MobiiConnect 4G Manual Information > Data Limit Settings Select Data Limit Settings from the left-hand column to set data usage limits and reminders on your device. Please note that data usage recorded is approximate and may not be aligned with your billing cycle. Always refer...

  • Page 13: Web Management - Sd Card Tab

    MobiiConnect 4G Manual Web Management - SD Card tab If you insert a compatible microSD™ memory card in your MobiiConnect 4G, you can use it as an external drive to store and transfer files. Compatible microSD™ cards are FAT 16 format (up to 2GB) and FAT 32 format (up to 32GB).

  • Page 14: Web Management - Sms Tab

    MobiiConnect 4G Manual Web Management – SMS tab iiNet Group Mobile Broadband services do not currently support this feature. Web Management – Phonebook tab iiNet Group Mobile Broadband services do not currently support this feature. Web Management - Settings tab...

  • Page 15: Settings > Network Settings > Dial Up Settings

    The default setting for WAN Connection Mode is Automatic. If set to Manual, the MobiiConnect 4G will not automatically connect to the internet whenever it is plugged in. You can enable roaming mode on this page, but please note that international roaming is not offered with any iiNet Group Mobile Broadband Service.

  • Page 16: Settings > Network Settings > Network Selection

    Settings > Network Settings > Network selection Network Selection is set to Automatic by default. This is recommended because it allows your MobiiConnect 4G to default to the 3G or 2G networks in areas where 4G or 3G coverage is not available.

  • Page 17: Settings > Network Settings > Apn

    MobiiConnect 4G Manual Settings > Network Settings > APN The MobiiConnect 4G is preconfigured with default APN for iiNet (Westnet also uses this setting), Internode and TransACT. If you need to change this setting, you need to click the Disconnect button first.

  • Page 18: Settings > Wi-Fi Settings > Basic Settings

    MobiiConnect 4G Manual Settings > Wi-Fi Settings > Basic Settings Set Wi-Fi Switch to Enable or Disable to control the availability of your MobiiConnect 4G Wi-Fi. If disabled, other devices will not be able to connect to the MobiiConnect 4G wirelessly.

  • Page 19: Settings > Wi-Fi Settings > Advanced Settings

    MobiiConnect 4G Manual Settings > Wi-Fi Settings > Advanced Settings On this page you can manually configure your advanced Wi-Fi settings. If you suspect you’re experiencing network congestion on a specific Wi-Fi channel, select a different channel from the Frequency (Channel) drop-down menu.

  • Page 20: Settings > Wps

    MobiiConnect 4G Manual Settings > WPS WPS stands for “Wi-Fi Protected Setup”. Follow the steps below to connect WPS-compatible devices to the Wi-Fi: Set a PIN number and then click Apply to save your changes. Enable WPS. Once enabled, WPS will remain active for 2 minutes.

  • Page 21: Settings > Device Settings > Account Management

    You can set a 4-digit PIN code for your SIM card on this page. A SIM PIN protects your SIM card from unauthorised use if it is lost or stolen. If you set a SIM PIN, you’ll need to log in using the SIM PIN each time you use the MobiiConnect 4G (or any other device the SIM card is inserted into).
  • Page 22 MobiiConnect 4G Manual Settings > Device settings > Reset You can use this page to action a Factory Reset of your MobiiConnect 4G without using the Reset button located underneath the back cover. Please note All custom settings, passwords and APN profiles will be lost if you factory reset the MobiiConnect 4G.

  • Page 23: Settings > Device Settings > Reset

    By default, Wi-Fi Performance is set to Long Range Wi-Fi. This provides the best Wi-Fi coverage and data speeds, but it does use more power. If the device that MobiiConnect 4G is plugged in to is connected to an electrical outlet or another non-battery power source, there should be no need to adjust this setting.

  • Page 24: Settings > Device Settings > Power Save

    MobiiConnect 4G Manual Settings > Device settings > Update Management You can check for MobiiConnect 4G software updates on this page. Press Check to manually check for updates. Under Cycle Settings, you can schedule the device to automatically check every number of days.

  • Page 25: Settings > Firewall > Port Filtering

    Click Apply to save your changes. Please note Firewall settings are for advanced users and network administrators. Configuring these settings is not supported by any iiNet Group Support Team; please contact your gaming/application provider for assistance with this.

  • Page 26: Settings > Firewall > Port Mapping

    Enter the Port Mapping settings as required and then click Apply to save your changes. Please note Firewall settings are for advanced users and network administrators. Configuring these settings is not supported by any iiNet Group Support Team; please contact your gaming/application provider for assistance with this.

  • Page 27: Settings > Firewall > System Security

    MobiiConnect 4G Manual Settings > Firewall > System Security You can enable Remote Management via the WAN on this page. You should only do this if you have changed your Web Management login password to a custom password. If you enable Remote Management while the login password is still the default “admin”, this creates a security risk for your account and personal information.

  • Page 28: Settings > Firewall > Router Settings

    Settings > Firewall > Router Settings On this page you can see the Router settings. For use with an iiNet Group Mobile Broadband service, you should always keep the DHCP Server enabled. Please leave the IP address and Subnet Mask on the default settings.

  • Page 29: Settings > Firewall > Internet Wi-Fi

    MobiiConnect 4G Manual Settings > Firewall > Internet Wi-Fi On this page you can enable the MobiiConnect 4G Wi-Fi to connect to another Wi-Fi Hotspot to share the internet connection. When Internet Wi-Fi is enabled, it is not possible to use the Disconnect button on the Home page. This is because the Wi-Fi Switch function overrides the manual disconnect feature.

  • Page 30: Using The External Antenna Ports

    Using dual antennas is recommended. If you only have a single antenna, use the main port at the tip of the device. The antenna ports are delicate, so insert and remove external antennas with care. Do not pull on the cable. Physical damage to the antenna ports will render your MobiiConnect 4G unusable and is not covered by the manufacturer’s warranty.

  • Page 31: How To Factory Reset The Mobiiconnect 4G

    All custom settings, passwords and APN profiles will be lost if you factory reset the MobiiConnect 4G. Remove the back cover of the MobiiConnect 4G. The reset button is located in a small hole on the back panel (see 2. Reset button in the image).

  • Page 32: Uninstalling The Mobiiconnect 4G Software

    MobiiConnect 4G Manual Uninstalling the MobiiConnect 4G software Windows Start Menu > All Programs > MobiiConnect 4G > Uninstall Mac OSX Applications > MobiiConnect 4G > Uninstall...

  • Page 33: Precautions And Safety Information

    Operation of MobiiConnect 4G may interfere with medical devices like hearing aids and pacemakers. Please keep the MobiiConnect 4G more than 20 centimetres away from such medical devices, or turn it off if necessary. Consult a physician or the manufacturer of the medical device before using the MobiiConnect 4G near such devices.

  • Page 34: Rf Safety Information

    Under poor network conditions the modem transmits at a higher power level and may get hot. Declaration of Conformity - SAR The MobiiConnect 4G is designed to be used in close proximity to the body. We declare that the product detailed in this manual, and in combination with our accessories, conform to the essential...

  • Page 35: Technical Specifications

    MobiiConnect 4G Manual Technical Specifications LTE 1800, 2600 MHz Network UMTS 900, 2100 MHz compatibility GSM 900, 1800, 1900 MHz Dimensions 95 x 30 x 14m. Approx 30g LTE download speeds up to 100Mb/s LTE upload speeds up to 50Mb/s...
  • Page 36 MobiiConnect 4G Manual Windows 8, 7, XP SP3, Vista Supported Operating systems MAC OS X 10.5 and above 802.11a/b/g/n (2*2 11n features), WPA, WPA-PSK, Maximum 10 users, WPS PIN, Max Tx = Wi-Fi +15dBm in 11b mode. Memory card Up to 32GB microSDHC™...
  • Page 37 Copyright © 2014. All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. The manual is published by ZTE Corporation.

  • Page 38: Contact Details

    13 24 49 1300 786 006 Adam Internet: bizsupport@iinet.net.au support@transact.com.au 1300 002 326 support@adam.com.au If you have any issues with your MobiiConnect 4G or technology just isn’t your strong point, you can always call our friendly Support Team for a hand.
