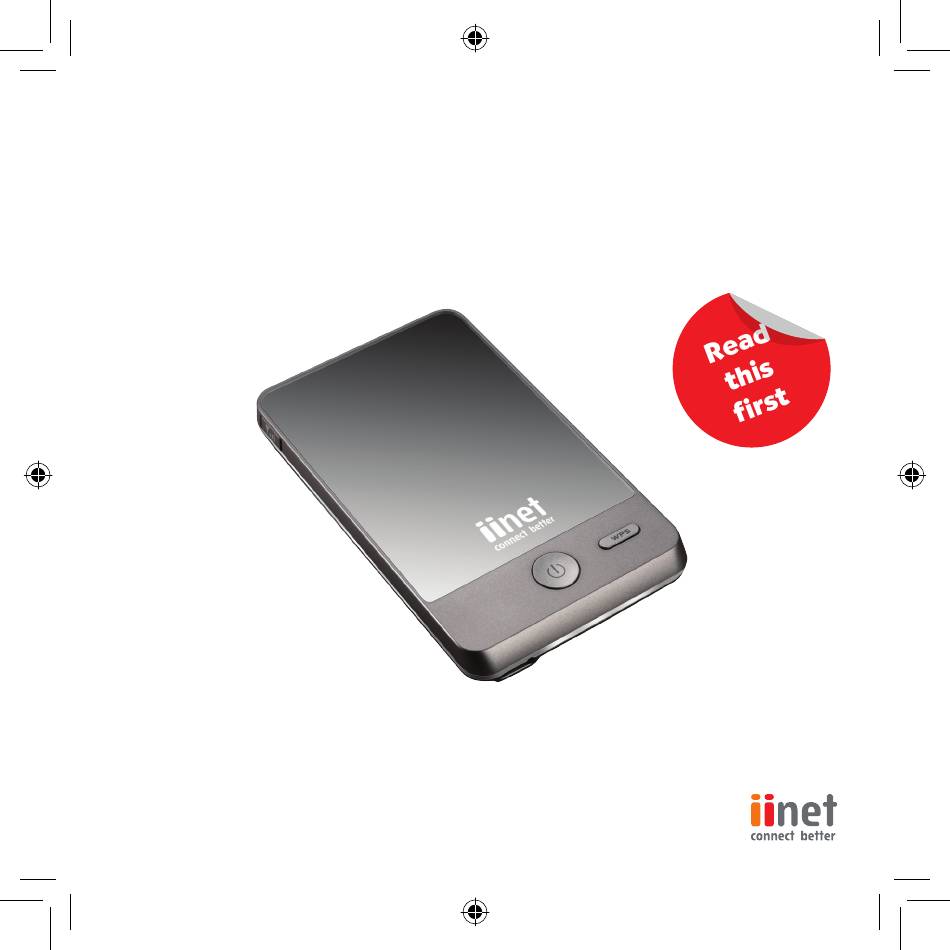

- Page 1 USB modem software installation guide Get iiNet mobile broadband running on your PC or laptop...
- Page 3 Thanks for choosing the E5. This guide runs you through some of the E5 modem’s basic functions. For details on your specific model, head to the ‘Help’ section of the Web Management page. Make sure your modem is stored in an environment with good ventilation to avoid overheating from extended use.
- Page 4 Getting to Know Your E5 Your package should contain the following items. Some accessories are optional and are not provided with your modem. Quick Start Guide Main unit Battery Data cable Charger Safety Information If any items are missing, please contact us immediately.
-
Page 5: Connection Scenarios
Connection Scenarios This modem will connect to the Internet via a Wi-Fi device or computer. The way you connect depends on the operating system of your computer or device. Connection scenarios are illustrated below for your reference. Scenario 1: Multi-device access via Wi-Fi Scenario 2: One-device access via USB Scenario 3: Multi-device access via Wi-Fi and USB at the same time... - Page 6 Appearance External antenna interface Power button USB connector WPS button Screen Note: • Wi-Fi: Wireless Fidelity • WPS: Wi-Fi Protected Setup...
- Page 7 Screen Signal strength Network Wi-Fi enabled and number of devices connected Internet connection New messages and number of new messages Battery level Roaming status M: Manual mode A: Auto mode...
- Page 8 Caution: Do not use any SIM card that is not standard or is incompatible with the E5. Otherwise, the E5 may be damaged. Insert the SIM card in the card slot. Be sure that the SIM card is facing in the right direction, as shown in figure 2, and then slide the SIM card into the slot.
- Page 9 To remove the microSD card, press in the card gently. The microSD card will pop out for removal. • Do not remove the microSD card when it is in use. Doing so may damage the card and the E5, and data stored on the card may be lost.
-
Page 10: Charging The Battery
Note: If the battery has not been used for a long time, it must be charged first. Method 1: Using the charger Caution: Only use chargers compatible with the E5 and provided by a designated manufacturer. Use of an incompatible charger or one from an unknown manufacturer may cause the E5 to malfunction, fail, or could even cause a fire. - Page 11 Internet. Step 1: Power on the E5 Press and hold the power button until the screen lights up. The E5 is powered on. Note: Press and hold the power button to power off the E5.
- Page 12 3. Click View available wireless networks to display a list of wireless networks available. 4. Select a network that has the same SSID as that of the E5, and then click Connect.
- Page 13 Note: • If your E5 modem is your default modem, the Wireless Network Connection dialog box will be displayed. Enter the network key in the dialog box as shown below. Wait until the wireless connection icon is displayed in the status area at the...
-
Page 14: Step 3: Access The Internet
Launch the web management page to select the mode for accessing the Internet. • If you roam to a different network with the E5, it will automatically disconnect an established network connection. If you need to access the Internet from the new network, you must re-establish a network... -
Page 15: Accessing The Web Management Page
Accessing the Web Management Page Make sure the connection between the E5 and iiNet has been established. 2. Start the Internet browser and enter http://192.168.1.1 in the address bar. Enter the password, and then click Login. (Note: The default password is admin.) -
Page 16: Daily Use
Establishing a Wi-Fi Protected Service (WPS) connection If your Wi-Fi connection to the E5 supports a WPS function, a network key will be automatically generated. To establish a WPS connection, perform the following steps: 1. -
Page 17: Restoring Factory Defaults
Tips: If you are experiencing difficulties using the E5, try the following: • See Help on the web management page. - Page 18 The access point list is displayed. 6. Select the SSID in the same way as you did for the E5. First press the > button of your game machine to confirm the SSID and then press it again to input the Wi-Fi key.
- Page 19 SSID: The Wi-Fi name of the E5. WEP: The Wi-Fi key of the E5. The default SSID and key label are affixed to the E5. 7. Press the > button of your game machine to continue, and then press the X button to save the settings.
- Page 20 Wi-Fi. 2. Automatically detect the networks in range and display the access point list. 3. Select a network that the E5 is using. 4. If necessary, enter a password and tap Join. (Networks requiring a password appear with a lock icon)
-
Page 21: Frequently Asked Questions (Faq)
and PPP password when you access the Internet with your E5. To check if the username and password is correct, head to the Profile Management on the Web Management page. - Page 22 The SSID must be set to ANY, or to the same value as the E5. The WEP and key must also be the same as the E5, so change your settings if required.
- Page 23 This page is left intentionally blank...
- Page 24 Support 13 22 58 support@iinet.net.au iimbbp032012v001...
