Summary of Contents for iiNet TGIINet-1

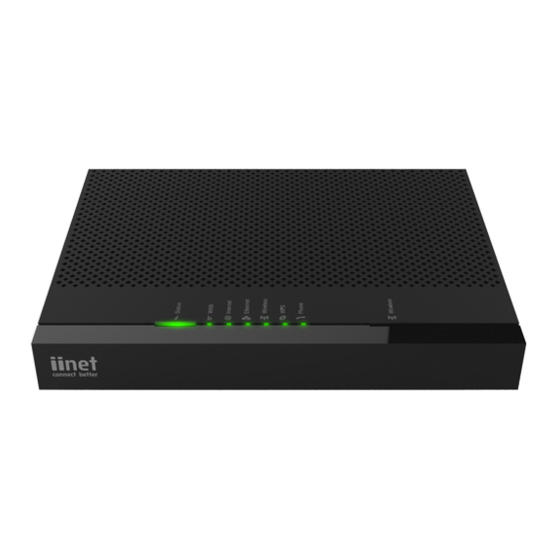

- Page 1 Technicolor modem TGIINet-1 Quick Setup Guide...
- Page 2 Welcome This guide will tell you everything you need to know about setting up your home network including internet, WiFi and Netphone (VoIP).
- Page 3 What are you setting up today? You’ll need to plug in a little differently depending on which type of internet service you have. ADSL or VDSL Broadband See page 6 Need some WiFi tips? Naked broadband See page 10 NBN Fibre See page 12 To customise your default WiFi network name and password, turn...
- Page 4 Get to know your modem’s ports Ethernet 1-4 USB 1 and 2 Connect Plug in a USB drive computers or to share files via laptops with an home network Ethernet cable or a 3G modem to route mobile broadband as WiFi PSTN For use with Home For use with NBN...
- Page 5 Get to know your modem’s lights Wireless Green - DSL or WAN port Green - WiFi is on connection Flashing - WiFi booting Flashing - Connection up/WiFi activity activity Status Flashing orange - WPS Orange - booting up connection in progress Red - Offline Green - Connection Green - Online...
- Page 6 Plugging in for ADSL and VDSL Handset for Netphone (optional) Power Socket Plug into your Phone socket computer’s Ethernet Port (optional) Ethernet Cable Phone Handset Power Cable Power Button Phone Cable (optional) Line Filter Cable Phone Cable Line Filter You only need to use the line filter if you have ADSL and you need to plug the modem and a handset for Home Phone into the same wall socket...
- Page 7 Plugging in for ADSL and VDSL Take the grey-tipped phone cable and plug it into the grey DSL port on the back of your modem. The other end of the cable may be plugged directly into the phone socket on the wall OR into the ADSL port on the line filter if you need to share the phone socket with a Home Phone.
- Page 8 Your broadband password (case sensitive) VPI Number: VCI Number: If you have iiNet Netphone (VoIP), enter your VoIP details on the next page, otherwise click “I don’t have VoIP”. You can set up VoIP from other providers later with the steps on page 20.
- Page 9 Password: Your broadband password (case sensitive) If you have iiNet Netphone (VoIP), enter your VoIP details on the next page, otherwise click “I don’t have VoIP”. You can set up VoIP from other providers later with the steps on page 20.
- Page 10 Plugging in for Naked broadband Handset for Netphone (optional) Power Socket Phone socket Plug into your computer’s Ethernet Port (optional) Ethernet Cable Power Cable Power Button Phone Cable...
- Page 11 Plugging in for Naked broadband Take the grey-tipped phone cable and plug it into the grey DSL port on the back of your modem. Plug the other end of the cable directly into the phone socket on the wall. Do not use the line filter. Plug the black power supply cable into the modem’s Power port and an available power outlet.
- Page 12 Plugging in for NBN or Fibre Handset for Netphone (optional) Power Socket NBN Connection Plug into your Box / Fibre Unit computer’s Ethernet Port (optional) Ethernet Cable Power Cable Power Button Ethernet Cable Smart wiring Some newer homes have internal smart wiring, allowing your NBN Connection Box to be plugged into a patch panel in one room, and your modem to be plugged into the corresponding port on a patch panel in another room.
- Page 13 Plugging in for NBN or Fibre Take the red-tipped Ethernet cable and plug it into the red WAN port on the back of your modem. Plug the other end of the cable directly into the active UNI-D port on your NBN Connection Box or fibre unit.
- Page 14 You will also need to enter your broadband username and password. If you have iiNet Netphone (VoIP), enter your VoIP details on the next page, otherwise click “I don’t have VoIP”. You can set up VoIP from other providers later with the steps on page Click Next, and then turn to page 16 to continue with the WiFi setup.
-
Page 16: Wifi Settings
WiFi settings Your modem can broadcast your internet as a wireless signal for your WiFi enabled computers, tablets and smartphones to connect to. Your modem already has a default WiFi network set up on it. You’ll find the network name and password on the base of your modem, as well as your Default Wireless Settings card. - Page 17 WiFi settings IMPORTANT It’s good to love your neighbour, but not enough to give them free WiFi! You should always set a password for your WiFi network and only share it with people you trust. Change your SSID Broadcast name as desired. This is the name of your WiFi network that you’ll need to connect to.
- Page 18 Router Security settings Step 5 of the Setup Wizard allows you to change the username and password used to log in on the http://10.1.1.1 page. This can be handy if you have tenants or meddling teens and you don’t want them to change your modem settings.
- Page 19 All done! Your modem should now be online, allowing you to access websites and all the other joys of the internet. If you have a Netphone (VoIP) service, please see page 20 for setup instructions. If you can’t view websites or you have any other trouble, please contact our friendly Support Team using the information on the back cover of this guide.
- Page 20 Primary Proxy: Your VoIP provider’s SIP server* Primary ProxyPort: 5060 Expire time: 3600 *You’ll find a list of iiNet Group VoIP settings on the next page. If your VoIP provider isn’t listed, please check their website for their VoIP settings.
- Page 21 Setting up VoIP IINET GROUP VOIP SETTINGS Select the Phone Numbers tab and then click Create New, entering the following settings: iiNet Username: Your VoIP number (no spaces or brackets) SIP domain – iinetphone.iinet.net.au SIP server – sip.STATE*.iinet.net.au URI: Your VoIP number (no spaces or brackets)
-
Page 22: Wps Setup
How to connect to WiFi Please see your If your operating software isn’t listed Default Wireless here, please contact your software Settings card, provider for support. or learn how to customise your ■ Windows 7: Page 23 WiFi settings on ■... - Page 23 WiFi - Windows 7 and Windows 8 WINDOWS 8 WINDOWS 7 In Desktop view, click the Network icon in the Click the Network icon in the bottom right-hand bottom right-hand corner of the screen. corner of the screen. Select your WiFi network from the list of available Select your WiFi network from the list of networks.
- Page 24 WiFi - Windows XP and Android OS WINDOWS XP ANDROID OS Open the Start menu and click Connect To. Android OS may vary. Consult your device’s support website if these steps don’t work for you. Select Wireless Network Connection. Tap the Apps icon on the home screen and then tap Settings.
- Page 25 WiFi - Mac OSX and iOS MAC OSX iPHONE/iPAD iOS Click the Wi-Fi (aka AirPort) icon in the top Tap the Settings icon on the home screen and right-hand corner of the screen. then tap Wi-Fi. You may need to select Turn Wi-Fi On. Make sure the WiFi switch is set to ON.
-
Page 26: Warranty Information
• Phone: 13 22 58 refund. • Email: support@iinet.net.au The warranty does not apply to faults caused by any of Westnet: the following (Non Covered Events): • Phone: 1300 786 068 any equipment not supplied by us;... - Page 27 (or if the original equipment has already been paid 1.10 This warranty is given by iiNet Limited (ACN 068 628 for, you will not be entitled to a refund) and the 937) of 1/502 Hay Street, Subiaco, WA, 6008. replacement equipment, unless: You can contact us on 13 22 58 or via email to support@iinet.net.au if you have any questions...
- Page 28 Support iiNet Support Adam Support Available 24/7 8am - 10pm (CST) Mon-Fri 13 22 58 9am - 5pm (CST) Weekends 1300 002 326 support@iinet.net.au support@adam.com.au Westnet Support Internode Support Available 24/7 7am - Midnight (CST) 7 days 1300 786 068 1300 788 233 support@westnet.com.au...
