Wiring Dual Output And Triaxial Sensors; Mounting - CTC Union MMX-MOD3 Series Installation Manual

Note: Module is set at "Commons Shared – OPEN" at factory
Once the proper settings are made to the module, it is ready for service.

Wiring Dual Output and Triaxial Sensors

Dual Out and Triaxial sensors can be wired into the MMX-MOD3 by setting the
dipswitch to the appropriate settings and wiring the inputs as shown in the table
below.
Sensor Type
Dual Output
(Chan 1 + 2)
Dual Output
(Chan 2 + 3)
Triaxial

Mounting

The MMX-MOD3 is designed to be mounted on 35 mm DIN rail. The mounting
clip is spring loaded to facilitate simple permanent locating. To remove the
module, it is recommended that a small flat-head screw-driver be used as a lever
on the spring loaded mount clip. With the clip disengaged, simply pull the module
off of the mounting rail.
To make removal easier the terminal blocks can be removed with a small flat
head screw driver without the need to disconnect wiring.
MNX10033 REV 0
Effective: 3/03/09

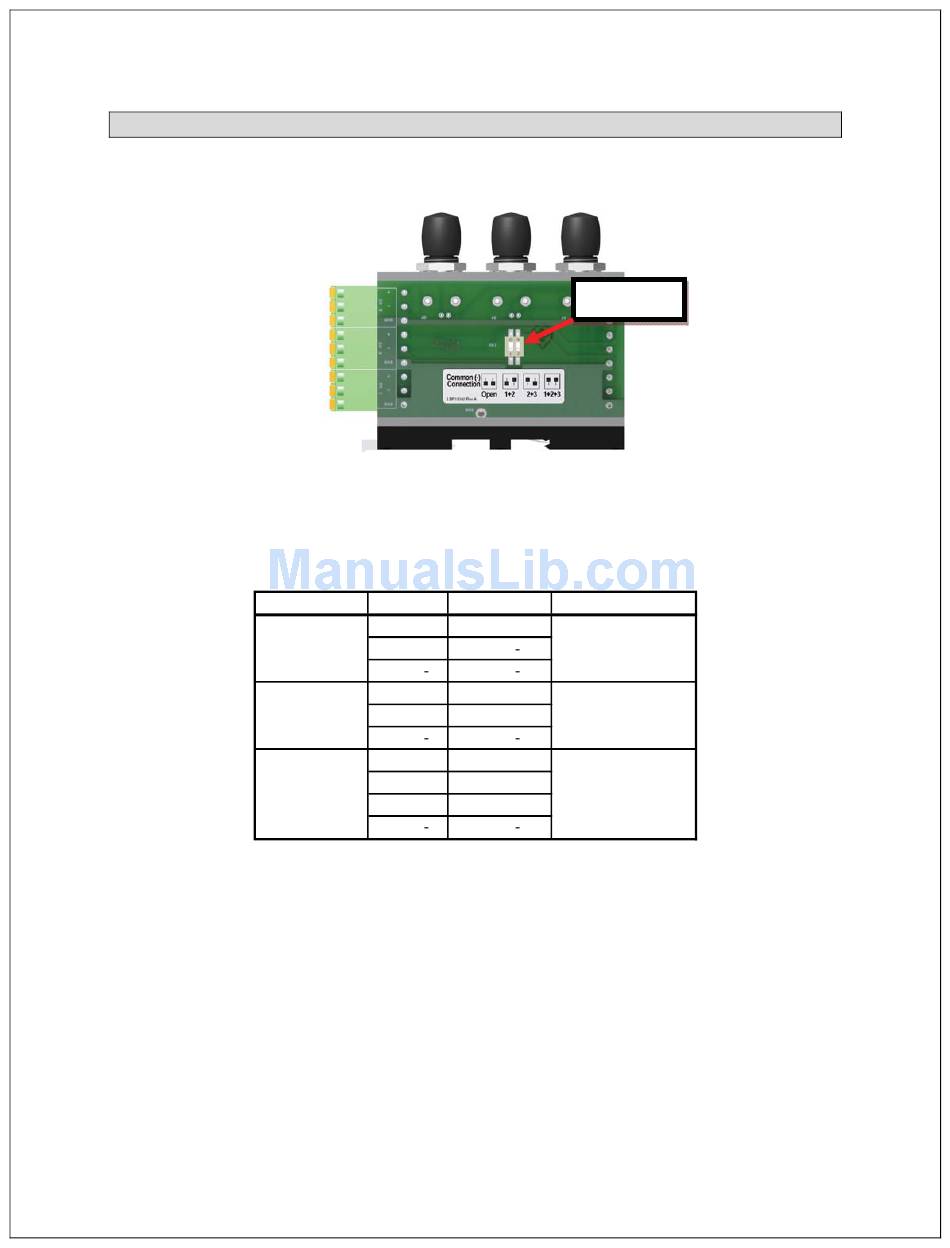

Figure 3. MMX-MOD3 Layout
Input Termination
Vib (+) Ch 1 (+)
Temp (+) Ch 2 ( )
Com ( ) Ch 1 ( )
Vib (+) Ch 2 (+)
Temp (+) Ch 3 (+)
Com ( ) Ch 2 ( )
X (+) Ch 1 (+)
Y (+) Ch 2 (+)
Z (+) Ch 3 (+)
Com ( ) Ch 1 ( )
Table 1. Wiring Configuration Guide
Dipswitch
Dipswitch Setting
1 + 2
2 + 3
1 + 2 + 3
4
