Section II

Installation

Description
The MMX-MOD3 module is intended to be installed inside a protective enclosure.
This minimizes the effects of the environment contaminating the BNC jacks or
the pc board, and assures better data collection. CTC offers our MMX1000/2000
Series Enclosures for this purpose.

Electrical Connections

The orientation of the removable plugs has BNC #1 with plug closest to the DIN
rail mount (or bottom) on the module, with #2 in the middle and #3 will be nearest
the BNC's. This configuration provides an easier method of wiring the module
when placed inside an enclosure.

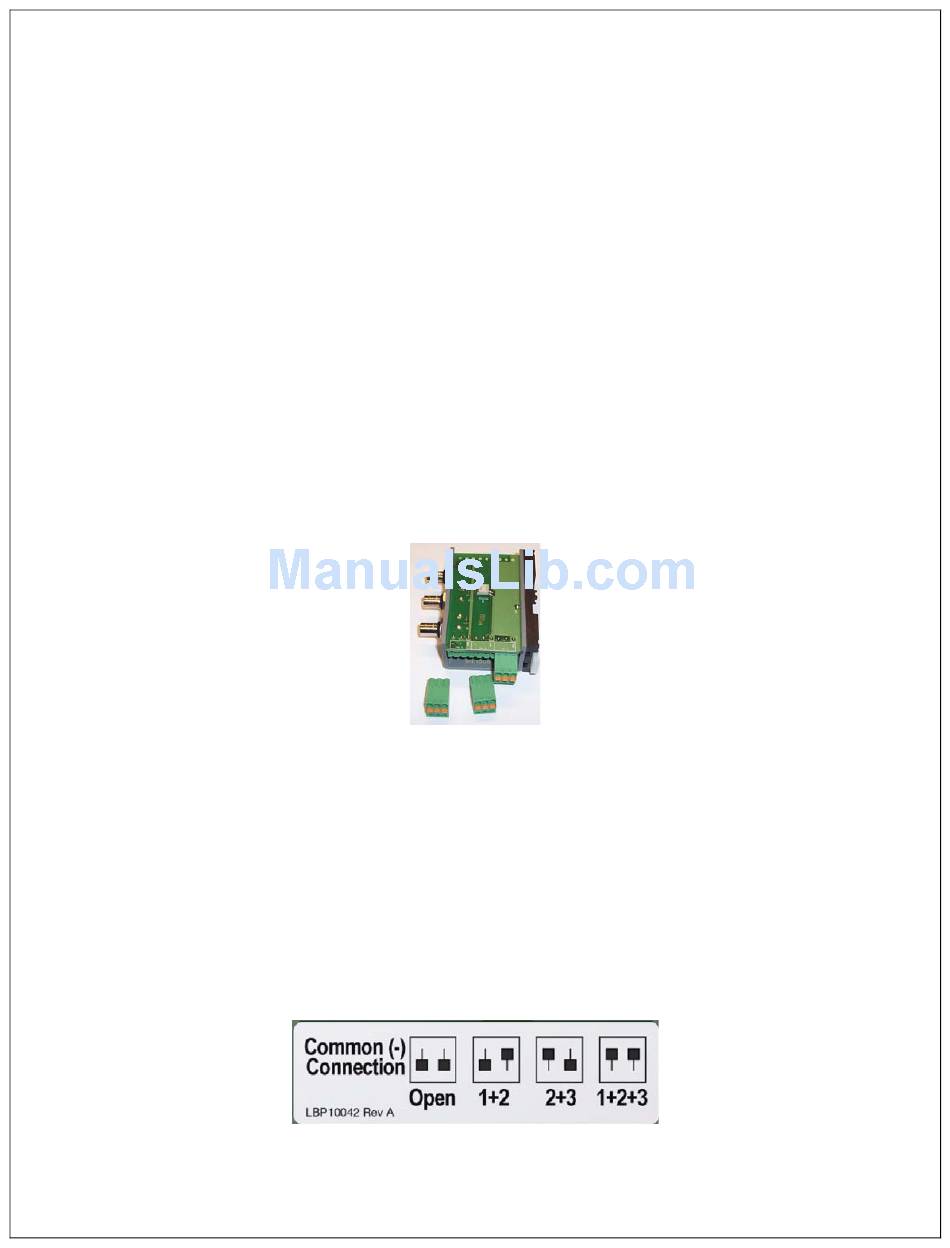

Figure 1. Placement of Removable Plugs

Setup of DIP switches

The MMX-MOD3 modules can be setup to provide grouped signals from a dual
output sensor, or a triaxial style sensor that share the "common" conductor.
By adjusting the switches, the common connection can be shared between
inputs 1 & 2, 2 & 3, for dual outputs and between inputs 1, 2, & 3 for triaxial
sensors. This system eliminates the need to insert jumper wires between the
different inputs within the module. The switches are displayed in Figure 2 at the
center of the module, on the circuit board.
Figure 2. Dip Switch Settings
MNX10033 REV 0
Effective: 3/03/09 3
