Summary of Contents for Serpent S411 ERYX 4.1

  • Page 2: Table Of Contents

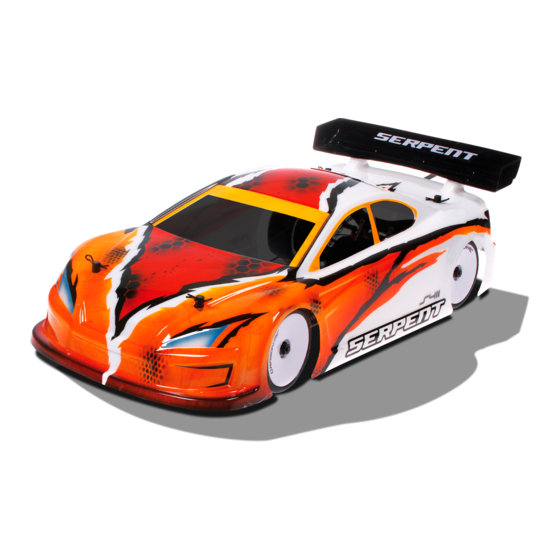

    REaD ThIS fIRST! The Serpent Eryx 4.1 is a state of the art 1/10 scale 4wd touringcar which will give you the true Serpent - This is a highly technical hobby product, intended to be used in a safe racing environment. This car racing experience.
  • Page 3 hOW TO USE ThE maNUal lINES DESCRIpTION ICONS DESCRIpTION Each step contains a variety of numbers, lines, and symbols. The numbers represent the order in Each step contains a variety of symbols described below. which the parts should be assembled. The lines are described below. Step number;...
  • Page 4: Diff Assembly

    REaR DIff aSSEmbly STEp 1 STEp 2 DIff bag 1- Fit the o ring before filling the diff with silicone oil. 2-Add just enough oil to cover the large gear before assembling the small satellite gears and cross pins. Use the silicone oil supplied in the kit. For the correct Note the correct pin location.
  • Page 5 STEp 3 STEp 4 STEp 5 Fill the differential with silicone oil 1 mm above the crosspin, Do not overtighten the screws. M2.5x12 do NOT overfill. Use the silicone oil supplied in the kit. For the There is always a gap between correct cst value please check the default setupsheet.
  • Page 6: Central Assembly

    CENTRal aSSEmbly STEp 6 bag 1 To avoid any tweak in your chassis please follow next instructions: 1- Pre-assemble the M3x14 screw in the step 6.1. DO NOT FULLY TIGHTEN IT. 2- Fit and fully tight the M3x6 screw in the step 6.2. 3- Fully tighten the pre-assembled M3x14 screw.
  • Page 7 STEp 7 M3x6 M3x6 M3x6 M3x6 M3x6...
  • Page 8: Rear I Assembly

    REaR I aSSEmbly STEp 8 STEp 9 bag 2 The rear front suspension brackets M3x8 are not symetrical. Place them with the 0.5 outside for having a rear toe in of 3º as default. M3x8 M3x8 3x5x2 3x5x1 3x5x1 3x5x2 REAR DEFAULT WHEELBASE SHIMS M3x6...
  • Page 9 STEp 10 10.1 10.2 M3x8 M3x8 M3x8 10x15x4 10x15x4 REAR BELT TENSION REAR BELT TENSION Use the central slot as Use the central slot as starting position. starting position. M3x8 10x15x4...
  • Page 10: Front I And Central Shaft

    fRONT I aND CENTRal ShafT aSSEmbly STEp 11 STEp 12 bag 3 11.1 M3x8 M2.5X6 M3x8 11.2 FRONT BELT TENSION Use the central slot as starting position. 10x15x4 10x15x4 M2.5x6 M3x8 10x15x4...
  • Page 11 STEp 13 STEp 14 13.1 5x8x2.5 M3x5 M3x4 5x8x2.5 2x12 13.2 M3x5 13.3 2x12 2x12 M3x4 M3x5 5x8x2.5...
  • Page 12 STEp 15 STEp 16 bag 4 The front rear suspension brackets are 16.1 16.2 FRONT ANTIROLL not symetrical. Place them with the 1.5 M2.5x6 BAR ROD LENGTH outside. M3x8 26 mm M3x8 REAR DEFAULT 16.3 WHEELBASE SHIMS 3x5x2 M3x6 M3x8 3x5x2 M3x6 M3x8 M2.5x6 3x5x2 M3x6 M3x8...
  • Page 13: Steering Assembly

    STEERINg aSSEmbly STEp 17 STEp 18 bag 5 17.1 3x5x1 M3x6 STEERING ROD LENGTH 21 mm 17.1 M3x6 3X5X0.3 3x5x1 3x5x0.3 M3x6 M3x6...
  • Page 14 STEp 19 STEp 20 19.1 M3x6 M3x6 M3x10 M3x6 19.2 Check how many teeth your 3x5x1 servo spline has (23, 24 or M3x8 25) and use the right levers. 3x5x1 M3x8 M3x8 3x5x1 3x5x2 3x5x1 M3x6 M3x6 3x5x2 3x5x1 M3x10 M3x6 M3x6 M3x8...
  • Page 15: Rear Ii Assembly

    REaR II aSSEmbly STEp 21 STEp 22 bag 6 21.1 22.1 STEERING LINK LENGTH M3x2.5 24 mm 2x10 21.2 22.1 3x5x1 6x12x4 3x5x2 M2x5 5x10x4 REAR CAMBERLINK 2x10 POSITION 2x10 M3x2.5 M2x5 3x5x2 3x5x1 5x10x4 6x12x4...
  • Page 16 STEp 23 STEp 24 24.1 REAR ANTIROLL BAR ROD LENGTH M3x12 24.2 M2.3x4 M3x12 M2.3x4...
  • Page 17 STEp 26 STEp 25 Do not fully tighten M3x3 set screw till 25.1 26.1 M3x3 REAR CAMBER the anti-roll bar will be assembled and LINK LENGTH correctly placed in step 25.2. 9 mm REAR CAMBERLINK POSITION 25.2 M3x4 26.2 M3x4 Do not overtighten M3x4 M3x8 set screws to keep a free rotation of the antiroll bar.
  • Page 18: Front Ii Assembly

    fRONT II aSSEmbly STEp 27 STEp 28 bag 7 27.1 M3x2.5 M3x12 2x10 27.2 6x12x4 M2x5 5x10x4 2x10 M3x10 2x10 M3x2.5 M3x12 M2x5 M3x10 5x10x4 6x12x4...
  • Page 19 STEp 29 STEp 30 30.1 M3x3 Do not fully tighten M3x3 set screw till the anti-roll bar will be assembled and correctly placed in step 25.2. M3x6 30.2 M3x4 M3x4 Do not overtighten M3x4 M3x8 set screws to keep a free rotation of the antiroll bar.
  • Page 20 STEp 31 31.1 31.2 FRONT CAMBERLINK POSITION 3x5x1 3x5x1 REAR CAMBER 3x5x2 LINK LENGTH 11 mm 3x5x2 3x5x1...
  • Page 21: Shocks Assembly

    ShOCKS aSSEmbly STEp 32 STEp 33 ShOCKS bag 32.1 33.1 R2.3 Note the correct orientation of the For the correct piston holes please Use some silicone oil shock spacers . check the default setupsheet. during the assembly. R2.3 32.2 33.2 Use some silicone oil during the assembly.
  • Page 22: Step

    STEp 34 STEp 35 34.1 34.3 SHOCKS LENGTH: Assemble the spring and spring- cup (align correctly) to complete Measure the shock Push the shock top and 1-Bleed: push length fully extended. the shock. the membrane into the shockrod all the way shock cap.
  • Page 23 STEp 36 STEp 37 bag 8 M3x6 M3x6 FRONT SHOCKS DEFAULT POSITION M3x6 M3x6 M3x6...
  • Page 24 STEp 38 STEp 39 2x10 2x10 M3x6 M3x6 M3x8 M3x8 M3x6 REAR SHOCKS DEFAULT POSITION 2x10 M3x6 M3x6 M3x8...
  • Page 25: Final Assembly

    fINal aSSEmbly STEp 40 STEp 41 M3x8 M3x8 Nylock Nut M3 M3x10 M3x10 M3x10 M3x10 M3x8 M3x8 M3x8 M3x10 Nylock Nut M3 M3x8 M3x10...
  • Page 26 STEp 42 STEp 43 bag 9 Pinion is not included in the kit. Assemble the proper pinion for your set-up. 2x10 2x10 M3x10 2x10 M3x10 Body clip mid...
  • Page 27 STEp 44 Use double sided tape to mount the ESC, ELECTRONICS LAYOUT RX and the transponder to the chassis. M3x5 M3x5 M3x5...
  • Page 28 STEp 45 M3x6 M3x22 M3x6 M3x6 M3x22...
  • Page 29 STEp 46 M3x5 M3x5 M3x5...
  • Page 30 STEp 47 Use glass-tape to fix the battery to the chassis and battery holders. Nut M4 Flanged Nut M4 Flanged...
  • Page 31 DIff, mID aND fRONT ShafTS EXplODED VIEW mID aND fRONT ShafTS EXplODED VIEW ShOCKS EXplODED VIEW REaR I EXplODED VIEW fRONT I EXplODED VIEW STEERINg EXplODED VIEW REaR II EXplODED VIEW fRONT II EXplODED VIEW fINal I EXplODED VIEW fINal II EXplODED VIEW TEam SERpENT NETWORK...
  • Page 32 DIff EXplODED VIEWS 401594 110443 401598 110133 401593 110208 804176 401593 401598 804176 110443 804200 110208 401595 401570 opt 401594 110445 401592 Geardiff V3 composite 401594 110445 401570 Gerdiff 1/10 V2 shaft alu (2)
  • Page 33 mID aND fRONT ShafTS EXplODED VIEWS 120007 opt 120008 opt 120009 opt 120010 opt 120016 opt 120017 opt 120018 opt 110130 401359 110302 120019 opt 110215 120020 120021 opt 401366 401360 401427 opt 401360 401427 opt 110164 401600 110212 401533 opt 110302 401724 opt 401427 Pully 19T alu...
  • Page 34 ShOCKS EXplODED VIEW 160141 160129 160139 160136 160146 160140 160147 opt 411163 160138 6442 909405 411163 160137 160142 opt 160143 opt 160144 160145 opt 160148 opt 160149 opt 160130 160150 opt 160297 160151 opt 160298 160299 opt 160129 160300 opt 160301 opt 160302 opt 160303 opt...
  • Page 35 REaR I EXplODED VIEW 110124 110124 401392 401599 1344 401375 opt 401609 401592 401376 opt 401377 opt 401378 opt 401418 opt 1344 401419 opt 110410 401420 401353 401352 opt 401490 opt 110409 401426 401392 401597 401024 401468 opt 401585 opt 1652 401403 110410...
  • Page 36 fRONT I EXplODED VIEW 110157 401599 401399 110124 1311 110124 401351 1311 401350 opt 401392 401399 1344 110157 1344 401392 401391 401585 opt 401587 opt 411207 401635 opt 110130 401636 opt 401597 401024 401604 110410 401467 opt 110410 401386 401586 401024 110114 401637 opt...
  • Page 37 STEERINg EXplODED VIEW 110409 110409 110124 401589 411206 411253 110122 411187 110122 110108 401589 110183 110124 401429 110409 110108 110409 411206 401634 110124 401589 110122 110408 401372 411206 110410 411253 401429 110108 411206 401589 411206 401588 401429 401401 401372 110122 110122 401465 Steeringrack V2...
  • Page 38 REaR II EXplODED VIEW 110124 110115 401557 110116 401391 110116 411207 401358 401497 411206 401496 opt 110117 401498 opt 401411 401430 411187 401499 opt 411207 411206 110409 110409 110410 411187 401409 110162 401381 110409 110410 401394 401406 110208 1314 401461 opt 110153 401421 opt 401454...
  • Page 39 fRONT II EXplODED VIEW 411206 110124 401430 110115 411206 411557 411253 110117 110116 401379 401358 401455 401415 opt 401416 opt 401423 opt 401417 opt 401424 opt 110162 401425 opt 401411 401409 411187 401462 opt 401381 401394 110409 401406 110108 110409 110109 401410 110410...
  • Page 40 fINal I EXplODED VIEW 804293 opt 804293 opt 802211 802361 110208 110124 1652 802361 1667 110122 110208 110124 804293 opt 401584 802211 160135 802361 110208 1652 110108 110124 401577 opt 802361 401628 110124 110108 1667 110208 401583 401642 110108 401577 1652 802211 110122...
  • Page 41 fINal II EXplODED VIEW 1606 110108 110141 401495 401563 opt 401495 opt 110108 401431 opt 401607 401413 401627 opt 401413 401413 401413 401627 opt 110452 110129 110452 110157 110452 110157 110157 110452 401413 Battery mount (4) 401431 Topdeck carbon 2.5mm 401621 Motor fan mount S411 401464 Lipo-battery-holder carbon 411 (2) 401563 Topdeck carbon 1.75mm...
  • Page 42 TEam SERpENT NETWORK ERYX 4.1 SPARE PARTS www.serpent.com/400019/spares/ ERYX 4.1 OPTIONALS PARTS www.serpent.com/400019/Optionals/ SERPENT TOOLS www.serpent.com/product/Tools/ SERPENT MERCHANDISING www.serpent.com/product/Merchandising/...
  • Page 43 SERPENT WEBSITE AND BLOG www.serpent.com www.teamserpent.com www.dragon-rc.com SERPENT PROMO PAGES http://promo.serpent.com SERPENT FACEBOOK GROUPS http://promo.serpent.com/indexfb.htm SERPENT ADVANCED MANUALS http://promo.serpent.com/sam/ SERPENT SOCIAL MEDIA www.facebook.com/SerpentMRC www.youtube.com/user/SerpentMRC www.twitter.com/SerpentMRC www.plus.google.com/+SerpentModelcars/posts www.weibo.com/teamserpent...
  • Page 44 98119 1 Manual S411 4.1...
