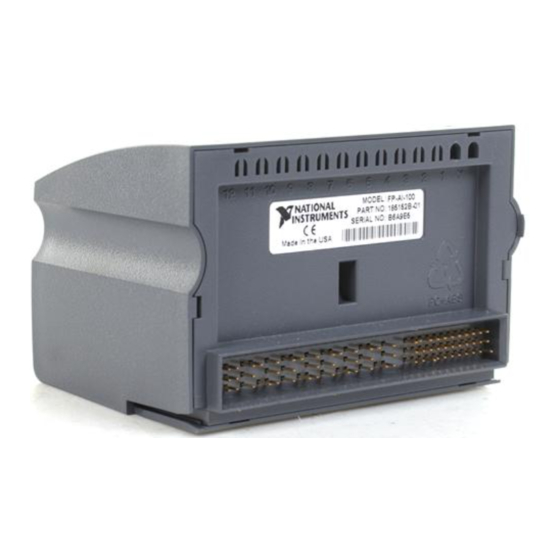

NI FP-AI-100 User Manual

Calibrating fieldpoint analog input modules with calibration executive
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER GUIDE
C
ALIBRATING
C
WITH
ALIBRATION
Contents
™
FieldPoint
, National Instruments
herein are trademarks or trade names of their respective companies.
323124A-01
F
P
IELD
OINT
E
XECUTIVE
Introduction ............................................................................................. 2
What Is Calibration? ........................................................................ 2
Why Should You Calibrate? ............................................................ 2
How Often Should You Calibrate? .................................................. 2
Equipment and Other Test Requirements ............................................... 2
Test Equipment ................................................................................ 2
Documentation................................................................................. 3
Software ........................................................................................... 4
Test Conditions ................................................................................ 5
Calibration Procedures ............................................................................ 5
Running the Calibration Executive Procedure................................. 13
Troubleshooting and Common Questions............................................... 14
Technical Support Resources.................................................................. 15
NI Web Support ............................................................................... 15
Worldwide Support.......................................................................... 15
™
™
™
, NI
, and ni.com
are trademarks of National Instruments Corporation. Product and company names mentioned
Copyright © 2001 National Instruments Corp. All rights reserved.
A
I
™
NALOG
M
NPUT
ODULES
July 2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP-AI-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NI FP-AI-100

Summary of Contents for NI FP-AI-100

  • Page 1: Table Of Contents

    Connecting the Calibrator to an FP-AI-1xx Module ...... 11 Connecting the Calibrator to an FP-RTD-122 Module ....12 Running the Calibration Executive Procedure......... 13 Troubleshooting and Common Questions..........14 Technical Support Resources..............15 NI Web Support ................15 Worldwide Support................15 ™ ™ ™...

  • Page 2: Introduction

    How Often Should You Calibrate? The measurement accuracy requirements of your application determine how often you should calibrate a FieldPoint AI module. NI recommends that you perform a complete calibration at least once every year. You can shorten this interval to 90 days or six months based on the demands of your application.

  • Page 3: Documentation

    Calibration Executive Software User Manual • FP-1000/1001 User Manual • FP-1000/1001 Quick Start Guide • Operating instructions for the AI module You can download these documents from the NI Web site at ni.com/manuals © National Instruments Corporation Calibrating FieldPoint AI Modules with Calibration Executive...

  • Page 4: Software

    Choose the Run option from the Start menu on the desktop task bar. In the command line box, enter (where is the letter x:\setup.exe of the CD-ROM drive you are using), then click OK. Follow the onscreen instructions to complete the installation. Calibrating FieldPoint AI Modules with Calibration Executive ni.com...

  • Page 5: Test Conditions

    Table 3 for the approximate times to complete the procedure in both automated and manual modes. Table 3. Approximate Time to Complete Calibration Executive Procedure Module Automated Mode Manual Mode FP-TC-120 10 minutes 15 minutes FP-AI-100 70 minutes 120 minutes FP-AI-110 20 minutes 30 minutes FP-AI-111 30 minutes 45 minutes...

  • Page 6: Configuring Your Fieldpoint Ai Module For Calibration

    Table 4 shows the available baud rates. The default baud rate for the FP-1000 is 115,200, which provides the fastest performance. You do not need to change this setting unless you experience communications problems. Calibrating FieldPoint AI Modules with Calibration Executive ni.com...
  • Page 7 Table 4. Baud Rate Switch Settings for the FP-1000/1001 Switch Positions 6–8 Network Module Baud Rate 1 2 3 4 5 6 7 8 1,200 1 2 3 4 5 6 7 8 2,400 1 2 3 4 5 6 7 8 9,600 1 2 3 4 5 6 7 8 19,200...
  • Page 8 In the Comm Resource Configuration dialog box, which is shown in Figure 4, select the port to which the FieldPoint system is connected. Make sure the baud rate matches what the network module is set to use, then click Find Devices. Calibrating FieldPoint AI Modules with Calibration Executive ni.com...
  • Page 9 Figure 4. Comm Resource Configuration 10. Expand the view to show the devices found on the network, as shown in Figure 5. If you do not see the module that you want to calibrate, the network module is not communicating correctly with either the host or the FieldPoint module.

  • Page 10: Connecting The Calibrator To An Fp-Tc-120 Module

    TB-Cal Calibration Terminal Base Connect RS-232 serial cable to COM port Connect to positive output (voltage) of calibrator Baud Rate Switches Connect to negative output (voltage) of calibrator Figure 6. FP-TC-120 Connections to Calibrator Calibrating FieldPoint AI Modules with Calibration Executive ni.com...

  • Page 11: Connecting The Calibrator To An Fp-Ai-1Xx Module

    Connecting the Calibrator to an FP-AI-1xx Module If you are calibrating an FP-AI-100, FP-AI-110, or FP-AI-111 module, make the connections shown in Figure 7. Connect the positive output (current) of the calibrator to terminal 2 of the calibration terminal base.

  • Page 12: Connecting The Calibrator To An Fp-Rtd-122 Module

    Connect terminal 2 to terminal 18 11-24 DC V Power Supply PS-2 Connect to positive output of calibrator RS-232 Serial Cable Connect to positive sense of calibrator 10 Baud Rate Switches Figure 8. FP-RTD-122 Connections to Calibrator Calibrating FieldPoint AI Modules with Calibration Executive ni.com...

  • Page 13: Running The Calibration Executive Procedure

    HTML file. You have completed calibrating your FieldPoint AI module with Calibration Executive. Note If the FieldPoint AI module fails after calibration, return it to NI for repair or replacement. © National Instruments Corporation Calibrating FieldPoint AI Modules with Calibration Executive...

  • Page 14: Troubleshooting And Common Questions

    In the FP-AI-100 current offset test, my test points are significantly out of specification. What causes this problem? The voltage terminals (1, 3, 5, 7, 9, 11, 13, and 15) on the calibration base might still be connected together from the voltage offset test.

  • Page 15: Technical Support Resources

    Technical Support Resources NI Web Support National Instruments Web support is your first stop for help in solving installation, configuration, and application problems and questions. Online problem-solving and diagnostic resources include frequently asked questions, knowledge bases, product-specific troubleshooting wizards, manuals, drivers, software updates, and more. Web support is available through the Technical Support section of ni.com.
