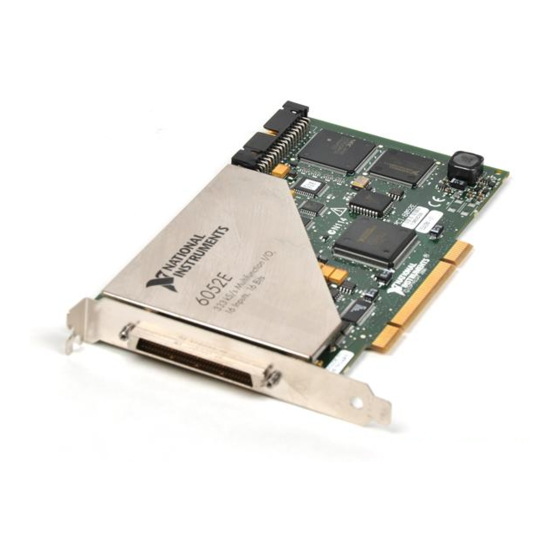

NI DAQ 6052E User Manual

Multifunction i/o devices for pci/pxi/1394 bus computers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DAQ
NI 6052E User Manual
Multifunction I/O Devices for
PCI/PXI/1394 Bus Computers
NI 6052E User Manual
October 2002 Edition
Part Number 370477C-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAQ 6052E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NI DAQ 6052E

Summary of Contents for NI DAQ 6052E

  • Page 1 NI 6052E User Manual Multifunction I/O Devices for PCI/PXI/1394 Bus Computers NI 6052E User Manual October 2002 Edition Part Number 370477C-01...
  • Page 2 Switzerland 056 200 51 51, Taiwan 02 2528 7227, United Kingdom 01635 523545 For further support information, see the Technical Support and Professional Services appendix. To comment on the documentation, send email to techpubs@ni.com. © 2001–2002 National Instruments Corporation. All rights reserved.
  • Page 3 Warranty The DAQPad-6052E, NI PCI-6052E, and NI PXI-6052E are warranted against defects in materials and workmanship for a period of one year from the date of shipment, as evidenced by receipts or other documentation. National Instruments will, at its option, repair or replace equipment that proves to be defective during the warranty period.
  • Page 4 Compliance FCC/Canada Radio Frequency Interference Compliance Determining FCC Class The Federal Communications Commission (FCC) has rules to protect wireless communications from interference. The FCC places digital electronics into two classes. These classes are known as Class A (for use in industrial-commercial locations only) or Class B (for use in residential or commercial locations).
  • Page 5 To obtain the DoC for this product, click Declaration of Conformity at . This Web site lists the DoCs ni.com/hardref.nsf/ by product family. Select the appropriate product family, followed by your product, and a link to the DoC appears in Adobe Acrobat format.

  • Page 6: Table Of Contents

    NI-DAQ......................1-4 National Instruments ADE Software...............1-5 Optional Equipment .......................1-6 Unpacking ........................1-6 Safety Information ......................1-7 Chapter 2 Installing and Configuring the NI 6052E Installing the Software ....................2-1 Installing the Hardware....................2-1 Configuring the NI 6052E .....................2-3 Chapter 3 Hardware Overview Analog Input ........................3-2 Input Mode ......................3-3...
  • Page 7 CONVERT* Signal ................4-32 AIGATE Signal ................4-33 SISOURCE Signal................4-33 SCANCLK Signal ................4-34 EXTSTROBE* Signal ..............4-35 Waveform Generation Timing Connections ........... 4-35 WFTRIG Signal................4-35 UPDATE* Signal ................4-36 UISOURCE Signal ................4-38 NI 6052E User Manual viii ni.com...
  • Page 8 Loading Calibration Constants ..................5-1 Self-Calibration......................5-2 External Calibration .......................5-2 Other Considerations .....................5-3 Appendix A Specifications Appendix B Custom Cabling and Optional Connectors Appendix C Common Questions Appendix D Technical Support and Professional Services Glossary Index © National Instruments Corporation NI 6052E User Manual...

  • Page 9: About This Manual

    Instruments PCI/PXI-6052E and the DAQPad-6052E and contains information about operation and programming. The NI 6052E is a high-performance multifunction analog, digital, and timing I/O device for PCI, PXI, or 1394 bus computers. Supported functions include analog input (AI), analog output (AO), digital I/O (DIO), and timing I/O (TIO).

  • Page 10: Related Documentation

    NI 6052E Refers to either the NI PCI-6052E, the NI PXI-6052E or the DAQPad-6052E, unless otherwise noted. NI PCI/PXI-6052E Refers to either the NI PCI-6052E or the NI PXI-6052E.

  • Page 11: Introduction

    Introduction This chapter describes the NI 6052E, lists what you need to get started, describes optional software and equipment, and explains how to unpack the device. About the NI 6052E Thank you for buying an NI 6052E. The device has the following features: •...
  • Page 12 DAQ devices in the computer. SCXI is the NI instrumentation front end for plug-in DAQ devices. The NI 6052E interfaces to an SCXI system so that you can acquire over 3,000 analog signals from thermocouples, resistance temperature detectors NI 6052E User Manual ni.com...

  • Page 13: Using Pxi With Compactpci

    CompactPCI Specifications, PICMG 2.0 R3.0. PXI-specific features are implemented on the J2 connector of the CompactPCI bus. Table 1-2 shows the J2 pins used by the NI PXI-6052E. The device is compatible with any CompactPCI chassis with a sub-bus that does not drive these lines.

  • Page 14: What You Need To Get Started

    Chapter 1 Introduction What You Need to Get Started To install and use the NI 6052E, you need the following items: ❑ One of the following devices: – NI PCI-6052E – NI PXI-6052E – DAQPad-6052E ❑ NI 6052E User Manual ❑...

  • Page 15: National Instruments Ade Software

    Computer or Workstation Figure 1-1. The Relationship Among the Programming Environment, NI-DAQ, and the Hardware To download a free copy of the most recent version of NI-DAQ, click Download Software at ni.com National Instruments ADE Software LabVIEW features interactive graphics, a state-of-the-art interface, and a powerful graphical programming language.

  • Page 16: Optional Equipment

    Using LabVIEW, Measurement Studio, or VI Logger greatly reduces the development time for your data acquisition and control application. Optional Equipment NI offers a variety of products to use with the NI 6052E, including the following items: • Cables and cable assemblies, shielded and ribbon •...

  • Page 17: Safety Information

    Remove the device from the package and inspect the device for loose components or any sign of damage. Notify NI if the device appears damaged in any way. Do not install a damaged device into the computer.
  • Page 18 MAINS is defined as the electricity supply system to which the equipment concerned is designed to be connected either for powering the equipment or for measurement purposes. NI 6052E User Manual ni.com...
  • Page 19 (<1,000 V) installation. Examples of Installation Category IV are electric meters, and measurements on primary overcurrent protection devices and ripple-control units. Below is a diagram of a sample installation. © National Instruments Corporation NI 6052E User Manual...

  • Page 20: Installing And Configuring The Ni 6052E

    Install NI-DAQ according to the instructions on the CD and the DAQ Quick Start Guide included with the device. It is important to install NI-DAQ before installing the NI 6052E to ensure that the Note device is properly detected.
  • Page 21 NI PXI-6052E onboard DMA controller using the ADE. Remove the filler panel for the slot that you chose. Insert the NI PXI-6052E into a 5 V PXI slot. Use the injector/ejector handle to fully insert the device into the chassis.

  • Page 22: Configuring The Ni 6052E

    DAQPad-6052E. When the computer recognizes the DAQPad-6052E, the LED labeled COM on the front panel blinks. Refer to the Configuring the NI 6052E section for information on LEDs. Verify that the power LED is on. Refer to the Configuring the NI 6052E section for information on LEDs.
  • Page 23 Chapter 2 Installing and Configuring the NI 6052E ♦ DAQPad-6052E The DAQPad-6052E is a completely software-configurable, Plug and Play instrument. The Plug and Play services query the instrument and allocate the required resources. The operating system enables the instrument for operation.

  • Page 24: Hardware Overview

    Hardware Overview This chapter presents an overview of the hardware functions on the NI 6052E. Figure 3-1 shows a block diagram for the NI PCI/PXI-6052E. Calibration Voltage Buffer DACs Control 16-Bit Analog Generic Mux Mode MITE Programmable Sampling Selection Interface...

  • Page 25: Analog Input

    DACs Figure 3-2. DAQPad-6052E Block Diagram Analog Input The AI section of the NI 6052E is software configurable. You can select different AI configurations through application software designed to control the device. The following sections describe the types of AI configurations.

  • Page 26: Input Mode

    (NRSE) mode, referenced single-ended (RSE) input mode, and differential (DIFF) mode. The NRSE and RSE modes provide up to 16 channels on the NI 6052E. DIFF mode provides up to eight channels on the NI 6052E. Input modes are programmed on a per channel basis for multiple mode scanning.

  • Page 27: Considerations For Selecting Input Ranges

    Chapter 3 Hardware Overview The software-programmable gains on the NI 6052E increase the overall flexibility of the device by matching the input signal ranges to those that the ADC can accommodate. Each device has gains of 0.5, 1, 2, 5, 10, 20, 50, and 100 and is suited for a wide variety of signal levels.

  • Page 28: Multiple-Channel Scanning Considerations

    Chapter 3 Hardware Overview Multiple-Channel Scanning Considerations The NI 6052E can sample multiple channels at the same maximum rate as the single-channel rate; however, pay careful attention to the settling time. Settling time is the time required for an amplifier, relays, or other circuits to reach a stable mode of operation.

  • Page 29: Analog Output

    Hardware Overview Analog Output The NI 6052E supplies two channels of AO voltage at the I/O connector. The reference and range for the AO circuitry is software configurable. The reference can be either internal or external, and the range can be either bipolar or unipolar.

  • Page 30: Analog Trigger

    Analog Trigger In addition to supporting internal software triggering and external digital triggering to initiate a DAQ sequence, the NI 6052E also supports analog triggering. You can configure the analog trigger circuitry to accept either a direct analog input from the PFI0/TRIG1 pin on the I/O connector or a postgain signal from the output of the PGIA, as shown in Figure 3-3.
  • Page 31 Figure 3-5. Above-High-Level Analog Triggering Mode In inside-region analog triggering mode, the trigger is generated when the signal value is between the lowValue and the highValue. highValue lowValue Trigger Figure 3-6. Inside-Region Analog Triggering Mode NI 6052E User Manual ni.com...
  • Page 32 AI section to acquire n scans after the AI signal crosses a specific threshold. You can configure the AO section to update its outputs whenever the AI signal crosses a specific threshold. © National Instruments Corporation NI 6052E User Manual...

  • Page 33: Digital I/O

    Timing Signal Routing The DAQ-STC provides a flexible interface for connecting timing signals to other devices or external circuitry. The NI 6052E uses the RTSI bus to interconnect timing signals between devices and the programmable function input (PFI) pins on the I/O connector to connect the device to external circuitry.

  • Page 34: Programmable Function Inputs

    I/O connector for different applications. You can individually enable each PFI pin to output a specific internal timing signal. For example, if you need the © National Instruments Corporation 3-11 NI 6052E User Manual...

  • Page 35: Device And Rtsi Clocks

    A/D conversions, DAC updates, or general-purpose signals at the I/O connector. The NI 6052E can use either its internal 20 MHz timebase or a timebase received over the RTSI bus on the RTSI clock line. This timebase is software configurable.

  • Page 36: Rtsi Triggers

    RTSI Triggers The RTSI trigger lines on the RTSI bus provide a flexible interconnection scheme for any NI 6052E that shares the RTSI bus. The NI PCI-6052E has seven trigger lines. These bidirectional lines can drive any of eight timing signals onto the RTSI bus and can receive any of these timing signals.
  • Page 37 RTSI cable. For the NI PXI-6052E, RTSI <0..5> connects to PXI Trigger<0..5>, respectively, through the NI PXI-6052E backplane. In PXI, RTSI<6> connects to PXI Star Trigger line, allowing the NI PXI-6052E to receive triggers from any Star Trigger controller plugged into slot 2 of the chassis.
  • Page 38 UISOURCE GPCTR1_SOURCE GPCTR1_GATE Clock Switch RTSI_OSC (20 MHz) Figure 3-12. NI DAQPad-6052E RTSI Bus Signal Connection Refer to the Connecting Timing Signals section of Chapter 4, Connecting Signals, for a description of the signals shown in Figures 3-10, 3-11, and 3-12.

  • Page 39: Connecting The Signals

    Figure 4-1 shows the pin assignments for the 68-pin I/O connector. Refer to Appendix B, Custom Cabling and Optional Connectors, for the pin assignments of the 50-pin connector. Refer to Table 4-2 for signal descriptions. © National Instruments Corporation NI 6052E User Manual...
  • Page 40 PFI0/TRIG1 11 45 EXTSTROBE* PFI1/TRIG2 10 44 DGND DGND PFI2/CONVERT* PFI3/GPCTR1_SOURCE DGND PFI4/GPCTR1_GATE PFI5/UPDATE* GPCTR1_OUT PFI6/WFTRIG DGND DGND PFI7/STARTSCAN PFI9/GPCTR0_GATE PFI8/GPCTR0_SOURCE GPCTR0_OUT DGND FREQ_OUT DGND Figure 4-1. I/O Connector Pin Assignment for the NI 6052E NI 6052E User Manual ni.com...
  • Page 41 DGND 30 29 AIGND Figure 4-2. I/O Connector Pin Assignment for the NI DAQPad-6052E with BNCs Table 4-2 lists the signal names, gives the signal references and directions, and describes all the signals for the NI 6052E. Table 4-2. I/O Connector Signal Descriptions...
  • Page 42 AOGND — — Analog Output Ground—This node serves as the reference for AO voltages. All three ground references—AIGND, AOGND, and DGND—are connected on the NI 6052E. DGND — — Digital Ground—This pin supplies the reference for the digital signals at the I/O connector and the +5 VDC supply. All three ground references—AIGND, AOGND, and DGND—are...
  • Page 43 0. GPCTR0_OUT DGND Output Counter 0 Output—This output is from the general-purpose counter 0 output. FREQ_OUT DGND Output Frequency Output—This output is from the frequency generator output. © National Instruments Corporation NI 6052E User Manual...

  • Page 44: External Expansion Connector

    Caution on the NI 6052E can damage the device and the computer. Maximum input ratings for each signal are given in the Protection column of Table 4-3. NI is not liable for any damage resulting from such signal connections. NI 6052E User Manual...
  • Page 45 50 kΩ pu – 0.4) PFI3/GPCTR1_SOURCE — + 0.5 3.5 at 5 at 0.4 50 kΩ pu – 0.4) PFI4/GPCTR1_GATE — + 0.5 3.5 at 5 at 0.4 50 kΩ pu – 0.4) © National Instruments Corporation NI 6052E User Manual...

  • Page 46: Analog Input Signal Connections

    Exceeding the maximum input voltage rating can damage the device and the computer. NI is not liable for any damage resulting from such signal connections. The maximum input voltage ratings are listed in the Protection column of Table 4-3.
  • Page 47 If you have a floating source, reference the signal to ground using the RSE input mode or the DIFF input mode with bias resistors. Refer to the Differential Connections for Nonreferenced or Floating Signal © National Instruments Corporation NI 6052E User Manual...

  • Page 48: Types Of Signal Sources

    If a ground-referenced signal source is incorrectly measured, this difference can appear as a measurement error. The connection instructions for grounded signal sources are designed to eliminate this ground potential difference from the measured signal. NI 6052E User Manual 4-10 ni.com...

  • Page 49: Input Configurations

    The following sections discuss the use of single-ended and differential input modes and considerations for measuring both floating and ground-referenced signal sources. Figure 4-5 summarizes the recommended input configuration for both types of signal sources. © National Instruments Corporation 4-11 NI 6052E User Manual...
  • Page 50 AIGND Ground-loop losses, V , are added to measured signal. – AISENSE – AISENSE – – Single-Ended — Nonreferenced (NRSE) AIGND AIGND See text for information on bias resistors. Figure 4-5. Analog Input Configurations NI 6052E User Manual 4-12 ni.com...

  • Page 51: Differential Connections (Diff Input Mode)

    The signal leads travel through noisy environments. Differential signal connections reduce noise pickup and increase common-mode noise rejection. Differential signal connections also allow input signals to float within the common-mode limits of the PGIA. © National Instruments Corporation 4-13 NI 6052E User Manual...

  • Page 52: Differential Connections For Nonreferenced Or Floating Signal Sources

    Chapter 4 Connecting the Signals Differential Connections for Nonreferenced or Floating Signal Sources Figure 4-6 shows how to connect a floating signal source to a channel on the NI 6052E configured in DIFF mode. ACH+ Bias Resistors (see text) Floating...
  • Page 53 AIGND. If the source has high output impedance, balance the signal path as previously described, using the same value resistor on both the positive and negative inputs. Some gain error is produced by loading down the source. © National Instruments Corporation 4-15 NI 6052E User Manual...

  • Page 54: Differential Connections For Ground-Referenced Signal Sources

    Chapter 4 Connecting the Signals Differential Connections for Ground-Referenced Signal Sources Figure 4-7 shows how to connect a ground-referenced signal source to a channel on the NI 6052E configured in DIFF mode. ACH+ Ground- Referenced Instrumentation Signal Amplifier Source –...

  • Page 55: Single-Ended Connection Considerations

    Using application software, you can configure the NI 6052E channels for RSE or NRSE mode. RSE mode is used for floating signal sources. In this case, the NI 6052E provides the reference ground point for the external signal. NRSE mode is used for ground-referenced signal sources.

  • Page 56: Single-Ended Connections For Floating Signal Sources (Rse Configuration)

    NI 6052E ground and the signal ground appears as a common-mode signal at both the positive and negative inputs of the PGIA, and the amplifier rejects this difference. If the input circuitry of the NI 6052E were referenced to ground, as in the RSE configuration, this difference in ground potentials appears as an error in the measured voltage.

  • Page 57: Common-Mode Signal Rejection Considerations

    Common-Mode Signal Rejection Considerations Figures 4-7 and 4-9 show connections for signal sources that are already referenced to some ground point with respect to the NI 6052E. In these cases, the PGIA can reject any voltage caused by ground potential differences between the signal source and the device.

  • Page 58: Connecting Analog Output Signals

    Switch Figure 4-11. BNC Connector Wiring Connecting Analog Output Signals The AO signals are DAC0OUT, DAC1OUT, EXTREF, and AOGND. DAC0OUT and DAC1OUT are the voltage output signals for AO channels 0 and 1, respectively. NI 6052E User Manual 4-20 ni.com...
  • Page 59 The external reference signal can be either a DC or an AC signal. The device multiplies this reference signal by the DAC code (divided by the full-scale DAC code) to generate the output voltage. © National Instruments Corporation 4-21 NI 6052E User Manual...

  • Page 60: Connecting Digital I/O Signals

    Caution Exceeding the maximum input voltage ratings listed in Table 4-3 can damage the device and the computer. NI is not liable for any damage resulting from such signal connections. Figure 4-13 shows signal connections for three typical DIO applications.

  • Page 61: Power Connections

    Do not connect these +5 V power pins directly to analog or digital ground or to any other voltage source on the device or any other device. Doing so can damage the device and the computer. NI is not liable for damage resulting from such a connection. © National Instruments Corporation...

  • Page 62: Connecting Timing Signals

    Exceeding the maximum input voltage ratings listed in Table 4-3 can damage the Caution device and the computer. NI is not liable for any damage resulting from such signal connections. All external control over the timing of the device is routed through the ten PFIs labeled PFI0 through PFI9.

  • Page 63: Programmable Function Input Connections

    You can use the polarity selection for any timing signal, but the edge or level detection depends on the particular timing signal being controlled. The detection requirements for each timing signal are listed in the corresponding sections. © National Instruments Corporation 4-25 NI 6052E User Manual...

  • Page 64: Data Acquisition Timing Connections

    Pretriggered data acquisition allows you to view data that is acquired before the trigger of interest in addition to data acquired after the trigger. Figure 4-16 shows a typical pretriggered sequence. The description for each signal shown in these figures is included in this chapter. NI 6052E User Manual 4-26 ni.com...

  • Page 65: Trig1 Signal

    PFI. The output is an active high pulse with a pulse width of 50 to 100 ns. This output is set to high-impedance at startup. © National Instruments Corporation 4-27 NI 6052E User Manual...

  • Page 66: Trig2 Signal

    The selected edge of TRIG2 initiates the posttriggered phase of a pretriggered sequence. In pretriggered mode, the TRIG1 signal initiates the acquisition. The scan counter (SC) indicates the minimum number of scans before TRIG2 is recognized. After the SC NI 6052E User Manual 4-28 ni.com...
  • Page 67 Figures 4-19 and 4-20 show the input and output timing requirements for TRIG2. Rising-Edge Polarity Falling-Edge Polarity = 10 ns minimum Figure 4-19. TRIG2 Input Signal Timing = 50 to 100 ns Figure 4-20. TRIG2 Output Signal Timing © National Instruments Corporation 4-29 NI 6052E User Manual...

  • Page 68: Startscan Signal

    , after the last conversion in the scan is initiated. This output is set to high-impedance at startup. Figures 4-21 and 4-22 show the input and output timing requirements for STARTSCAN. Rising-Edge Polarity Falling-Edge Polarity = 10 ns minimum Figure 4-21. STARTSCAN Input Signal Timing NI 6052E User Manual 4-30 ni.com...
  • Page 69 Scans generated by either an internal or external STARTSCAN are inhibited unless they occur within a sequence. Scans occurring within a sequence can be gated by either the hardware AIGATE signal or the software command register gate. © National Instruments Corporation 4-31 NI 6052E User Manual...

  • Page 70: Convert* Signal

    Figures 4-23 and 4-24 show the input and output timing requirements for CONVERT*. Rising-Edge Polarity Falling-Edge Polarity = 10 ns minimum Figure 4-23. CONVERT* Input Signal Timing = 50 to 150 ns Figure 4-24. CONVERT* Output Signal Timing NI 6052E User Manual 4-32 ni.com...

  • Page 71: Aigate Signal

    Separate the CONVERT* pulses by at least one conversion period. The sample interval counter on the NI 6052E generates CONVERT* unless you select an external source. The STARTSCAN signal starts the counter, which counts down and reloads itself until the scan finishes. The counter then reloads itself in preparation for the next STARTSCAN pulse.

  • Page 72: Scanclk Signal

    This signal has a 400 to 500 ns pulse width and is software enabled. Figure 4-26 shows the timing for SCANCLK. Note The polarity of SCANCLK is not software selectable when programmed using NI-DAQ. It is a positive polarity pulse. CONVERT* SCANCLK = 50 to 100 ns = 400 to 500 ns Figure 4-26.

  • Page 73: Extstrobe* Signal

    EXTSTROBE*. A 10 µs and a 1.2 µs clock are available for generating a sequence of eight pulses in the hardware-strobe mode. Figure 4-27 shows the timing for the hardware-strobe mode EXTSTROBE* signal. You cannot control EXTSTROBE using NI-DAQ. Note = 600 ns or 5 s Figure 4-27.

  • Page 74: Update* Signal

    DACs, even if the updates are externally generated by another PFI. The output is an active low pulse with a pulse width of 300 to 350 ns. This output is set to high-impedance at startup. NI 6052E User Manual 4-36 ni.com...
  • Page 75 UPDATE* pulses with enough time so that new data can be written to the DAC latches. The NI 6052E UI counter normally generates UPDATE* unless you select an external source. The UI counter is started by the WFTRIG signal and can be stopped by the application software or the internal buffer counter (BC).

  • Page 76: Uisource Signal

    The general-purpose timing signals are as follows: • GPCTR0_SOURCE Signal • GPCTR0_GATE Signal • GPCTR0_OUT Signal • GPCTR0_UP_DOWN Signal • GPCTR1_SOURCE Signal • GPCTR1_GATE Signal • GPCTR1_OUT Signal • GPCTR1_UP_DOWN Signal • FREQ_OUT Signal NI 6052E User Manual 4-38 ni.com...

  • Page 77: Gpctr0_Source Signal

    You can use the gate signal in different applications to perform actions such as starting and stopping the counter, generating interrupts, and saving the counter contents. © National Instruments Corporation 4-39 NI 6052E User Manual...

  • Page 78: Gpctr0_Out Signal

    Figure 4-35. GPCTR0_OUT Signal Timing GPCTR0_UP_DOWN Signal This signal can be externally input on the DIO6 pin and is not available as an output on the I/O connector. The general-purpose counter 0 counts down NI 6052E User Manual 4-40 ni.com...

  • Page 79: Gpctr1_Source Signal

    As an input, GPCTR1_GATE is configured in edge-detection mode. You can select any PFI pin as the source for GPCTR1_GATE and configure the polarity selection for either rising or falling edge. You can use the gate © National Instruments Corporation 4-41 NI 6052E User Manual...

  • Page 80: Gpctr1_Out Signal

    This output is set to high-impedance at startup. Figure 4-38 shows the timing requirements for GPCTR1_OUT. GPCTR1_SOURCE GPCTR1_OUT (Pulse on TC) GPCTR1_OUT (Toggle output on TC) Figure 4-38. GPCTR1_OUT Signal Timing NI 6052E User Manual 4-42 ni.com...

  • Page 81: Gpctr1_Up_Down Signal

    The gate must be valid (either high or low) for at least 10 ns before the rising or falling edge of a source signal for the gate to take effect © National Instruments Corporation 4-43 NI 6052E User Manual...

  • Page 82: Freq_Out Signal

    SOURCE input or to one of the internally generated clock signals on the NI 6052E. Figure 4-39 shows the OUT signal referenced to the rising edge of a source signal. Any OUT signal state changes occur within 80 ns after the rising or falling edge of the source signal.
  • Page 83 • Separate NI 6052E signal lines from high-current or high-voltage lines. These lines can induce currents in or voltages on the NI 6052E signal lines if they run in parallel paths at a close distance. To reduce the magnetic coupling between lines, separate them by a reasonable distance if they run in parallel or run the lines at right angles to each other.

  • Page 84: Calibration

    This chapter discusses the calibration procedure for the device. Calibration is the process of minimizing measurement and output voltage errors by making small circuit adjustments. On the NI 6052E, these adjustments take the form of writing values to onboard calibration DACs (CalDACs).

  • Page 85: Self-Calibration

    Self-Calibration The device can measure and correct for almost all of its calibration-related errors without any external signal connections. NI software provides a self-calibration method, which generally takes less than a minute and is the preferred method of ensuring accuracy in your application. Initiate self-calibration to minimize the effects of any offset, gain, and linearity drifts, particularly those due to the device not being fully warmed up.

  • Page 86: Other Considerations

    Chapter 5 Calibration For a detailed calibration procedure for the NI 6052E, refer to the E Series Calibration Procedure by clicking Manual Calibration Procedures at ni.com/calibration Other Considerations The CalDACs adjust the gain error of each AO channel by adjusting the value of the reference voltage supplied to that channel.

  • Page 87: Appendix A Specifications

    Specifications This appendix lists the specifications of the NI 6052E. These specifications are typical at 25 °C unless otherwise noted. Analog Input Input Characteristics Number of channels PCI/PXI-6052E, DAQPad-6052E ......16 single-ended or 8 differential (software-selectable) Type of ADC.......... Successive approximation Resolution ..........
  • Page 88 Appendix A Specifications NI 6052E Accuracy Information Relative Absolute Accuracy Accuracy Noise + Nominal Range (V) % of Reading Quantization (µV) Resolution (µV) Temp Positive Negative Offset Single Drift Single 24 Hours 90 Days 1 Year (µV) Avg. (%/°C) Avg.
  • Page 89 Input impedance Normal powered on ......100 GΩ in parallel with 100 pF Powered off........820 Ω min Overload.......... 820 Ω min Input bias current ........±200 pA Input offset current......... ±100 pA © National Instruments Corporation NI 6052E User Manual...
  • Page 90 15 µs max, gain 5 to 10 15 µs typ, gain 20 to 100 Settling times valid for source impedances <1 kΩ. Refer to the Multiple-Channel Scanning Considerations section of Chapter 3, Hardware Overview, for more information. NI 6052E User Manual ni.com...
  • Page 91 EEPROM) Temperature coefficient ....±0.6 ppm/°C max Long-term stability ......±6 ppm/ 1,000h Analog Output Output Characteristics Number of channels ....... 2 voltage Resolution ..........16 bits, 1 in 65,536 © National Instruments Corporation NI 6052E User Manual...
  • Page 92 Max update rate ........333 kS/s Type of DAC ..........Double buffered, multiplying FIFO buffer size........2,048 samples Data transfers ..........DMA, interrupts, programmed I/O DMA modes ...........Scatter-gather NI PCI/PXI-6052E and DAQPad-6052E Accuracy Information Absolute Accuracy Nominal Range (V) % of Reading Offset Temp Drift...
  • Page 93 Settling time for full-scale step ....3.5 µs to ±1.0 LSB accuracy Settling time for half-scale step ..... 3.0 µs to ±1.0 LSB accuracy Slew rate..........15 V/µs Noise ............60 µV , DC to 1 MHz © National Instruments Corporation NI 6052E User Manual...
  • Page 94 Input high current (V = 5 V) — Output low voltage (I = 24 mA) — 0.4 V Output high voltage (I = 13 mA) 4.35 V — Power-on state ........Input (high-impedance) Data transfers ..........Programmed I/O NI 6052E User Manual ni.com...
  • Page 95 Data transfers ......... DMA, interrupts, programmed I/O DMA modes........... Scatter-gather Triggers Analog Trigger Source NI PCI/PXI-6052E, DAQPad-6052E ......ACH<0..15>, PFI0/TRIG1 Level............± full-scale, internal; ±10 V, external Slope............Positive or negative (software-selectable) © National Instruments Corporation NI 6052E User Manual...
  • Page 96 Digital Trigger Compatibility ..........TTL Response ..........Rising or falling edge Pulse width ..........10 ns min RTSI Trigger lines NI PCI/PXI-6052E ......7 DAQPad-6052E.......4 Clock line..........1 Bus Interface Type NI PCI/PXI-6052E ......Master, slave DAQPad-6052E.......Master, slave, asynchronous, 400 Mb/s NI 6052E User Manual A-10 ni.com...
  • Page 97 9–24 VDC ..........20 Ω Physical Dimensions (not including connectors) NI PCI-6052E ......... 17.5 by 10.6 cm (6.9 by 4.2 in.) NI PXI-6052E ......... 16 by 10 cm (6.3 by 3.9 in.) DAQPad-6052E ......30.7 by 25.4 by 4.3 cm (12.1 by 10 by 1.7 in.)
  • Page 98 Appendix A Specifications Safety The NI 6052E meets the requirements of the following standards for safety and electrical equipment for measurement, control, and laboratory use: • EN 61010-1:1993/A2:1995, IEC 61010-1:1990/A2:1995 • UL 3101-1:1993, UL 3111-1:1994, UL 3121:1998 • CAN/CSA c22.2 no. 1010.1:1992/A2:1997...
  • Page 99 Mating connectors and a backshell kit for making custom 68-pin cables are available from NI. The following list gives recommended part numbers for other connectors that mate to the I/O connector on the NI 6052E: • Honda 68-position, solder cup, female connector •...
  • Page 100 Custom Cabling and Optional Connectors Optional Connectors Refer to Figure 4-1, I/O Connector Pin Assignment for the NI 6052E, for the pin assignments for the 68-pin connector. This connector is available when you use the SH6868EP or R6868 cable assemblies with the NI 6052E.
  • Page 101 What is the DAQ-STC? The DAQ-STC is the system timing control application-specific integrated circuit (ASIC) designed by NI and is the backbone of the E Series devices. The DAQ-STC contains seven 24-bit counters and three 16-bit counters. The counters are divided into the following three groups: •...
  • Page 102 What jumpers should I be aware of when configuring the device? The PCI-6052E, PXI-6052E, and DAQPad-6052E are jumperless and switchless. Which NI document should I read first to get started using DAQ software? The DAQ Quick Start Guide and the NI-DAQ documentation or ADE release notes are good places to start.
  • Page 103 The NI-DAQ User Manual for PC Compatibles contains example code and describes the general programming flow when using the NI-DAQ C API. For a list of functions that support the NI 6052E, refer to the NI-DAQ Function Reference Help (NI-DAQ 6.7 or later) or the NI-DAQ Function Reference Manual for PC Compatibles (NI-DAQ 6.6 or earlier).
  • Page 104 (MSB) of the D/A code switches. You can build a low-pass deglitching filter to remove some of these glitches, depending on the frequency and nature of the output signal. Refer to the Analog Output Reglitch section of Chapter 3, Hardware Overview, for more information about reglitching. NI 6052E User Manual ni.com...
  • Page 105 For example, can I configure ACH 0 in DIFF input mode and ACH1 in RSE input mode? You can enable channels on the NI 6052E to acquire in different modes, but different pairs of channels are used in different modes. In the example configuration given above, ACH0 and ACH8 are configured in DIFF mode and ACH1 and AIGND are configured in RSE mode.
  • Page 106 Appendix C Common Questions Figure C-1. Configuring Channels for Different Acquisition Modes in LabVIEW To enable multiple mode scanning in using NI-DAQ functions, call the function for each channel. AI_Configure How can I use the STARTSCAN and CONVERT* signals on the...
  • Page 107 Do the counter/timer applications that I previously wrote work with the DAQ-STC? If you are using NI-DAQ with LabVIEW, some of your applications drawn using the CTR VIs do still run. However, there are many differences in the counters between the E Series and other devices. The counter numbers are...
  • Page 108 I/O connector, route external signals to internal timing sources, or tie internal timing signals together. If you are using NI-DAQ with LabVIEW and you want to connect external signal sources to the PFI lines, you can use AI Clock Config, AI Trigger...
  • Page 109 For example, DIO(0) is in the high-impedance state after power on, and Table 1-2, Pins Used by the NI PXI-6052E, shows that there is a 50 kΩ pull-up resistor. This pull-up resistor sets the DIO(0) pin to a logic high when the output is in a high-impedance state.
