OptiView XG Network Analysis Tablet
Getting Started Guide
1
3
2
GLZ23.EPS

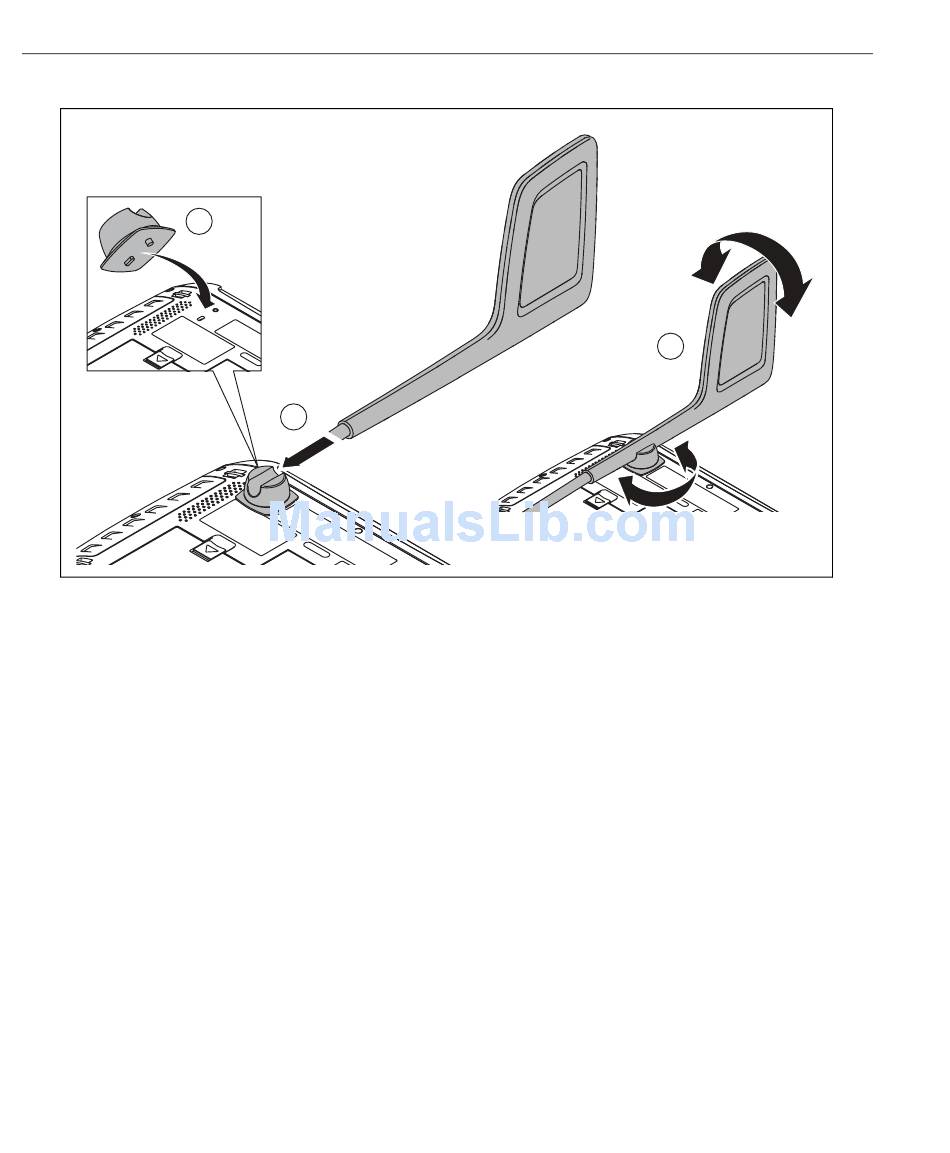

Figure 16. Attaching and Swiveling the Directional Antenna
Power Connector
Connect only the supplied AC adapter to the power connector. Connection of any other power
source may damage the OptiView XG. See page 13 for the location of the power connector.
VGA Port for External Monitor
You can connect an external monitor or projector to the VGA port. When connecting to a
projector, go to the Windows 7 Control Panel and select Connect to a projector under the
Hardware and Sound heading. See page 11 for the location of the VGA port.
36
