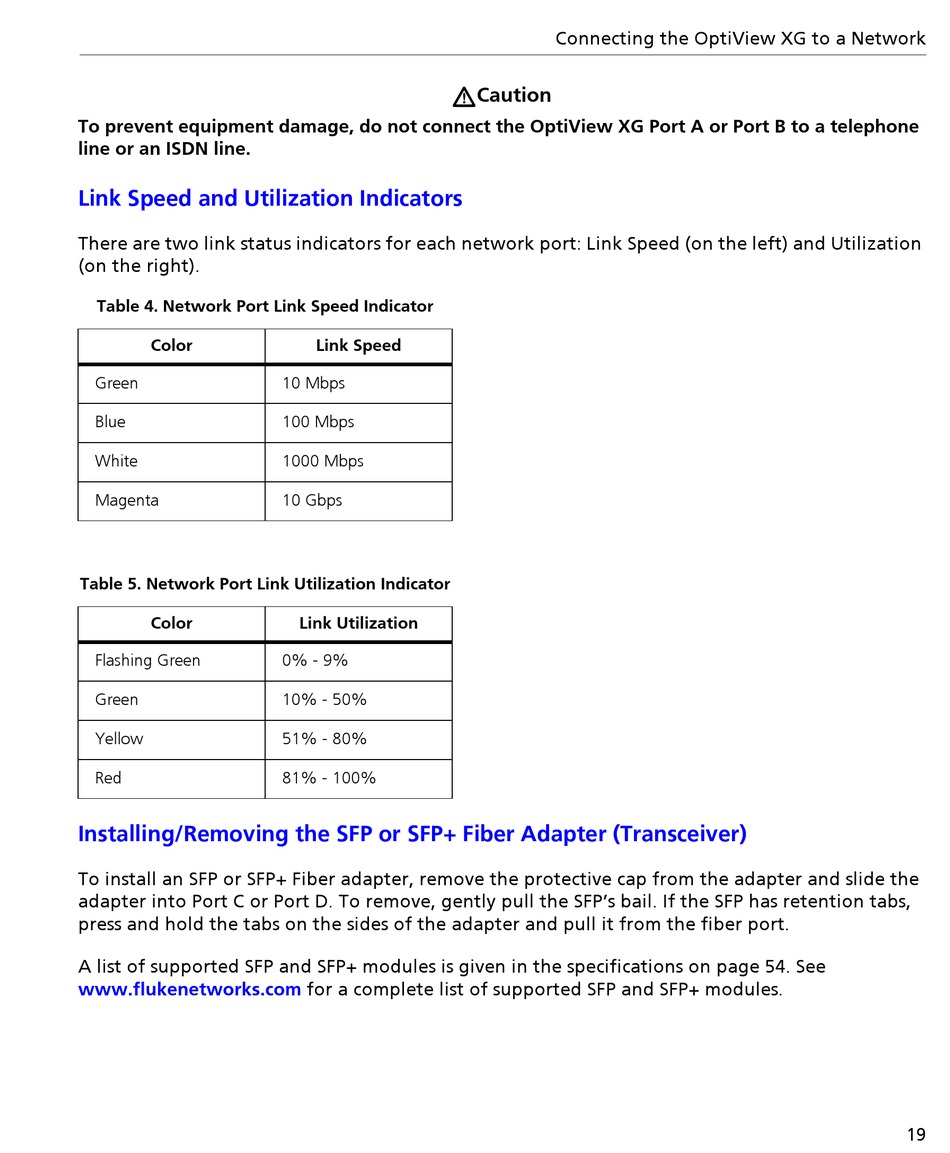

Fluke OPTIVIEW XG Getting Started Manual page 23

To prevent equipment damage, do not connect the OptiView XG Port A or Port B to a telephone
line or an ISDN line.
Link Speed and Utilization Indicators
There are two link status indicators for each network port: Link Speed (on the left) and Utilization
(on the right).
Table 4. Network Port Link Speed Indicator
Color
Green
Blue
White
Magenta
Table 5. Network Port Link Utilization Indicator
Color
Flashing Green
Green
Yellow
Red
Installing/Removing the SFP or SFP+ Fiber Adapter (Transceiver)
To install an SFP or SFP+ Fiber adapter, remove the protective cap from the adapter and slide the
adapter into Port C or Port D. To remove, gently pull the SFP's bail. If the SFP has retention tabs,
press and hold the tabs on the sides of the adapter and pull it from the fiber port.
A list of supported SFP and SFP+ modules is given in the specifications on page 54. See
www.flukenetworks.com
Caution
Link Speed
10 Mbps
100 Mbps
1000 Mbps
10 Gbps
Link Utilization
0% - 9%
10% - 50%
51% - 80%
81% - 100%
for a complete list of supported SFP and SFP+ modules.
Connecting the OptiView XG to a Network
19
