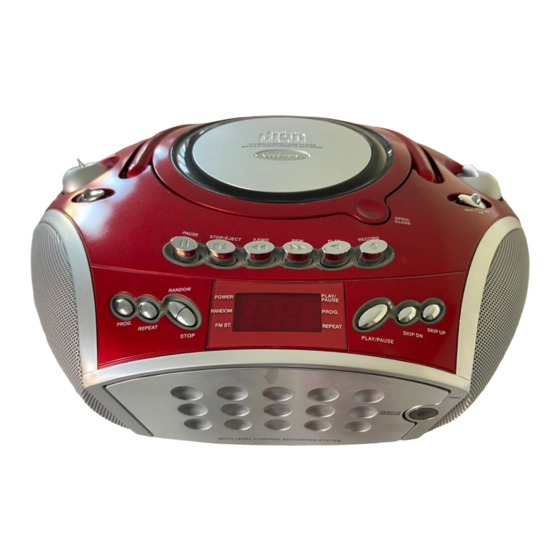

Goodmans GPS158RR Instruction Manual

Stereo radio cassette recorder compact disc player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
STEREO RADIO CASSETTE RECORDER
COMPACT DISC PLAYER
GPS158RR/GPS158RS
Instruction Manual
SPECIFICATIONS
Programme Play ............................................Up to 20 tracks
Earphone output ............................................
Power requirement ........................................AC 230V/50Hz
Dimension .....................................................
Weight ...........................................................Approx. 2.244Kg (not including batteries)
For improvement purposes, specification and design are subject to change without notice.
Goodmans Product Information Helpline 0870 873 0080
20mW x 2 (32
)
Approx. 319(L) X 261.7(W) X 123.3(H) mm
IMPORTANT SAFEGUARDS
PRE FITTED MAINS PLUGS
For your convenience a mains plug has been fitted to this appliance. For your safety please
observe the following information.
1. Should the fuse in the plug remove the plug from the wall socket and replace the fuse with a 3
Amp ASTA approved to BS 1362 fuse.
2. Never use the plug without the fuse cover fitted. Replacement fuse covers are available from
your dealer or most electrical retail outlets.
3. If the mains plug is cut off the cable, rewire the replacement plug in accordance with
instruction given in this manual.
4. CAUTION: Under no circumstances should the discarded plug be inserted mains socket. To
prevent a shock hazard carefully dispose of the discarded plug. Do not leave the plug lying
around where children might see it.
WARNING:
To prevent fire or shock hazard do not expose this unit to rain or moisture.
CAUTION: DANGEROUS VOLTAGES EXIST INSIDE THIS UNIT, DO NOT REMOVE COVER
(OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL. DISCONNECT FROM MAINS SUPPLY
WHEN NOT IN USE.
PLUG WIRING DETAILS
E
L
BLUE
FUSE
BROWN
N
CORD
GRIP
WARNING: UNDER NO CIRCUMSTANCES MUST THE LIVE OR NEUTRAL WIRES BE
CONNECTED TO THE EARTH TERMINAL IN A 3-PIN MAINS PLUG.
This symbol means that this unit is double insulated.
An earth connection is not required.
The wires in this mains lead are coloured in
accordance with the following wiring codes:
Blue................................................. Neutral
Brown................................................... Live
The wires in this mains lead must be
connected to the terminals in the plugs as
follows:
Blue Wire..................................... N or Black
Brown Wire..................................... L or Red
Only a 3 Amp fuse should be fitted in the plug
or a 5 Amp fuse at the distribution board.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPS158RR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Goodmans GPS158RR

Summary of Contents for Goodmans GPS158RR

  • Page 1 20mW x 2 (32 Power requirement ........AC 230V/50Hz Dimension ............. Approx. 319(L) X 261.7(W) X 123.3(H) mm Weight ............Approx. 2.244Kg (not including batteries) For improvement purposes, specification and design are subject to change without notice. Goodmans Product Information Helpline 0870 873 0080...

  • Page 2: Important Notes

    CAUTION IMPORTANT NOTES CLASS 1 LASER PRODUCT Use of Controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Your hearing is very important to you and to us so please take care when operating LASER SAFETY this equipment.

  • Page 3: Safety Precautions

    TABLE OF CONTENTS SAFETY PRECAUTIONS 1. POWER SOURCES Power Sources ..........1 1. As the laser beam used in this compact AC MAINS OPERATION BATTERY OPERATION disc player is harmful to the eyes, do not Player Maintenance..........2 attempt to disassemble the casing. Disc Cleaning, Power failure....

  • Page 4: Disc Cleaning, Power Failure

    3. DISC CLEANING, POWER FAILURE 4. LOCATION OF CONTROLS Cleaning the Disc PHONES JACK 9 10 VOLUME CONTROL 12 13 3. FUNCTION SWITCH 1. To handle a disc use only one of the two 4. PAUSE BUTTON manners illustrated. 5. STOP/EJECT BUTTON CD DOOR NOTE: Do not touch the rainbow-colored...

  • Page 5: Radio Operation

    5. RADIO OPERATION 6. LISTENING TO A COMPACT DISC TO PLAY THE RADIO PLAYING A COMPACT DISC 1. Slide the FUNCTION Switch to RADIO position. This set is designed to play only compact 2. Select required wave band with BAND discs bearing this identification logo Switch.

  • Page 6: Program Play Operation

    6. When you finished programming, press SKIPPING TRACKS (SEARCH) PLAY/PAUSE Button. 7. The Display will show the track number 1. This function enables you to find the being played, and the PROG indicator beginning of any desired track during will remain steadily on during program play.
  • Page 7 REPEAT PLAY ALL SONGS TO PLAY A CASSETTE TAPE To repeat ALL SONGS on a disc and play 1. Open the Cassette Door by pressing the them again and again. Cassette STOP/EJECT Button (in some 1. Press REPEAT Button twice. cases, you may have to press the 2.
  • Page 8 RECORDING FROM THE BUILT-IN 11. RECORDING FROM RADIO/MICROPHONE/CD MICROPHONE 1. Load the cassette tape into the Cassette Door (full reel or spool on right side). RECORDING FROM RADIO 2. Check the position of the FUNCTION Switch to make sure it is in the TAPE 1.

  • Page 9: Product Specifications

    7. Press the Cassette PAUSE Button 13. PRODUCT SPECIFICATIONS when you wish to start recording. 8. Press the Cassette STOP/EJECT Button to stop the recording. 9. To hear what you recorded, slide the PICK-UP FUNCTION switch to TAPE position, System Compact disc digital audio system press REWIND Button and PLAY Button.
