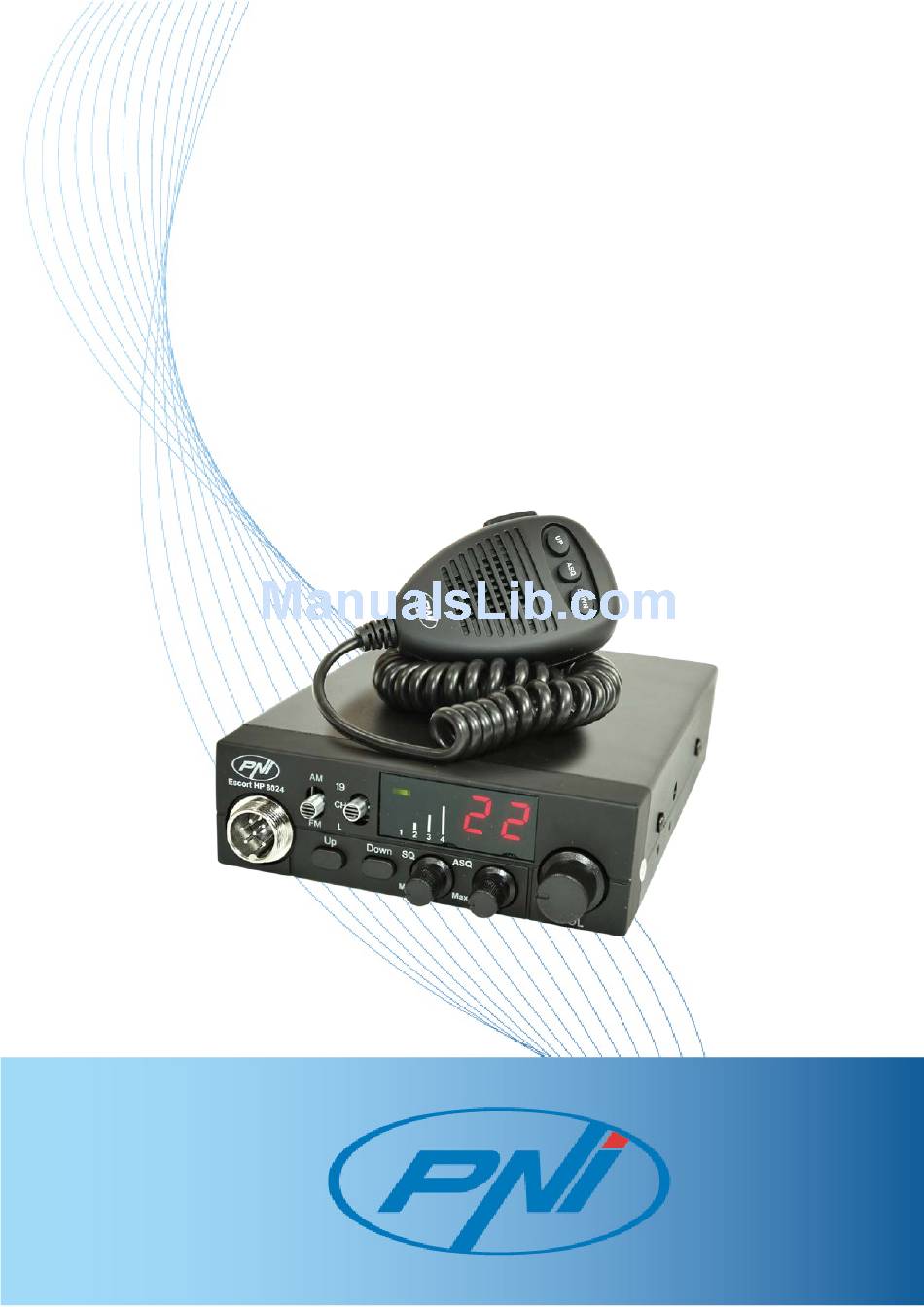

- Page 1 USER MANUAL CB RADIO PNI ESCORT HP 8024 ASQ adjustable ASQ, dual voltage 12V – 24V...
-
Page 2: Table Of Contents
Before connecting and using this product, please read carrefully these instruction manual and keep it for later use. THERE ARE NO COMPONENTS THAT CAN BE REPAIRED BY THE USER. FOR REPAIRS PLEASE REFER TO A N AUTHORIZED SERVICE. ATENTION: TO PREVENT FIRE HAZZARDS USE PROPER POWER SOURCE. CONTENTS 1. -
Page 3: Main Features
1. Main Features • 40 AM/FM channels • Mode AM/FM switch • Emergency channel selector (19) • Keypad lock function • UP/DOWN buttons for channel selection • Signal LED indicators • 2 digit channel indicator • Volume knob with power ON/OFF control •... -
Page 4: Product Description

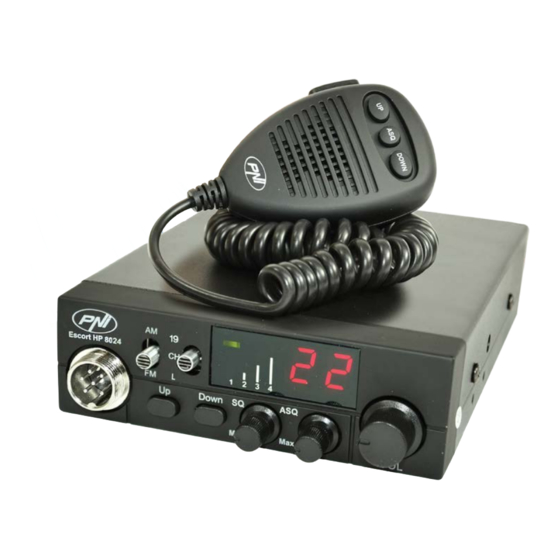

3. Product description 1. MICROPHONE connector : Connect the supplied electric condenser microphone to this connector, and then lock it via the ring nut. 2. UP KEY : Press this key and channel NO. runs up. 3. DOWN KEY : Press this key channel NO. runs down. 4. -
Page 5: Installation
11.DISPLAY: digital display shows the channel. 12. Antenna connector 13. Power cord 14. EXT (External Speaker) Jack 15. PTT (Push-to-talk) key: Push the button to talk then release to receiving mode. 16. UP key 0f the microphone: This switch allows increasing a channel number. 17. - Page 6 operate without disturbing or interfering driving. Use the supplied bracket and hardware to install the radio. The bracket screws must be well tightened to avoid looseness as the vehicle vibrates. The car mounting bracket can be installed over or below the radio and the radio may be inclined as desired according to the specific type of installation (under dashboard or track cabin roof installation).
-
Page 7: Standard Change
5. Standard change To change the working standard of the radio follow the next instructions: • When the radio is off, press the Down button simultaneously and PTT on the microphone and then turn on the station, keeping the buttons pressed. •... - Page 8 Italy 34CH AM/FM 4 watt Germany 80 CH FM 4watt/ 12 CH AM 1watt Germany 40 CH FM 4watt/ 12 CH AM 1watt Europe 40 CH FM 4 watt/ 40 CH AM 1watt Romania CEPT 40 CH FM 4watt Spain 40 CH AM/FM 4watt France 40 CH FM 4watt/ 40 CH AM 1watt GB 40 CH FM 4watt english frequencies + EC 40 CH FM 4 watt CEPT frequencies...
