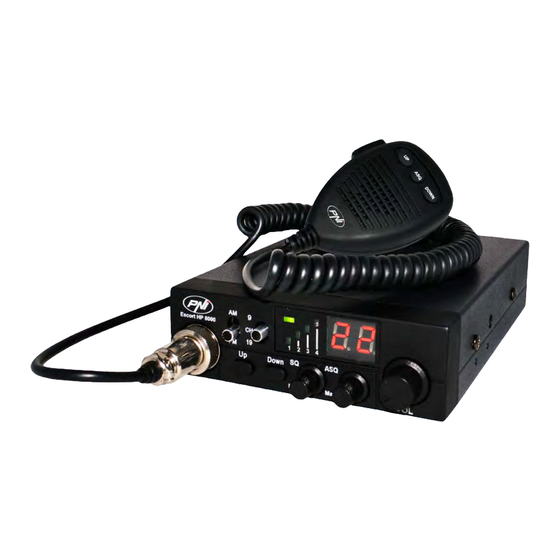

- Page 1 User Manual CB Radio PNI Escort HP 8000 ASQ...
-
Page 2: Table Of Contents
Before connecting and using this product, please read carrefully these instruction manual and keep it for later use. THERE ARE NO COMPONENTS THAT CAN BE REPAIRED BY THE USER. FOR REPAIRS PLEASE REFER TO A N AUTHORIZED SERVICE. ATENTION: TO PREVENT FIRE HAZZARDS USE PROPER POWER SOURCE. CONTENTS 1. -
Page 3: Main Features
1. Main Features • 40 AM/FM channels • P/E Frequency band selectable （Russia and EU band switchable ） • Mode AM/FM switch • RSSI indication (4 PCS LED indications) • 2 Digit channel indicator • RF gain control • Volume with power ON/OFF control •... -
Page 4: Product Description
Maximum RF power 4W FM la 13.8Vdc Modulation 85% la 90% (AM) 3KHz ±0.2 KHz (FM) ANT impedance 50 Ohm Current drain 3. Product description 1. MICROPHONE connector : Connect the supplied electric condenser microphone to this connector, and then lock it via the ring nut. 2. - Page 5 7. AM/FM mode selector: This switch allows selecting the modulation mode AM/ FM. 8. Emergency channel or function mode selector: with this button you can select one of the emergency channels 9/19 or the normal CH functioning mode. In the CH mode you can select the number of the channel you want to use.
-
Page 6: Installation
4. Installation Before installing the main unit in the vehicle, please check and select the most convenient position, in order that the radio will be easy to reach and comfortable to operate without disturbing or interfering driving. Use the supplied bracket and hardware to install the radio. -
Page 7: Usefull Tips
connecting the antenna to the radio, it is necessary to check the correct operation of the antenna with low standing wave ratio (S.W.R.) via adequate instruments. If not, the transmitter circuit of the radio could be damaged. The antenna usually must be installed on the highest part of the vehicle, free from obstacles and as far away as possible from any source of electric or electromagnetic noise. - Page 8 Europe 40 CH FM 4 watt/ 40 CH AM 1watt Romania CEPT 40 CH FM 4watt Spain 40 CH AM/FM 4watt France 40 CH FM 4watt/ 40 CH AM 1watt GB 40 CH FM 4watt English frequencies + EC 40 CH FM 4 watt CEPT frequencies Specifications subject to change without notice!
