Summary of Contents for Toa SR-C8LWP

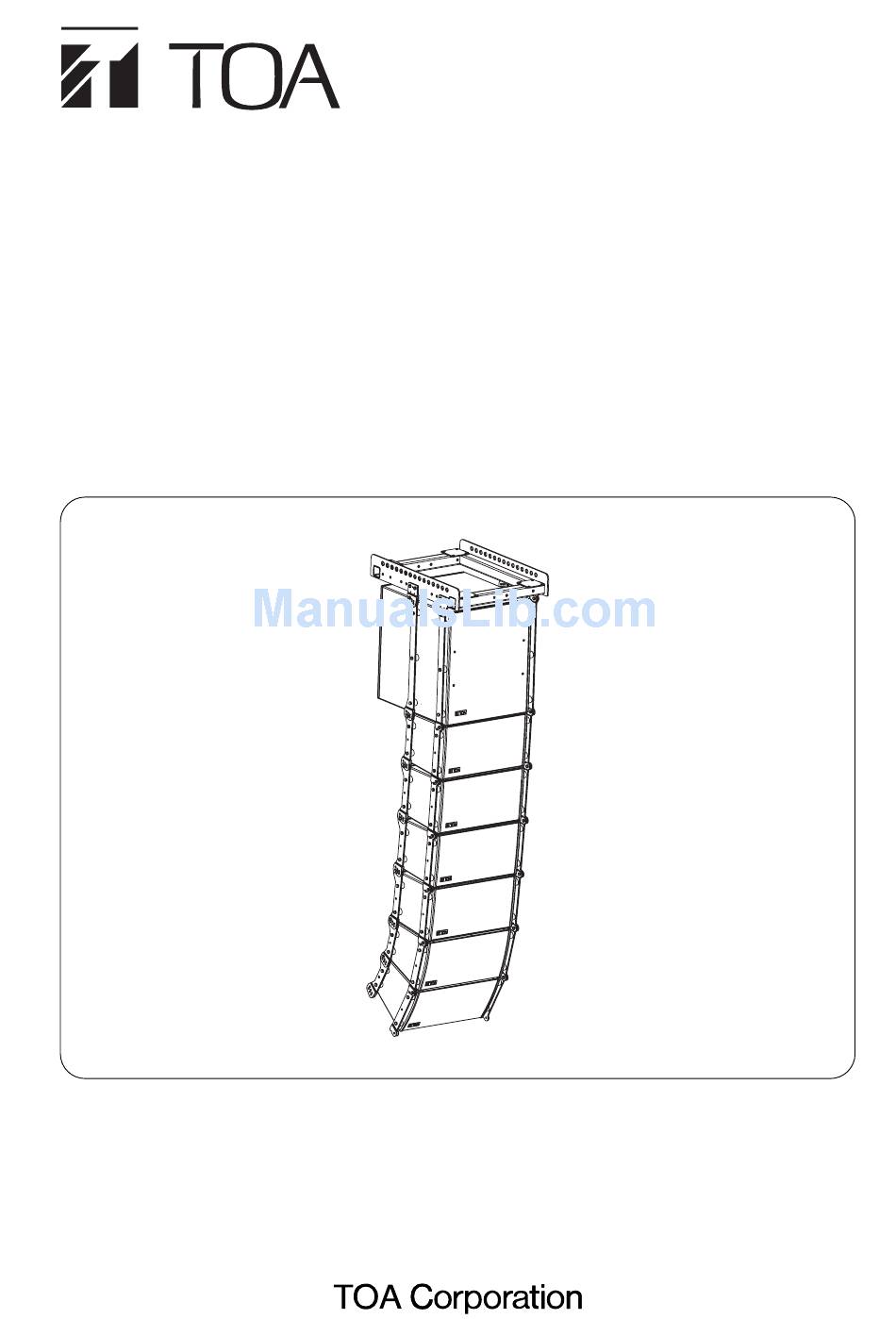

- Page 1 OPERATING INSTRUCTIONS LINE ARRAY SPEAKERS SR-C8LWP SR-C8SWP (SPLASH-PROOF TYPE) SR-C15BWP RIGGING FRAME SR-RF8WP (SPLASH-PROOF TYPE) Thank you for purchasing TOA Line Array Speaker. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment...
-
Page 2: Table Of Contents
......9 8. DIGITAL PROCESSOR SETTINGS 8.1. SR-C8LWP and SR-C8SWP Systems ................10 8.2. Combined SR-C8LWP or SR-C8SWP and SR-C15BWP Systems ....... 11 9. FLYING SYSTEMS USING THE SR-RF8WP RIGGING FRAME 9.1. Flying System Outline ....................12 9.2. Assembling the SR-RF8WP Rigging Frame ..............15 9.3. -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS • Be sure to read this safety instructions in this section carefully in prior to use. • Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or cautions regarding safety. • After reading, keep this manual handy for future reference. Safety Symbol and Message Conventions Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling. - Page 4 When the Unit is in Use CAUTION • Do not operate the unit for an extended period of time with the sound distorting. Doing so may cause When Installing the Unit the connected speakers to heat, resulting in a fire. •...
-
Page 5: General Description
• The SR-C8LWP is a two-way speaker mounting a high-power 20 cm woofer and two compression drivers, and featuring a 5 degree angle of vertical directivity and 110 degrees of horizontal. It is ideal for long distance applications and can be powered by either one or two amplifiers. -
Page 6: Dimensional Diagrams
5. DIMENSIONAL DIAGRAMS 5.1. Speaker Systems 5.1.1. SR-C8LWP Line array speaker Unit: mm (Rear view) 526.6 [20.73"] 470 [18.5"] 296 [11.65"] Green LOW (+) Black LOW (-) Red HIGH (+) (Left side view) (Front view) (Right side view) White HIGH (-) 5.1.2. -
Page 7: Sub-Woofer Speaker System
5.2. Sub-Woofer Speaker System 5.2.1. SR-C15BWP Line array speaker Unit: mm (Rear view) 526.6 [20.73"] 470 [18.5"] 550 [21.65"] Green Input (+) Black Input (-) Red NC (Left side view) (Front view) (Right side view) White NC 5.3. Frame 5.3.1. SR-RF8WP Rigging frame 25 [0.98"] 167 [6.58"] Unit: mm... -
Page 8: Bi-Amplifier And Single-Amplifier Operations
(Refer to page 9. "Switching to Single-Amplifier Operation Mode.") 6.1. Bi-Amplifier Operation 6.1.1. System diagram Woofer HIGH HIGH Mixer/ Digital Tweeter preamplifier processor Power amplifier SR-C8LWP/C8SWP 6.1.2. Internal wiring diagram Woofer Green LOW + Black LOW - HIGH + White HIGH - Tweeter Speaker cable 6.2. -
Page 9: Switching To Single-Amplifier Operation Mode
7. SWITCHING TO SINGLE-AMPLIFIER OPERATION MODE To switch the speaker's bi-amplifier operation mode to single-amplifier operation, remove the speaker's rear input panel and change the speaker's internal wiring. Switching Power Modes Step 1. Remove the four screws securing the input terminal panel and pull out the panel. Step 2. -
Page 10: Digital Processor Settings
8. DIGITAL PROCESSOR SETTINGS Set the digital processor's parameters as follows: 8.1. SR-C8LWP and SR-C8SWP Systems 8.1.1. Bi-amplifier operation Filter Gain Delay Channel Polarity (dB) (msec) TYPE Freq. (Hz) Gain (dB) Pre-stage Filter 1.6k –4.0 1.414 LPF (12 dB) 2.0k 0.707... -
Page 11: Combined Sr-C8Lwp Or Sr-C8Swp And Sr-C15Bwp Systems
8.2. Combined SR-C8LWP or SR-C8SWP and R-C15BWP Systems 8.2.1. Bi-amplifier operation Filter Gain Delay Polarity Channel (dB) (msec) TYPE Freq. (Hz) Gain (dB) Pre-stage Filter 1.6k 1.414 HPF (12 dB) 2.053 LPF (6 dB) Normal SR-C15B 1.896 (Positive) LPF (12 dB) 1.432... -
Page 12: Flying Systems Using The Sr-Rf8Wp Rigging Frame
SR-C8LWP speakers together. Shown below is a basic flying system. Rigging frame SR-C15BWP SR-C8LWP SR-C8SWP The line array speaker's vertical directivity angle is 5 degrees for the SR-C8LWP and 15 degrees for the SR- C8SWP. [SR-C8LWP] [SR-C8SWP] 5 degrees 15 degrees... - Page 13 Notes • The speaker's splash-proof capabilities meet IPX4 requirements. However, always make sure that the speaker is installed in locations (such as under a roof or eaves, etc.) not directly exposed to rain or snow. • Be sure to install the speaker so that its air hole is positioned downward. In this case, the brand mark should be situated on the lower left corner of the speaker.
- Page 14 This flying system consists of four SR-C8LWP units, two SR-C8SWP units and one SR-C15BWP unit. To enhance long-distance sound transmission capabilities, the four SR-C8LWPs are linked together at overlap angles of four, two and one degree. As a result of this, the system's overall vertical directivity angle is 43 degrees.
-
Page 15: Assembling The Sr-Rf8Wp Rigging Frame
9.2. Assembling the SR-RF8WP Rigging Frame Assemble the rigging frame referring to the figure below. Ensure that fixing plates are correctly secured using two bolts (including plain and spring washers) supplied with the rigging frame for each plate. Since each fixing plate has its own installation position and orientation, refer to the figure for correct assembly. Be sure that the forward mounting holes are always used in flying applications. -
Page 16: Connecting The Rigging Frame To The Speaker
Connect the rigging frame to the speaker referring to the figures below. Confirm the positioning of the horn (SR-C8LWP and SR-C8SWP only), then correctly mount the rigging frame to the speaker by tightening the supplied nuts and bolts from both left and right sides. -
Page 17: Connection Between Speakers
9.4. Connection Between Speakers Inter-connect speaker sections referring to the figures below. Ensure that both speakers are securely connected by tightening the supplied nuts and bolts from both left and right sides. Since connection holes for setting the overlap angle are provided at the back of the speaker, assemble using the connection holes matching the required overlap angle. -
Page 18: About The Flying Installations
9.5. About the Flying Installations Cautions • Suspension wires and shackles are not supplied with the speaker. Separately prepare and use those which are strong enough to suspend the speaker system. Further, ensure that the ceiling structure from which the speaker system is suspended is also robust and capable of supporting the system's total weight. -
Page 19: Specifications
10. SPECIFICATIONS 10.1. SR-C8LWP and SR-C8SWP Model No. SR-C8LWP SR-C8SWP Enclosure Bass-reflex type Allowable Input Continuous program: 360 W (single-amplifier operation) Low frequency: 360 W, high frequency: 180 W (bi-amplifier operation) 16 Ω (single-amplifier operation) Rated Impedance Low frequency: 16 Ω, high frequency: 16 Ω (bi-amplifier operation) -
Page 20: Sr-Rf8Wp
10.3. SR-RF8WP Applicable Speaker SR-C8LWP, SR-C8SWP, SR-C15BWP No. of Mountable Speakers Flying: Max. 12 speakers (optional SR-C15BWP is counted as 2 units) Finish Stainless steel plate, black, paint Dimensions 510 (w) x 167 (h) x 690 (d) mm (bolted parts excluded)
