Toa SR-F05 Instruction Manual

SPEAKER SYSTEMS
Thank you for purchasing TOA's Speaker system.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

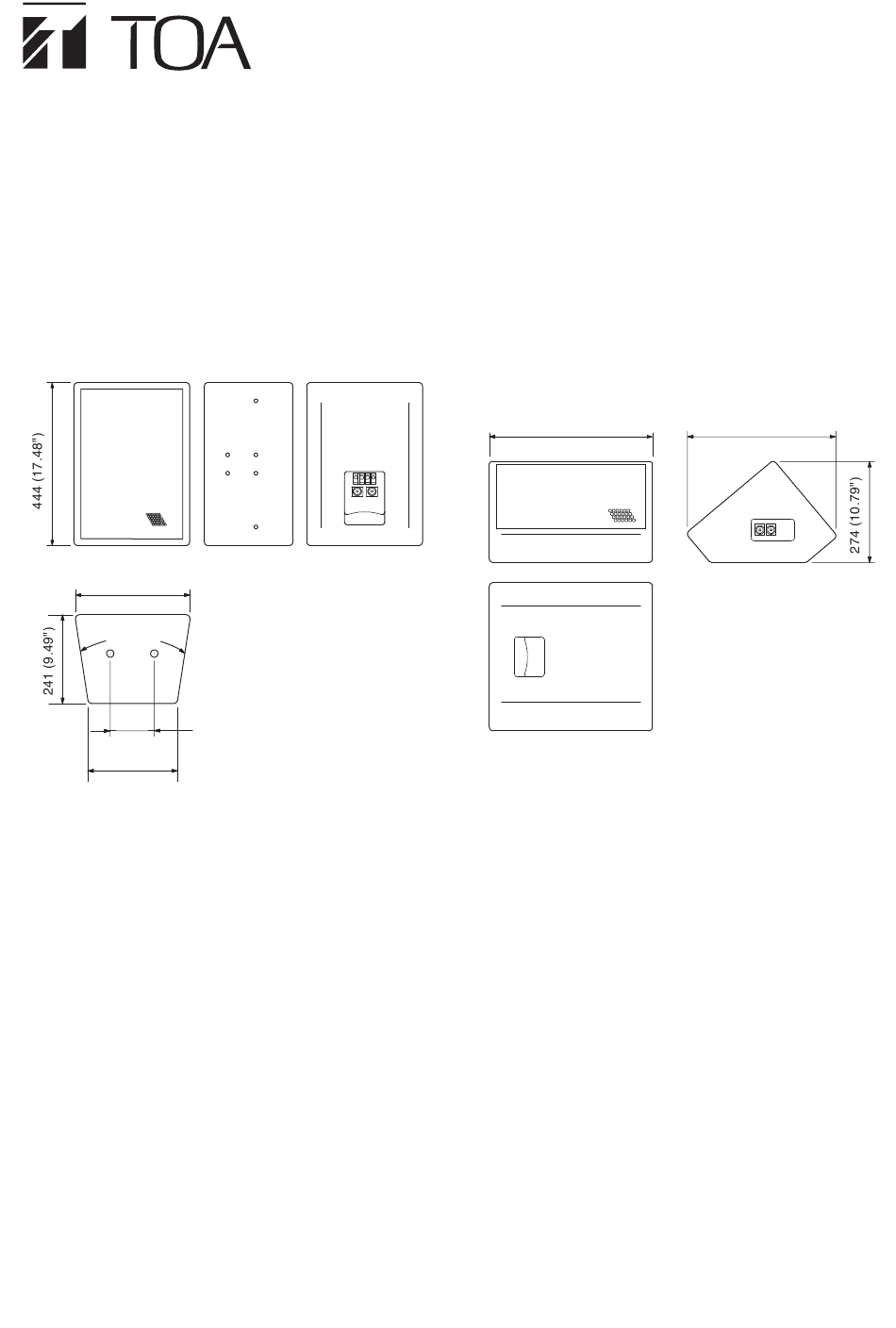

[SR-F05]
315 (12.4")
(17.5°)
241 (9.49")

1. FEATURES

• Developed for the sound reinforcement (SR) market, the speaker features high power handling capacity, high
quality sound, and heavy-duty construction.

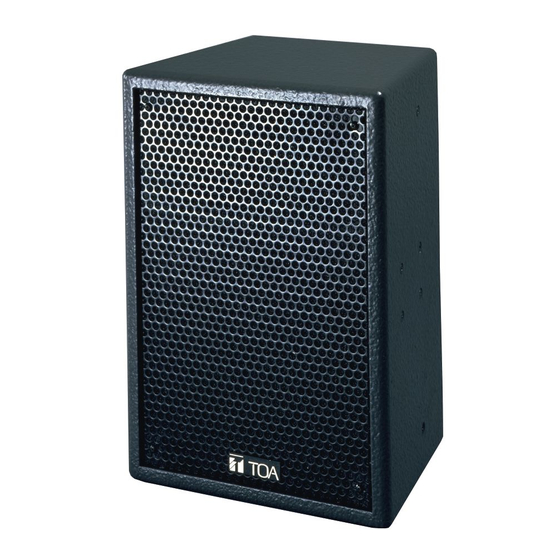

• The SR-F05 is a compact, trapezoidal, full-range speaker system and can be used as a main speaker or sub-
speaker. The SR-M05L and SR-M05R are floor monitor speakers, and they are symmetrical.
• An internal passive network enables the speaker to be driven by a single power amplifier. (The Digital
Processor must be used together.)

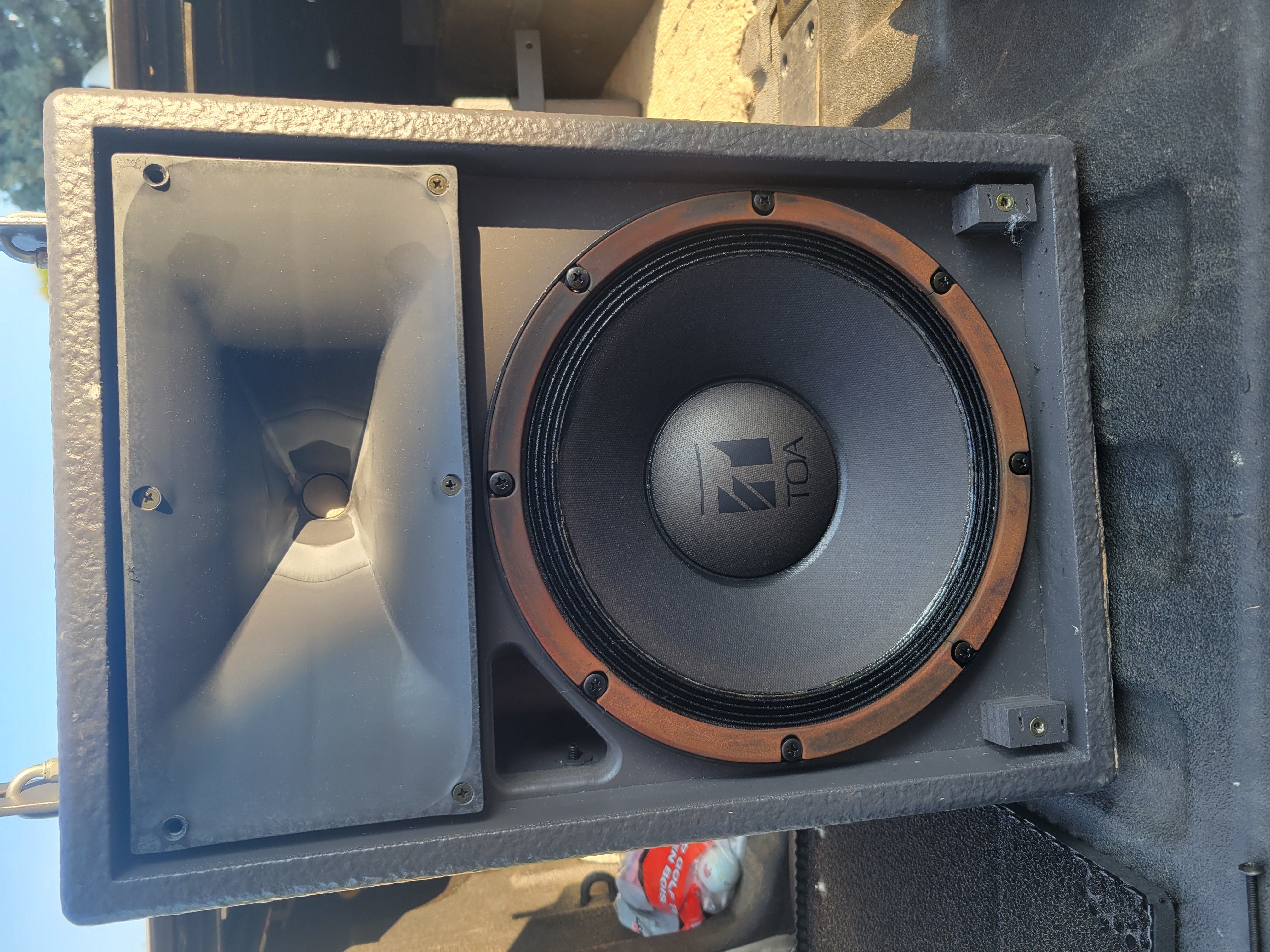

• The speaker has a high-efficiency 25 cm (10") woofer with a large magnet (180 mm or 7" in diameter), and a
tweeter with a high power driver employing a titanium diaphragm.
• The SR-F05's HF horn is a constant directivity (CD) horn to provide a 90° horizontal by 40° vertical dispersion.
The SR-M05's HF horn is a CD horn to provide a 40° horizontal by 40° vertical dispersion.
• The SR-F05 can be installed on an optional speaker stand without using any extra mounting device.
In addition, it can be mounted to the ceiling, wall, and ceiling pipe if optional mounting kits are used.
• The rugged MDF (medium density fiber) board enclosure (18 mm or 0.7" in thickness) is finished with shock-
resistant urethane coating.
• Input connectors are Neutrik NL4MPXXs. The SR-F05 also comes with a screw terminal besides the Neutrik
connectors if it is used for permanent installation applications (engineering sound market).
120 (4.7")
INSTRUCTION MANUAL
[SR-M05L]
444 (17.48")
SR-F05
SR-M05L
SR-M05R
404 (15.91")
Note
SR-M05L and SR-M05R
are symmetrical.
Unit : mm (in)
