Clock Generator; Anomaly Insertion; Defect Generation - Wavetek ANT-20 Operating Manual

ANT-20/ANT-20E
Fig. S-3
Block&Replace
In PDH mode not possible.
3.1.1

Clock generator

Drop&Insert
As specified in the "Specifications" of the mainframe instrument.
Through Mode
In Through Mode, clock generation is always derived from the receive signal clock.
No signal offset is possible in this operating mode (see also the "Specifications" of the
mainframe instrument).
3.1.2

Anomaly insertion

Drop&Insert
As specified in Sec. 1.4, Page S-2.
Through Mode
Anomaly insertion is not possible.
3.1.3

Defect generation

Drop&Insert
As specified in Sec. 1.5, Page S-2.
Through Mode
Defect generation is not possible.
Specifications

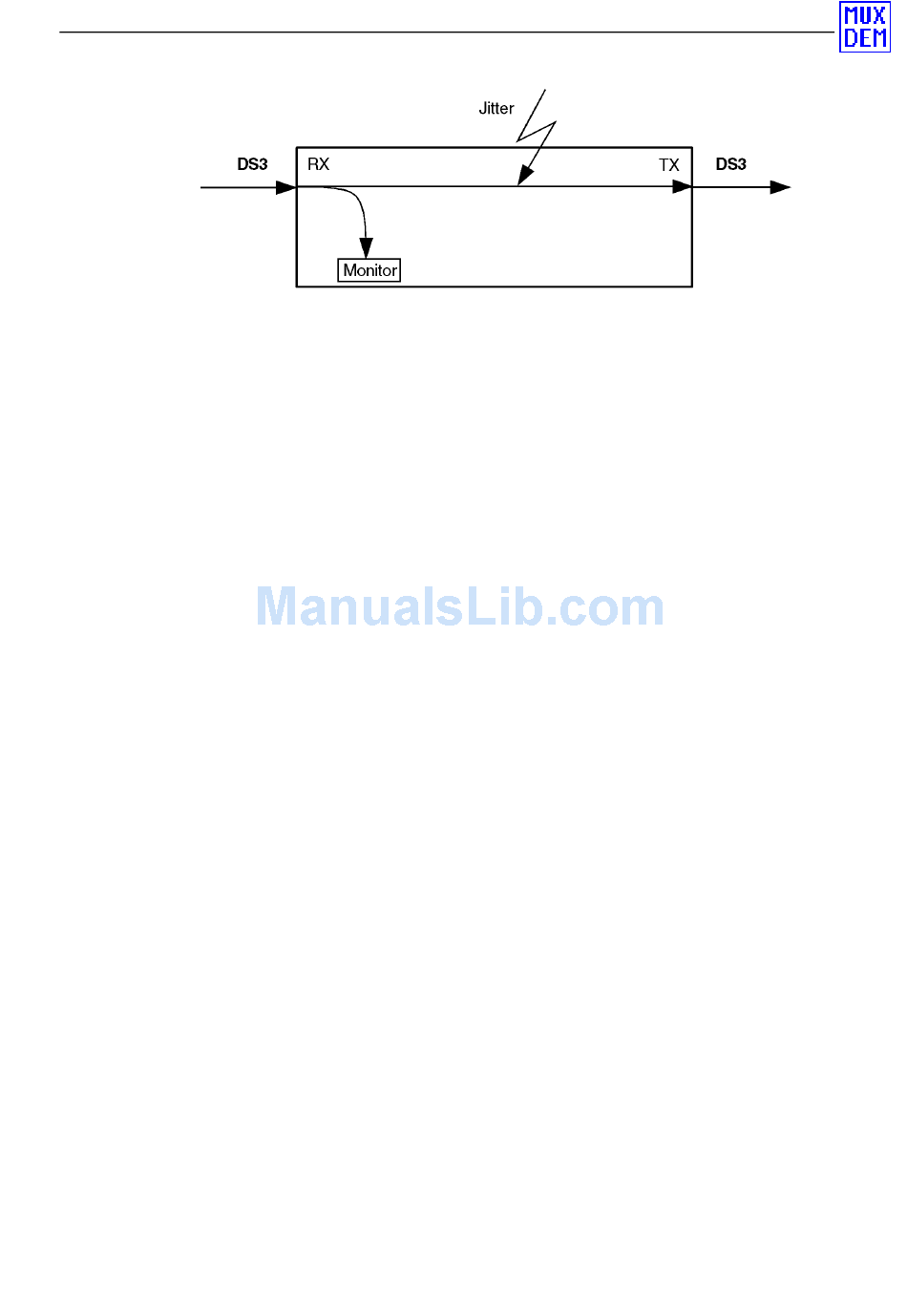

Through Mode: Adding jitter to the looped-through signal
M13 MUX/DEMUX
S-7
