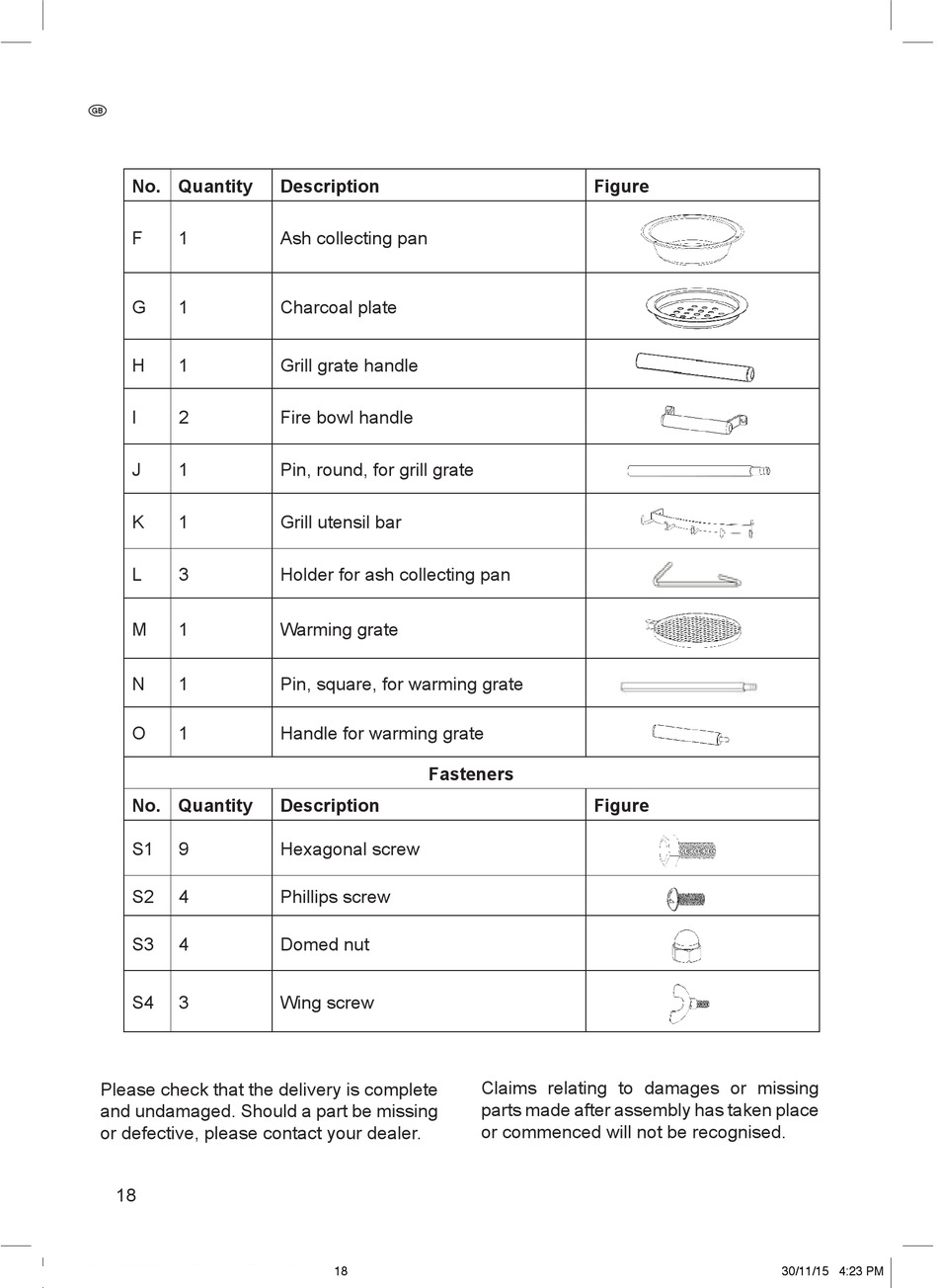

tepro CRANFORD Instruction Manual page 18

t
No. Quantity
F 1
G 1
H 1
I 2
J 1
K 1
L 3
M 1
N 1
O 1
No. Quantity
S1 9
S2 4
S3 4
S4 3
Please check that the delivery is complete
and undamaged. Should a part be missing
or defective, please contact your dealer.
18
P140179-TEPRO-1099-Cranford-20151130.indb 18
Description
Ash collecting pan
Charcoal plate
Grill grate handle
Fire bowl handle
Pin, round, for grill grate
Grill utensil bar
Holder for ash collecting pan
Warming grate
Pin, square, for warming grate
Handle for warming grate
Fasteners
Description
Hexagonal screw
Phillips screw
Domed nut
Wing screw
Figure
Figure
Claims relating to damages or missing
parts made after assembly has taken place
or commenced will not be recognised.
