Summary of Contents for Supero 1042G-TF

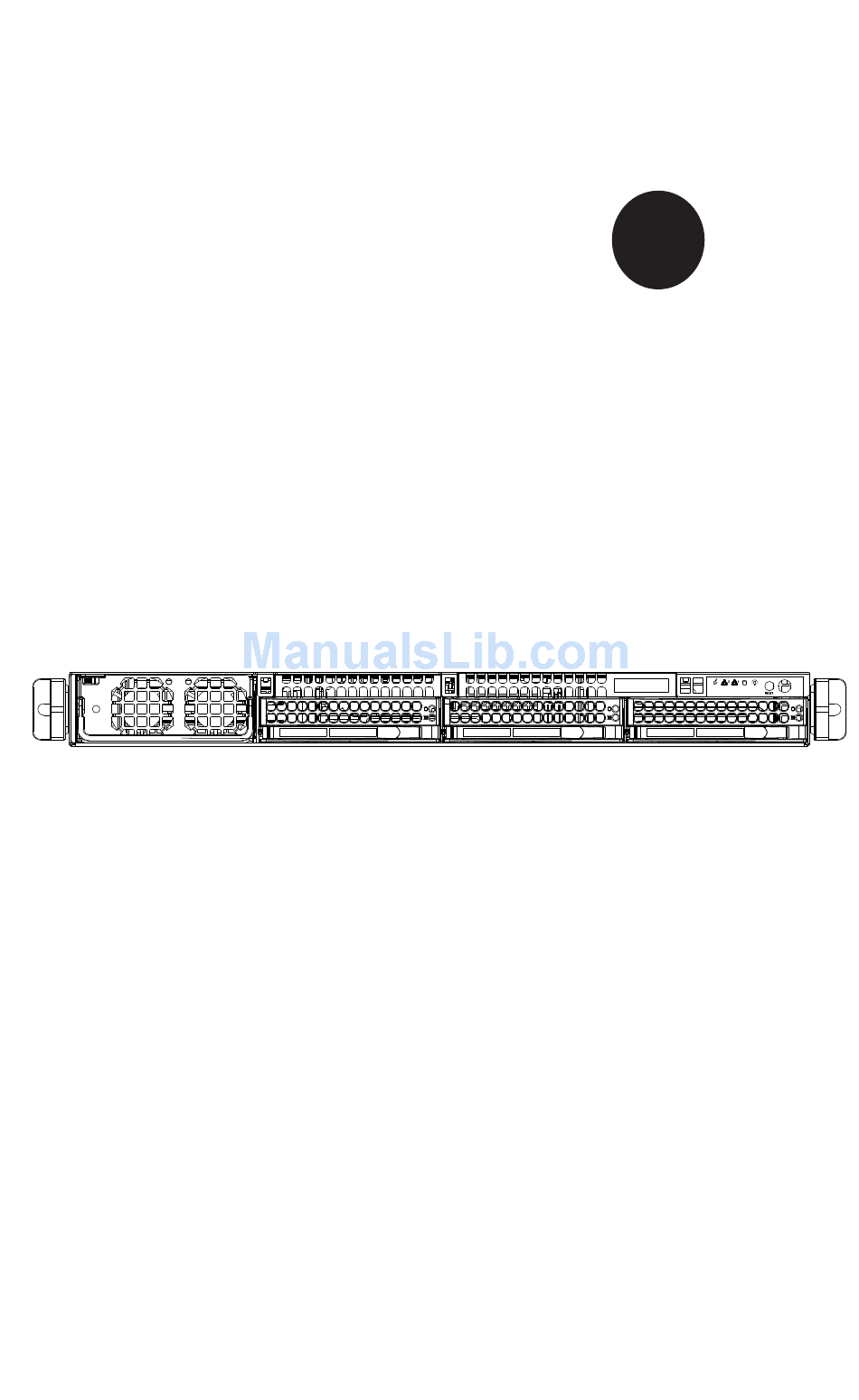

  • Page 1 UPER ® A+ SERVER 1042G-TF USER’S MANUAL Revision 1.0e...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.

  • Page 3: About This Manual

    A+ SERVER 1042G-TF. Installation and maintenance should be performed by experienced technicians only. The A+ SERVER 1042G-TF is a 1U rackmount server based on the SC818TQ-1400LPB server chassis and the Super H8QGi+-F serverboards.
  • Page 4 A+ SERVER 1042G-TF User's Manual Chapter 6: Advanced Chassis Setup Refer to Chapter 6 for detailed information on the SC818TQ-1400LPB 1U rackmount server chassis. You should follow the procedures given in this chapter when installing, removing or reconfiguring SATA or peripheral drives and when replacing system power supply units and cooling fans.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    A+ SERVER 1042G-TF User's Manual Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 Serial ATA ......................1-2 PCI Expansion Slots ..................1-2 Ethernet Ports ....................1-2 Onboard Controllers/Ports ................1-2 Graphics Controller ..................
  • Page 7 Table of Contents Installing the System into a Rack ..............2-4 Identifying the Sections of the Rack Rails ............2-4 Installing the Inner Rail Extensions ..............2-5 Assembling the Outer Rails ................2-6 Installing the Outer Rails onto the Rack ............2-7 Installing the Server into a Telco Rack ............
  • Page 8 A+ SERVER 1042G-TF User's Manual Chapter 5 Advanced Serverboard Setup Handling the Serverboard ................5-1 Precautions ..................... 5-1 Unpacking ....................... 5-2 I/O Port and Control Panel Connections ............5-2 Front Control Panel ..................5-3 Processor and Heatsink Installation..............5-3 Installing a Passive CPU Heatsink ..............5-6 Removing the Heatsink ...................
  • Page 9 Table of Contents Installing the Air Shroud .................. 6-8 Checking the Air Flow ..................6-8 Power Supply ....................6-10 Power Supply Failure ..................6-10 Chapter 7 BIOS Introduction ...................... 7-1 Main Menu ...................... 7-2 Advanced Settings Menu ................7-2 Security Settings Menu ................. 7-14 Boot Settings Menu ..................
  • Page 10 A+ SERVER 1042G-TF User's Manual Notes...

  • Page 11: Chapter 1 Introduction

    Chapter 1 Introduction Overview The A+ SERVER 1042G-TF is a 1U server comprised of the SC818TQ-1400LPB chassis and one H8QGi+-F serverboards. Please refer to our web site for information on operating systems that have been certified for use with the server (www.supermicro.com).

  • Page 12: Serverboard Features

    A+ SERVER 1042G-TF User's Manual Serverboard Features At the heart of the A+ SERVER 1042G-TF is one H8QGi+-F quad processor serverboard, which is based on the SR5690/SP5100 chipset. Below are the main features of the serverboards. Processors The H8QGi+-F supports four AMD Opteron 6000 series (AMD Socket G34) processors.

  • Page 13: Graphics Controller

    Chapter 1: Introduction Graphics Controller The H8QGi+-F features an integrated Matrox G200eW graphics chip, which includes 16 MB of DDR2 memory. Other Features Other onboard features that promote system health include voltage monitors, auto- switching voltage regulators, chassis and CPU overheat sensors, virus protection and BIOS rescue.

  • Page 14: Server Chassis Features

    A+ SERVER 1042G-TF User's Manual Server Chassis Features System Power The SC818TQ-1400LPB features a Gold Level 1400W high-efficiency power supply. The AC power cord should be removed from the system before servicing or replacing the power supply. See Chapter 6 for details.

  • Page 15: Contacting Supermicro

    Chapter 1: Introduction Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...
  • Page 16 A+ SERVER 1042G-TF User's Manual Notes...

  • Page 17: Chapter 2 Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation Overview This chapter provides a quick setup checklist to get your A+ SERVER up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time. This quick setup assumes that your system has come to you with the processors and memory preinstalled.

  • Page 18: Warnings And Precautions

    A+ SERVER 1042G-TF User's Manual • This product is not suitable for use with visual display work place devices acccording to §2 of the the German Ordinance for Work with Visual Display Units. Warnings and Precautions! Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them.

  • Page 19: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (Tmra).

  • Page 20: Installing The System Into A Rack

    A+ SERVER 1042G-TF User's Manual Installing the System into a Rack This section provides information on installing the SC818 chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly.

  • Page 21: Installing The Inner Rail Extensions

    Chapter 2: Server Installation Installing the Inner Rail Extensions The chassis includes a set of inner rack rails in two sections: inner rails (A) and inner rail extensions (B). The inner rails are preattached and do not interfere with normal use of the chassis if you decide not to install to a server rack. Attaching the inner rail extensions to to the inner rails stabilizes the chassis within the rack.

  • Page 22: Assembling The Outer Rails

    A+ SERVER 1042G-TF User's Manual Assembling the Outer Rails Each outer rail is in two sections that must be assembled before mounting on to the rack. Assembling the Outer Rails 1. Identify the left and right outer rails by examining the ends, which bend outward.

  • Page 23: Installing The Outer Rails Onto The Rack

    Chapter 2: Server Installation Installing the Outer Rails onto the Rack Outer Rail Installation 1. Adjust the outer rails to the proper length so that the outer rail fits snugly within the rack. 2. Align the holes on the front of the outer rail, with the holes on the front of the rack (C) and secure with the screws provided.
  • Page 24 A+ SERVER 1042G-TF User's Manual Installing the Chassis into a Rack (Figure 2-5) 1. Confirm that chassis includes the inner rails and rail extensions . Also, confirm that the outer rails are installed on the rack. 2. Line chassis rails with the front of the rack rails.

  • Page 25: Installing The Server Into A Telco Rack

    Chapter 2: Server Installation Installing the Server into a Telco Rack Optional brackets (p/n MCP-290-00016-0N) are needed to install the server to a telco (open type) rack. To install the server into a Telco type rack, use the two L-shaped brackets on either side of the chassis (four total).

  • Page 26: Checking The Serverboard Setup

    A+ SERVER 1042G-TF User's Manual Checking the Serverboard Setup After you install the server in the rack, you will need to open the unit to make sure the serverboard is properly installed and all the connections have been made. Removing the Chassis Cover (Figure 2-7) 1.

  • Page 27: Checking The Drive Bay Setup

    Chapter 2: Server Installation Checking the Components 1. You may have processors already installed to the serverboard. Each processor needs its own heatsink. See Chapter 5 for instructions on processor and heatsink installation. 2. Your server system may have come with system memory already installed. Make sure all DIMMs are fully seated in their slots.
  • Page 28 A+ SERVER 1042G-TF User's Manual Providing Power 1. The last thing you must do is to provide input power to the system. Plug the power cord from the power supply unit into a high-quality power strip that offers protection from electrical noise and power surges. It is recommended that you use an uninterruptible power supply (UPS).

  • Page 29: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.

  • Page 30: Control Panel Leds

    A+ SERVER 1042G-TF User's Manual Control Panel LEDs The control panel located on the front of the SC818GTQ chassis has five LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 31: Hdd

    Chapter 3: System Interface This light indicates SATA and/or DVD-ROM drive activity when flashing. Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating. SATA Drive Carrier LEDs •...
  • Page 32 A+ SERVER 1042G-TF User's Manual Notes...

  • Page 33: About Standardized Warning Statements

    Chapter 4: Warning Statements for AC Systems Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance.
  • Page 34 A+ SERVER 1042G-TF User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 35 Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬ ‫ل‬ ‫الىقائٍة‬...

  • Page 36: Installation Instructions

    A+ SERVER 1042G-TF User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de...

  • Page 37: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 38: Power Disconnection Warning

    A+ SERVER 1042G-TF User's Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 39 Chapter 4: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 40: Equipment Installation

    A+ SERVER 1042G-TF User's Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 41: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 42: Battery Handling

    A+ SERVER 1042G-TF User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬...
  • Page 43 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 44: Redundant Power Supplies

    A+ SERVER 1042G-TF User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 45: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 46: Comply With Local And National Electrical Codes

    A+ SERVER 1042G-TF User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬...

  • Page 47: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...

  • Page 48: Hot Swap Fan Warning

    A+ SERVER 1042G-TF User's Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 49 Chapter 4: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 50: Power Cable And Ac Adapter

    A+ SERVER 1042G-TF User's Manual Power Cable and AC Adapter Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only.
  • Page 51 Chapter 4: Warning Statements for AC Systems Attention Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné. L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué...
  • Page 52 A+ SERVER 1042G-TF User's Manual Notes 4-20...

  • Page 53: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install the H8QGi+-F serverboard into the SC818TQ-1400LPB chassis, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference.

  • Page 54: Unpacking

    A+ SERVER 1042G-TF User's Manual Unpacking The serverboard is shipped in antistatic packaging to avoid electrostatic discharge. When unpacking the board, make sure the person handling it is static protected. I/O Port and Control Panel Connections The I/O ports are color coded in conformance with the PC99 specification to make setting up your system easier.

  • Page 55: Front Control Panel

    Chapter 5: Advanced Serverboard Setup Front Control Panel JF1 contains header pins for various front control panel connectors. See Figure 2-3 for the pin definitions of the various connectors. Refer to Section 2-6 for details. Figure 2-3. JF1: Front Control Panel Header (JF1) 20 19 Ground No Connection...
  • Page 56 A+ SERVER 1042G-TF User's Manual Installing the Processors 1. Begin by removing the cover plate that protects the CPU. Lift the lever on the CPU socket until it points straight up. 2. With the lever raised, lift open the silver CPU retention plate.
  • Page 57 Chapter 5: Advanced Serverboard Setup 5. With the CPU inserted into the socket, inspect the four corners of the CPU to make sure that it is properly installed and flush with the socket. Then, gently lower the silver CPU retention plate into place.

  • Page 58: Installing A Passive Cpu Heatsink

    A+ SERVER 1042G-TF User's Manual Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the required amount has already been applied. 2. Place the heatsink directly on top of the CPU so that the heat sink screws are aligned with the mounting holes on the back plate.

  • Page 59: Installing Memory

    Chapter 5: Advanced Serverboard Setup Installing Memory Caution! Exercise extreme caution when installing or removing memory modules to prevent any possible damage. Memory Support The H8QGi+-F serverboard supports thirty-two (32) single/dual/tri/quad-channel, DDR3-1600/1333/1066 Mhz SDRAM memory modules. Populating four adjacent slots at a time with memory modules of the same size and type will result in interleaved (128-bit) memory, which is faster than non-interleaved (64-bit) memory.
  • Page 60 A+ SERVER 1042G-TF User's Manual Figure 5-4. DIMM Installation To Install: Insert Notch Notch module vertically and press down until it snaps into place. Pay Front View attention to the align- ment notch at the bottom. Note: Notch should align with...

  • Page 61: Dimm Module Population Configuration

    Chapter 5: Advanced Serverboard Setup Memory Population for Optimal Performance – For a Motherboard with Four CPUs (CPU1, CPU2, CPU3 & CPU4) Installed # DIMMS Channel 1 Channel 2 Channel 3 Channel 4 CPU1 P1-1A P1-2A P1-3A P1-4A CPU2 P2-1A P2-2A P2-3A P2-4A...

  • Page 62: Pci Expansion Cards

    A+ SERVER 1042G-TF User's Manual Possible System Memory Allocation & Availability System Device Size Physical Memory Available (4 GB Total System Memory) Firmware Hub flash memory (System BIOS) 1 MB 3.99 GB Local APIC 4 KB 3.99 GB Area Reserved for the chipset 2 MB 3.99 GB...

  • Page 63: Serverboard Details

    Chapter 5: Advanced Serverboard Setup Serverboard Details Figure 5-5. H8QGi+-F Motherboard Layout (not drawn to scale) COM1 FAN7 FAN9 Intel JSMB1 FAN8 82576 JWD1 JPL1 JPG1 JPB1 CPU1 CPU3 JBT1 Battery JWOL1 SP5100 SR5690 JPUSB1 SATA5 SATA4 SATA3 SATA2 JWF1 SATA1 CPU2 CPU4...

  • Page 64: H8Qgi+-F Quick Reference

    A+ SERVER 1042G-TF User's Manual H8QGi+-F Quick Reference Jumper Description Default Setting JBT1 CMOS Clear (See Section 5-9) C1/JI C to PCI-E Slot Enable/Disable Both Open (Disabled) JPB1 BMC Enable/Disable Pins 1-2 (Enabled) JPG1 VGA Enable/Disable Pins 1-2 (Enabled) JPL1...
  • Page 65 Chapter 5: Advanced Serverboard Setup Connector Description COM1/COM2 COM1 Serial Port/Header FAN 1-9 Chassis/CPU Fan Headers IPMI LAN Dedicated IPMI LAN Port Speaker Header Front Panel Connector JIBTN1 RAIDKey for RAID 5 SAS support (only on H8QG6+-F) Chassis Intrusion Header JOH1 Overheat Warning Header JPI2C1...

  • Page 66: Connector Definitions

    A+ SERVER 1042G-TF User's Manual Connector Definitions ATX Power 24-pin Connector Pin Definitions Pin# Definition Pin # Definition Power Connectors +3.3V +3.3V A 24-pin main power supply connector(JPW1) -12V +3.3V and three 8-pin CPU PWR connectors (JPW2/JPW3) on the motherboard. These...
  • Page 67 Chapter 5: Advanced Serverboard Setup NIC2 (LAN2) LED NIC2 LED Pin Definitions The LED connections for LAN2 are on pins (JF1) 9 and 10 of JF1. Attach LAN LED cables to Pin# Definition display network activity. See the table on the Activity right for pin definitions.
  • Page 68 A+ SERVER 1042G-TF User's Manual Universal Serial Bus Ports Universal Serial Bus Ports Pin Definitions (USB 0/1, Two Universal Serial Bus ports (USB 2.0) are USB6) located beside the Keyboard and Mouse PS2 USB0/1 USB6 ports. One additional Type A port (USB6) is...
  • Page 69 Chapter 5: Advanced Serverboard Setup Fan Headers Fan Header Pin Definitions This motherboard has nine fan headers Pin# Definition (Fan1 to Fan9). These 4-pin fans headers Ground are backward compatible with 3-pin fans. +12V However, fan speed control is available Tachometer for 4-pin fans only.

  • Page 70: Chassis Intrusion

    A+ SERVER 1042G-TF User's Manual SMBus Header SMBus Header (SMBus) The header at SMBus is for the System Pin Definitions Management Bus. Connect the appropriate (JSMB1) cable here to utilize SMB on the system. See Pin# Definition the table on the right for pin definitions.
  • Page 71 Chapter 5: Advanced Serverboard Setup Overheat LED Overheat LED Pin Definitions Connect an LED to the JOH1 header to (JOH1) provide warning of chassis overheating. See Pin# Definition the table on the right for pin definitions. 3.3V OH Active Power LED/Speaker PWR LED Connector Pin Definitions On the JD1 header, pins 1~3 are used for...
  • Page 72 A+ SERVER 1042G-TF User's Manual Trusted Platform Module Header Trusted Platform Module Header Pin Definitions This header is used to connect a Trusted (JTPM1) Platform Module (TPM), available separately Pin# Definition Pin# Definition from a third-party vendor. A TPM is a...

  • Page 73: Jumper Settings

    Chapter 5: Advanced Serverboard Setup Jumper Settings Connector Pins Explanation of Jumpers To modify the operation of the motherboard, Jumper jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function Setting of the connector.
  • Page 74 A+ SERVER 1042G-TF User's Manual I2C to PCI-Express Slot C to PCI-Express Slot Jumper Settings C1/JI C2 allows you to enable the I C bus C1/JI to communicate with the PCI-Express slot. Jumper Setting Definition For the jumpers to work properly, please set...
  • Page 75 Chapter 5: Advanced Serverboard Setup USB Wake-Up Backpanel USB Wake-Up Enable (JPUSB1) JPUSB1 jumper allows you to "wake up" Jumper Settings the system by pressing a key on the USB Jumper Setting Definition keyboard or by clicking the USB mouse of Pins 1-2 Enabled (default) your system.

  • Page 76: Onboard Indicators

    A+ SERVER 1042G-TF User's Manual Onboard Indicators LAN LED (Connection Speed Indicator) LAN1/LAN2 LEDs LED Color Definition 10 MHz The Ethernet ports (located beside the VGA Green 100 MHz port) have two LEDs. On each Gb LAN port, Amber 1 GHz...

  • Page 77: 5-10 Sas And Sata Drive Connections

    Chapter 5: Advanced Serverboard Setup 5-10 SAS and SATA Drive Connections SATA Ports SATA Ports Pin Definitions There are no jumpers to configure the SATA (SATA0-SATA5) ports, which are designated SATA0 through Pin # Definition SATA5. See the table on the right for pin Ground definitions.

  • Page 78: 5-11 Enabling Sata Raid

    A+ SERVER 1042G-TF User's Manual 5-11 Enabling SATA RAID Now that the hardware is set up, you must install the operating system and the SATA RAID drivers, if you wish to use RAID with your SATA drives. The installation procedure differs depending on whether you wish to have the operating system installed on a RAID array or on a separate non-RAID drive.

  • Page 79: Enabling Sata Raid In The Bios

    Chapter 5: Advanced Serverboard Setup Enabling SATA RAID in the BIOS Before installing the Windows Operating System, you must change some settings in BIOS. Boot up the system and hit the <Del> key to enter the BIOS Setup Utlility. After the Setup Utility loads, 1.

  • Page 80: Using The Adaptec Raid Utility

    A+ SERVER 1042G-TF User's Manual Figure 5-7. Adaptec RAID Utility Program Screen Using the Adaptec RAID Utility The Adaptec® RAID Utility program is where you can define the drives you want to include in the RAID array and the mode and type of RAID.

  • Page 81: 5-12 Installing Software

    Chapter 5: Advanced Serverboard Setup 5-12 Installing Software The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO file for your motherboard.

  • Page 82: Superdoctor Iii

    A+ SERVER 1042G-TF User's Manual SuperDoctor III The SuperDoctor III program is a Web base management tool that supports remote ® management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The SuperDoctor III program allows you to monitor the environment and operations of your system.
  • Page 83 Chapter 5: Advanced Serverboard Setup Figure 5-10. SuperDoctor III Interface Display Screen (Remote Control) Note: The SuperDoctor III program and User’s Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/accessories/software/ SuperDoctorIII.cfm.For Linux, we recommend that you use the SuperoDoctor II application instead.

  • Page 84: 5-13 Serverboard Battery

    A+ SERVER 1042G-TF User's Manual 5-13 Serverboard Battery Caution: There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarites (see Figure 2-9). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer (CR2032).

  • Page 85: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform maintenance on the SC818TQ-1400LPB chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the next step.

  • Page 86: Control Panel

    A+ SERVER 1042G-TF User's Manual Figure 6-1. Chassis: Front and Rear Views Power Supply Control Panel Hot-Swap Drive Bays (3) PS2 Keyboard/ Mouse Ports Ports PCI Slot Dedicated IPMI Ports Port Port LAN Port Control Panel The control panel (located on the front of the chassis) must be connected to the JF1 connector on the serverboard to provide you with system status indications.

  • Page 87: System Fan Failure

    Chapter 6: Advanced Chassis Setup System Fan Failure Fan speed is controlled by system temperature via a BIOS setting. If a fan fails, the remaining fans will ramp up to full speed. Replace any failed fan at your earliest convenience with the same type and model (the system can continue to run with a failed fan).

  • Page 88: Drive Bay Installation/Removal

    A+ SERVER 1042G-TF User's Manual Drive Bay Installation/Removal Accessing the Drive Bays Hard Drives: Because of their hotswap capability, you do not need to access the inside of the chassis or power down the system to install or replace hard drives.
  • Page 89 Chapter 6: Advanced Chassis Setup Figure 6-3. Removing a Hard Drive Carrier...
  • Page 90 A+ SERVER 1042G-TF User's Manual Installing a Hard Drive to the Hard Drive Carrier 1. Remove the two screws securing the dummy drive to the carrier. 2. Remove the dummy drive from the carrier. 3. Install a new drive into the carrier with the printed circuit board side facing downward so that the mounting holes align with those in the carrier.

  • Page 91: Peripheral Drive Installation

    Chapter 6: Advanced Chassis Setup Figure 6-5. Installing/Removing the Carrier Next to the Power Supply Peripheral Drive Installation Installing or Replacing a Peripheral Drive 1. Unplug the main power cord to the chassis. 2. Unplug the power and data cables from the motherboard and/or backplane. 3.

  • Page 92: Installing The Air Shroud

    A+ SERVER 1042G-TF User's Manual Installing the Air Shroud Air shrouds concentrate airflow to maximize fan efficiency. The air shroud for the SC818TS chassis does not require screws to set up. Installing the Air Shroud 1. Position the air shroud in the chassis as illustrated above.
  • Page 93 Chapter 6: Advanced Chassis Setup Figure 6-6. Installing the Air Shroud...

  • Page 94: Power Supply

    A+ SERVER 1042G-TF User's Manual Power Supply The system includes a single 1400 watt power supply, which is auto-switching capable. Power must be removed from the system when replacing the power supply. Power Supply Failure If the power supply module fails, the system will shut down and you will need to replace the module.

  • Page 95: Chapter 7 Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMIBIOS™ Setup utility for the H8QGi+-F serverboard. The AMI ROM BIOS is stored in a flash chip and can be easily upgraded using a floppy disk-based program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 96: Main Menu

    A+ SERVER 1042G-TF User's Manual Main Menu When you first enter AMI BIOS Setup Utility, you will see the Main Menu screen. You can always return to the Main Menu by selecting the Main tab on the top of the screen with the arrow keys.
  • Page 97 Chapter 7: BIOS Hit 'DEL' Message Display Use this option to Enable or Disable the "Press DEL to run setup" message in POST. Interrupt 19 Capture Select Enabled to allow ROMs to trap Interrupt 19. The options are Enabled and Disabled. Restore on AC Power Loss This sets the action that occurs when an AC power loss occurs.

  • Page 98: Advanced Chipset Control

    A+ SERVER 1042G-TF User's Manual CPU DownCore Mode This option sets the CPU DownCore Mode for your system. If you change this option then a cold reset is required. Options include Auto Mode, Maximum Core Level, No Leveling, 2 Cores, 4 Cores, 6 Cores, 8 Cores, 10 Cores and 12 Cores.
  • Page 99 Chapter 7: BIOS ECC Mode This submenu sets the level of ECC protection. Options include Disabled, Basic, Good, Super, Max and User. Selecting User activates the other op- tion for user setting. Note: The "Super" ECC mode dynamically sets the DRAM scrub rate so all of memory is scrubbed in 8-hours.
  • Page 100 A+ SERVER 1042G-TF User's Manual Select "Enabled" to enable the support for USB Legacy. Disable Legacy support if there are no USB devices installed in the system. "Auto" disabled Legacy support if no USB devices are connected. The options are Disabled, Enabled and Auto.
  • Page 101 Chapter 7: BIOS PIO (Programmable I/O) mode programs timing cycles between the IDE drive and the programmable IDE controller. As the PIO mode increases, the cycle time decreases. The options are Auto, 0, 1, 2, 3, and 4. Select Auto to allow BIOS to auto detect the PIO mode.
  • Page 102 A+ SERVER 1042G-TF User's Manual  PCI/PNP Configuration Clear NVRAM Select Yes to clear NVRAM during boot-up. The options are Yes and No. Plug & Play O/S Select Yes to allow the OS to configure Plug & Play devices. (This is not required for system boot if your system has an OS that supports Plug &...

  • Page 103: Remote Access Configuration

    Chapter 7: BIOS This option specifies the base I/O port address and Interrupt Request address of serial port 2. Select "Disabled" to prevent the serial port from accessing any system resources. When this option is set to "Disabled", the serial port physically becomes unavailable.

  • Page 104: Hardware Health Configuration

    A+ SERVER 1042G-TF User's Manual Use this setting to set the delay in seconds to display memory information. Options are No Delay, 1 sec, 2 secs and 4 secs.  Hardware Health Configuration CPU Overheat Temperature This setting allows you to specify the type of alarm for CPU overheating. Options include The Early Alarm and The Default Alarm.

  • Page 105: System Fan Monitor

    Chapter 7: BIOS Default Alarm (default setting) is enabled when the Tctl value = 70, and is disabled when the Tctl value drops from 70 to 67. When COA (either Early or Default Alarm) is enabled, the following actions are required to be executed: •...

  • Page 106: Acpi Configuration

    A+ SERVER 1042G-TF User's Manual A display also showing the speeds of FAN1 Speed ~ FAN11 Speed is shown on this page.  ACPI Configuration ACPI Aware O/S Use this setting to enable or disable ACPI support for the operating system if it supports ACPI.

  • Page 107: Set Lan Configuration

    Chapter 7: BIOS Clear BMC System Event Log Selecting this and pressing the Enter key will clear the BMC system event log.  Set LAN Configuration Use the "+" and "-" keys to choose the desired channel number. This displays Channel Number and Channel Number Status information.

  • Page 108: Security Settings Menu

    A+ SERVER 1042G-TF User's Manual  Event Log Configuration View Event Log Pressing the Enter key will open the event log. Use the "h" and "i" keys to navigate through the system event log. Mark All Events as Read Selecting this and pressing the Enter key marks all events as read in the event log.

  • Page 109: Boot Settings Menu

    Chapter 7: BIOS Boot Settings Menu  Boot Device Priority This feature allows you to prioritize the boot sequence from the list of available devices. A device that is in parenthesis has been disabled in the corresponding type menu.  Removable Drives This feature allows you to specify the boot sequence from the list of available removable drives.

  • Page 110: Exit Menu

    A+ SERVER 1042G-TF User's Manual Exit Menu Select the Exit tab from AMI BIOS Setup Utility screen to enter the Exit BIOS Setup screen. Save Changes and Exit When you have completed the system configuration changes, select this option to leave BIOS Setup and reboot the computer, so the new system configuration parameters can take effect.

  • Page 111: Appendix A Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 112 A+ SERVER 1042G-TF User's Manual Notes...

  • Page 113: Appendix B Installing Windows

    Appendix B: Installing Windows Appendix B Installing Windows After all hardware components have been installed, you must first configure RAID Settings before you install the Windows OS and other software drivers. To configure RAID settings, please refer to RAID Configuration User Guides posted on our web site at www.supermicro.com/support/manuals.

  • Page 114: B-2 Installing Windows To A Non-Raid System

    A+ SERVER 1042G-TF User's Manual 9. From the Windows XP/Windows 2003 Setup screen, press the <Enter> key. The XP/2003 Setup will automatically load all device files and then, continue the Windows XP/Windows 2003 installation. 10. After the Windows XP/Windows 2003 OS Installation has completed, the system will automatically reboot.

  • Page 115: Appendix C System Specifications

    Appendix C: System Specifications Appendix C System Specifications Processors Quad AMD Opteron 6000 series (AMD Socket G34) processors Note: please refer to our website for details on supported processors. Chipset One AMD SR5690 chipset and one SP5100 Southbridge chipset BIOS 16 Mb AMIBIOS SPI Flash ROM Memory Capacity Thirty-Two (32) single/dual/tri/quad channel DIMM slots supporting up...

  • Page 116: System Input Requirements

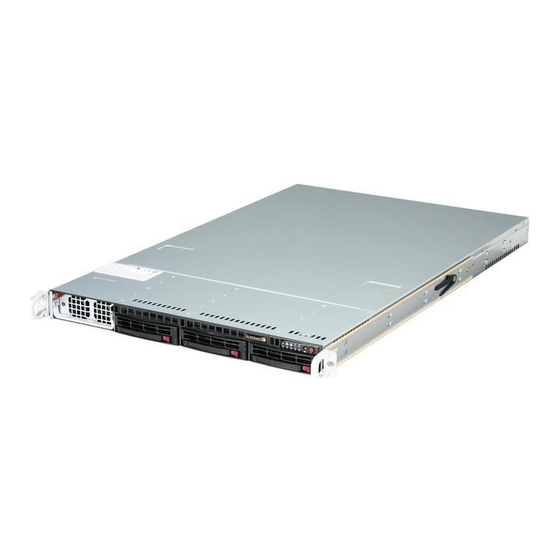

    A+ SERVER 1042G-TF User's Manual Serverboard H8QGi+-F (Proprietary form factor) Dimensions: 16.48" x 13" (418 x 330 mm) Chassis SC818TQ-1400LPB (1U rackmount) Dimensions: (WxHxD) 17.2 x 1.7 x 28.2 in. (437 x 43 x 716 mm) Weight Gross (Bare Bone): 43 lbs. (19.5 kg.)

  • Page 117: Regulatory Compliance

    Appendix C: System Specifications Regulatory Compliance Electromagnetic Emissions: FCC Class A, EN 55022 Class A, EN 61000-3-2/- 3-3, CISPR 22 Class A Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11) Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and Canada), CE Marking (Europe) California Best Management Practices Regulations for Perchlorate Materials:...
  • Page 118 A+ SERVER 1042G-TF User's Manual (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.

Table of Contents
