Supero 1022GG-TF User Manual

A+ server
Hide thumbs Also See for 1022GG-TF:
Table of Contents

Advertisement

Quick Links

Download this manual

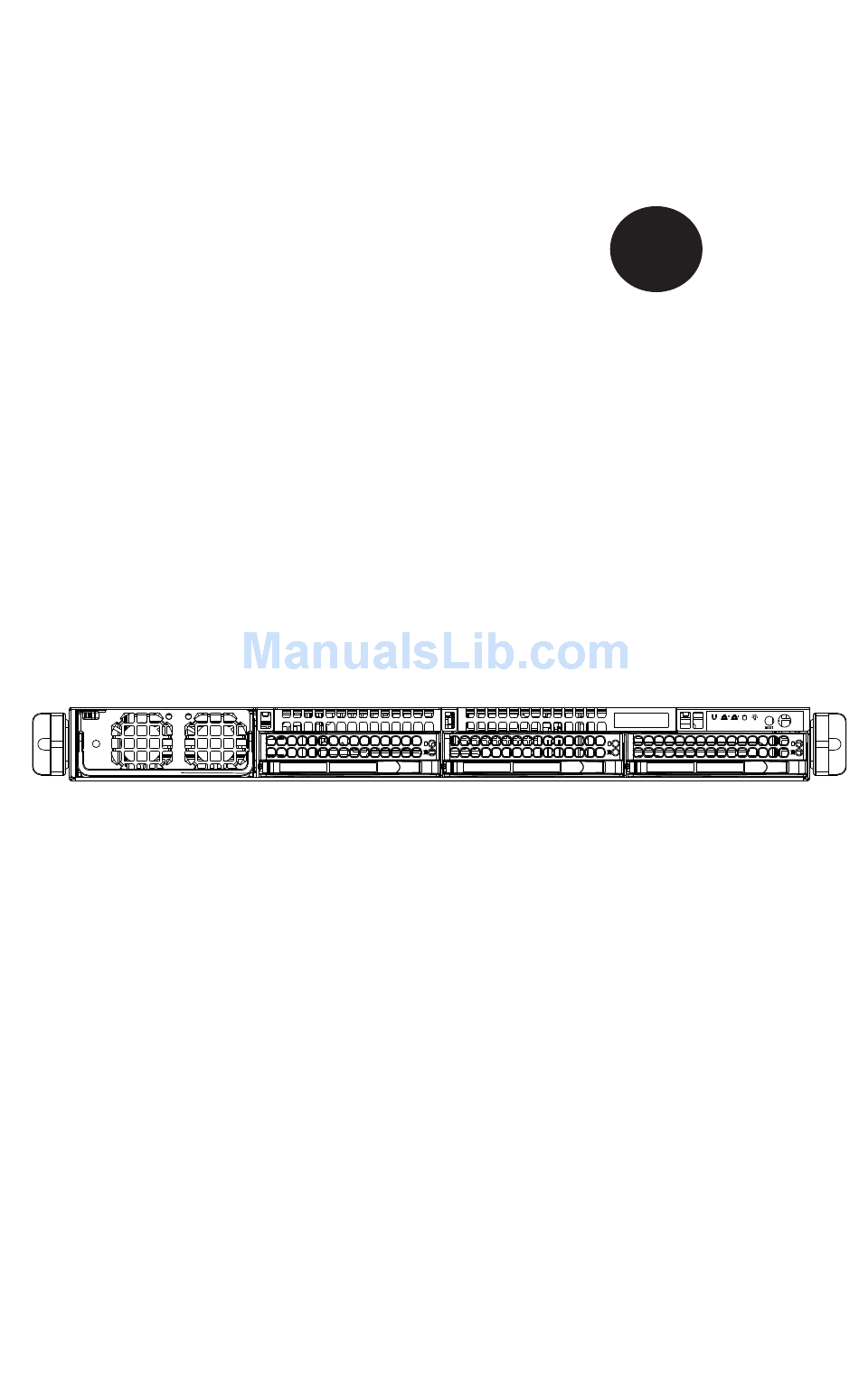

S
UPER
®
A+ Server 1022GG-TF
USER'S MANUAL
Revision 1.0b

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1022GG-TF and is the answer not in the manual?

Questions and answers

Related Manuals for Supero 1022GG-TF

Summary of Contents for Supero 1022GG-TF

  • Page 1 UPER ® A+ Server 1022GG-TF USER’S MANUAL Revision 1.0b...
  • Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: About This Manual

    About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the A+ Server 1022GG-TF. Installation and maintenance should be performed by experienced technicians only. The A+ Server 1022GG-TF is a 1U rackmount server based on the SC818G-1400BP server chassis and the Supermicro H8DGG-QF serverboard.
  • Page 4 A+ Server 1022GG-TF User's Manual Chapter 7: BIOS The BIOS chapter includes an introduction to BIOS and provides detailed information on running the CMOS Setup Utility. Appendix A: BIOS Error Beep Codes Appendix B: Installing Windows Appendix C: System Specifications...

  • Page 5: Table Of Contents

    Server Chassis Features ................1-5 Drives ......................1-5 System Power ....................1-5 Front Control Panel ..................1-5 Cooling System ....................1-5 Contacting Supermicro ..................1-6 Chapter 2 Server Installation Overview ......................2-1 Unpacking the System ..................2-1 Preparing for Setup ..................2-1 Choosing a Setup Location ................
  • Page 6 A+ Server 1022GG-TF User's Manual Checking the Serverboard Setup ..............2-10 Checking the Chassis Setup ................2-11 Chapter 3 System Interface Overview ......................3-1 Control Panel Buttons ..................3-2 Reset ....................... 3-2 Power ......................3-2 Control Panel LEDs ..................3-2 Information LED ....................3-2 NIC2 ........................
  • Page 7 Preface Installing Memory .................... 5-6 DIMM Module Population Configuration ............ 5-8 Serverboard Details ..................5-10 H8DGG-QF Quick Reference ................5-11 Connector Definitions ................... 5-12 Jumper Settings .................... 5-18 Explanation of Jumpers ................5-18 Onboard Indicators ..................5-20 5-10 SATA Drive Connections ................5-21 5-11 Enabling SATA RAID ..................
  • Page 8 A+ Server 1022GG-TF User's Manual Chapter 7 BIOS Introduction ...................... 7-1 Main Menu ...................... 7-2 Advanced Settings Menu ................7-2 Security Menu ....................7-20 Boot Settings Menu ..................7-20 Exit Menu ...................... 7-21 Appendix A BIOS Error Beep Codes Appendix B Installing Windows Installing Windows to a RAID System ............B-1...

  • Page 9: Chapter 1 Introduction

    Introduction Overview The A+ Server 1022GG-TF is a 1U server comprised of the SC818G-1400BP chassis and two H8DGG-QF serverboards. Please refer to our web site for informa- tion on operating systems that have been certified for use with the server (www.

  • Page 10: Serverboard Features

    A+ Server 1022GG-TF User's Manual Serverboard Features At the heart of the A+ Server 1022GG-TF are two H8DGG-QF dual processor serverboards based upon two AMD SR5690 chipsets and one SP5100 Southbridge chipset. Below are the main features of the serverboard.

  • Page 11: Onboard Controllers/Ports

    Chapter 1: Introduction Onboard Controllers/Ports Onboard I/O backpanel ports on the serverboard include one COM port, a VGA port, two USB ports, a dedicated IPMI LAN port and two Gigabit LAN (NIC) ports. Graphics Controller The H8DGG-QF features an integrated Matrox G200eW graphics chip, which in- cludes 16 MB of DDR2 memory.
  • Page 12 A+ Server 1022GG-TF User's Manual Figure 1-1.SR5690/SP5100 Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. DIMM A1 DIMM A1 HT3 Link DIMM A0 DIMM A0 DIMM B1 8x8-6.4GT/s DIMM B1 DIMM B0...

  • Page 13: Server Chassis Features

    Chapter 1: Introduction Server Chassis Features Drives The SC818G chassis includes three 3.5" drive bays, that can accomodate hot-swappable SATA drives. System Power The SC818G features a Gold Level 1400 W high-efficiency power supply. See Chapter 6 for details. Front Control Panel The control panel provides a system monitoring and control interface.

  • Page 14: Contacting Supermicro

    A+ Server 1022GG-TF User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 15: Chapter 2 Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation Overview This chapter provides a quick setup checklist to get your A+ Server up and running. Following these steps should enable you to have the system operational within a minimum amount of time. This quick setup assumes that your system has come to you with the processors and memory preinstalled.

  • Page 16: Warnings And Precautions

    A+ Server 1022GG-TF User's Manual the back of the rack to allow for sufficient airflow and ease in servicing.This product is for installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like). • This product is not suitable for use with visual display work place devices acccording to §2 of the the German Ordinance for Work with Visual Display...

  • Page 17: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).

  • Page 18: Installing The System Into A Rack

    A+ Server 1022GG-TF User's Manual Installing the System into a Rack This section provides information on installing the SC818G chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly.

  • Page 19: Installing The Inner Rail Extensions

    Chapter 2: Server Installation Installing the Inner Rail Extensions The SC818G chassis includes a set of inner rack rails in two sections: inner rails (A) and inner rail extensions (B). The inner rails are preattached and do not interfere with normal use of the chassis if you decide not to install to a server rack. Attaching the inner rail extensions to to the inner rails stabilizes the chassis within the rack.

  • Page 20: Assembling The Outer Rails

    A+ Server 1022GG-TF User's Manual Assembling the Outer Rails Each outer rail is in two sections that must be assembled before mounting on to the rack. Assembling the Outer Rails 1. Identify the left and right outer rails by examining the ends, which bend outward.

  • Page 21: Installing The Outer Rails Onto The Rack

    Chapter 2: Server Installation Installing the Outer Rails onto the Rack Outer Rail Installation 1. Adjust the outer rails to the proper length so that the outer rail fits snugly within the rack. 2. Align the holes on the front of the outer rail, with the holes on the front of the rack (C) and secure with the screws provided.
  • Page 22 A+ Server 1022GG-TF User's Manual Installing the Chassis into a Rack (Figure 2-5) 1. Confirm that chassis includes the inner rails and rail extensions . Also, confirm that the outer rails are installed on the rack. 2. Line chassis rails with the front of the rack rails.

  • Page 23: Installing The Server Into A Telco Rack

    Chapter 2: Server Installation Installing the Server into a Telco Rack Optional brackets (p/n MCP-290-00016-0N) are needed to install the server to a telco (open type) rack. To install the server into a Telco type rack, use the two L-shaped brackets on either side of the chassis (four total).

  • Page 24: Checking The Serverboard Setup

    A+ Server 1022GG-TF User's Manual Checking the Serverboard Setup After you install the server in the rack, you will need to open the unit to make sure the serverboard is properly installed and all the connections have been made. Removing the Chassis Cover (Figure 2-7) 1.

  • Page 25: Checking The Chassis Setup

    Chapter 2: Server Installation Checking the Serverboard Components • You may have processors already installed to the serverboard. Each proces- sor needs its own heatsink. See Chapter 5 for instructions on processor and heatsink installation. • Your server system may have come with system memory already installed. Make sure all DIMMs are fully seated in their slots.
  • Page 26 A+ Server 1022GG-TF User's Manual Providing Power The last thing you must do is to provide input power to the system. Plug the power cord from the power supply unit into a high-quality power strip that offers protection from electrical noise and power surges. It is recommended that you use an uninter- ruptible power supply (UPS).

  • Page 27: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview The chassis features a control panel on the front with power control buttons and system status LEDs. Each drive carrier also has LEDs that indicate the status of the hard disk drive in that bay. Descriptions follow. Figure 3-1.

  • Page 28: Control Panel Buttons

    A+ Server 1022GG-TF User's Manual Control Panel Buttons There are two power control push-buttons on the front of the chassis. Reset Use the reset button to reboot the system. Power The main power button is used to apply or remove power from the power supply to the server system.

  • Page 29: Nic2

    Chapter 3: System Interface NIC2 Indicates network activity on LAN2 when flashing . NIC1 Indicates network activity on LAN1 when flashing . This light indicates SATA and/or DVD-ROM drive activity when flashing. Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.
  • Page 30 A+ Server 1022GG-TF User's Manual Notes...

  • Page 31: About Standardized Warning Statements

    Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our web site at http://www.supermicro.com/ about/policies/safety_information.cfm. Warning Definition Warning! This warning symbol means danger.
  • Page 32 A+ Server 1022GG-TF User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 33 Chapter 4: Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬...

  • Page 34: Installation Instructions

    A+ Server 1022GG-TF User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de...

  • Page 35: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 36: Power Disconnection Warning

    A+ Server 1022GG-TF User's Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 37 Chapter 4: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 38: Equipment Installation

    A+ Server 1022GG-TF User's Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 39: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 40: Battery Handling

    A+ Server 1022GG-TF User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬...
  • Page 41 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 42: Redundant Power Supplies

    A+ Server 1022GG-TF User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 43: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 44: Comply With Local And National Electrical Codes

    A+ Server 1022GG-TF User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬...

  • Page 45: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...

  • Page 46: Hot Swap Fan Warning

    A+ Server 1022GG-TF User's Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 47 Chapter 4: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 48: Power Cable And Ac Adapter

    Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 電源コードとACアダプター 製品を設置する場合、 提供または指定された接続ケーブル、 電源コードとACアダプター...
  • Page 49 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
  • Page 50 A+ Server 1022GG-TF User's Manual Notes 4-20...

  • Page 51: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install the H8DGG-QF serverboard into the SC818G-1400BP chassis, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference.

  • Page 52: Front Control Panel

    A+ Server 1022GG-TF User's Manual I/O Ports and Control Panel Connections The I/O ports are color coded in conformance with the PC 99 specification. See Figure 5-1 below for the colors and locations of the various I/O ports. Figure 5-1. I/O Ports Rear I/O Ports 1.

  • Page 53: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro web site for updates on CPU support. Installing the Processors 1. Begin by removing the cover plate that protects the CPU.
  • Page 54 A+ Server 1022GG-TF User's Manual 3. Use your thumb and your index finger to hold the CPU. Locate and align pin 1 of the CPU socket with pin 1 of the CPU. Both are marked with a triangle. 4. Align pin 1 of the CPU with pin 1 of the socket.

  • Page 55: Installing A Passive Cpu Heatsink

    Chapter 5: Advanced Serverboard Setup Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the required amount has already been applied. 2. Place the heatsink directly on top of the CPU so that the heat sink screws are aligned with the mounting holes on the back plate.

  • Page 56: Installing Memory

    (128-bit) memory, which is faster than non-interleaved (64-bit) memory. Note: Check the Supermicro web site for recommended DIMMs. Installing Memory Modules 1. Insert each memory module vertically into its slot, paying attention to the notch along the bottom of the module to prevent inserting the module incorrectly (see Figure 5-4).
  • Page 57 Chapter 5: Advanced Serverboard Setup Figure 5-4. DIMM Installation Notch Notch To Install: Insert module vertically and press down until it snaps into place. Pay attention to the alignment notch at the bottom. Front View To Remove: Use your thumbs to gently push the release tabs near both ends of the module.

  • Page 58: Dimm Module Population Configuration

    A+ Server 1022GG-TF User's Manual DIMM Module Population Configuration For memory to work properly, follow the tables below for memory installation: Per Channel DIMM Populations Options DIMM Type DIMM A DIMM B Max. MHz, Max. MHz, Max. GB/ 1.5V DIMMs 1.35V DIMMs...
  • Page 59 Chapter 5: Advanced Serverboard Setup Adding Extension Cards See Chapter 6, Advanced Chassis Setup.

  • Page 60: Serverboard Details

    A+ Server 1022GG-TF User's Manual Serverboard Details Figure 5-5. H8DGG-QF Serverboard Layout COM1 LAN2 LAN1 JBMC1 SR5690 SR5690 SP5100 JBT1 CPU1 BATTERY FAN6 FAN5 CPU2 FAN4 FAN2 JPI2C2 JPI2C1 5-10...

  • Page 61: H8Dgg-Qf Quick Reference

    Chapter 5: Advanced Serverboard Setup H8DGG-QF Quick Reference Jumper Description Default Setting JBT1 CMOS Clear (See Section 5-8) JBMC1 BMC Enable/Disable Pins 1-2 (Enabled) JPG1 VGA Enable/Disable Pins 1-2 (Enabled) JPL1 LAN 1/2 Enable/Disable Pins 1-2 (Enabled) JWD1 Watch Dog Pins 1-2 (Reset) Description LAN Ports...

  • Page 62: Connector Definitions

    A+ Server 1022GG-TF User's Manual Connector Definitions ATX Power 20-pin Connector Pin Definitions Pin# Definition Pin # Definition Power Connectors PS_ON_N GND1 A 20-pin main power supply connector(JPW1/ 5V_STBY GND2 JPW3) and three 8-pin CPU PWR connec- GND6 GND3 tors (JPW2/JPW4) on the motherboard. For...
  • Page 63 Chapter 5: Advanced Serverboard Setup Overheat/Fan Fail LED (OH) OH/Fan Fail LED OH/Fan Fail Pin Definitions LED Status Connect an LED to the OH connection on (JF1) State Indication pins 7 and 8 of JF1 to provide advanced Pin# Definition Solid Overheat warning of chassis overheating or fan failure.
  • Page 64 A+ Server 1022GG-TF User's Manual NMI Button NMI Button Pin Definitions The non-maskable interrupt button header is (JF1) located on pins 19 and 20 of JF1. Refer to the Pin# Definition table on the right for pin definitions. Control Ground...

  • Page 65: Chassis Intrusion

    Chapter 5: Advanced Serverboard Setup SGPIO SGPIO Header Pin Definitions (T-SGPIO1/TSGPIO2) The T-SGPIO1/ T-SGPIO2 (Serial General Pin# Definition Pin # Definition Purpose Input/Output) headers provide a bus between the SATA controller and the Ground Data backpane to provide SATA enclosure man- agement functions.
  • Page 66 A+ Server 1022GG-TF User's Manual Unit Identifier Button UID Button Pin Definitions There is one Unit Identifier (UID) button on Pin# Definition the rear control I/O panel and another UID Ground button located on the control panel. When Ground you push either UID button, both Rear UID...
  • Page 67 Chapter 5: Advanced Serverboard Setup Trusted Platform Module Header Trusted Platform Module Header Pin Definitions (JTPM1) The JTPM1 header is used to connect a Pin# Definition Pin# Definition Trusted Platform Module (TPM), available LCLK separately from a third-party vendor. A TPM LFRAME No Pin is a security device that allows encryption...

  • Page 68: Jumper Settings

    A+ Server 1022GG-TF User's Manual Jumper Settings Connector Pins Explanation of Jumpers To modify the operation of the motherboard, Jumper jumpers can be used to choose between optional settings. Jumpers create shorts be- tween two pins to change the function of the Setting connector.
  • Page 69 Chapter 5: Advanced Serverboard Setup BMC Jumper BMC Jumper Enable (JBMC1) Jumper Settings JBMC1 is used to enable or disable theBMC Jumper Setting Definition (Baseboard Management Control) Chip and Pins 1-2 Enabled (default) the onboard IPMI connection.This jumper is Pins 2-3 Disabled used together with the IPMI settings in the BIOS.

  • Page 70: Onboard Indicators

    A+ Server 1022GG-TF User's Manual Onboard Indicators LAN LED (Connection Speed Indicator) LAN1/LAN2 LEDs LED Color Definition The Ethernet ports (located beside the VGA 10 MHz port) have two LEDs. On each Gb LAN port, Green 100 MHz one LED blinks to indicate activity while the...

  • Page 71: 5-10 Sata Drive Connections

    Chapter 5: Advanced Serverboard Setup 5-10 SATA Drive Connections SATA Ports SATA Ports Pin Definitions There are no jumpers to configure the SATA (SATA0-SATA3) ports, which are designated SATA0 through Pin # Definition SATA5. See the table on the right for pin Ground definitions.

  • Page 72: 5-11 Enabling Sata Raid

    Building a Driver Diskette You must first build a driver diskette from Supermicro drivers for your system. Driv- ers can be found at ftp://ftp.supermicro.com. (You will have to create this disk on a computer that is already running and with the OS installed.) Note: You must have an external USB floppy when building the driver diskette.

  • Page 73: Enabling Sata Raid In The Bios

    Chapter 5: Advanced Serverboard Setup Enabling SATA RAID in the BIOS Before installing the Windows Operating System, you must change some settings in BIOS. Boot up the system and hit the <Del> key to enter the BIOS Setup Utlility. After the Setup Utility loads, 1.

  • Page 74: Using The Adaptec Raid Utility

    A+ Server 1022GG-TF User's Manual Figure 5-7. Adaptec RAID Utility Program Screen Using the Adaptec RAID Utility The Adaptec® RAID Utility program is where you can define the drives you want to include in the RAID array and the mode and type of RAID.

  • Page 75: 5-12 Installing Software

    Chapter 5: Advanced Serverboard Setup 5-12 Installing Software The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO file for your motherboard.

  • Page 76: Superdoctor Iii

    A+ Server 1022GG-TF User's Manual SuperDoctor III The SuperDoctor III program is a Web base management tool that supports remote ® management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The SuperDoctor III program allows you to moni- tor the environment and operations of your system.
  • Page 77 Chapter 5: Advanced Serverboard Setup Figure 5-10. SuperDoctor III Interface Display Screen (Remote Control) Note: The SuperDoctor III program and User’s Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/accessories/software/ SuperDoctorIII.cfm.For Linux, we recommend that you use the SuperoDoctor II application instead.

  • Page 78: 5-13 Serverboard Battery

    A+ Server 1022GG-TF User's Manual 5-13 Serverboard Battery Caution: There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarites (see Figure 5-11). This battery must be re- placed only with the same or an equivalent type recommended by the manufacturer (CR2032).

  • Page 79: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform mainte- nance on the SC818G chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the next step.

  • Page 80: Control Panel

    A+ Server 1022GG-TF User's Manual Figure 6-1. Chassis: Front and Rear Views Power Supply Control Panel Hot-Swap Drive Bays (3) USB Ports Dedicated IPMI LAN Port PCI Slots LAN Ports COM Port VGA Port Control Panel The control panel (located on the front of the chassis) must be connected to the JF1 connector on the serverboard to provide you with system status indications.

  • Page 81: System Fan Failure

    Chapter 6: Advanced Chassis Setup System Fan Failure Fan speed is controlled by system temperature by means of a BIOS setting. If a fan fails, the remaining fans will ramp up to full speed. The system can continue to run with a failed fan. Replace any failed fan at your earliest convenience with the same type and model.

  • Page 82: Drive Bay Installation/Removal

    DVD drive, a floppy drive or a 2.5" hard disk drive. These require openning the chassis cover for installation. For a complete listing of peripheral drive options, consult the Supermicro web site at: http://www.supermicro.com/products/chassis/1U/818/SC818G-1400.cfm Hard Drive Installation The hard drives are mounted in drive trays to simplify their installation and removal from the chassis.
  • Page 83 Chapter 6: Advanced Chassis Setup Figure 6-3. Removing a Hard Drive Tray...
  • Page 84 A+ Server 1022GG-TF User's Manual Note: Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro Web site at http://www.supermicro.com/products/nfo/storage.cfm. Installing a Hard Drive to the Hard Drive Tray 1.

  • Page 85: Peripheral Drive Installation

    Chapter 6: Advanced Chassis Setup Note: When installing the hard drive tray that is next to the power supply, the power supply handle must be lifted before extending the hard drive tray handle, or before inserting the hard drive tray into the drive bay. Figure 6-5.

  • Page 86: Installing The Air Shroud

    A+ Server 1022GG-TF User's Manual Installing the Air Shroud Air shrouds concentrate airflow to maximize fan efficiency. The air shroud for the SC818G chassis does not require screws to install. Installing the Air Shroud 1. Position the air shroud in the chassis as illustrated below.

  • Page 87: Installing Expansion Cards

    Installing Expansion Cards The SC818G chassis includes I/O slots for four full-height, full-length expansion cards, although the 1022GG-TF server supports only two. Alternatively, the server can be configured for two double-width, high-end graphics processor units (GPUs). In addition the chassis and serverboard support one low-profile expansion card Figure 6-7.

  • Page 88: Installing An Expansion Card On The Left Side

    A+ Server 1022GG-TF User's Manual Installing an Expansion Card on the Left Side On the left side (looking from the front) of the chassis, you can install a full-height, full-width expansion card, or a double width high-end graphics processing unit (GPU).
  • Page 89 Chapter 6: Advanced Chassis Setup Figure 6-9. Left Riser Card Bracket and Installing a Low-Profile Card Screwdriver Icon Installing a Low Profile Expansion Card 1. Power down the system and remove the chassis cover. 2. Remove the left riser card bracket from the chassis by unscrewing only those screws indicated by the screwdriver icon.

  • Page 90: Installing An Expansion Card On The Right Side

    A+ Server 1022GG-TF User's Manual Installing an Expansion Card on the Right Side On the right side (looking from the front) of the chassis, you can install a full- height, full-width expansion card, or a double width high-end graphics processing unit (GPU).
  • Page 91 Chapter 6: Advanced Chassis Setup Figure 6-11. GPU Cards in the Chassis Note: Installing the optional graphics card configuration may require the I/O plate to be modified by cutting off any portion of the plate that may extend over the I/O panel components beside it.

  • Page 92: Power Supply

    Power Supply Failure If the power supply module fails, the system will shut down and you will need to replace the module. Replacements can be ordered directly from Supermicro (see contact information in the Preface). As there is only one power supply module in the system, power must be com- pletely removed from the server before removing and replacing the power supply for whatever reason.

  • Page 93: Chapter 7 Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMIBIOS™ Setup utility for the H8DGG-QF serverboard. The 16 Mb AMI BIOS® is stored in a flash chip and can be easily upgraded using a floppy disk-based program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 94: Main Menu

    A+ Server 1022GG-TF User's Manual Main Menu When you first enter AMI BIOS Setup Utility, you will see the Main Menu screen. You can always return to the Main Menu by selecting the Main tab on the top of the screen with the arrow keys.
  • Page 95 Chapter 7: BIOS Wait for F1 if Error This setting controls the system response when an error is detected during the boot sequence. When enabled, BIOS will stop the boot sequence when an error is detected, at which point you will need to press the F1 button to re-enter the BIOS setup menu.

  • Page 96: Northbridge Configuration

    A+ Server 1022GG-TF User's Manual Microcode Update This setting Enables or Disables microcode updating. Power Now This setting is used to Enable or Disable the AMD Power Now feature. ACPI SRAT Table This option Enables or Disables the building of the ACPI SRAT Table.

  • Page 97: Ecc Configuration

    Chapter 7: BIOS Power Down Mode This sets the DDR power down mode. Options are Auto, Channel and Chip Select. DRAM Parity Enable This sets the DRAM Parity Enable to either Auto, Enabled and Disabled. Bank Swizzle Mode This sets the Bank Swizzle Mode to either Auto, Enabled and Disabled. ...

  • Page 98: Southbridge Configuration

    A+ Server 1022GG-TF User's Manual L2 Cache BG Scrub Allows L2 cache RAM to be corrected when idle. Options are Disabled and various times in nanoseconds and microseconds. L3 Cache BG Scrub Allows L3 cache RAM to be corrected when idle. Options are Disabled and various times in nanoseconds and microseconds.

  • Page 99: Pci Express Configuration

    Chapter 7: BIOS Power Saving Features Use this option to Enable or Disable power down saving features in the Southbridge chipset. This feature should be enabled for mobile systems and disabled for desktop systems. See the AMD SB700 Power Saving document for more details.
  • Page 100 A+ Server 1022GG-TF User's Manual L1 Immediate ACK This setting allows you to Enable or Disable L1 ACK. When enabled, the L1 will be ACK'd immediately. Lane Reversal Use this setting to Enable or Disable Lane Reversal. Hot Plug Support Use this setting to set Hot Plug Support.

  • Page 101: Hyper Transport Configuration

    Chapter 7: BIOS Turnoff Off PLL During L1/L23 This setting allows you to Enable or Disable turning off PLL during L1/L23. TX Drive Strength Use this setting to configure TX drive strength. Options include Auto, 26mA, 20mA, 22mA and 24mA. TXCLK Clock Gating in L1 Use this setting to Enable or Disable the TXCLK clock gating in L1.

  • Page 102: Usb Configuration

    A+ Server 1022GG-TF User's Manual HT3 Link Power State This setting allows you to configure the HT3 Link power state. Options include Auto, LS0, LS1, LS2 and LS3. Unit ID Clumping Use this setting to configure Unit ID clumping. Options include Disabled, Auto, UnitID 2/3, UnitID B/C and UnitID 2/3 &...

  • Page 103: Usb Mass Storage Device Configuration

    Chapter 7: BIOS BIOS EHCI Hand Off This is a workaround for OS's without EHCI hand-off support. The EHCI ownership change should be claimed by the EHCI driver. Options are Enabled or Disabled. Legacy USB 1.1 HC Support This option Enables or Disables support for legacy USB 1.1 HC. ...
  • Page 104 A+ Server 1022GG-TF User's Manual Block (Multi-Sector Transfer) Block mode boosts IDE drive performance by increasing the amount of data transferred. Only 512 bytes of data can be transferred per interrupt if block mode is not used. Block mode allows transfers of up to 64 KB per interrupt.
  • Page 105 Chapter 7: BIOS disk drive support. Select "Disabled" to prevent AMI BIOS from using the S.M.A.R.T. Select "Enabled" to allow AMI BIOS to use the S.M.A.R.T. to sup- port hard drive disk. The options are Disabled, Enabled, and Auto. 32-Bit Data Transfer Select "Enabled"...
  • Page 106 A+ Server 1022GG-TF User's Manual Pallette Snooping This option Enables or Disables Pallette Snooping. If enabled, the system informs the PCI devices that an ISA graphics device is installed in the sytem so the card will function normally. PCI IDE Busmaster Use this setting to Enable or Disable BIOS enabled uses of PCI Busmastering for reading or writing to IDE drives.

  • Page 107: Remote Access Configuration

    Chapter 7: BIOS Hotplug Reserve PFMemory Size This option sets the size of the memory block that is reserved for HotPlug or CardBus devices. Options include Auto, 32M, 64M, 128MB, 256MB, 512MB, 1024M and 2048M.  SuperI/O Configuration Serial 1 Address This option specifies the base I/O port address and Interrupt Request address of serial port 1.

  • Page 108: Hardware Health Configuration

    A+ Server 1022GG-TF User's Manual Flow Control Selects the flow control to be used for console redirection. Options are None, Hardware and Software. Redirection After BIOS POST This option sets redirction after BIOS POST. Options are Disable (no redirection after BIOS POST), Boot Loader (redirection during POST and during boot loader) and Always (redirection always active).
  • Page 109 Chapter 7: BIOS CPU Temperature Display (CTD) CPU Temperature descriptions are defined as: Low  [Tctl Value = Lowest Value, Tctl Value = -45] Medium  [Tctl Value = -46, Tctl Value = 60] High  [Tctl Value = -61 and Above] Note: Only CPU temperature (Low, Medium, High) and system temperature (RT1) are required to be displayed in BIOS and in-system monitoring software.

  • Page 110: Acpi Configuration

    A+ Server 1022GG-TF User's Manual • All system fans are required to be returned to a normal, non-CPU-overheating LFSC condition. Condition When a CPU is overheating Front Panel Overheating LED On and Solid Red Onboard Buzzer or Speaker On and Continuous Sound...

  • Page 111: Set Lan Configuration

    Chapter 7: BIOS Clear BMC System Event Log Selecting this and pressing the Enter key will clear the BMC system event log.  Set LAN Configuration Use the "+" and "-" keys to choose the desired channel number. This displays Channel Number and Channel Number Status information.

  • Page 112: Security Menu

    A+ Server 1022GG-TF User's Manual Clear Event Log Selecting this and pressing the Enter key clears the system event log. Security Menu AMI BIOS provides a Supervisor and a User password. If you use both passwords, the Supervisor password must be set first.

  • Page 113: Exit Menu

    Chapter 7: BIOS  CD/DVD Drives This feature allows you to specify the boot sequence from the list of available CD/ DVD drives. A device that is in parenthesis has been disabled in the corresponding type menu.  Network Drives This feature allows you to specify the boot sequence from the list of available network drives.
  • Page 114 A+ Server 1022GG-TF User's Manual Notes 7-22...

  • Page 115: Appendix A Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 116 A+ Server 1022GG-TF User's Manual Notes...

  • Page 117: Appendix B Installing Windows

    Settings before you install the Windows OS and other software drivers. To configure RAID settings, please refer to RAID Configuration User Guides posted on our web site at www.supermicro.com/support/manuals. Note: The following OS installation instructions are written for the Windows XP/2003 OS only.

  • Page 118: B-2 Installing Windows To A Non-Raid System

    Windows installation. 4. After the installation has completed, the system will automatically reboot. 5. Insert the Supermicro Setup CD that came with your system into the CD- ROM drive during system boot and the main screen will display.

  • Page 119: Appendix C System Specifications

    Appendix C: System Specifications Appendix C System Specifications Processors Dual AMD Opteron 6100 series (AMD Socket G34 type) processors Note: please refer to our website for details on supported processors. Chipset Dual AMD SR5690 chipsets and one SP5100 Southbridge chipset BIOS 16 Mb AMIBIOS SPI Flash ROM Memory Capacity...

  • Page 120: System Input Requirements

    A+ Server 1022GG-TF User's Manual Chassis SC818G-1400BP (1U rackmount) Dimensions: (WxHxD) 17.2 x 1.7 x 28.2 in. (437 x 43 x 716 mm) Weight Gross (Bare Bone): 47 lbs. (21.4 kg.) System Cooling Eight sets of 4-cm counter-rotating cooling fans (fan speed controlled by BIOS...
  • Page 121 Appendix C: System Specifications Notes...
  • Page 122 A+ Server 1022GG-TF User's Manual (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
