2.6 Ethernet Interface

The NET485 device contains the following LEDs:
10BaseT/100BaseTX (Bi-color, Left LED)
Full/Half Duplex (Bi-color, Right LED)
POWER LEFT
LED
LED

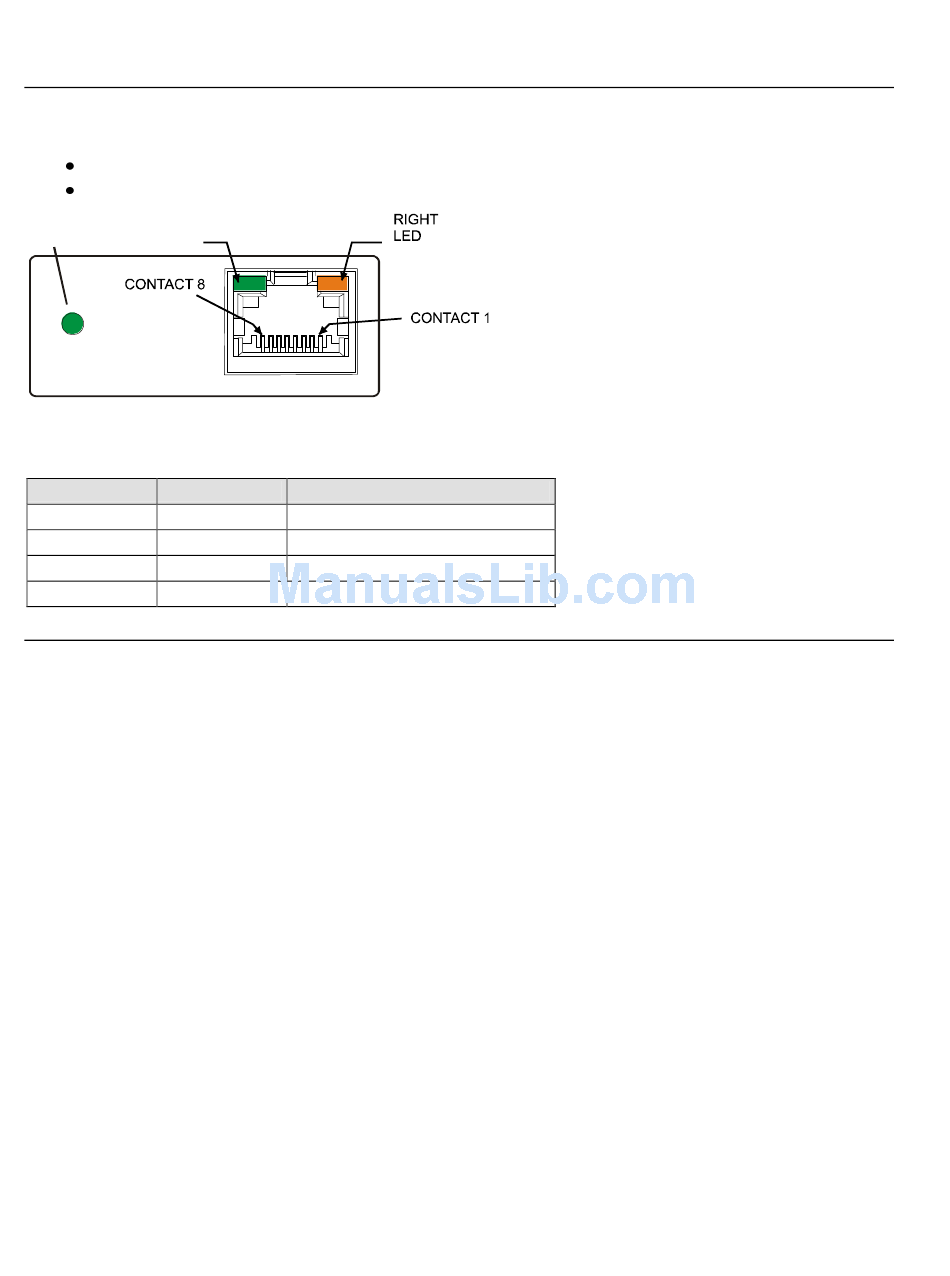

Figure 9 - Ethernet Jack

Table 2 - NET485 LED Functions

Left LED Right LED
Solid Amber
Solid Green
Blinking Amber
Blinking Green

2.7 Product CD

The CD sent with the NET485 contains software and technical manuals to support the NET485. Device
Installer is one of the main software utilities that allows for fast and easy configuration of the NET485.
1. Insert the CD into your CD-ROM drive. The CD will automatically start and display the main window.
If the CD does not launch automatically:
a) Click the Start button on the Task Bar and select Run.
b) Enter your CD drive letter, colon, backslash, autorun.exe (e.g., D:\autorun.exe).
To view the Quick Start Guide, click on NET485 Quick Start button.
The technical manuals are in PDF format. If you do not have Acrobat Reader installed, you can install it
from the Adobe website.
To install Device Installer, click the Go to Software Page button, then select Device Installer button.
2-4
Meaning
10BASE-T
100BASE-Tx
Half Duplex Activity
Full Duplex Activity
NET485 User Guide
