Overview

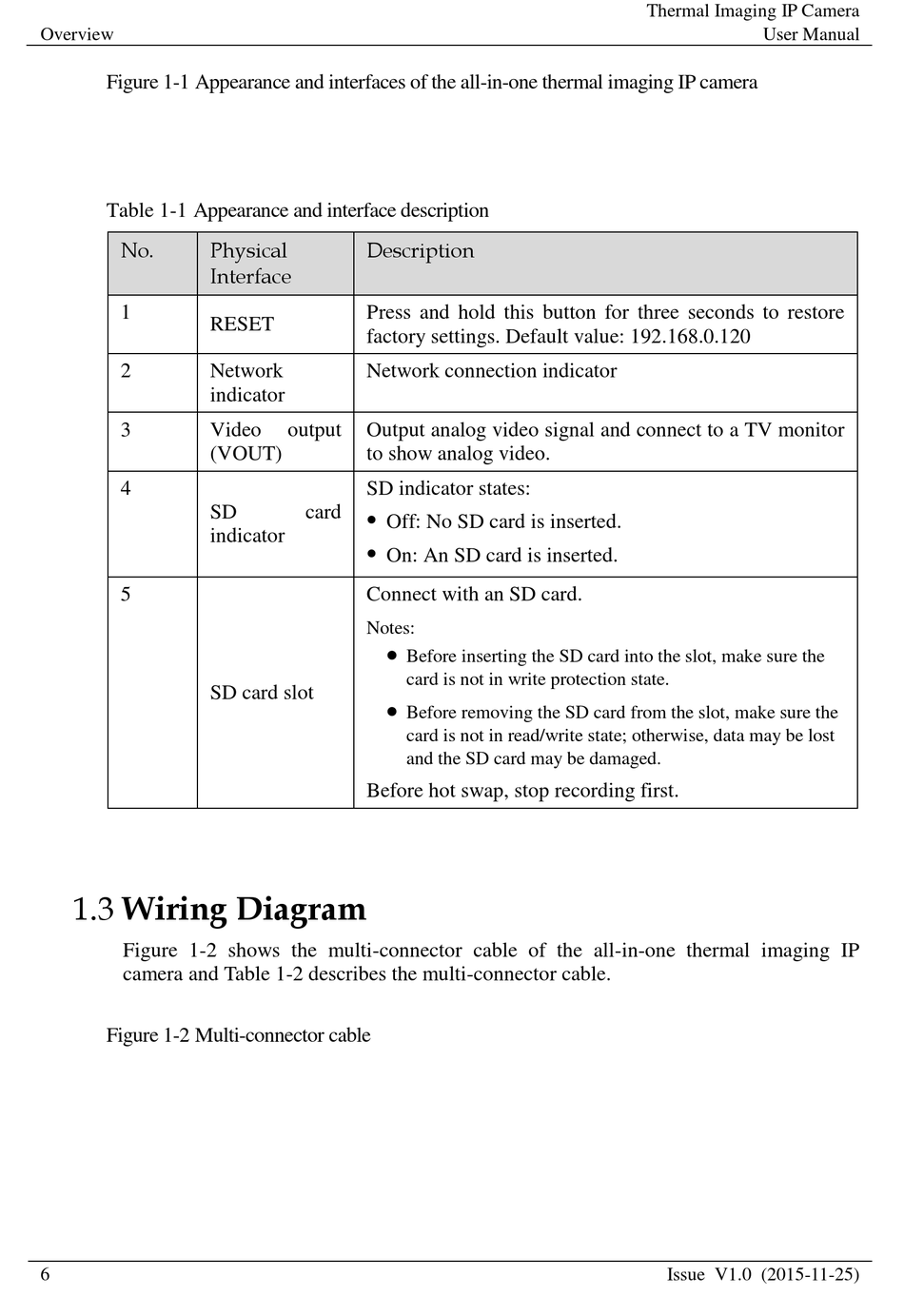

Figure 1-1 Appearance and interfaces of the all-in-one thermal imaging IP camera
Table 1-1 Appearance and interface description
No. Physical
Interface
1
RESET
2 Network
indicator
3 Video
(VOUT)
4
SD
indicator
5
SD card slot
1.3 Wiring Diagram
Figure 1-2 shows the multi-connector cable of the all-in-one thermal imaging IP
camera and Table 1-2 describes the multi-connector cable.
Figure 1-2 Multi-connector cable
6
Description
Press and hold this button for three seconds to restore
factory settings. Default value: 192.168.0.120
Network connection indicator
output Output analog video signal and connect to a TV monitor
to show analog video.
SD indicator states:
card

Off: No SD card is inserted.

On: An SD card is inserted.
Connect with an SD card.
Notes:

Before inserting the SD card into the slot, make sure the
card is not in write protection state.

Before removing the SD card from the slot, make sure the
card is not in read/write state; otherwise, data may be lost
and the SD card may be damaged.
Before hot swap, stop recording first.
