Thermal Imaging IP Camera

User Manual

IV-THB4200AT
V1.0
Issue:
Date:
11-25-2015
12000 Ford, Suite110, Dallas, TX 75234
Tel: 972-247-1203 Fax: 972-247-1291
www.idview.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IV-THB4200AT and is the answer not in the manual?

Questions and answers

Related Manuals for Digital ID View IV-THB4200AT

Summary of Contents for Digital ID View IV-THB4200AT

  • Page 1: User Manual

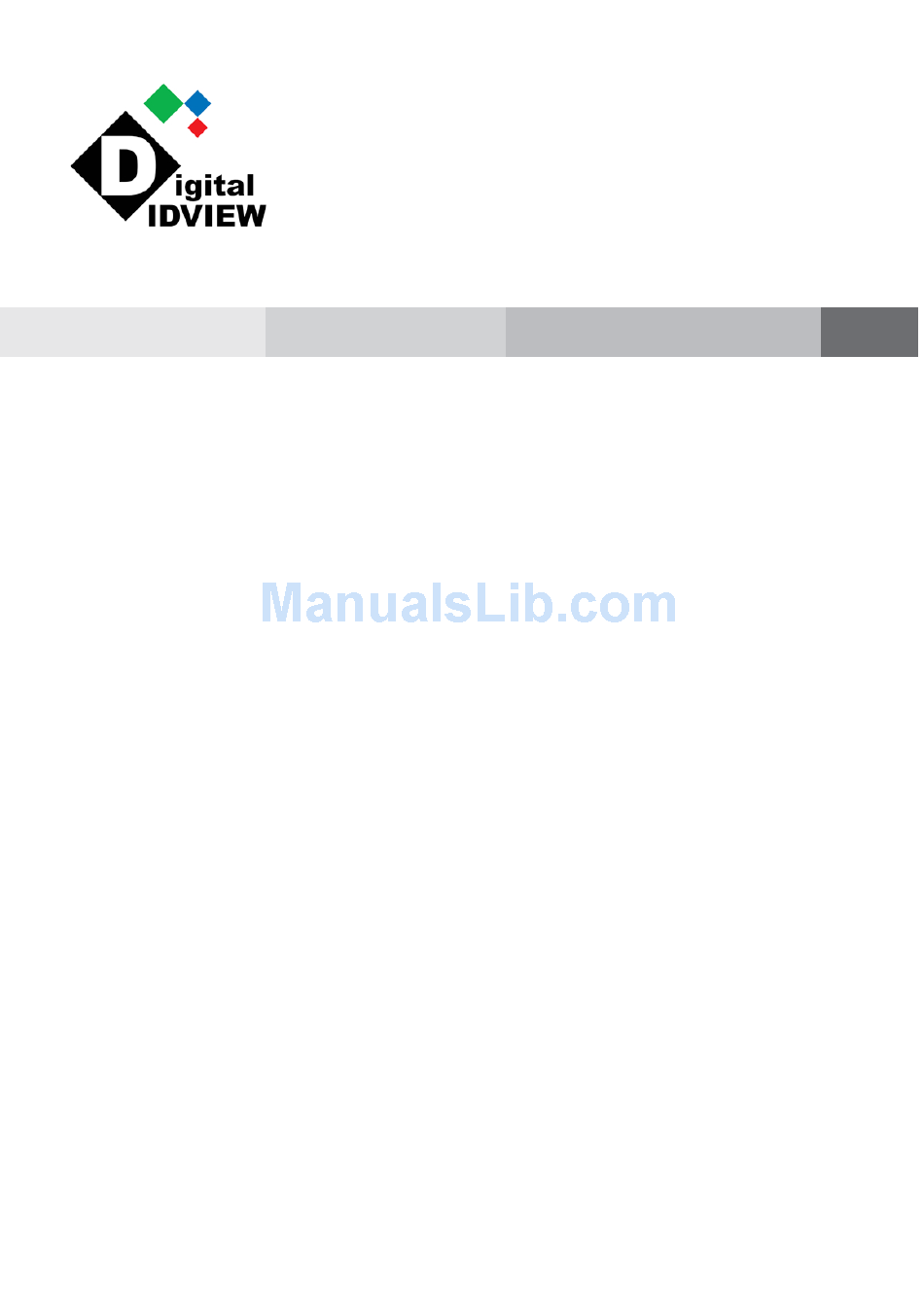

    Thermal Imaging IP Camera User Manual IV-THB4200AT V1.0 Issue: Date: 11-25-2015 12000 Ford, Suite110, Dallas, TX 75234 Tel: 972-247-1203 Fax: 972-247-1291 www.idview.com...

  • Page 2: Precautions

    Thermal Imaging IP Camera User Manual Precautions Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye- catching place.
  • Page 3 Thermal Imaging IP Camera Overview User Manual  Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged.  Use accessories delivered with this device. The voltage must meet input voltage requirements for this device.
  • Page 4 Thermal Imaging IP Camera User Manual Precautions  Do not jam the ventilation opening. Follow the installation instructions provided in this document when installing the device.  Keep the device away from heat sources such as radiators, electric heaters, or other heat equipment.

  • Page 5: Table Of Contents

    Thermal Imaging IP Camera Overview User Manual Contents Precautions ........................i 1 Overview ..................错误!未定义书签。 1.1 Hardware connection ...................... 5 1.2 Features ................... 错误!未定义书签。 2 Device Dimensions ....................9 3 Device Installation ....................10 3.1 Installation Preparation ....................10 3.2 Installing a Dome Camera ............... 错误!未定义书签。 3.2.1 Installation Modes ...............

  • Page 6: Overview

    Thermal Imaging IP Camera User Manual Overview Overview 1.1 Principle of Thermal Imaging and Advantages Any object with temperature higher than the absolute zero (-273.15°F) will emit infrared (IR) ray, even though it does not emit light. The IR ray is also called thermal radiation.
  • Page 7 Thermal Imaging IP Camera Overview User Manual Figure 1-1 Appearance and interfaces of the all-in-one thermal imaging IP camera Table 1-1 Appearance and interface description Physical Description Interface Press and hold this button for three seconds to restore RESET factory settings. Default value: 192.168.0.120 Network Network connection indicator indicator...
  • Page 8 Thermal Imaging IP Camera User Manual Overview Table 1-2 Multi-connector cable description Core Function Description Cathode of alarm Orange wire output 1 Cathode of alarm White & black Connect to the alarm output device. output 2 Yellow wire Alarm output 1 White &...
  • Page 9 Thermal Imaging IP Camera Overview User Manual  Provides overtemperature prewarning, overtemperature alarm, temperature change trend alarm, temperature difference alarm (functioning as a temperature measuring and prewarning product).  Supports DVE image enhancement function.  Supports digital noise reduction (DNR) and mirroring ...

  • Page 10: Device Dimensions

    Thermal Imaging IP Camera User Manual Device Dimensions Device Dimensions Figure 2-1 shows the dimensions of the all-in-one thermal imaging IP camera. Figure 2-1 Dimensions (unit: mm) Issue V1.0 (2015-11-25)

  • Page 11: Device Installation

    Thermal Imaging IP Camera Device Installation User Manual Device Installation 3.1 Installation Preparation When installing the camera, you may require the following tools and accessories listed in Table 3-1. You need to prepare only listed tools as accessories are delivered with the camera.

  • Page 12: Installation Method

    Thermal Imaging IP Camera User Manual Device Installation Tool Appearance Swell plastic buttons（delivered with the camera） 3.2 Installation Method The all-in-one thermal imaging IP camera can be installed on ceiling/wall, based on user requirement. For cement wall, install expansion screws (the installation hole must be consistent with the bracket) and then install the bracket.
  • Page 13 Thermal Imaging IP Camera Device Installation User Manual Figure 3-3 Pushing the camera to the bottom base Step 5 Wire the camera and hide the visible cables. After the wiring, rotate the camera to make the camera align with the bottom base, as shown in Figure 3-4: Figure 3-4 Aligning with the bottom base Step 6 Secure the camera to the bottom base, as shown in Figure 3-5:...

  • Page 14: Quick Configuration

    Thermal Imaging IP Camera User Manual Quick Configuration Quick Configuration 4.1 Login and Logout You must use Internet Explorer 6 or a later version to access the web management system; otherwise, some functions may be unavailable. Login system Step 1 Open the Internet Explorer, enter the IP address of IP camera (default value: 192.168.0.120) in the address box, and press Enter.

  • Page 15: Web Interface

    Thermal Imaging IP Camera Quick Configuration User Manual  The default name is admin. The default password is admin. Change the password when you log in the system for first time to ensure system security.  You can change the system display language on the login page. Step 3 Click Login.
  • Page 16 Thermal Imaging IP Camera User Manual Quick Configuration Table 4-1 Web interface description Name Description Show live video and allow users to configure frontend Live video parameters. Parameter Configure device parameters, including device information, configuration audio/video stream, alarm, and privacy masking. Video Set code stream of live video, frame I interval, code rate parameter...

  • Page 17: Browsing Video

    Thermal Imaging IP Camera Quick Configuration User Manual 4.3 Browsing Video User can browse the real-time video in the web management system. Preparation To ensure the real-time video can be play properly, you must perform the following operation when you log in to the web for the first time: 1.

  • Page 18: Download The Right Control In The Internet Explorer

    Thermal Imaging IP Camera User Manual Quick Configuration Figure 4-4 Configuring ActiveX control and plug-ins 3. Download and install the player control as prompted. The login page is display when the control is loaded. 4.3.1 Download the right control in the Internet Explorer Real-time video page pop-ups the message clicks to play live video with ActiveX control to reduce latency.

  • Page 19: Setting Local Network Parameters

    Thermal Imaging IP Camera Quick Configuration User Manual 4.4 Setting Local Network Parameters Description Local network parameters include:  IP protocol  IP address  Subnet mask  Default gateway  Dynamic Host Configuration Protocol (DHCP)  Preferred Domain Name System (DNS) server ...
  • Page 20 Thermal Imaging IP Camera User Manual Quick Configuration Parameter Description Setting Subnet Mask Subnet mask of the network [Setting method] adapter. Enter a value manually. [Default value] 255.255.255.0 Default Gateway This parameter must be set if [Setting method] the client accesses the device Enter a value manually.

  • Page 21: Technical Specifications

    Thermal Imaging IP Camera A Hazardous Substance Declaration User Manual Parameter Configuration 5.1 Accessing the Sensor Setting Interface Operation procedure: Step 1 On the web interface or client interface, right-click a monitoring screen, as shown in Figure 5-1: Figure 5-1 Sensor Setting Step 2 Choose Sensor Setting and the Sensor Setting dialog box appears.
  • Page 22 Thermal Imaging IP Camera User Manual A Hazardous Substance Declaration Figure 5-2 Image setting interface Table 5-1 describes the image setting parameters. Table 5-1 Image setting parameter description Parameter Description Configuration Method The temperature field of a scenario detected by the thermal imaging camera will be mapped to the value range 0~255 by algorithm processing.
  • Page 23 Thermal Imaging IP Camera A Hazardous Substance Declaration User Manual Parameter Description Configuration Method Select a proper DVE mode based on the [Configuration contrast and detail characteristics of the image method] shown. Available DVE modes include: Select from the drop- DVE Mode ...
  • Page 24 Thermal Imaging IP Camera User Manual A Hazardous Substance Declaration Table 5-2 describes the FFC mode parameters. Table 5-2 FFC mode parameter description Parameter Description Configuration Method The thermal imaging camera contains a mechanical correction actuator to periodically improve image quality. This actuator is called flat field correction (FFC).
  • Page 25 Thermal Imaging IP Camera A Hazardous Substance Declaration User Manual Parameter Description Configuration Method [Configuration method] Drag the slide interval In auto FFC mode, FFC interval range: 5~30 min (min) [Default value] In manual or external FFC mode, the camera will not Trigger automatically execute FFC in case of temperature change or baffle...
  • Page 26 Thermal Imaging IP Camera User Manual A Hazardous Substance Declaration Table 5-3 DNR parameter description Parameter Meaning Configuration Method [Configuration method] Select from the drop-down list 3D NR Reduce noise of image. [Default value] [Configuration method] Select from the drop-down list 2D NR Reduce noise of image.
  • Page 27 Thermal Imaging IP Camera A Hazardous Substance Declaration User Manual Figure 5-6 Screen adjustment interface Table 5-4 Screen adjustment parameter description Parameter Meaning Configura tion Method Compared with images generated based on visible light, IR images boast the features of high background and low contrast.
  • Page 28 Thermal Imaging IP Camera User Manual A Hazardous Substance Declaration Technical Specifications Table 6-1 describes the technical specifications of the all-in-one thermal imaging IP camera. Table 6-1 Technical specification Item Parameter Description Detector type Non-cooling IR focal plane sensor Sensing method Microbolometer Pixel 420*315...
  • Page 29 Thermal Imaging IP Camera A Hazardous Substance Declaration User Manual Item Parameter Description Polarity /LUT Black hot/white hot/rainbow/ironbow mode image 0~6 levels enhancement Correction Manual/Auto/External Functional Noise reduction Support,2D/3D Feature Contrast 1~4 levels adjustment Mirroring Support OSD display Support Output image D1/CIF Image...
  • Page 30 Thermal Imaging IP Camera User Manual A Hazardous Substance Declaration Item Parameter Description Maximum user access amount Network RJ-45,10/100Base-T interface Audio interface 1 audio input and 1 audio output Alarm interface 2 alarm input and 2 alarm output Interface Analog video features BNC,750hm...

  • Page 31: B Hazardous Substance Declaration

    Thermal Imaging IP Camera A Hazardous Substance Declaration User Manual Hazardous Substance Declaration Hazardous Substance or Element Hexavalent Polybrominated Component Plumbum Mercury Cadmium Polybrominated Chromium Diphenyl Ethers (Pb) (Hg) (Cd) Biphenyls (PBB) (Cr6+) (PBDE) Structural ○ ○ ○ ○ ○ ×...
