Thermal Imaging IP Camera
User Manual
Tool
Swell plastic buttons（delivered with the
camera）

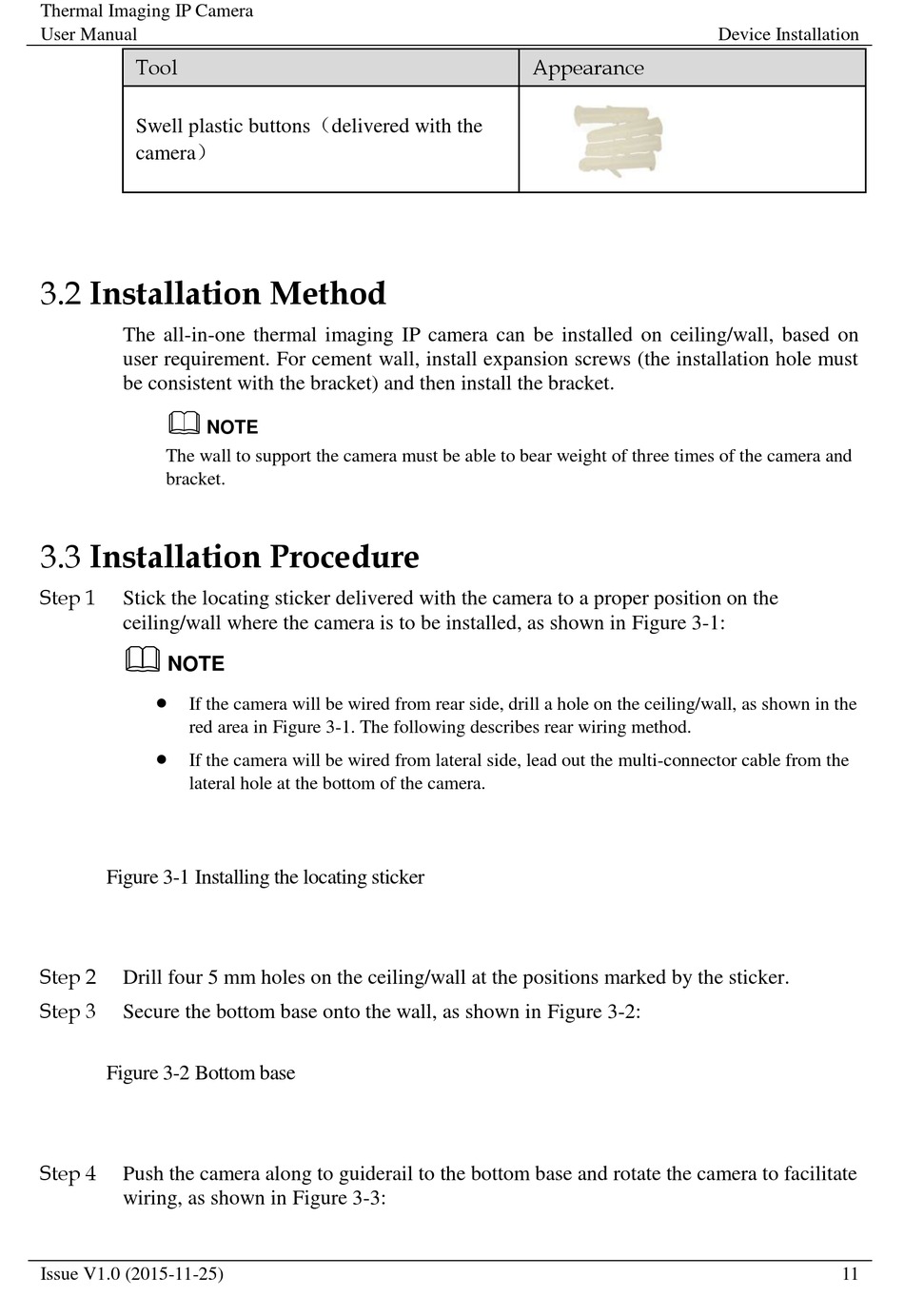

3.2 Installation Method

The all-in-one thermal imaging IP camera can be installed on ceiling/wall, based on
user requirement. For cement wall, install expansion screws (the installation hole must
be consistent with the bracket) and then install the bracket.
NOTE
The wall to support the camera must be able to bear weight of three times of the camera and
bracket.

3.3 Installation Procedure

Step 1
Stick the locating sticker delivered with the camera to a proper position on the
ceiling/wall where the camera is to be installed, as shown in Figure 3-1:
NOTE

If the camera will be wired from rear side, drill a hole on the ceiling/wall, as shown in the
red area in Figure 3-1. The following describes rear wiring method.

If the camera will be wired from lateral side, lead out the multi-connector cable from the
lateral hole at the bottom of the camera.
Figure 3-1 Installing the locating sticker
Step 2
Drill four 5 mm holes on the ceiling/wall at the positions marked by the sticker.
Step 3
Secure the bottom base onto the wall, as shown in Figure 3-2:
Figure 3-2 Bottom base
Step 4
Push the camera along to guiderail to the bottom base and rotate the camera to facilitate
wiring, as shown in Figure 3-3:
Issue V1.0 (2015-11-25)
Appearance
Device Installation
11
