3.1.2 Removing the top drive unit
(See Figs.4 to 6)
• Prior to performing the following procedure, remove the front
assembly.
(1) From the both sides of the main body, remove the four
screws B attaching the top drive unit to the main body. (See
Fig.4.)
(2) From the back side of the main body, remove the three
screws C attaching the top drive unit to the main body. (See
Fig.5.)
(3) From the top side of the main body, lift the top drive unit
from the bottom case assembly.
(4) Lift up the lock lever of the connectors
on the system control board and disconnect the flexible
wires from it. (See Fig.6.)
(5) Take out the top drive unit from the bottom case assembly.
(CN391 and CN392)

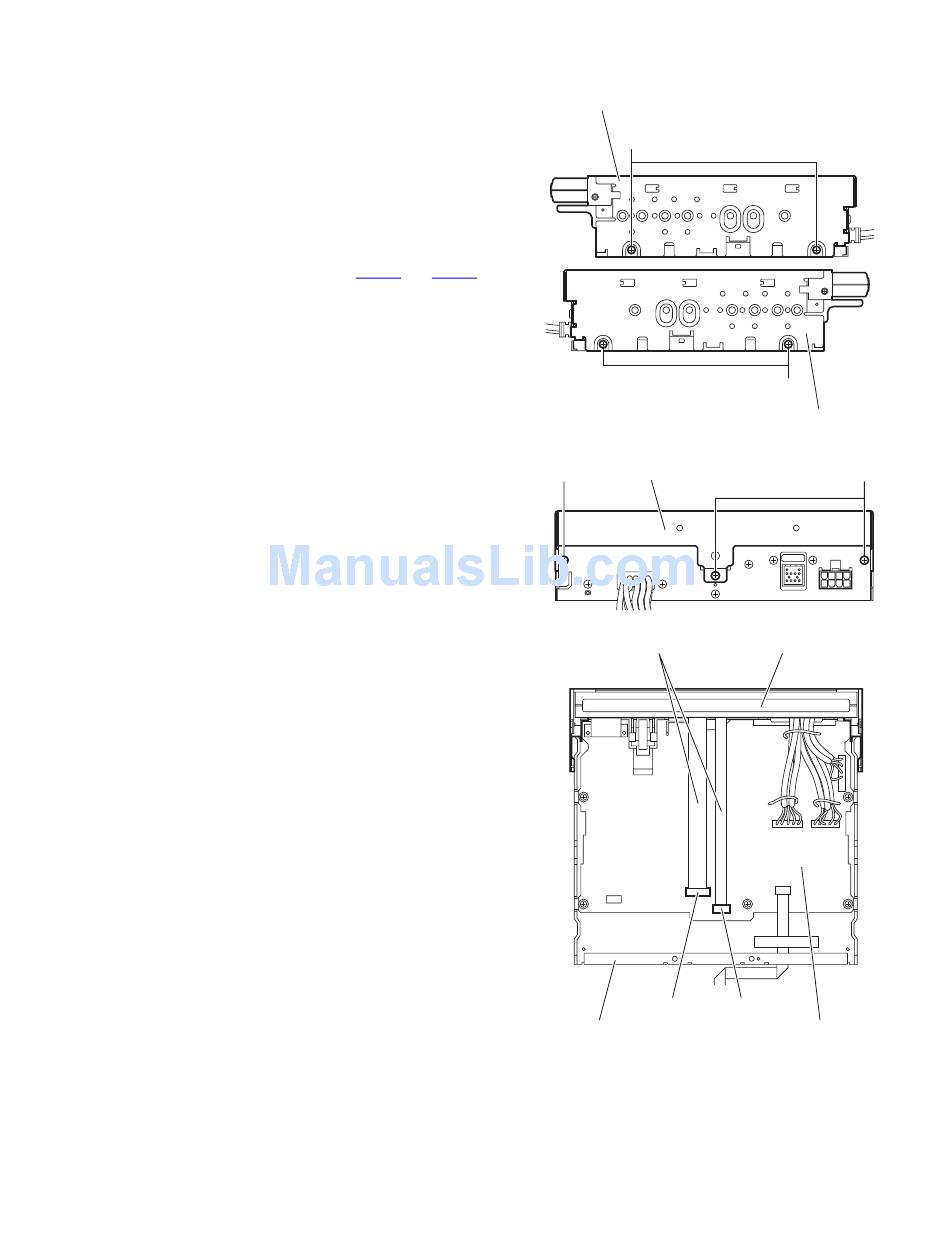

Top drive unit
B
Fig.4
C
Top drive unit
Fig.5
Flexible wires
CN392 CN391
Bottom case assembly System control board
Fig.6
B
Top case assembly
C
Top drive unit
(No.MA209)1-5
