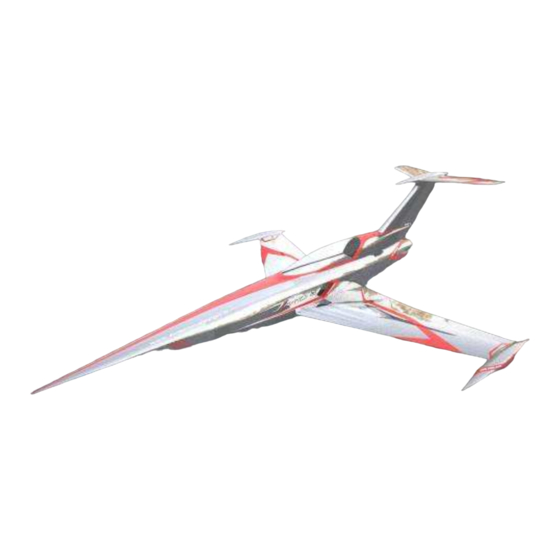

Aviation Design Diamond Assembly Manual

Jet
Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly Manual
ZI le chenet, 91490 Milly La Foret – France -
AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr
AVIATION Design
AVIATION Design
AVIATION Design
AVIATION Design
Tel : 00 33 1 64 98 93 93
Fax : 00 33 1 64 98 93 88
E-mail : aviation.design@wanadoo.fr
www.aviation-design.fr
Version 01/08/2014
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Diamond and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aviation Design Diamond

Summary of Contents for Aviation Design Diamond

  • Page 1 Fax : 00 33 1 64 98 93 88 E-mail : aviation.design@wanadoo.fr www.aviation-design.fr Version 01/08/2014 AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 2 All hardware (screws, servo cover, ...) Instructions in English with pics. Stainless steel tailpipe already installed. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 3 White with gold strips Metallic grey with red strips Blue Racing version Red Racing version White Racing version AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 4 Powerbox system. Aluminium servo covers set. Can be exchange with the plastic covers. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 5 Protection covers for wings, rudder, nose, stabs, wing tip tanks Fuselage protection cover Sun protection cover AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 6 We strongly recommand the use of a Power box system for the big number of high torque servos 2 lipo batteries 4000 mah will be necessary to obtain the correct CG AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 7 Drill a hole in the stab between the spare and the rear pins for the servo electric wiring. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 8 Screw the servo cover in the stabs with 4 parker screws. Connect the servo to the fiber horn. Apply threated lock on the link. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 9 Glue the control horn in the rudder with 5 minutes epoxy. Take care to insert enough glue in the slot. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 10 We recommand the fill the hole so that the connector can’t fale in the rudder. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 11 Screw the servo cover in the rudder with 4 parker screws. Connect the servo to the fiber horn. Apply threated lock on the link AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 12 Drill a 2 mm diameter on the lower surface at about 100 mm from the root. Secure the 2 stabs with 2 x parker screw 3x10. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 13 Glue the control horns in the wings with 5 minutes epoxy. Take care to insert enough glue in the slot. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 14 Holes in plywood spare are already done. The electic wiring is drawin in red on the following drawing. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 15 Use a plastic servo control horn.The steel link will be at 14 mm from the servo axis. Aileron servo. Flap servo. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 16 Connect the servos to the fiber horns. Apply threated lock on the link AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...

  • Page 17: Main Landing Gear

    Attach the brake tube on the legs. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 18 Insert the main gear on the plywood support. Screw each gear with 4 screw CHC 4 x 20 AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 19 The wiring must be secured to the fuselage and protected against the engine heat (tailpipe and turbine). AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 20 Insert he full assembly and and screw it on the front plywood mount with 4 screws CHC 4 x 20 + 4 large roundels. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...

  • Page 21: Fuel Tanks

    The fuel tank will be locked in the model when the seat will be in place. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 22 The fuel tank will be attached to the fuel tank plywood frame with plastic T rap. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...

  • Page 23: Turbine Installation

    AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 24 See bottom photos. Template for cutting the hole is in the next page AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 25 AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 26 Template for underfuselage additionnal inlets for 19 to 22 kg thrust engine AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 27 The air tank will be installed in front of the fuselage secured with light foam. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 28 Drill a 1.5 mm hole at 22 mm from the border at about 60°from the top Insert the side screws AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 29 We recommend to just draw on the aluminium tube the wing limit and a up/down mark to find easily the hole for the wing screw when you assemble the model. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 30 Apply some ZAP canopy inside the frame between the clear canopy and the fiber parts Let in dry 24 hours AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
  • Page 31 No mixing with elevator are necessary. Elevator Up : 15 mm Down : 15 mm Exponentiel: 10 At stab root. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...

  • Page 32: Center Of Gravity

    400 KPH - 250 MPH. It is your responsibility to operate it safely. Specifications may change without notice. AVIATION DESIGN - ZI le Chenet - 91490 MILLY LA FORET – FRANCE - Tel : 01 64 98 93 93 - aviation.design@wanadoo.fr – www.aviation-design.fr...
