Summary of Contents for Seville Classics WEB247

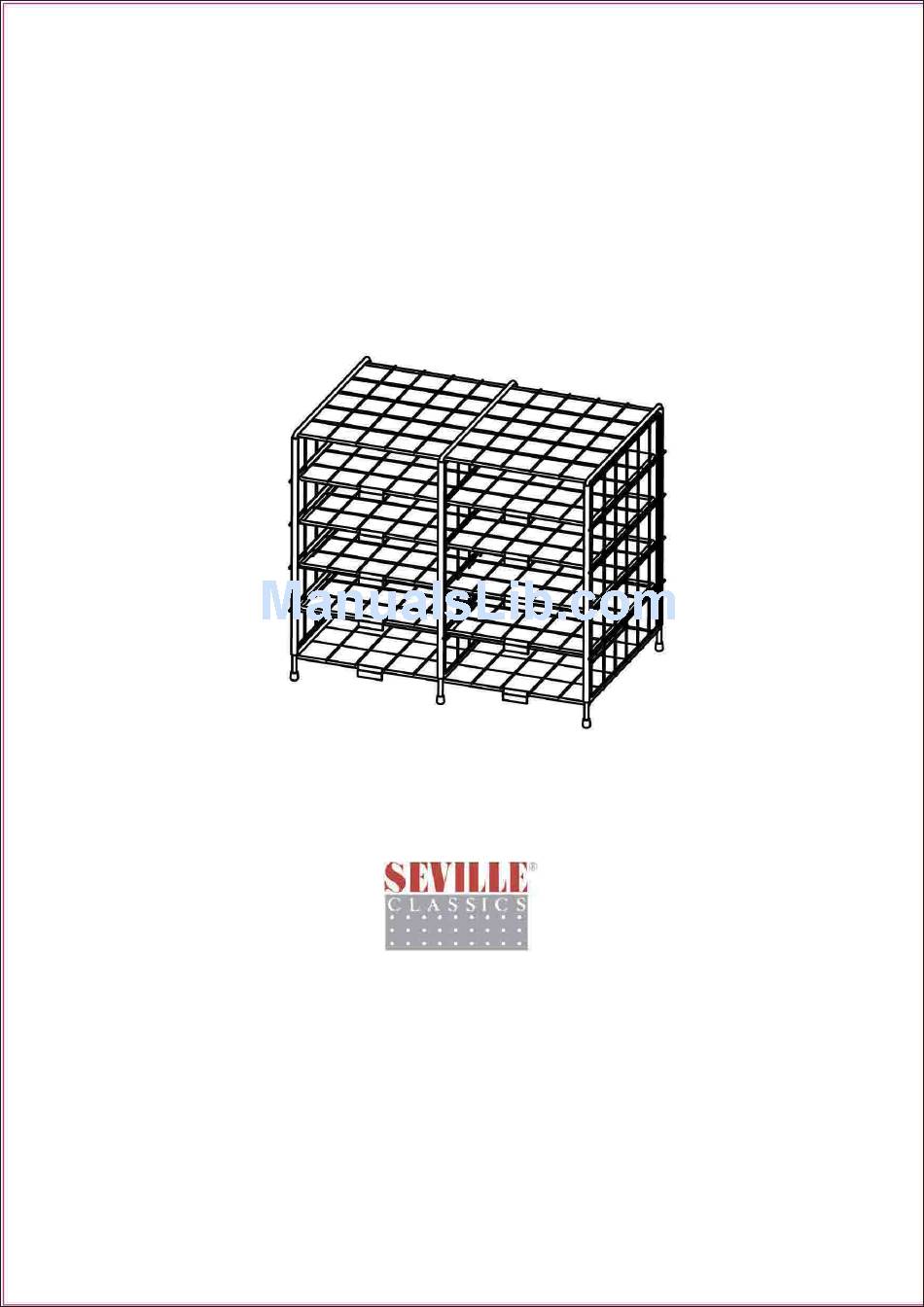

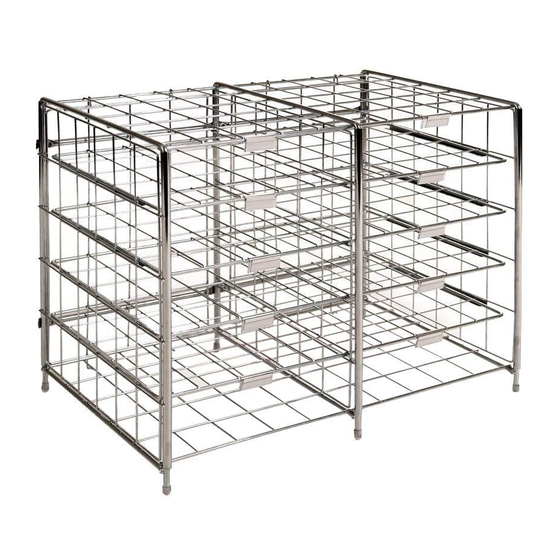

- Page 1 10 Slot Literature Organizer WEB247 Assembly Instructions Customer Service Toll free: 800-323-5565 Monday through Friday 8:30 AM – 4:30 PM (PST) Torrance, CA 90501 USA www.sevilleclassics.com READ AND SAVE THESE INSTRUCTIONS...
- Page 2 #WEB247 10 - Slot Literature Organizer Assembly lnstruction 12 - Slot Literature Organizer Assembly lnstruction 1 piece 1 piece 1 piece Base Panel Side Panel Center Panel Side Panel 1 piece Grid Shelves 4 pieces 1 piece 2 pieces 2 pieces...
- Page 3 STEP 3 Slide all 4 wire Grid Shelves (D) with the grid pattern wires on top running front to back, through the slots Center Panel (C) and onto the “L” shaped shelf supports of Side Panel (B). STEP 4 Place Side Panel (E) vertical onto the two upright posts on the left side of...
- Page 4 STEP 7 On the back of the organizer, place Cross Bar Supports (H) across the three vertical panels (B, C, E) and use Screws (I) to secure them in place. NOTE: The Cross Bar Supports (H) were designed to partially wrap around the vertical supports for a secure fit.
