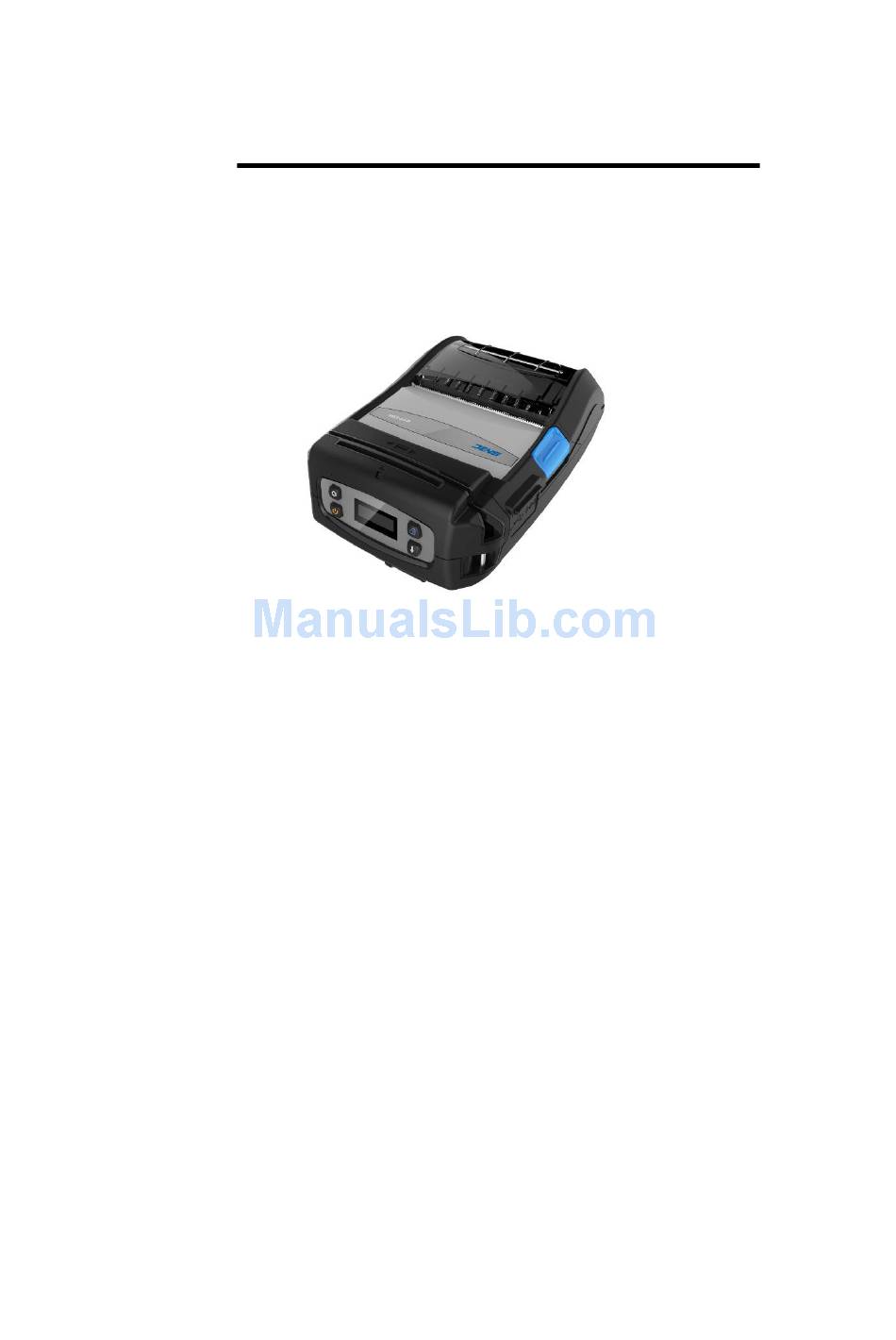

USER'S MANUAL
Mobile Printer
BTP-P35
Shandong New Beiyang Information Technology Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTP-P35 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shandong New Beiyang Information Technology Co. BTP-P35

Summary of Contents for Shandong New Beiyang Information Technology Co. BTP-P35

  • Page 1 USER’S MANUAL Mobile Printer BTP-P35 Shandong New Beiyang Information Technology Co., Ltd.

  • Page 2: Table Of Contents

    BTP-P35 User’s Manual Contents 1 Introduction..................... - 1 - 1.1 Outline....................... - 1 - 1.2 Main features................... - 2 - 2 Main technical specification................. - 3 - 2.1 Technical specification................- 3 - 2.2 Paper specification................. - 5 - 2.2.1 Parameters of continuous paper..........- 5 - 2.2.2 Parameters of black marked paper..........- 6 -...
  • Page 3 BTP-P35 User’s Manual 6 Installation printer..................- 28 - 6.1 The host accessories................- 28 - 6.2 Precautions for using the printer............- 28 - 6.3 Power cable connection..............- 29 - 6.4 Paper roll installation................- 31 - 6.4.1 Confirmation of printing paper............ - 31 - 6.4.2 Install / replace the paper roll............- 31 -...
  • Page 4 BTP-P35 User’s Manual Declaration Information in this document is subject to change without notice. SHANDONG NEW BEIYANG INFORMATION TECHNOLOGY CO., LTD. (hereinafter referred to as “SNBC”) reserves the right to improve product as new technology, components, software, and firmware become available. If users need further data about this product, please feel free to contact your dealer or the manufacturer.
  • Page 5 OHSAS18001 Occupational Health and Safety Management System Certification IECQ QC 080000 Hazardous Substance Process Management System Certification BTP-P35 has passed the following certifications: Warning This is class A product. The product may cause radio interference in the working environment. Users need to take...

  • Page 6: General Safety Information

    BTP-P35 User’s Manual General Safety Information Before installing and using the printer, please read the following items carefully.  Safety instructions Warning: Don’t touch the tear bar of printer. Warning: The print head is a thermal element and it is at high temperature during printing or just after operation.
  • Page 7 BTP-P35 User’s Manual sharing a single electrical with large power motors and other devices that may cause the fluctuation in voltage. The power outlet should be close to the printer for easy connection Do not let the water or the electric materials (like metal) go into the printer.
  • Page 8 BTP-P35 User’s Manual - 7 -...

  • Page 9: Introduction

    BTP-P35 User’s Manual 1 Introduction 1.1 Outline BTP-P35 is a thermal mobile receipt printer with high print quality, fast speed, stable performance, long standby time and small portability. It is widely used in retail, government, law enforcement, insurance, logistics and other fields.

  • Page 10: Main Features

    BTP-P35 User’s Manual (Waist bag) shoulder strap, and other accessories. 1.2 Main features  Easy paper loading Simple operation and easy maintenance   Printing supports continuous paper and marked paper Compatible with a variety of width paper  ...

  • Page 11: Main Technical Specification

    BTP-P35 User’s Manual 2 Main technical specification 2.1 Technical specification The parameters are under the standard test paper conditions. BTP-P35 mobile printer Model Print method Thermal Print resolution 203dpi Print width (Max.) 72mm Max.102mm/s. Print speed Factory default value is 76.2mm/s...
  • Page 12 BTP-P35 User’s Manual 1D barcode (ESC/POS UPC-A, UPC-E, JAN13 (EAN13), JAN 8 (EAN8), command) CODE39, ITF, CODABAR, CODE93, CODE128 2D barcode (ESC/POS PDF417, QRCODE, MAXICODE, GS1 command) Plain bitmap in binary system. HEX, PCX, BMP and Graphic format IMG. Image files can be downloaded to FLASH, RAM...

  • Page 13: Paper Specification

    BTP-P35 User’s Manual Output 12VDC±5%, 2.0A voltage Working Temperature:-20~50℃, temperature Humidity:10~90% non-condensation Environmental Storage Temperature:-20~60℃, condition temperature Humidity: 10~90% non-condensation Standard Battery, power adapter, operation guide, test paper roll, configuration USB data cable, belt bag Accessory Optional Single battery charger, vehicle-bone charger, sheath,...

  • Page 14: Parameters Of Black Marked Paper

    BTP-P35 User’s Manual Paper thickness: 0.06—0.1mm  2.2.2 Parameters of black marked paper The marked paper should meet the following requirements: 1) Mark position  There are nine positions installed mark sensors which can detect the mark on the front or back of the paper. A to D position of sensor to detect the inner mark of the paper roll.

  • Page 15: Recommended Paper

    BTP-P35 User’s Manual L3 space between marks: 10mm≤L3≤1000mm  3) The reflectivity of the mark part is less or equal to 15%, and the reflectivity of the other part of the paper in the direction of the paper feeding mark width is more than or equal to 85%. There should be no any pattern in the area between the two marks like advertisement.

  • Page 16: Tear Off Position

    BTP-P35 User’s Manual following table: Print Distance from the print Distance from the print Paper width content to the left content to the right width (L1) (L2) edge(L3) edge(L4) 80mm 72mm 60mm 52mm 2.3.2 Tear off position - 8 -...

  • Page 17: Appearance And Components

    BTP-P35 User’s Manual 3 Appearance and components 3.1 Apperance and components 1——Bottom cover 2——Top cover 3——Top cover paper cabinet 4——Liquid crystal button 5——LCD 6——Shoulder strap 7——Communication interface 8——Paper cabinet 9——Belt clip sealed cover button 10——Battery 11——Print platen 12——Transmissive roller sensor 1 13——Print channel board...

  • Page 18: Accessories Introduction

    BTP-P35 User’s Manual 19——Tear-off bar 20——Reflective 21——Mechanism sensor(standard bracket configuration) 22——Platen roller pothook 23——Transmissive 24——Print head sensor 2 25——Swipe card module (optional configuration) Caution: Paper guide is an indispensable part which adjusts the width of paper.  You should pay attention to the proper use.
  • Page 19 BTP-P35 User’s Manual 2A Power 1. Chinese adapter standard area use (Chinese 2. Charge the standard) printer 3. Match up a lithium battery charging cradle to charge a single lithium battery 1. US standard 2A Power area use adapter (US 2.
  • Page 20 BTP-P35 User’s Manual lithium battery 1. EU standard 2A Power area use adapter (EU 2. Charge the standard) printer 3. Match up a lithium battery charging cradle to charge a single lithium battery Use for charging a lithium battery Lithium battery...
  • Page 21 BTP-P35 User’s Manual 1. Chinese AC power cord standard area use (Chinese 2. 5A Power standard) adapter AC power cord 1. US standard AC power cord area use (US standard) 2. 5A Power adapter AC power cord 1. UK standard...
  • Page 22 BTP-P35 User’s Manual same time Vehicle-bone 1. Charge the charger printer 2. Match up a lithium battery charging stand to charge a single lithium battery Protection This is optional case(waist bag) accessory used for BTP-P35 mobile printer Shoulder strap This is optional...

  • Page 23: System Function And Settings

    BTP-P35 User’s Manual 4 System function and settings 4.1 Explanation of panel 4.1.1 Appearance panel 4.1.2 Button function Button Function Explanation In the power on state, press [Power] button for a long time to turn off the printer. In the power off state, press the [Power] button for a long time to turn on the printer.

  • Page 24: System Menu

    BTP-P35 User’s Manual 5. When the current menu has no submenu and no parameter adjustment, the current menu operation is selected and executed Press the [Feed] button in the idle state: Paper feed paper feed Press the [Feed] button in the working...
  • Page 25 BTP-P35 User’s Manual optional configuration reflective sensor, optional transmmisive sensor Print 00~30 darkness Print 02~04 IPS speed No feeding. Paper feed Start when start calibration. Fix position to label No feeding. Close Start cover and calibration. feed paper Fix position...
  • Page 26 BTP-P35 User’s Manual marked paper; continuous paper Left 0~49mm margin Right 0~49mm margin Label 0~8000 length Label 0~5000 width Horizontal 0~800 offset Vertical 0~199 offset Tear-off 0~199 position Detect Enabled; paper Disabled when idle Back to previous level Paper 0~255...
  • Page 27 BTP-P35 User’s Manual Label light 0~255 strength Mark light 0~255 strength Sensor Display the information information of sensor Back to previous level IP address IP address Subnet Subnet mask mask Gateway Gateway IP protocol TCP UDP WLAN port WLAN port...

  • Page 28: Main Parameter Setup

    BTP-P35 User’s Manual Language Chinese setup English Command ESC/POS language BPLZ/BPLE Buzzer High volume Button buzzer USB mode API mode Class mode Factory reset Reset outgoing parameter Save /Exit Whether save the current setup or not Print Printer information output...
  • Page 29 BTP-P35 User’s Manual Use the “Up / Down” button to select the “Setup” menu item.  Print mode Set the print mode in the “Setup / Print setup / Print mode Setup” menu item. Use the “Up / Down” button to select the mode. Optional modes are “tear-off mode”, “rewind mode”.
  • Page 30 BTP-P35 User’s Manual  Paper type selection In the menu "Setup / Paper setup / Paper type", set the current paper type. The optional type: "continuous paper", "marked paper".  Wireless configuration In the "Setup" menu item, select "Setup / Wireless configuration", you can set the printer's network configuration.
  • Page 31 BTP-P35 User’s Manual  System language type setup In the "Configuration / Other Configuration / Language Setup" menu item, set the system language type  Command set type selection In the "Configuration / Other Configuration / Command Language" menu item, set the command language type System sleep time setup ...

  • Page 32: Buzzer Function

    BTP-P35 User’s Manual When the paper roll is loaded in the paper cabinet, a print calibration is made. The paper and sensor calibration are made. Press the "Setup" button to enter the first level menu, and select "print calibration" to set.

  • Page 33: Swipe Card Function

    If the print head temperature is too high, the printer will stop printing. 4.5 Swipe card function The BTP-P35 supports magnetic card and IC card swipe function. When the device receives the swipe card command via the communication interface, slide the magnetic card or insert the IC card according to the directions of the magnetic card and the IC card on the device.

  • Page 34: Printer Communication Interface

    BTP-P35 User’s Manual 5 Printer communication interface This BTP-P35 can be connected via USB, WIFI interface and other devices. 5.1 USB interface USB interface supports USB1.1 protocol. The interface socket using MINI USB B-type standard socket: Interface signal definition: Cable...
  • Page 35 BTP-P35 User’s Manual  Support HTTP function 2) Support protocols  ARP　　   ICMP    DHCP  TFTP  HTTP - 27 -...

  • Page 36: Installation Printer

    BTP-P35 User’s Manual 6 Installation printer 6.1 The host accessories This product configures with standard power adapter, belt clip, USB cable and other accessories, and optional configuration is magnetic card/IC POS machine point of sale machine, battery charger, vehicle-bone charger, IP54 protective cover, shoulder strap and other accessories.

  • Page 37: Power Cable Connection

    BTP-P35 User’s Manual 6.3 Power cable connection 1) Pin definition 1: Positive (+12V) 2: Negative (GND) 3: Negative (GND) 2) Interface type Printer usage: socket in the following figure in the left User usage: socket in the following figure in the right As shown in the figure, insert the power adapter plug into the power socket, DC plug into the printer’s charging interface.
  • Page 38 BTP-P35 User’s Manual 　 Input voltage: AC100-240VAC / 50 ~ 60Hz Caution:  Do not remove the battery during charging; When charge the battery, the printer can print task.  Should use the manufacturer recommended power adapter or its equivalents;...

  • Page 39: Paper Roll Installation

    BTP-P35 User’s Manual 6.4 Paper roll installation 6.4.1 Confirmation of printing paper Before installing the paper roll, you should first check the paper type used by the printer. The default paper type is continuous paper. If you need to set marked paper, please calibrate it.
  • Page 40 BTP-P35 User’s Manual Remarks: When the printer is printing, the paper guide should center the paper roll in the paper cabinet. Make sure the paper head is flush and place the paper roll in the paper cabinet as shown in the figure below. After pulling out the paper head for a distance along the direction of paper out, close the back cover and tear off the excess paper head.

  • Page 41: Printer Connecting Installation

    BTP-P35 User’s Manual  The paper roll should be wrapped tightly. Otherwise, it may cause paper jam or other errors.  The paper roll should be placed in the paper house smoothly, avoid tilt, otherwise it may affect the printing and paper feeding;...

  • Page 42: Shoulder Strap Connection (Optional Configuration)

    BTP-P35 User’s Manual 6.5.2 Shoulder strap connection (optional configuration) When the printer is leaving the factory, the shoulder strap is not installed in the printer. Please install the shoulder strap in the printer according to the figure. 6.6 Printer power on and self-test 6.6.1 Power on the printer...

  • Page 43: Connect The Communication Interface

    3) Press "Up" or "Down" to select "2. SELFEST" or "2.SELFTEST" and press CONFIRM to confirm; 4) The printer begins printing the self-test page. 6.7 Connect the communication interface BTP-P35 has two communication modes:  Wired communication: USB interface ...

  • Page 44: Routine Maintenance

    BTP-P35 User’s Manual 7 Routine maintenance Caution:  Before starting routine maintenance, ensure that turn off the printer  Do not use organic solvents like gasoline or acetone.  When cleaning the sensors, do not turn on the printer power until the pure alcohol has completely evaporated.

  • Page 45: Cleaning Marked Sensor

    BTP-P35 User’s Manual to wipe off the dust and stains on the surface of the print head and platen roller when the top cover of the paper cabinet is open; 4) Close the top cover of paper cabinet after the neutral cleaner evaporates completely.

  • Page 46: Troubleshooting

    BTP-P35 User’s Manual 8 Troubleshooting When the printer has any problem, refer to this chapter for solution. If the problem still cannot be solved, please contact your local dealer or manufacturer for assistance. 8.1 Printer doesn’t work Problem Possible causes...

  • Page 47: Problems During Printing

    BTP-P35 User’s Manual 8.3 Problems during printing Possible Problem Solution causes Wrong paper Paper feed Replace with matched paper roll type continuously when Marked Contact your local dealer or manufacturer. printing sensor errors Paper cannot be sent Open the top cover, check the paper Paper jam out normally.

  • Page 48: Appendix

    2003/Windows Vista/Windows Server 2008/2012/Windows 7/Windows 8/ Windows 10 operating systems drivers. 9.2 WIFI connection 1) Connect the BTP-P35 printer with windows system via WIFI. Turn on the Internet setup tool of windows system 2) After turning on successfully, read the right parameter of WIFI;...
  • Page 49 BTP-P35 User’s Manual - 41 -...
  • Page 50 BTP-P35 User’s Manual - 42 -...

  • Page 51: Fcc Statement

    BTP-P35 User’s Manual FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
