Page 1: Quick Installation Guide

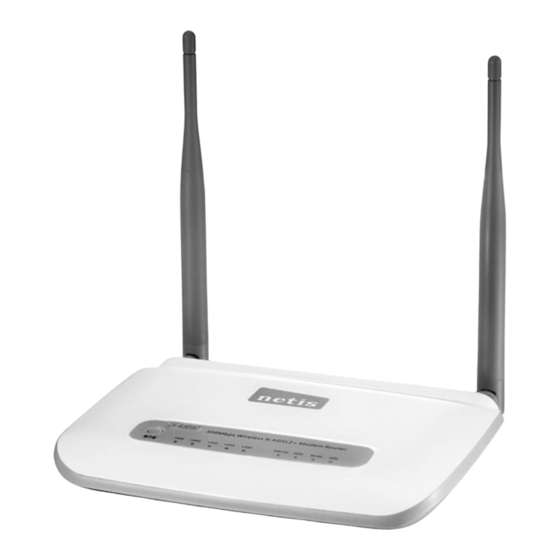

DL4305D ADSL2+ Modem Plus 300Mbps Wireless-N Router Quick Installation Guide ... -
Page 2: Hardware Installation
1. Hardware Installation Step 1: Connect the ADSL Line. Method one: Plug one end of the twisted‐pair ADSL cable into the ADSL LINE port on the rear panel of the router, and insert the other end into the wall socket. Method two: You can use a separate splitter. The external splitter has three ports: • Line: Connect to the wall jack • Phone: Connect to the phone sets • Modem: Connect to the ADSL LINE port of the router ... - Page 3 a wall outlet or power extension. Figure 1 ...
- Page 4 Name Status Indication PWR On Power is on Off Power is off Flash The ADSL negotiation is in progress ADSL On The LINE port is linked up. Off The LINE port is linked down. Flash Data is being transferred over the Internet. Internet On A successful PPP connection has been built. There is no successful PPP connection or the Off Router works on Bridge mode. Flash There is wireless data being transmitted. WLAN On The wireless function is enabled but no data is being transmitted. ...
- Page 5 2. Configure PC ForWindows 7 or Windows Vista as below. Step 1: Click , then select the Open Network and Sharing Center. Figure 2 Step 2: Click the Change adapter settings. Figure 3 Step 3: Click Local Area Connection with the right button of your mouse. Then select Properties. ...
- Page 6 Figure 4 Step 4: Double click the “Internet Protocol Version 4(TCP/IPv4)”. Figure 5 ...
- Page 7 Step 5: Select the “Obtain an IP address automatically” as below. Then click “OK”. Figure 6 3. Login Start your web browser and type the private IP address of the Router in the URL field: 192.168.1.1. Figure 7 Then,enter the default User Name admin and the default Passwordadmin ...
-
Page 8: Modem Management
Figure 8 And then click OK to access to the Wireless Modem Management Panelscreen. 4. Modem Management This webpage provides you the convenient and simplest way to configure your Modem to access the internet. Firstly. Click and go to “Setup”‐>”WAN” , Page is showing below: (we are taking PPPoE for example) ... -
Page 9: Wireless Network&Security
Fourth: Click “Save” botton to make it effetive. Figure 9 5. Wireless Network&Security To connect to the Wireless AP, we should have the most basic configuration of the router at first. In this section, you can set the wireless network parameters required to access the AP of your WLAN... - Page 10 interface. Go to Setup->WLAN->Basic page, you can configure the wireless parameters. Here you may enable or disable the wireless function. You can also change the wireless parameters, such as Band, SSID, Channel Width, Control Sideband, Channel Number and Radio Power. ...
- Page 11 unauthorized access to your wireless network. There are three most commonly used encryption method (a total of six encryption support), including the WEP encryption, WPA-Personal, WPA2-Personal, etc. Click “Apply Changes” to make it effective Figure 11 Step 3: Click “My Network Places” with the right button of your mouse. Then select “Properties”. ...
- Page 12 Figure 12 Step 4: Click “Wireless Network Connection” with the right button of your mouse. Then select “View Available Wireless Networks”. Figure 13 Step 5: Double click the wireless network your product provided. ...
-
Page 13: Fcc Statement
Figure 14 Step 6: Input the key you stetted before if the wireless network you connecting to requests password. Certification FCC CE FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro‐vide reasonable protection against harmful interference in a residential installation. This equipment generates ... - Page 14 harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • ...
- Page 15 the equipment. INFORMATION TO BE SUPPLIED TO USERS We confirm that the following information will supplied to the users of this equipment. This information will be provided with the user’s manual. FCC REQUIREMENTS This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the exterior of the cabinet of this equipment is a label that contains, among other information, the FCC Registration Number and Ringer Equivalence Number (REN) for this equipment. A product identifier in the format US: SX5DL01BDL4305R. If requested, this number must be provided to the telephone company. ...
- Page 16 telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. The telephone company may make changes to its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advance notice so you can make the necessary modifications to maintain uninterrupted service. For technical support, contactNetis Systems USA Corp at 18541 Gale Avenue, City of Industry, CA 91748 or callTEL: 626‐486‐ 9208. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
