Page 1: Quick Installation Guide

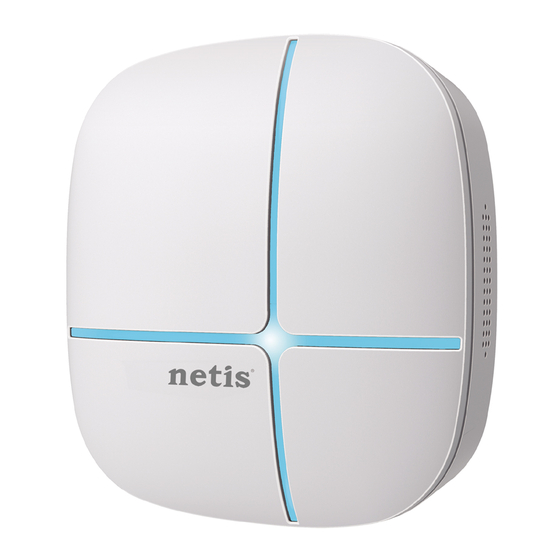

Wireless High Power Ceiling/Wall Mounted Outdoor AP Router Quick Installation Guide Model No. WF2520P WF2520... -
Page 2: Package Contents
* This QIG is for all netis Wireless High Power Ceiling/Wall mounted AP Router, including models as below WF2520P: This device supports both Passive PoE and regular Power adapter(DC24V/0.5A). You may use either one as power source. WF2520:This device only supports IEEE802.3af/at PoE. 2.Hardware Connection... - Page 3 Wireless High Power Ceiling/Wall mounted AP Router Quick Installation Guide 1)WF2520P (Power source:PoE) A) Connect one end of the Ethernet cable into the WAN/PoE port of the device and the other end to the PoE port of the PoE injector.
- Page 4 Wireless High Power Ceiling/Wall mounted AP Router Quick Installation Guide 3) WF2520 (Power source:PoE switch) A) Connect one end of the Ethernet cable into the WAN/PoE port of the device and the other end to the Ethernet port of PoE switch.
- Page 5 Wireless High Power Ceiling/Wall mounted AP Router Quick Installation Guide 3.2 Open your browser and type http://192.168.1.1 in the address field to visit router's web management page. 3.3 A dialog box will prompt as below, please enter User Name and Password, both default values are guest and click OK.
- Page 6 Wireless High Power Ceiling/Wall mounted AP Router Quick Installation Guide WISP Mode : Select target network and Connection Type. 1. Click “AP Scan” button to select your target network and click “Connect” button. 2. Type in the wireless security info of the target network.
-
Page 7: Mounting The Device
Wireless High Power Ceiling/Wall mounted AP Router Quick Installation Guide 4.Mounting the device This device can be ceiling mounted or wall mounted according to your setup. 1. Ceiling Mounted Attention: For ceiling mounted, we would suggest, (1) The thickness of ceiling must be over 17mm (2) The Weight-bearing of ceiling must be over 5kg. - Page 8 Wireless High Power Ceiling/Wall mounted AP Router Quick Installation Guide 4) Connect the Ethernet cable to the WAN/PoE port of the device 5) Reinstall the ceiling and mount the device by fixing the device to the slot of mounting bracket.
- Page 9 Wireless High Power Ceiling/Wall mounted AP Router Quick Installation Guide 2 Wall Mout 1) Place the mounting kit on the wall and mark four holes of the bracket on the wall,and then drill four holes on the wall. Please note that the U-shaped notch must be consistent with the actual direction of the network.
- Page 10 Wireless High Power Ceiling/Wall mounted AP Router Quick Installation Guide 4) Mounting the device by fixing the device to the slot of mounting brackets.
-
Page 11: Troubleshooting
A 1) Check to verify the hardware connections are correct. Please refer to the “Hardware Connection” step. 2) Refer to 3.1) to set a Static IP address for your PC and connect the WF2520/WF2520P to your PC. 3) Open a web browser and login to http://192.168.1.1 4) Re-check your setting 5) Reboot the modem first and then netis device.
