Netis WF2412 Quick Installation Manual

150mbps wireless-n broadband router
Hide thumbs Also See for WF2412:
Table of Contents

Advertisement

Quick Links

See also: User Manual
WF2412 Quick Installation Guide
Netis 150Mbps Wireless-N Broadband Router
1. Check Your Package Contents
The following items should be found in your package:
150Mbps Wireless-N Broadband Router
Power adapter
Quick Installation Guide
Ethernet cable
Make sure that the package contains above items. If any of the above items is missing or damaged,
please contact the store you bought this product from.
2. Before You Begin
Minimum Requirements:
Broadband (DSL/Cable) modem and service with Ethernet port
802.11n b/g/n wireless adapter or Ethernet adapter and cable for each computer
Internet Explorer® 5.0, Firefox® 2.0 or Safari® 1.4 or higher

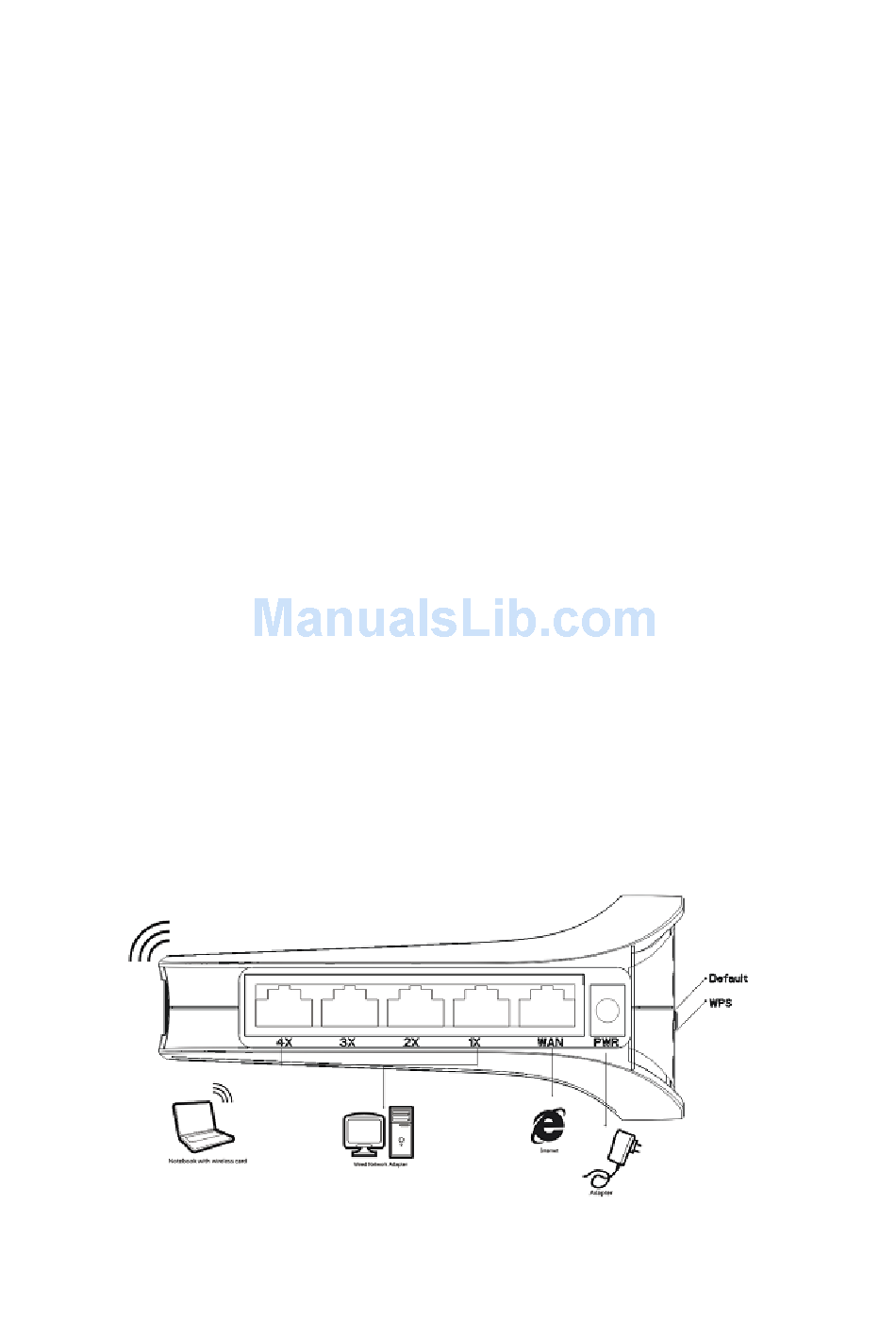

3. Hardware Installation
Attach one end of an Ethernet cable to your computer's Ethernet port, and the other end to
one of the LAN ports of your router.
Connect another Ethernet cable from your Cable/DSL modem to the WAN port of your

Advertisement

Table of Contents
loading

Related Manuals for Netis WF2412

Summary of Contents for Netis WF2412

  • Page 1 WF2412 Quick Installation Guide Netis 150Mbps Wireless-N Broadband Router 1. Check Your Package Contents The following items should be found in your package:  150Mbps Wireless-N Broadband Router  Power adapter  Quick Installation Guide  Ethernet cable Make sure that the package contains above items. If any of the above items is missing or damaged, please contact the store you bought this product from.

  • Page 2: Led Indicators

    router.  Connect the single DC output connector of the power adapter to the power jack on the back of the router and plug the Power Adapter into an AC outlet. 4. LED Indicators Figure 4-1 Function Power on Flashing slowly WPS is running WAN Connection normal Flashing...
  • Page 3 computer must be connected to the device via Ethernet or wireless network. The Router is configured with the default IP address of 192.168.1.1 and subnet mask of 255.255.255.0 and its DHCP server is enabled by default. Here we use Windows XP for example. If your network settings are not already set and you need to complete this step, the configurations are similar for the other operating systems.
  • Page 4  Back in the previous window, click OK 6. Log In to Router Interface  Open a web browser (Safari, Internet Explorer, etc.) on the computer you have just connected to the router, type http://192.168.1.1 in the address bar, and press enter. No username and password required Figure 6-1 ...

  • Page 5: Router Setup

    viewing and adjusting the configurations 7. Router Setup 7.1. Internet Connection Settings  Most connections utilize a dynamic IP (DHCP) and the default is already set to this. If you have another connection type (like static IP), you will need to click on „Convenient Setup‟ in the menu and input information given you by your service provider and then click save.

  • Page 6: Advanced Settings

    Setup”- “LAN IP Address” and you will see this IP in the main interface. You may edit it to something different (192.168.2.1 for example). After entering the new IP, click on “Save” below, the router will reboot, and you will need to enter the user name and password again. Check your system status for IP again, and test connection.
  • Page 7 Figure 7-4  If you want to use WPA/ WPA2/ WPA&WPA2 to encrypt, you can select ASCII characters (alphanumeric format) or Hexadecimal digits (“A-F”, “a-f” and “0-9”). No matter what type you select, input 64 Hex values (in the “A-F”, “a-f” and “0-9” range) or 8-63 ASCII characters.
  • Page 8 Please follow the steps below, but keep in mind that if one router in this setup is not netis you should first confirm it is capable of WDS and its interface menu may be considerably different:...
  • Page 9  It should first be established that routers function normally as a routers not in a network involving WDS, and R1 (the router connected to a modem) should be configured below from a starting point where it was individually functional. ...
  • Page 10 As there are sometimes compatibility issues between brands, you may need to use Wireless-G and not Wireless-N. Change settings in both routers. In the netis router click on “Wireless management”- “AP Setup” - “Basic” and select and save a setting that does not include Wireless-N ...
