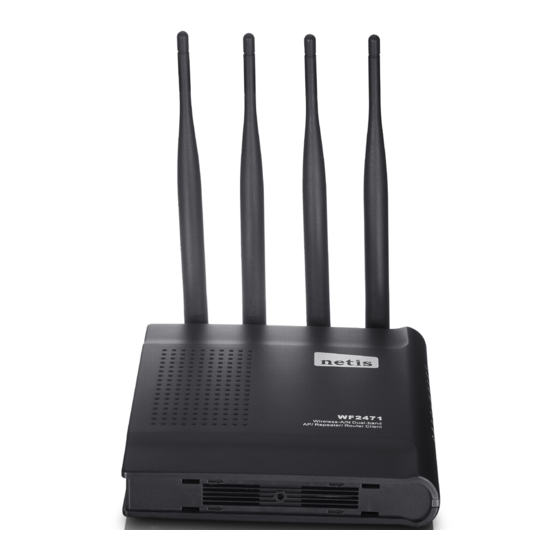

Netis WF2471 Quick Installation Manual

WF2471
Wireless Dual Band Router
Quick Installation Guide
2. Connecting by netis one stop setup
Set the IP address of your wired network adapter as
1
Automatically as showing below
1
Status
General
Connection
IPV4 Connectivity: Internet
IPV6 Connectivity: No Internet access
Media State: Enabled
Duration: 00:39:39
Speed: 100.0Mbps
Details...
Activity
Sent Received
:
Byes 10,000,680 80,000,680
Disable Diagnose
Close
3
Package Contents
*This QIG is shared by netis wireless dual band router
Power Adapter
Wireless dual band router
N600 Wireless
Dual Band(Gigabit) Router
Quick Installation Guide
Ethernet Cable QIG
System Requirement
Windows 8 Windows 7 Windows Vista
● ● ●
Windows XP Windows 2000
● ●
2
5
6
1.Hardware Connection
Modem
POWER
LINE IN
CABLE
1. Connect the WAN port on your router to the Modem's LAN port with an Ethernet cable
2. Connect your computer to any LAN port on netis router with an Ethernet cable
3. Plug in the power adapter of netis router
4. Unplug your ADSL or Cable Modem power at least 15 seconds and plug it back in
Open your browser and type 192.168.1.1
2
in the address field
http://192.168.1.1
Select the Internet Connection Type you
3
4
use. We take DHCP for example. Configure
your Wireless Setup such as SSID Password
then click save to make setting effective. The
connection status page will appear below
One stop setup!
The most convenient nets`AP Router configuration!
Internet Connection Type
DHCP(Cable Modem) Static IP PPPoE
Internet
tip.Most internet connectio type is DHCP as long as
you don`t have ID/Password for connection Internet.
Wiress Setup
2.4GHz
netis_2_4G
SSID:
5GHz
5G
Wiress
Enable
Password:
Password password
tip.please enter any 8-63 charcters
Save
R
connection sucessfully. you had been online!
CABLE
Tips 1: If you are connecting to a Broadband service
that uses a dynamic connection (DHCP), you may
be online already. Try opening a web browser and
enter a web site. If you connect to a web site, you
are fnished with your Internet setup.
Tips 2: you would click
to go to advance setting page.
Advanced
Disable
POWER
Advanced
(Turn over)
