Pearl H-1050 Instruction Manual

Hi-hat stand

Download this manual

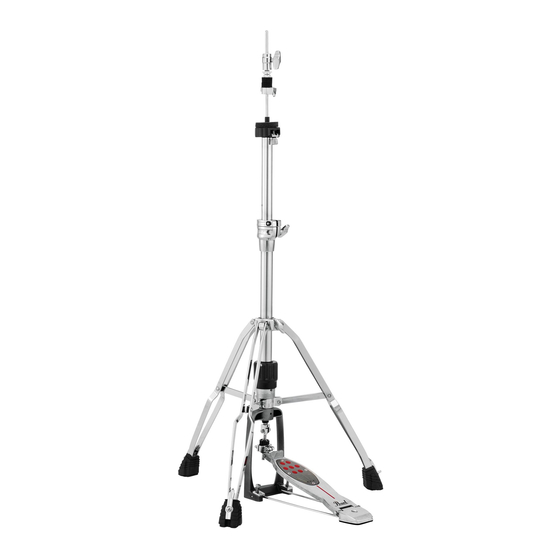

PEARL HI-HAT STAND

To get optimum performance of your H-1050 Hi-Hat Stand,

please read this Instruction Manual before playing.

Base

Reversible Spiked / Rubber

Tipped Feet

H-1050

Instruction Manual

Congratulations on your purchase!

Upper Pull Rod

Upper Tube

Die-Cast Joint

Hi-Hat Clutch

Felt Washer

Hi-Hat Cup

StopLock

Wing Bolt

Spring Tension Adjustment Dial

Adjustment Ring

(for Footboard Angle)

Toe Stopper

TractionPlate

w/ Traction Grips

Radius Rod

Need help?

Do you have a question about the H-1050 and is the answer not in the manual?

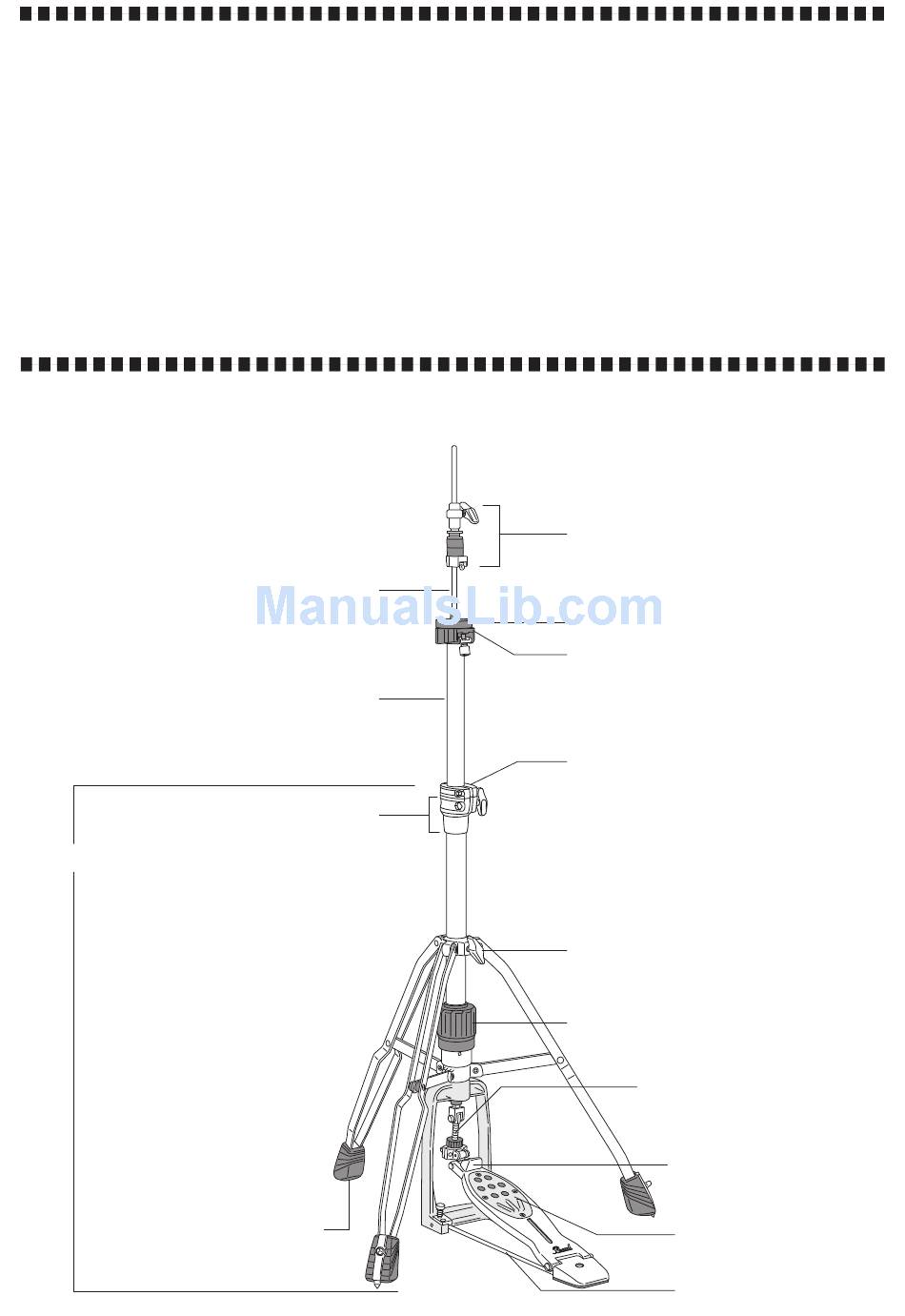

Page 1 PEARL HI-HAT STAND H-1050 Instruction Manual Congratulations on your purchase! To get optimum performance of your H-1050 Hi-Hat Stand, please read this Instruction Manual before playing. Hi-Hat Clutch Upper Pull Rod Felt Washer Hi-Hat Cup Upper Tube StopLock Die-Cast Joint...
Page 2 Footboard Attachment Upper Section Assembly Squeeze the Radius Rods together and insert the ends into Thread the Upper Pull Rod into the Connector inside the the Holes in the Support Casting as shown. Loosen the Die Cast Joint as shown in (Fig.3-A) and tighten securely. Wing Bolt and spread the legs.
Page 3 Hi-Hat Cup Tilt Adjustment Traction Grip and Traction Plate Adjustment Turn the Knurled Knob to tilt the The Traction Grip dots can be totally removed or inserted bottom cymbal to help prevent as needed to custom tailor the amount of traction for your "air lock"...
Page 4 Maintenance CAUTION The Base Tube is secured to the Support Casting with an Allen screw. In the event the Base Tube becomes loose, Periodically check all Allen Screws for tightness and tighten the Allen screw with the provided hexagonal wrench tighten them with the provided hexagonal wrench as to restore stability.
