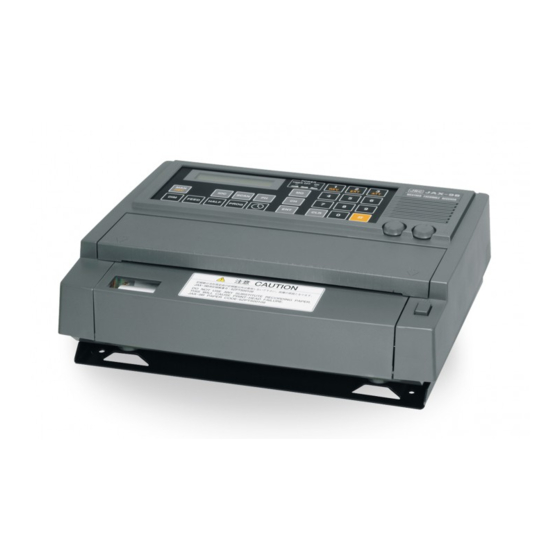

JRC JAX-9B Installation Manual

Weather facsimile receiver
Hide thumbs Also See for JAX-9B:
Table of Contents

Advertisement

Quick Links

WEATHER FACSIMILE
WEATHER FACSIMILE
INSTALLATION
INSTALLATION
JAX-9B
JAX-9B
RECEIVER
RECEIVER
MANUAL
MANUAL

Advertisement

Table of Contents
loading

Related Manuals for JRC JAX-9B

Summary of Contents for JRC JAX-9B

  • Page 1 JAX-9B JAX-9B WEATHER FACSIMILE WEATHER FACSIMILE RECEIVER RECEIVER INSTALLATION INSTALLATION MANUAL MANUAL...
  • Page 3 JAX-9B W-FAX Installation Manual RECORD OF REVISION Rev. Description Date First edition 29-MAY.-08 7ZPNA4096...
  • Page 4 JAX-9B W-FAX Installation Manual 7ZPNA4096...
  • Page 5 JAX-9B W-FAX Installation Manual Pictorial Indication In this Installation Manual and on the product, we use various pictorial indications to handle the product safely and correctly and to prevent you from harming yourself and other people or damaging those properties beforehand.
  • Page 6 If water enters into the equipment, shut off the power, disconnect the plug from the outlet, and contact the sales department of JRC, a nearby branch office, business office, or any agents of JRC. Using it as it is may cause a fire, electric shock, or malfunction.
  • Page 7 JRC. The continued use of the equipment may cause a fire or electric shock. Be careful not to allow any wire dust or metallic pieces to get into the inside of JAX-9B. Otherwise, it may cause a fire, electric shock, or malfunction.
  • Page 8 Remove dirt and dust on the surface if any and wipe it with a clean dry cloth. Use the recording paper (6ZPTS00108) as specified by JRC. The use of any other unspecified paper may cause recording density blurs, abnormal paper feed, much dust, resulting in the damage of the recording device.
  • Page 9 • Electrolyte leakage, •Generation of Heat, •Fire •Explosion, •Destruction, •Burn In returning used lithium battery to JRC, take the isulating treatment such as attaching a tape to the +/– terminals. If the battery is short-circuited with no insulating treatment, it may cause a heat, explosion or fire.

  • Page 10: Table Of Contents

    Display received image on PC (Option) ....................18 2.7. Installation of Communication I/F unit (RS-422 / USB Converter) ............19 2.8. Remote Maintenance System (Option) ....................20 2.9. Putting the PC interface kit in JAX-9B ....................21 Wiring..............................23 3.1. Wiring table..............................23 3.2. Cable .................................24 3.3.
  • Page 11 JAX-9B W-FAX Installation Manual Setup of the PC for receiving FAX image (Option) (under development) ........37 5.1. Installing the device driver of the RS-422/USB converter ..............37 5.2. ”The Found New Hardware wizard” of the RS-422/USB converter...........41 5.3. Installing the Software for receiving FAX images.................44 Checking operation ..........................

  • Page 13: Function

    MANU mode. 4）Programmed recording mode (TIMER) JAX-9B can perform unattended operations linked with the internal timer built in its main body by programming the program channel, start and stop times, startup mode, recording frequency and halftone recording.
  • Page 14 The equipment outputs received image data to a Personal Computer. The PC is able to display a received image. OS of the PC: Windows 2000/Xp (Vista (on schedule)) 1.2.9. Remote Maintenance System (Option) JAX-9B supports the Remote Maintenance System. 7ZPNA4095...

  • Page 15: Specification

    Cable insertion 12mm diameters Whip antenna (L=6MT) NAW-60 Recording paper 6ZPTS00108 ______ NOTE JAX-9B is shipped with a test recording paper roll and the antenna connector fitted in it. The rectifier unit makes 100VAC or 220VAC power supply available to JAX-9B. 7ZPNA4096...

  • Page 16: Spare Parts

    JRC CODE NO. BOX NO. VESS MF51NR 250V 5A φ5.2 FUSE 5ZFGD00183 φ5.2 MF51NR 250V 8A － FUSE 5ZFGD00119 7ZXNA4003 MFR'S NAME DRW.NO. Note: Spare Part (DESCRIPTION, JRC CODE NO.) may be replaced to the compatible part without notice. 7ZPNA4095...

  • Page 17: System Diagram

    1. Specification JAX-9B W-FAX Installation Manual 1.5. System Diagram 7ZPNA4096...

  • Page 18: Electrical Circuit Board

    1. Specification JAX-9B W-FAX Installation Manual 1.6. Electrical Circuit Board Equipment Circuit Board Model Remark Control Board CKK-535 Receiver Board of JAX-9A CMA-767 Only the first 200 sets have the CMA-767. Receiver Board New Receiver Board JAX-9B CMA-906 Chassis CWB-1464...

  • Page 19: Block Diagram

    1. Specification JAX-9B W-FAX Installation Manual 1.7. Block Diagram 7ZPNA4096...

  • Page 20: Glossary

    Start signal is the signal transmitted at the beginning of the facsimile Start signal broadcasting to indicate the start of the broadcast. JAX-9B uses it for the automatic setting of the index of cooperation (IOC) and starts the automatic recording by receiving this signal. Phase signal Phase signal is the signal transmitted next to the start signal.

  • Page 21: Specifications Of Jax-9B

    : Receiving frequency list, Timer Program channel list 15) Self-test function : Recording test, Panel test 16) Automatic time correction : Input the GPS data 17) Image data output : Display received image on PC 18) Remote maintenance : Connecting to the JRC Remote Maintenance System 7ZPNA4096...
  • Page 22 1. Specification JAX-9B W-FAX Installation Manual 1.9.2. Synthesized Receiver Receiving system : Phase-locked type frequency synthesized with up-conversion and double super heterodyne type Class of emission : F3C Frequency range : 2.0000 - 24.9999 MHz Automatic frequency selection : The optimal frequency is selected automatically.

  • Page 23: Installation

    JAX-9B W-FAX Installation Manual 2. Installation 2.1. Vicinity clearance JAX-9B can be mounted on the wall or on the desktop. Secure space as shown in the figure below around JAX-9B for maintenance. Left and right space of the facsimile on the desktop...

  • Page 24: Installation Of Jax-9B

    JAX-9B W-FAX Installation Manual 2.2. Installation of JAX-9B * Refer to the 2.9 clause when the optional kit (7ZZNA4016) is connected to JAX-9B. 1) Press the PUSH OPEN button. The top cover opens. 2) While pushing the bottom of the front cover against the facsimile body, pull the top of the front cover toward you to open.
  • Page 25 • “BK” is an abbreviation of “BREAK”, which means the disconnection of the antenna from JAX-9B. If JAX-9B is installed with a radio transmitting equipment such as a HF transceiver, the BK signal sent from the transceiver disconnects the antenna from JAX-9B and protects the internal receiver against the inductive radio waves from the transceiver.

  • Page 26: Installation Of Rectifier Unit

    2. Installation JAX-9B W-FAX Installation Manual 2.3. Installation of Rectifier Unit Mount the Rectifier Unit with four M4 bolts or four wood screws. 7ZPNA4095...

  • Page 27: Precautions For Installation

    0.3m 4) BK signal BK signal drives the relay of JAX-9B which controls the antenna line. The relay of JAX-9B is driven by +24Vdc. Connect the BK signal to JAX-9B after confirming the voltage of BK. 5）When using existing equipment When connecting existing equipment that has already been in use inboard such as antennas and external receivers, etc., connect them to JAX-9B after confirming the result of single-equipment operation is normal.

  • Page 28: Installation Of Whip Antenna

    2. Installation JAX-9B W-FAX Installation Manual Installation of Whip Antenna 2.5. 2.5.1. Antenna Post Weld a Base for fixing the Junction Box and an Earth bolt to the Antenna Post. 2.5.2. Fixing Junction Box Fix the Junction Box with four M8 bolts and nuts.
  • Page 29 2. Installation JAX-9B W-FAX Installation Manual 2.5.3. Sealing Seal the joint and the tip of whip antenna with self bonding tape and then wrap with vinyl tape. Self Bonding Tape and Vinyl Tape NAW-60 Antenna Material: FRP 2.5.4. Fixing whip antenna Fix the whip antenna to the post with bracket which is accessories of whip antenna.
  • Page 30 2. Installation JAX-9B W-FAX Installation Manual 2.5.5. Wiring to Junction Box 1) Connect a cable of whip antenna to the Junction Box. Loosen a nut of Junction Box and insert the cable which stripped the sheath. Tighten the nut for connecting the cable of whip antenna to the Junction Box.
  • Page 31 2. Installation JAX-9B W-FAX Installation Manual 2.5.6. Sealing and earth 1) Sealing the connection terminal for the cable of whip antenna Seal the connection terminal with self bonding tape or RTV. In case of sealing with self bonding tape, wrap with vinyl tape.

  • Page 32: Display Received Image On Pc (Option)

    The received (recorded) image is displayed on the PC by this optional function. 2.6.1. Option Kit For displaying the received image on the PC, it is necessary to add the following option kits to JAX-9B. Terminal Block (TB103) for connecting PC...

  • Page 33: Installation Of Communication I/F Unit (Rs-422 / Usb Converter)

    2. Installation JAX-9B W-FAX Installation Manual 2.7. Installation of Communication I/F unit (RS-422 / USB Converter) 1) The length of the attached USB cable is one meter. Install the communication I/F unit within one meter from the PC. 2) Fix the mount base by two M4 screws.

  • Page 34: Remote Maintenance System (Option)

    2.8.2. Setting operation For connecting to the Remote Maintenance System, it is unnecessary to operate JAX-9B. JAX-9B outputs the maintenance data to the Remote Maintenance server only by connecting the output port of JAX-9B to the input port of Remote maintenance Server.

  • Page 35: Putting The Pc Interface Kit In Jax-9B

    2) Remove JAX-9B from the mount base. Refer to the clause 2.2. 3) Unscrew the four screws for fixing the cover to the main frame. Remove the cover from JAX-9B. 4) A speaker and two volumes are fixed on the cover. Disconnect the cable with speaker and volumes from J501 connector on the control board.
  • Page 36 7) Fix all cables (three kinds) by the attached cable clamp of option kit. Screw the cable clamp. 8) Return the cover to the main frame of JAX-9B and screw the four screws to fix the cover. * Do not insert the cable between the cover and the frame.

  • Page 37: Wiring

    PC RX (-) D-/TX- PC RX (+) D+/TX+ * ”Welcome to the Found New Hardware wizard” will appear after connecting the converter to JAX-9B. Refer to the clause 5.2. 3.1.3. Remote Maintenance System JAX-9B VDR: JCY-1800 Terminal: TB103 NMEA input terminal PIN No.

  • Page 38: Cable

    3. Wiring JAX-9B W-FAX Installation Manual 3.2. Cable Signal Cable JIS type Remark AC Power 2 x 1.5mm DPYC-1.5 2 x 1.5mm DPYCS-1.5 Shield type DC Power 2 x 1.5mm DPYC-1.5 2 x 1.5mm DPYCS-1.5 Shield type Antenna RG-10/U 50Ω impedance...

  • Page 39: Wiring Of Standard Configuration

    3. Wiring JAX-9B W-FAX Installation Manual 3.3. Wiring of Standard configuration 7ZPNA4096...

  • Page 40: Power Supply Wiring When Connecting To Ac Power Supply (Option)

    3. Wiring JAX-9B W-FAX Installation Manual 3.4. Power supply wiring when connecting to AC power supply (Option) Ｊ Ｒ Ｃ NBA-5143 AC IN DC24V OUT AC IN COM 100V 220V FG － ＋ COM 100V 220V 1：Red 2：Blue 3：Green AC power supply...

  • Page 41: Connecting To Personal Computer (Option)

    3. Wiring JAX-9B W-FAX Installation Manual 3.5. Connecting to Personal Computer (Option) USB Cable 1m (Accessories) PC for displaying FAX image RS-422/USB Converter Terminal of converter Shield TX+ TX- RX+ RX- TB103 2pin 6pin 5pin 4pin 3pin JAX-9B Terminal TB103...

  • Page 42: Connection To Remote Maintenance Server (Option)

    3. Wiring JAX-9B W-FAX Installation Manual 3.6. Connection to Remote Maintenance server (Option) VDR JCY-1800 Remote Maintenance System Shield 7pin 8pin 9pin JAX-9B Terminal TB103 TB103 7ZPNA4095...

  • Page 43: Assembling Antenna Connector

    3. Wiring JAX-9B W-FAX Installation Manual 3.7. Assembling antenna connector 1) Remove the cable sheath as shown in the left diagram to expose the shield wire. Take care not to damage the shield wire. 2) Cut out the shield wire and the insulator to expose the cable core by the dimensions as shown in the left diagram.

  • Page 44: How To Connect To Terminals

    JAX-9B W-FAX Installation Manual 3.8. How to connect to terminals JAX-9B uses junction type terminals for connection of DC power source and external I/F signals. Fasten a cable on the terminal according to the following method. 3.8.1. Terminal for DC power source (TB101) 1) Strip a cable for connecting •...

  • Page 45: Connection Of A Decoder (By Kyodo News Service In Japan)

    The terminal for connecting the decoder is put on the control board (CKK-535) of JAX-9B. Remove a jumper line which short-circuits 2pin and 3pin from the terminal. Connect the AF signal line from JAX-9B to the decoder, and connect the AF signal line from the decoder to JAX-9B.
  • Page 46 3. Wiring JAX-9B W-FAX Installation Manual 7ZPNA4095...

  • Page 47: Setting

    When the Maintenance Software is not used, register the Frequency channels by the operation panel of JAX-9B. 2) Confirming the registered frequency channels • Confirm the registered frequency channels by receiving the registered data from JAX-9B by using the Maintenance Software. • Confirm the registered frequency channels by printing the registered frequency channels list.

  • Page 48: Changing Display Language (To Japanese)

    When the Maintenance Software is not used, register the Frequency channels by the operation panel of JAX-9B. 2) Confirming the registered timer programs • Confirm the registered timer programs by receiving the registered data from JAX-9B by using the Maintenance Software. • Confirm the registered timer programs by printing the registered timer programs list.

  • Page 49: Connection Of Gps Receiver

    4.3.1. Automatic Time Correction by the GPS Receiver JAX-9B can correct the internal clock automatically by receiving the time data outputted from a GPS receiver. Connecting a GPS receiver to JAX-9B is recommended if the timer program recording is used.
  • Page 50 4. Setting JAX-9B W-FAX Installation Manual 4.3.5. Operation Check Check the automatic time correcting operation. 1) Timing for automatic time correction The automatic time correction is performed at the following timing, but the LCD indicates no message of the time correction completing.

  • Page 51: Setup Of The Pc For Receiving Fax Image (Option) (Under Development)

    5. Setup of the PC for receiving FAX image (Option) JAX-9B W-FAX Installation Manual 5. Setup of the PC for receiving FAX image (Option) (under development) OS of the PC for this option: Windows2000/Xp (Vista on schedule) Install the following software and device drivers for receiving FAX images.
  • Page 52 5. Setup of the PC for receiving FAX image (Option) JAX-9B W-FAX Installation Manual 5) Click the “ND-6530” on the following screen. 6) Click the “Win2000/XP Driver” on the following screen. 7) Click the [Next] button. 7ZPNA4095...
  • Page 53 5. Setup of the PC for receiving FAX image (Option) JAX-9B W-FAX Installation Manual 8) Click the [Next] button. 9）Enter the “Name” and “Company”, and click the [Next] button. 10) Click the [Next] button. 7ZPNA4096...
  • Page 54 5. Setup of the PC for receiving FAX image (Option) JAX-9B W-FAX Installation Manual 11) Click the [Next] button. 12) Click the [Next] button. 13) Click the [Finish] button after checking that “Yes, I want to restart my computer now” is selected.

  • Page 55: The Found New Hardware Wizard" Of The Rs-422/Usb Converter

    5. Setup of the PC for receiving FAX image (Option) JAX-9B W-FAX Installation Manual 14) The PC is restarted automatically. Wait for a moment. 15) Remove the CD-ROM from the PC. 5.2. ”The Found New Hardware wizard” of the RS-422/USB converter 1) Connect the RS-422/USB converter to the PC by the attached USB cable.
  • Page 56 5. Setup of the PC for receiving FAX image (Option) JAX-9B W-FAX Installation Manual 4) Click the [Finish] button on the following screen. 5) Start the “Control Panel” of the Windows OS 6) Click the “Performance and Maintenance” on the “Control Panel” window.
  • Page 57 5. Setup of the PC for receiving FAX image (Option) JAX-9B W-FAX Installation Manual 8) Click the “Hardware” TAB on the “System properties” window. 9) Click the [Device manager] button on the “Hardware” TAB screen. 10) Click the “Port (COM and LPT)”.

  • Page 58: Installing The Software For Receiving Fax Images

    9) Starts the setup function of the Software for receiving FAX image. Set the save folder for saving FAX images. * Refer to the “Instruction Manual of PC Software” for details. 10) The FAX image which JAX-9B is recording is displayed also on the screen of PC. 7ZPNA4095...

  • Page 59: Checking Operation

    6. Checking operation JAX-9B W-FAX Installation Manual 6. Checking operation Check the operation of JAX-9B according to the following items after installation or maintenance. 6.1. Operation of Standard configuration Item Operating Checking Panel Set the receiving frequency and the Setting operation is accepted.
  • Page 60 6. Checking operation JAX-9B W-FAX Installation Manual 7ZPNA4095...

  • Page 61: Outline Drawing

    7. Outline drawing JAX-9B W-FAX Installation Manual 7. Outline drawing 7.1. Weather Facsimile JAX-9B 7ZPNA4096...

  • Page 62: Rectifier Unit Nba-5143

    7. Outline drawing JAX-9B W-FAX Installation Manual 7.2. Rectifier Unit NBA-5143 126±1 4-φ5 COVER 110±2 （Unit:mm） Ｊ Ｒ Ｃ NBA-5143 AC IN DC24V OUT PAINTING COLOR : N4 (Munsell) COM 100V 220V FG － ＋ MASS : 3.5kg MADE IN JAPAN 140±2...

  • Page 63: Whip Antenna Naw-60

    7. Outline drawing JAX-9B W-FAX Installation Manual 7.3. 6m Whip antenna NAW-60 φ7 (Unit:mm) NAW-60 ANTENNA MATERIAL:FRP 4-BOLTS M8x100 MAX φ90 MIN φ40 φ34 SUPPORTING POLE (YARD SUPPLY) 4-BOLTS M8x40 BRACKET BRACKET MATERIAL:SUS φ34 Attached to antenna 7/1.6 WIRE Attached to antenna MASS:3.5kg...

  • Page 64: Junction Box Jqd-69C

    7. Outline drawing JAX-9B W-FAX Installation Manual 7.4. Junction box JQD-69C 7ZPNA4095...

  • Page 65: Rs-422/Usb Converter 7Zzna4017

    7. Outline drawing JAX-9B W-FAX Installation Manual 7.5. RS-422/USB Converter 7ZZNA4017 7ZPNA4096...
