- Page 1 FACTORY AUTOMATION Operating instructions DA6-IU-2K-V DA6-IU-2K-C Process Controllers for analogue input signals with Totaliser function for analogue input signals 0…10 V 2…10 V -10…+10 V 0…20 mA 4…20 mA SENSING YOUR NEEDS...
-
Page 2: Table Of Contents
DA6-IU-2K-V DA6-IU-2K-C Table of Contents (German is the original version.) Preface Safety instructions and Warnings Use according to the intended purpose Mounting in a control panel Electrical Installation Cleaning and maintenance Description Display/Operating elements Block diagram Connections Operating concept (Operating mode) -
Page 3: Preface
DA6-IU-2K-V DA6-IU-2K-C voltages at the terminals of the device must be kept Preface within the limits of Over-voltage Category II. The device must only be operated when mounted Please read this instruction manual in a panel in the correct way and in accordance entirely and carefully before installation with the section “Technical Data”. -
Page 4: Electrical Installation
DA6-IU-2K-V DA6-IU-2K-C Electrical Installation Before starting the device, check the cables for • proper wiring and tightening. The screws of The device must be disconnected unused screw terminals must be screwed to the from any power supply prior to any stop, so that they cannot loosen and get lost. -
Page 5: Description

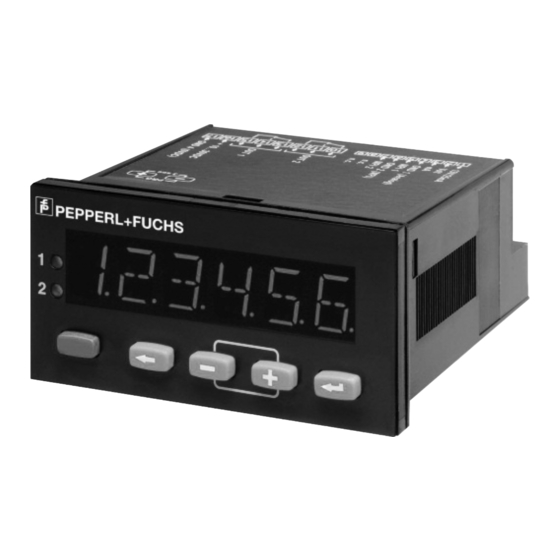

DA6-IU-2K-V DA6-IU-2K-C Description Digital panel meter for displaying measured values, as well as monitoring limit values in industrial applications. 6-digit 14-segment LED display, 14 mm, for displaying measured values and dialogs Running text can be switched on as Help Text Language for the Help Text selectable as English or German Signal input for 0 –... -
Page 6: Block Diagram
DA6-IU-2K-V DA6-IU-2K-C Block diagram Connections Page 6... -
Page 7: Operating Concept (Operating Mode)
DA6-IU-2K-V DA6-IU-2K-C Operating concept (Operating mode) Page 7... -
Page 8: Programming
DA6-IU-2K-V DA6-IU-2K-C Programming To enter the Programming menu > 3 sec During programming the relays are inactive (not energised). When quitting the programming menu via SAVE, the minimum and maximum values and the totaliser value are all cleared. Entering the Programming Menu / Selecting Function Group / Quitting the Programming... - Page 9 DA6-IU-2K-V DA6-IU-2K-C Selecting Function / Setting Parameters / Accepting Parameters Function Groups Function Parameter Page 9...
-
Page 10: Function Groups
DA6-IU-2K-V DA6-IU-2K-C Function Groups Select input high value Factory settings are highlighted grey. Input range depends on meas. range [V / mA] Select display high value for Help Texts (running text) INP.HI. Help Text menu Input range -199999 … +999999 and DP... -
Page 11: User Linearisation
DA6-IU-2K-V DA6-IU-2K-C User Linearisation Input range depends on measuring range: Menu User Linearisation 0 … 10 V = -0.500 … 10.500 [V] 2 … 10 V = 1.500 … 10.500 [V] Select User Linearisation -10 … +10 V = -10.500 ... +10.500 [V] Linearisation OFF 0 …... - Page 12 DA6-IU-2K-V DA6-IU-2K-C Example for linear scaling Example 1: 0 … 10 V = 0 … 600 Example 2: 4 … 20 mA = 300 … 900 Example 3: 1.0 … 9.0 V = 750 … 400 Example for non-linear scaling...
-
Page 13: Function Multifunction Key (Mp-Key) And Multifunction Inputs (Mp-Inp)
DA6-IU-2K-V DA6-IU-2K-C Function Multifunction Key Reset Totaliser (MP-Key) and Multifunction • In the function group MP.KEY, programme the function RES.TOT to ON. In the operating inputs (MP-INP) mode, select the totaliser (TOTAL) and briefly Tare press the MP Key. • In the function group MP.INP, programme the In the function group MP.KEY, programme the... -
Page 14: Multifunction Key
DA6-IU-2K-V DA6-IU-2K-C 9.4.1 Multifunction Key 9.4.2 Multifunction Inputs Menu Function MP-Key Menu Function MP-Inputs Select function: Select function MP-Input 1 Reset tare (TARA) value with No function MP-Key – only when current Reset MIN value measured value appears in the... -
Page 15: Totaliser Function
DA6-IU-2K-V DA6-IU-2K-C Totaliser function Select decimal point for totaliser (optical function only) Menu Totaliser Select value for low threshold cut-off 0.00 0.000 Input value range 0.0000 -199999 … +999999 and DP 0.00000 Select value for multiplication factor The totaliser function captures the current Input value range (instantaneous) measured value every 100 msec. -
Page 16: Limit Value (Alarm) Monitoring
DA6-IU-2K-V DA6-IU-2K-C Limit Value (Alarm) Monitoring Select Output triggering With incrementing measuring Menu Alarm Output 1 signal Select operating mode With decrementing measuring signal Band limitation Automatic operation Memory latch operation Select Alarm status - not with band limitation With alarm: output active... - Page 17 DA6-IU-2K-V DA6-IU-2K-C Control with incrementing measuring signal Control with decrementing measuring signal Page 17...
-
Page 18: Monitoring Of Measuring Circuit
DA6-IU-2K-V DA6-IU-2K-C Control with Band Limitation 10 Monitoring of Measuring Circuit Lower Display Upper Display Lower Meas. Upper Meas. Probe or wire Range limit Range limit Range limit Range limit short-circuit Probe or wire break Meas. range 0 … 10 V –... -
Page 19: Technical Data
DA6-IU-2K-V DA6-IU-2K-C 11.5 Supply voltage 11 Technical Data AC supply: 100 ... 240 V AC / max. 9 VA 11.1 General Data 50 / 60 Hz, Tolerance ± 10% Display: 6-digit, 14 segment LED ext. fuse protection: T 0.1 A... -
Page 20: Connections
DA6-IU-2K-V DA6-IU-2K-C Shock resistance: EN60068-2-27 100G / XYZ 3 times in each direction EN60068-2-29 10G / 6 ms / XYZ 2000 times in each direction 11.11 Connections Supply voltage and outputs: Plug-in screw terminal, 8-pin, RM5.00 Core cross-section, max. 2.5 mm²... -
Page 21: Help Texts
DA6-IU-2K-V DA6-IU-2K-C 13 Help Texts PROG. NO PROGRAMMING PROG. START PROGRAMMING HLP.TXT. MAIN MENU SELECT HELPTEXT HLP.TXT. HELPTEXTS ON HLP.TXT HELPTEXTS OFF SL.LANG. SPRACHE DEUTSCH SL.LANG. LANGUAGE ENGLISH INPUT. MAIN MENU SIGNAL INPUT RANGE 0-10V VOLTAGE INPUT RANGE 0-10V RANGE... - Page 22 DA6-IU-2K-V DA6-IU-2K-C MP.INP. MAIN MENU MP-INPUTS MP.INP.x NO.FUNC. NO FUNCTION MP.INP.x RES.MIN. FUNCTION RESET MIN VALUE MP.INP.x RES.MAX. FUNCTION RESET MAX VALUE MP.INP.x R.PEAKS FUNCTION RESET MIN/MAX VALUE MP.INP.x RES.REL. FUNCTION RESET OUTPUT-LATCH MP.INP.x DISP.HD. FUNCTION DISPLAY HOLD MP.INP.x LOC.ALR.
- Page 24 Twinsburg, Ohio 44087 · USA Tel. +1 330 4253555 E-mail: sales@us.pepperl-fuchs.com Asia Pacific Headquarters Pepperl+Fuchs Pte Ltd. Company Registration No. 199003130E Singapore 139942 Tel. +65 67799091 E-mail: sales@sg.pepperl-fuchs.com www.pepperl-fuchs.com Subject to modifications R60361.9465 - Index C, 04/ 2016 Copyright PEPPERL+FUCHS • Printed in Germany...
