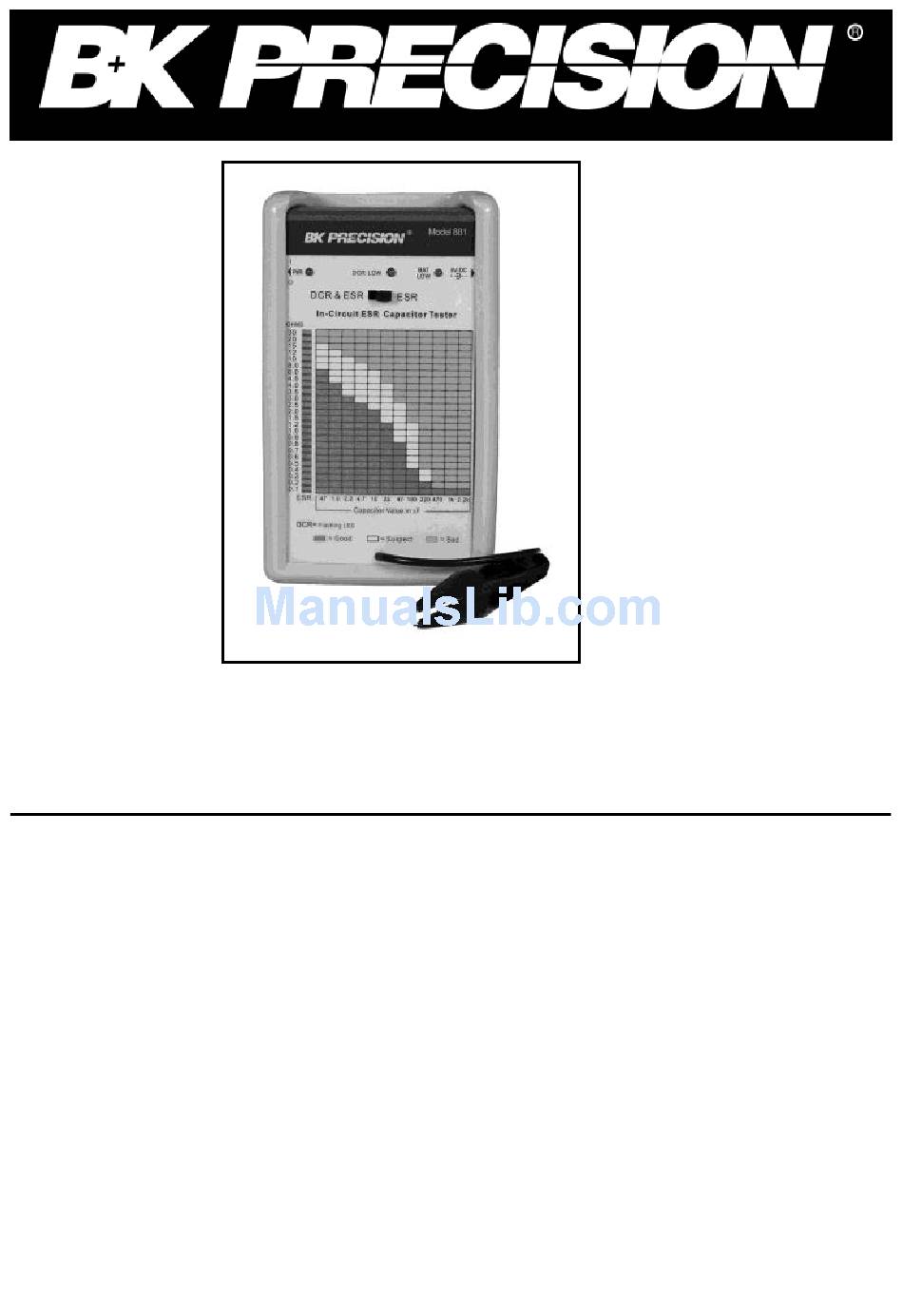

INSTRUCTION MANUAL MANUAL DE INSTRUCCIÓNES In-Circuit ESR & DCR Cap Tester Model 881 MEDIDOR DE RESISTENCIA ESR&DSR DE CAPACITORES MODELO 881... -
Page 2: Safety Guidelines
SAFETY GUIDELINES WARNING An electrical current of over 10 milliamps passing through the heart will stop most human hearts. Voltage of as low as 35 Volts dc or ac rms should be considered hazardous since it can produce lethal current under certain conditions. Be sure to observe the following safety precautions: 1. -
Page 3: Specifications
SPECIFICATIONS Specifications Open circuit probe voltage 15mV pp (typical) Output test frequency 100 KHz sine wave (typical) Measures ESR 0.1 – 30 ESR range ohms (25 segment LED bar scale) Beeps from 1 to 5 beeps depending on ESR of capacitor Measures DCR DCR range ohms 0.5 - 30 flashing... -
Page 4: Controls And Indicators

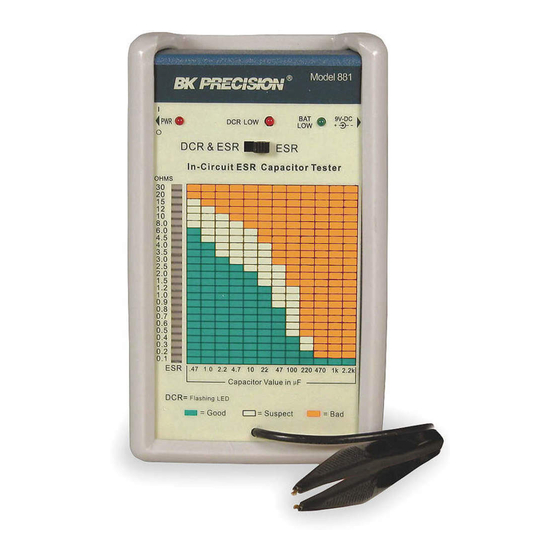

CONTROLS AND INDICATORS Power Switch - Power on or off DCR Low Indicator - LED turns on when DCR low Mode switch - Selects test modes "ESR" or "DCR&ESR" ESR or DCR Indicator - Indicate the ESR or DCR Colored chart - The three-colored chart that show typical ESR readings of good, fair, and bad capacitors depending on their capacitance. - Page 5 In-Circuit ESR & DCR Capacitor Tester MODEL 881...
- Page 6 INTRODUCTION: The In-circuit ESR & DCR capacitor tester is specially designed to measure ESR (equivalent Series Resistance) on capacitors in the range of 0.47uf and up, in or out of circuit. The output test frequency of the meter is a 100KHz SINE WAVE. The output voltage is 15mV pp and will not turn on any solid state devices in the circuit under test.
- Page 7 To measure the ESR on a capacitor, hold the tweezers’ test probe cross the capacitor leads. The meter's probes are nonpolar. On the "ESR" mode, the meter performs a set cycle of tests each time it is connected to a capacitor. First it discharges the capacitor, then it measures the ESR and indicates the range of the value with the 25 LED bar, and also sounds one or more times depending on the ESR of the capacitor (see table 1).
- Page 8 DCR cycle. If the meter stops on the DCR cycle, it first sounds an alarm and turns on the DCR LOW led, then indicates DC resistance by flashing the LED on the LED bar and also sounds one or more times depending on the DC resistance (see table Table 2 Measures DCR by flashing the LED on the LED bar 0 - 0.5Ω...
- Page 9 Limited One-Year Warranty B&K Precision Corp. warrants to the original purchaser that its products and the component parts thereof, will be free from defects in workmanship and materials for a period of one year from date of purchase. B&K Precision Corp. will, without charge, repair or replace, at its option, defective product or component parts.
-
Page 10: Service Information
SERVICE INFORMATION Warranty Service: Please return the product in the original packaging with proof of purchase to the address below. Clearly state in writing the performance problem and return any leads, probes, connectors and accessories that you are using with the device. Non-Warranty Service: Return the product in the original packaging to the address below. - Page 11 22820 Savi Ranch Parkway Yorba Linda, California 92887 www.bkprecision.com ©2006 B&K Precision Corporation Printed in 481-417-001...
