Plantronics Savor M1100 Get Started

NEED MORE HELP?
Project: GSG, ACCORDION, PSD, M1100, EN 24-hour support in USA:
Date: 07/21/10 1-866-363-BLUE (2583)
Component: Accordion User Guide
Online user guide:
www.plantronics.com/documentation
File Name: 83988-31_SAVORM1100_072110. FAQs:
Art Master Number: 83988-31
www.plantronics.com/M1100faq
Part Number: 83987-31
1-year limited warranty details:
www.plantronics.com/warranty
Scale: 1:1
Resolution: 300dpi
© 2010 Plantronics, Inc. All Rights Reserved. Bluetooth is
a registered trademark of Bluetooth SIG, Inc. and any use
by Plantronics is under license. All other trademarks are
Placed Links: N/A the property of their respective owners.
Patents US 5,712,453; Patents Pending
83987-31 (07.10) AM83988-31
Fonts: Gesta Light, Regular, Medium, Bold
Software: CS3
Printing Method: Offset Lithography
Inks and Finishes:
X
PMS 294C Overall UV Matte Varnish
PMS 151
PMS Black C
PMS 032C
Notes:
Original Designer: Malika Henderson
E-mail: malikaann@mac.com
Phone: 1 415 847 6083
Revisions: Juliette Rys/Blanca Castaneda

CALL BUTTON

E-mail: juliette@rysartdesign.com
• Take a call or end it (1 tap)
Phone: 1-831-684-2001
• Redial (2 taps)
• Reconnect lost connection (1 tap)
• Activate pairing after initial set up (press until LED flashes
blue/red)
• Transfer call to/from headset (1-second press during call)

POWER SWITCH

• On (slide to reveal black)
• Off (slide to reveal red)

VOICE RECOGNITION BUTTON

• Voice Recognition (VR) commands (Tap VR button, say a
command within 10 seconds. See Tips for commands list.)
• Initiate phone's voice-dialing
(2-taps then tone heard)
FIND YOUR GROOVE
The loop of the gel eartip tucks into the back
curve of your ear for a stable fit.
Try on the headset. The eartip is positioned
to suit most people, but you may want to
rotate it to best fit your left or right ear. For Left Ear
The gel eartip and speaker click into matching
grooves so the eartip doesn't move out of
place during use.
For Right Ear
The loop on the gel eartip should point away
from the headset. (Do not rotate the eartip
too far.)
Z109
N10687
TAKE A GOOD LOOK

MICRO USB CHARGING PORT

• With AC charger:
20 minutes (1 hour talk time)
Less than 2 hours (full charge)
• Best performance when fully charged

VOLUME/MUTE BUTTON

• Lo-Med-Hi-Max (1 tap per level change)
• Mute: on/off (1-second press)

LED

• Charging (Solid red. No light when fully charged)
• Low battery (2 red flashes, 2 tones and voice alert)
• Critically low (3 red flashes, 3 tones and voice alert)
• Multipoint (on=2 blue flashes, and off=1 blue flash)

MIX AND MATCH FOR BEST FIT

If the gel eartip feels loose or tight in your Using your thumb, tuck the bottom of the For best voice pickup, always check that the
ear, then change it. To replace the medium eartip over the speaker and pull the loop of headset points towards the corner of your
gel eartip for small or large, pull the loop of the eartip over the speaker. (Don't push the mouth.
the gel eartip to remove it. (Don't pull on the speaker through the gel eartip.)

VIDEO TUTORIAL:

speaker base and stem.)
www.plantronics.com/M1100fit
CONNECT TO YOUR PHONE
"Pairing" connects your headset to your 1. READY 2. SET
phone. "Multipoint" technology lets you use
Activate the Bluetooth feature on your First Time:
this headset with two phones. (Read online
phone, then use the phone's settings to With headset turned off, activate Bluetooth
user guide for details.)
add/search/discover new Bluetooth devices.
pairing mode by sliding Power switch on. The
LED flashes blue/red to indicate pairing mode.
iPhone: Settings > General > Bluetooth > On
(starts the search for devices)
Pairing New Phone/Reconnecting Original:
PLT_M1100 Turn on the headset then press and hold the
BlackBerry® smartphone: Settings/options >
Call button until the LED flashes blue/red.
Bluetooth: On > Search for devices
VIDEO TUTORIAL FOR USA:
www.plantronics.com/pairing
READY SET CONNECT
TIPS

Listen to the Voice:

This headset whispers various status
alerts when you power on/off, run low on
talk time or lose/reconnect the Bluetooth
connection to your phone.
GET

Stay Near Your Phone:

STARTED
Bluetooth has a working "range" of up to
33 feet between the phone and headset
before audio degrades and the connection
is lost.

Know How to Reconnect:

Your headset tries to reconnect a lost

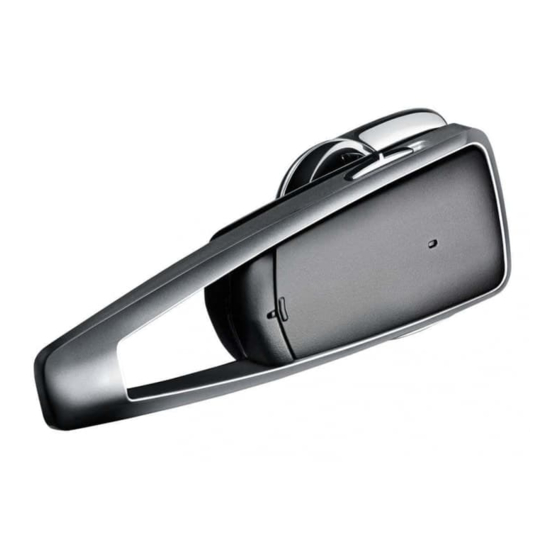

Savor M1100 ™
connection. If it can't, then tap the Call
Bluetooth ® Headset
button once or manually reconnect via the
Optional phone's Bluetooth device menu.
earloop shown
TIPS
3. CONNECT

Know How to Control the Headset:

You can give your headset a command, and it
Select "PLT_M1100" from the list of Bluetooth
will whisper the answer or do what you say.
devices shown on your phone.
First tap the VR Button then say:
If phone asks for a passcode, enter four • What Can I Say?
****
zeros (0000). You may see on screen. • Pairing
• Am I Connected?
Some phones also ask to confirm headset
• Check Battery
connection after pairing.
• Redial
Headset LED will stop flashing blue/red once
• Cancel
your phone and headset are successfully
• Call Information (USA only; dials Bing 411
paired/connected.
• Call Vocalyst (USA only)
™
• Answer (no need to tap VR first)
• Ignore (no need to tap VR first)
)
™
