Summary of Contents for Vinten OB Quattro

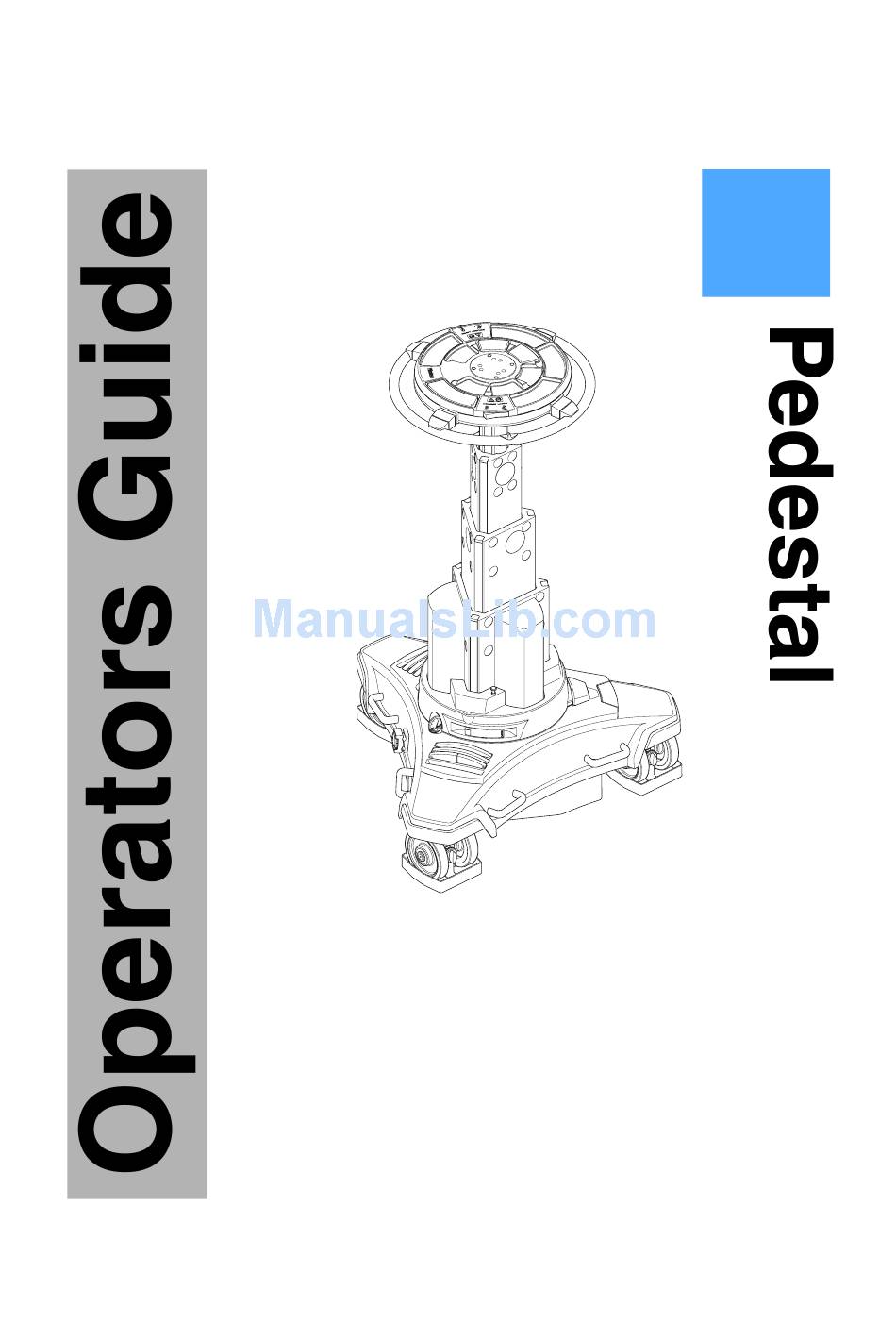

  • Page 1 OB Quattro Vinten Camera Control Solutions...
  • Page 2 All rights reserved throughout the world. No part of this document may be stored in a retrieval system, transmitted, copied or reproduced in any way including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of Vinten Broadcast Limited. Vinten is a registered trademarks of Vinten Broadcast Limited.

  • Page 3: Safety - Read This First

    Load Maximum recommended load 100 kg (220 lb) NOTE: The OB Quattro will support a load of 120 kg (264 lb). However, for maximum stability, particularly over uneven ground, it is recommended that the load be restricted to 100 kg (220 lb).

  • Page 4: Usage

    Usage The OB Quattro Pedestal is designed for use on location and in video and film studios to support and balance a pan and tilt head, camera and ancillary equipment up to a recommended maximum weight of 100 kg (220 lb).

  • Page 5: Table Of Contents

    Technical data ............. 25 Associated Publications OB Quattro Pedestal (Grey) Maintenance Manual Part No.
  • Page 6 (20) (19) (18) (17) (16) (15) (14) (13) (10) (12) (11) OB Quattro Pedestal...
  • Page 7 OB Quattro Pedestal Trim weight - auxiliary Weight tray Steering ring Safety catch Steering indicator Moving column Crab/steer changeover pedal Parking brake pedal Lifting handle (10) On-shot clamp (11) Cable guard (12) Twin wheel (13) Trim weight stowage (14) Pressure gauge...

  • Page 8: Introduction

    Introduction The OB Quattro pedestal comprises a central four-stage telescopic column mounted in a steera- ble base. The moving column is pressurized from an external pressure source. A weight tray is at- tached to the top of the column and trim weights (1)(19) are provided for fine balance.

  • Page 9: Operation

    Unpacking Unpack the pedestal, ensuring that all transport packing is removed.! WARNING! The OB Quattro pedestal has a mass of 117 kg (257 lb). Take care when lifting the pedestal. Always use the lifting handles (9). Do not lift the pedestal by the base casting or by the steering ring.

  • Page 10: Steering Mechanism Checks

    (below the pedal) is turned by the steering ring. Fitting the pan and tilt head and camera The OB Quattro pedestal has the standard four-bolt mounting plate (20) which permits the use of ®...

  • Page 11: Pressurizing The Pedestal

    Pressurizing the pedestal The OB Quattro may be pressurized from an external pressure source or by using the Vinten port- able pump (Part No. 3357-3). Trim weights (1)(19) are provided for fine balance. Ascertain the payload to be fitted to the pedestal (payload = pan and tilt head, camera, lens and all ancillary equipment).
  • Page 12 The pedestal is fitted with a pressure relief valve as a safeguard against over-pressurization. Do not attempt to adjust the pressure relief valve. To pressurize the pedestal using the Vinten portable pump, proceed as follows: Remove the Schrader valve cap (16). On the pump, fold down both the feet (P.3).
  • Page 13 Push the pump plunger fully down, push in the handle release button (P.5) and move the handle (P.1) to the vertical position, where it will lock the pump plunger in the closed posi- tion. Fold up both the feet (P.3). (P.1) (P.5) (P.2) (P.3) (P.4) Vinten Portable Pump...

  • Page 14: Balancing The Load

    Balancing the load After pressurization of the pedestal, the pan and tilt head and payload can be accurately balanced, as follows: Exercise the moving column over its full travel at least twice, then position the column in the mid-height position. WARNING! A pressure retaining valve prevents pedestal pressure being reduced below approximately 3.5 bar (50 psi) If the column tends to fall, remove a trim weight...

  • Page 15: Using The Pedestal

    Using the pedestal Height adjustment The column has an on-shot stroke of 100 cm (39.4 in.) and the load can be moved over this distance, in perfect balance, by raising and lowering the steering ring (3). The movement is ad- justable for drag (17) and an on-shot clamp...

  • Page 16: Parking Brake

    Transportation and storage WARNING! The OB Quattro pedestal has a mass of 117 kg (257 lb). Take care when lifting the pedestal. Always use the lifting handles (9). Do not lift the pedestal by the base casting or by the steering ring.
  • Page 17 Using the Schrader valve cap (16), reduce pedestal pressure to 3.5 bar (50 psi). WARNING! A pressurized pedestal will rise rapidly when the safety catches are released. Do not lean over the pedestal when releasing the safety catches. Always restrain the column by hand pressure on the weight tray when the safety catches are released.

  • Page 18: Servicing

    Servicing General The OB Quattro pedestal is robustly made to high engineering standards and little attention is re- quired to maintain serviceability save regular cleaning. Attention to the following points will ensure a long and useful service life with minimum need for repair.

  • Page 19: Steering Alignment

    NOTE: Do NOT use oil or grease on any exposed part of the column. This is unnecessary and traps dirt which acts as an abrasive. Use out-of-doors will require special attention, especially in adverse conditions. Salt spray must be washed off with fresh water at the earliest opportunity. Do not allow water to enter the column. Sand and dirt acts as an abrasive and should be removed with a semi-stiff brush or vacuum clean- NOTE: Use only detergent-based cleaners.
  • Page 20 Turn the wheels until the clutch wheel is approximately aligned with either of the other wheels. Slacken the lock screw on the clutch wheel. Push the straight edge against the tyres of the two pairs of wheels until they are aligned. Tighten the lock screw on the clutch wheel.

  • Page 21: Changing The Steering Ring

    Changing the steering ring The OB Quattro is supplied with a 59 cm (23 in.) diameter steering ring (Part No. 3429-42). A larg- er, 74 cm (29 in.) diameter steering ring (Part No. 3429-43) is available as an optional extra.

  • Page 22: Changing The Wheels

    Changing the wheels The OB Quattro is supplied with 200 mm (7.9 in.) solid rubber wheels with cable guards. Alterna- tive 160 mm (6.3 in.) solid polymer composite wheels are available. The wheels are available in sets of three (one braked, two unbraked), as follows:...
  • Page 23 WARNING! Ensure braked wheel (with brake bar (12.5)) is installed below brake pedal (8). Refit the wheel assembly (12) on the axle mounting block (12.4). Set the cable guard (11) to the correct height, then screw down the two cable guard knobs (11.1) so that the clamp sleeves (11.2)

  • Page 24: Parts List

    Parts list The following lists include main assemblies, user-replaceable spare parts and optional accesso- ries. For further information regarding repair or spare parts, please contact Vinten Broadcast Ltd or your local distributor. For information on-line, visit our website at www.vinten.com.

  • Page 25: Technical Data

    Technical data Payload Maximum recommended 100 kg (200 lb) Theoretical maximum 120 kg (264 lb) Pedestal weight 117 kg (257 lb) Trim weights main (5 x 1.0 kg) 5.0 kg (11 lb) auxiliary (6 x 0.5 kg) 3.0 kg (6.6 lb) Minimum height with 200 mm wheels 49.8 cm (19.6 in.)
