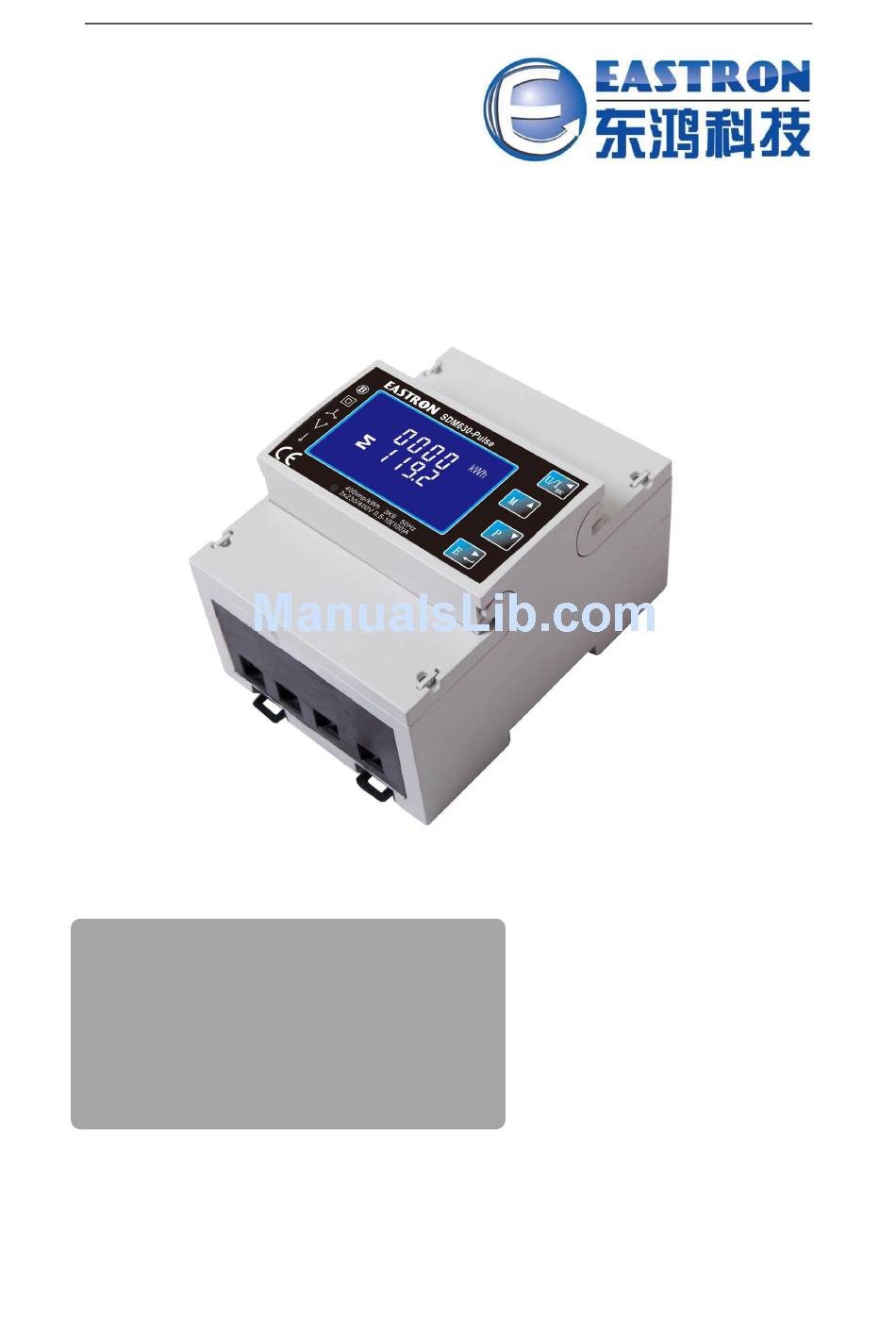

EASTRON SDM630Pulse User Manual
SDM630Pulse
DIN Rail Smart Meter for Single and Three Phase Electrical Systems
Measures kWh Kvarh, KW, Kvar, KVA, P,
F, PF, Hz, dmd, V, A, etc.
Bi-directional measurement IMP & EXP
Two pulse outputs
Din rail mounting 35mm
100A direct connection
Better than Class 1 / B accuracy
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn
USER MANUAL
2014 V1.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Eastron SDM630Pulse
Summary of Contents for Eastron SDM630Pulse
- Page 1 Bi-directional measurement IMP & EXP Two pulse outputs Din rail mounting 35mm 100A direct connection Better than Class 1 / B accuracy USER MANUAL 2014 V1.0 Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn...
- Page 2 SDM630Pulse supports max. 100A direct connection,saves the cost and avoid the trouble to connect external CTs,giving the unit a cost-effective and easy operation.Built-in interfaces provides pulse.Configuration is password protected.
- Page 3 In Set-up mode, this is the “Enter” or “Right” button Voltage and Current Each successive pressing of the button selects a new range: Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. - 2 - Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn...
- Page 4 Phase to neutral voltages(3p3w) Current on each phase Phase to neutral voltage THD%(3p4w) Phase to neutral voltage THD%(3p3w) Current THD% for each phase Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. - 3 - Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn...
- Page 5 Power Factor of each phase Maximum Power Demand Maximum Current Demand Power Each successive pressing of the button select a new range: Instantaneous Active Power in kW Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. - 4 - Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn...
- Page 6 Total kW, kVArh, kVA Energy Measurements Each successive pressing of the button selects a new range: Imported active energy in kWh Exported active energy in kWh Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. - 5 - Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn...
- Page 7 Setting up is password-protected so you must enter the correct password (default ‘1000’) before processing. If an incorrect password is entered, the display will show: Err Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. - 6 - Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn...
- Page 8 1) The current digit to be set flashes and is set using the buttons 2) Press to confirm each digit setting. The SET indicator appears after the last digit has been set. Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. - 7 - Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn...
- Page 9 The next digit will flash. Repeat the procedure for the remaining three digits After setting the last digit, SET will show. Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. - 8 - Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn...
- Page 10 Press to confirm the selection. SET indicator will appear. Press to exit the DIT selection routine and return to the menu. Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. - 9 - Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn...
- Page 11 . Press to enter the selection routine. The current selection will flash buttons to select the required system option: 1P2(W),3P3(W) ,3P4(W) Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. - 10 - Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn...
- Page 12 On completion of the entry procedure, press to confirm the setting and press to return to the main set up menu. Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. - 11 - Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn...
- Page 13 The energy monitored can be active or reactive and the pulse width can be selected as 200, 100 or 60ms. (It shows pulse width of 200ms) Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. - 12 - Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn...
- Page 14 The unit can monitor and display the following parameters of a single phase two wire(1p2w), three phase three wire(3p3w) or four phase four wire(3p4w) supply. Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. - 13 - Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn...
- Page 15 Voltage and current = 0.013%/°C typical Active energy = 0·018%/°C, typical Response time to step input 1s, typical, to >99% of final reading, at 50 Hz. Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. - 14 - Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn...
- Page 16 0 to 90%, non-condensing Altitude Up to 2000m Warm up time 1 minute Vibration 10Hz to 50Hz, IEC 60068-2-6, 2g Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. - 15 - Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn...
- Page 17 EASTRON SDM630Pulse User Manual Dimensions Wiring diagram Three phase three wires Three phase four wires Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. - 16 - Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn...
- Page 18 EASTRON SDM630Pulse User Manual Single phase two wires Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. - 17 - Tel: 0086-573-83698881/83698882 Fax: 0086-573-83698883 Web: www.eastron.com.cn...
