ZURN Z6140 Installation, Operation, Maintenance And Parts Manual

Aquaflush concealed flushometer

Advertisement

Quick Links

Aquaflush Concealed
Closet/Urinal Systems
Z6140
Z6142
Z6143
Z6144
Z6150
Z6152
Z6154
Z6155
Z6190
Z6195
Z6196
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of
purchase. Decorative finishes warranted for one year. We will replace at no cost goods that prove defective provided we are notified in writing of such
defect and the goods are returned to us prepaid at Sanford, NC, with evidence that they have been properly maintained and used in accordance with
instructions. We shall not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental or consequential
damages. The sole and exclusive remedy shall be limited to the replacement of the defective goods. Before installation and use, the purchaser shall
determine the suitability of the product for his intended use and the purchaser assumes all risk and liability whatever in connection therewith. Where
permitted by law, the implied warranty of merchantability is expressly excluded. If the products sold hereunder are "consumer products," the implied
warranty of merchantability is limited to a period of three years and shall be limited solely to the replacement of the defective goods. All weights
stated in our catalogs and lists are approximate and are not guaranteed.
Z6140
LIMITED WARRANTY
Aquaflush
Z6100 Series
Aquaflush Concealed Flushometer
Installation, Operation,
Maintenance, and Parts Manual
Patented and Patents Pending
Z6195
®
FV251 Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Z6140 and is the answer not in the manual?

Questions and answers

Summary of Contents for ZURN Z6140

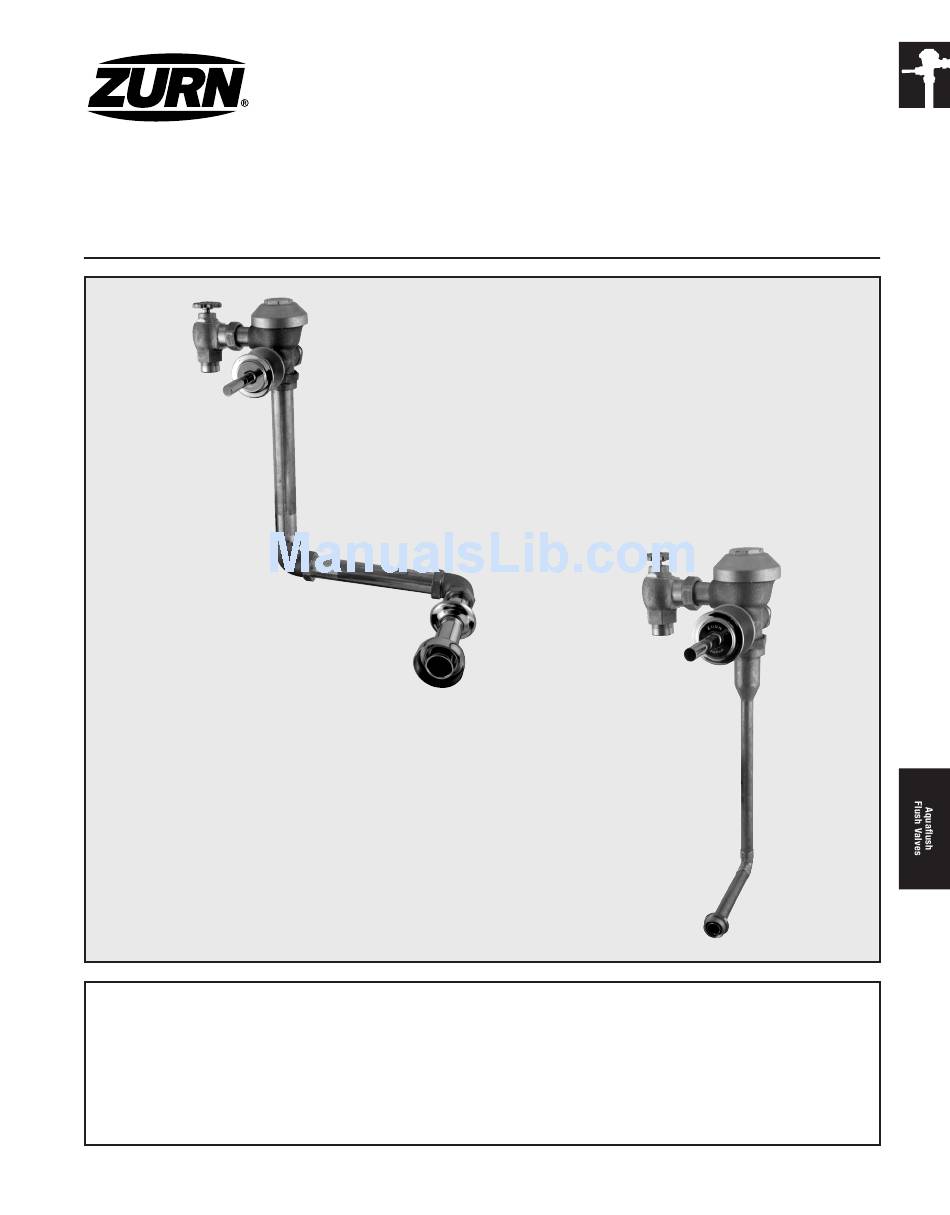

  • Page 1 Aquaflush ® Z6100 Series Aquaflush Concealed Flushometer Installation, Operation, Maintenance, and Parts Manual Patented and Patents Pending Z6140 Aquaflush Concealed Closet/Urinal Systems Z6140 Z6142 Z6143 Z6195 Z6144 Z6150 Z6152 Z6154 Z6155 Z6190 Z6195 Z6196 LIMITED WARRANTY All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of purchase.
  • Page 2 Internal seals are made of chloramine resistant materials. MODELS Z6140 – 1-1/2" Water Closet valve with top spud connection Z6152 – 1-1/2" Water Closet valve with back spud connection Z6190 – 1-1/4" Urinal Valve with top spud connection Z6195 –...
  • Page 3 A smooth jaw wrench is recommended to protect special finishes. 1. Install the Zurn Control Stop to the supply line with the water outlet positioned as needed. If using a sweat solder adaptor, sweat the adaptor to copper tubing before installing control stop.
  • Page 4: Suffix Options

    Z6199-BX17 Z6199 Engineering Specification: Zurn Z6199 Access Panel and Frame for Manual-Operated Concealed Flush Valves – The access panel and frame provide quick and simple access to in-wall concealed flush valves when a mechanical chase of adequate size is not available. The panel is #14 gage stainless steel and the frame is #18 gage stainless steel. Both have a satin finish.
  • Page 5 Aquaflush Repair Kits Parts Identification 1. Optional 1" Metal Push Button 2. Optional 3" Metal Push Button 3. Handle 4. Actuator Rod 5. Handle O-Ring 6. Handle Spring 7. Handle Seal Retainer 8. Handle Seal 9. Gasket 10. Valve Body Cover 11.
  • Page 6 *See previous page for numerical references. ZURN INDUSTRIES, INC. COMMERCIAL BRASS OPERATION, 5900 ELWIN BUCHANAN DRIVE, SANFORD, NC, U.S.A. 27330 PHONE: 1-800-997-3876 FAX: 919/775-3541 WEBSITE: www.zurn.com ZURN INDUSTRIES LIMITED 3544 NASHUA DRIVE, MISSISSAUGA, ONTARIO L4V 1L2 PHONE: 905/405-8272 FAX: 905/405-1292 ©...
