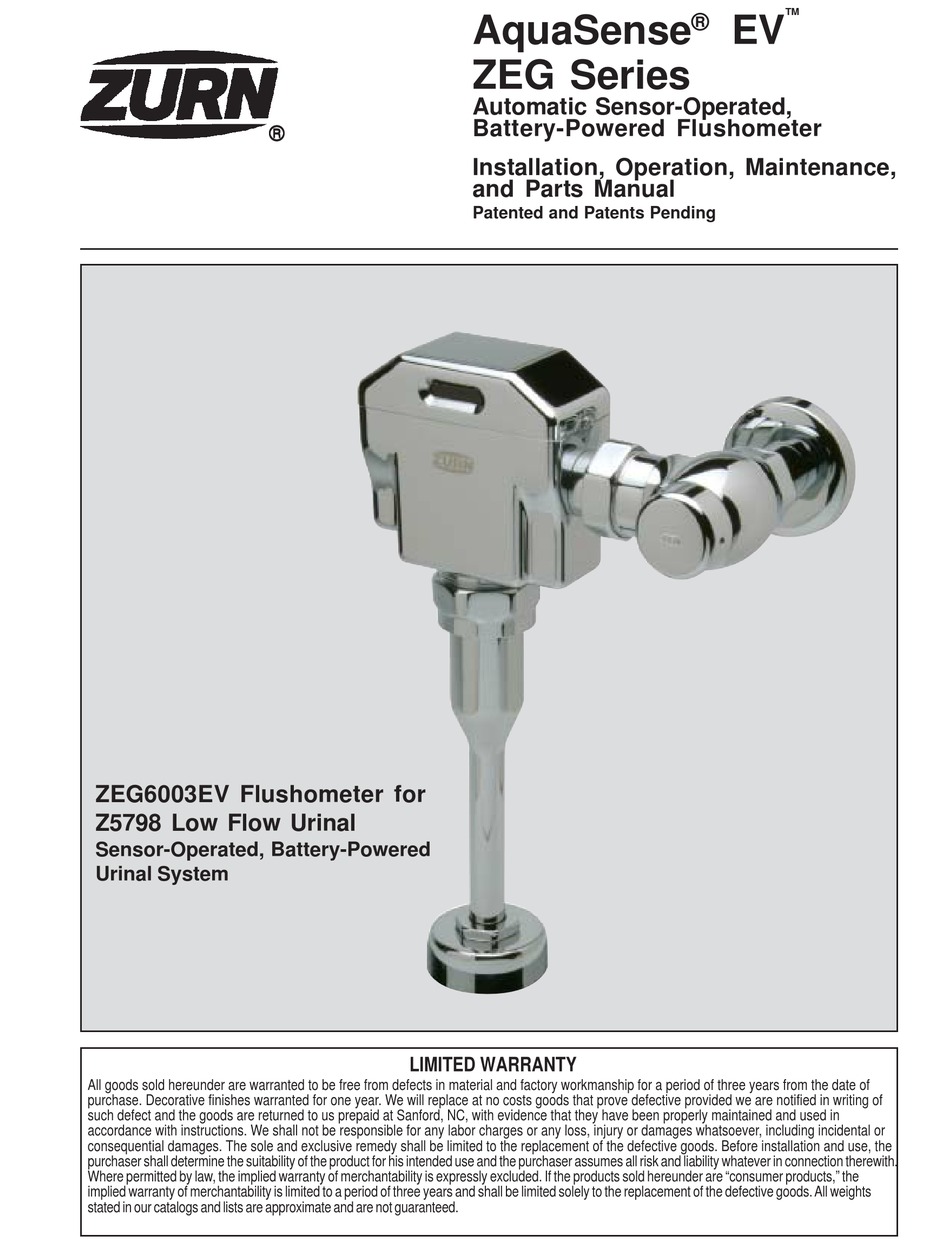

ZEG6003EV Flushometer for
Z5798 Low Flow Urinal
Sensor-Operated, Battery-Powered
Urinal System
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of
purchase. Decorative finishes warranted for one year. We will replace at no costs goods that prove defective provided we are notified in writing of
such defect and the goods are returned to us prepaid at Sanford, NC, with evidence that they have been properly maintained and used in
accordance with instructions. We shall not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental or
consequential damages. The sole and exclusive remedy shall be limited to the replacement of the defective goods. Before installation and use, the
purchaser shall determine the suitability of the product for his intended use and the purchaser assumes all risk and liability whatever in connection therewith.
Where permitted by law, the implied warranty of merchantability is expressly excluded. If the products sold hereunder are "consumer products," the
implied warranty of merchantability is limited to a period of three years and shall be limited solely to the replacement of the defective goods. All weights
stated in our catalogs and lists are approximate and are not guaranteed.
LIMITED WARRANTY
AquaSense
ZEG Series
Automatic Sensor-Operated,
Battery-Powered Flushometer
Installation, Operation, Maintenance,
and Parts Manual
Patented and Patents Pending
TM
®
EV
Advertisement
Table of Contents
Related Manuals for ZURN ZEG6003EV
Summary of Contents for ZURN ZEG6003EV
-
Page 1: Limited Warranty
Battery-Powered Flushometer Installation, Operation, Maintenance, and Parts Manual Patented and Patents Pending ZEG6003EV Flushometer for Z5798 Low Flow Urinal Sensor-Operated, Battery-Powered Urinal System LIMITED WARRANTY All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of purchase. -
Page 2: Prior To Installation
PRIOR TO INSTALLATION IMPORTANT: • All Plumbing is to be installed in accordance with applicable Prior to installing the ZEG EcoVantage urinal flushometer codes and regulations. valve, install the items listed below: • Water supply lines must be sized to provide an adequate •... - Page 3 4.) Insert the flush valve tailpiece (B) into the stop valve (A) and hand tighten the lock nut (D) to the stop valve. Plumb the entire unit. 7.) ACTIVATION Using the 5/64" Allen wrench supplied with the valve, remove the two 6-32 button head screws holding the top cover in place.
-
Page 4: Low Battery Warning
(20 psi to 80 psi) due to internal pressure regulation. 1. Place the Zurn “Magic Magnet” (N) on the left hand side of Open the stop valve to wide open position using the ad- the flat top surface of the valve and move around until the LED justing screw (S) on the front of the stop valve. -
Page 5: Troubleshooting Guide
TROUBLE SHOOTING GUIDE Problem Possible Cause Diagnosis Solution No lights are visible in Electronics fault. Run through reset procedure the sensor eye. below. Valve does not flush. Valve could be sensing a Hold a flat object at an acute Reduce sensing range close by surface or reflections angle to the valve and see if it Eliminate reflective... - Page 6 ® ZEG6003EV 1/8th Gallon Urinal Parts Breakdown Parts Identification 1. Cover 2. Cover Screw 3. Electronics Assembly 4. Lens Assembly 5. Battery Tray 6. Housing 7. Solenoid 8. Screw 9. Spring 10. Plunger 11. Diaphragm 12. Valve Body 13. Filter 14.
