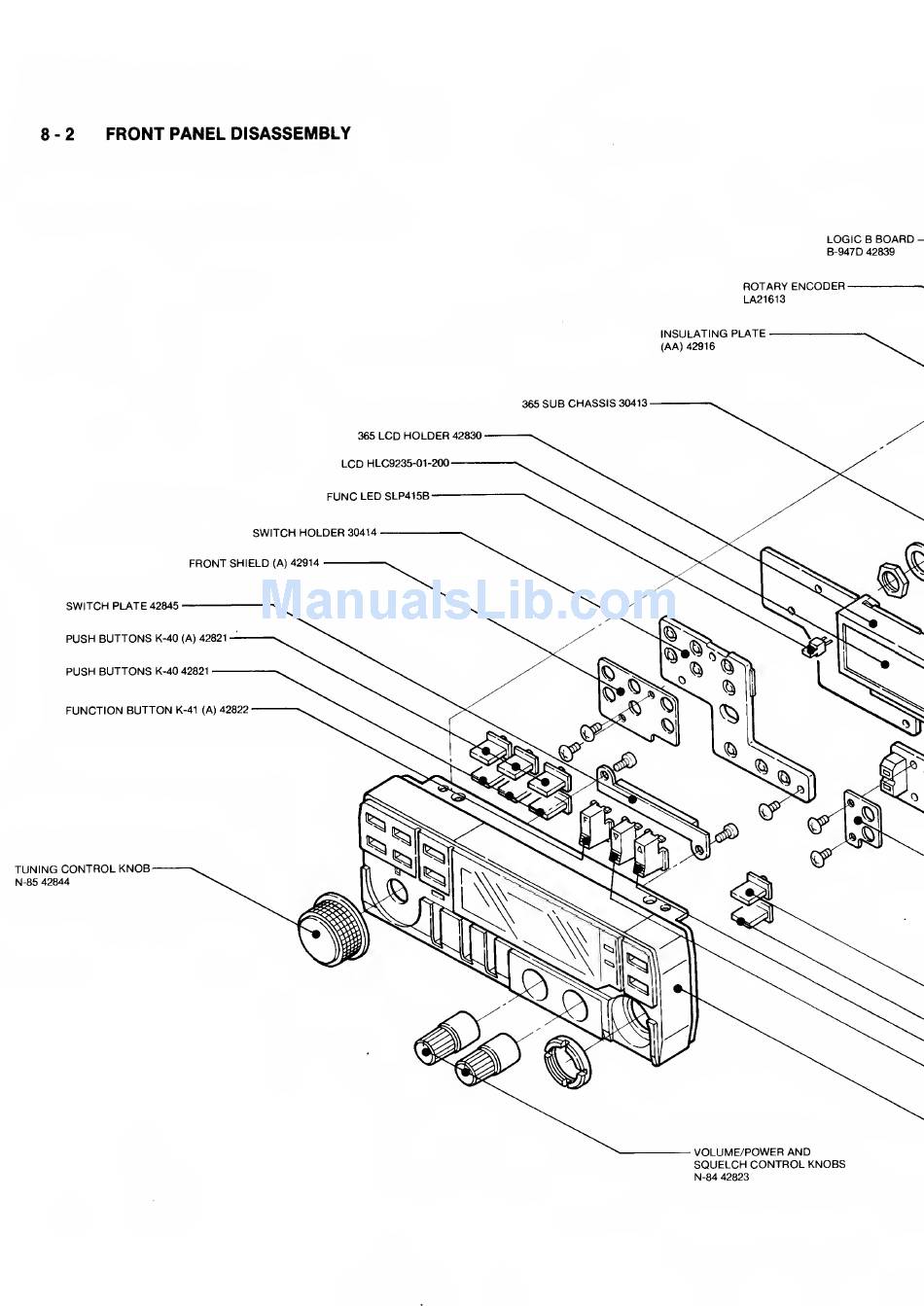

FRONT PANEL DISASSEMBLY
LOGIC
B
BOARD
B-947D 42839
ROTARY ENCODER
-
LA21613
INSULATING PLATE
-
(AA)
42916
365
SUB CHASSIS 30413
365
LCD
HOLDER
42830
-
LCD
HLC9235-01-200-
FUNC
LED SLP415B-
SWITCH
HOLDER
30414
-
FRONT
SHIELD
(A)
42914
SWITCH PLATE
42845
PUSH BUTTONS
K-40 (A)
42821
-
PUSH BUTTONS
K-40 42821
FUNCTION
BUTTON
K-41 (A)
42822
TUNING
CONTROL KNOB-
N-85 42844
VOLUME/POWER AND
SOUELCH CONTROL KNOBS
N-84 42823
