Pll (Phase-Locked Loop) Circuits - Icom IC-3200A Service Manual

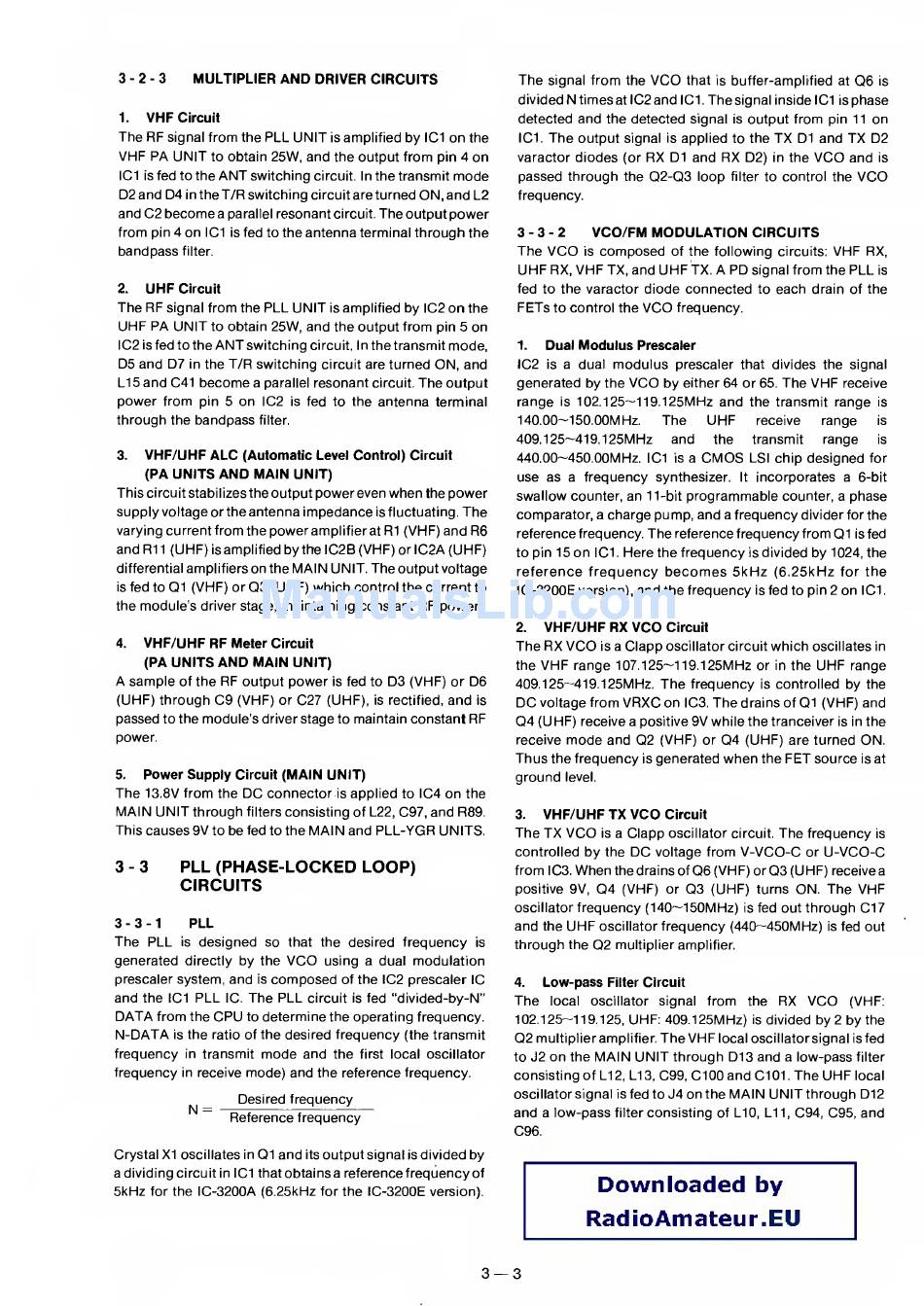

3-2-3
MULTIPLIER
AND
DRIVER CIRCUITS
1.
VHP
Circuit
The RF
signal
from
the
PLL UNIT
is
amplified by IC1
on
the
VHF PA UNIT
to obtain
25W, and
the output
from
pin
4 on
IC1
is
fed to the
ANT
switching
circuit. In
the transmit
mode
D2
and
D4
in
the
T
/R
switching
circuit
are turned
ON, and
L2
and
C2 become
a
parallel
resonant
circuit.
The
output
power
from
pin
4
on
IC1
is
fed to the
antenna
terminal
through
the
bandpass
filter.
2.
UHF
Circuit
The
RF
signal
from
the
PLL UNIT
is
amplified
by
IC2
on
the
UHF PA UNIT
to
obtain
25W, and
the output
from
pin
5
on
IC2
is
fed
to
the
ANT
switching
circuit. In
the transmit
mode,
D5 and D7
in
the
T/R
switching
circuit
are
turned ON, and
LI 5
and C41 become
a
parallel
resonant
circuit.
The
output
power
from
pin 5
on
IC2
is
fed
to
the
antenna
terminal
through
the
bandpass
filter.
3.
VHF/UHF
ALC
(Automatic Levei Control)
Circuit
(PA UNiTS
AND
MAIN
UNIT)
This circuit stabilizes the
output power even
when
the
power
supply voltage or the
antenna impedance
is
fluctuating.
The
varying current from the
power
amplifier
at
R1
(VHF) and
R6
and
R1
1
(UHF)
is
amplified
by
the
IC2B
(VHF) or
IC2A (UHF)
differential amplifiers
on
the
MAIN
UNIT.
The
output
voltage
is
fed
to
01 (VHF)
or
03
(UHF) which
control the current to
the
module's
driver stage, maintaining constant
RF
power.
4.
VHF/UHF RF
Meter
Circuit
(PA
UNITS
AND
MAIN
UNIT)
A
sample
of the
RF
output
power
is
fed to
D3
(VHF) or
D6
(UHF) through 09
(VHF) or 027 (UHF),
is
rectified,
and
is
passed
to
the module's
driver
stage
to
maintain constant
RF
power.
5.
Power
Supply
Circuit
(MAIN
UNIT)
The
13.8V
from
the
DC
connector
is
applied
to
104
on
the
MAIN UNIT
through
filters
consisting
of L22, 097,
and
R89.
This causes
9V
to
be fed
to
the
MAIN
and
PLL-YGR
UNITS.
3-3
PLL
(PHASE-LOCKED LOOP)
CIRCUITS
3-3-1
PLL
The PLL
is
designed so
that the desired
frequency
is
generated
directly
by
the
VCO
using a dual
modulation
prescaler system,
and
is
composed
of
the
IC2
prescaler IC
and
the IC1
PLL
10.
The PLL
circuit
is
fed "divided-by-N"
DATA
from
the
CPU
to
determine the operating frequency.
N-DATA
is
the
ratio
of the desired
frequency
(the
transmit
frequency
in
transmit
mode and
the
first local oscillator
frequency
in
receive
mode) and
the reference frequency.
_
Desired
frequency
Reference frequency
Crystal XI oscillates
in
Q1 and
its
output
signal
is
divided
by
a dividing
circuit
in
101 that obtains a reference
frequency
of
5kHz
for the
IC-3200A (6.25kHz
for the
IC-3200E
version).
The
signal
from
the
VCO
that
is
buffer-amplified
at
Q6
is
divided
N
times
at
102
and
101
.
The
signal inside 101
is
phase
detected
and
the detected signal
is
output from
pin
1 1
on
101.
The
output
signal
is
applied
to
the
TX
D1 and
TX D2
varactor diodes
(or
RX
D1 and
RX
D2)
in
the
VCO
and
is
passed through
the
Q2-Q3
loop
filter
to
control the
VCO
frequency.
3-3-2
VCO/FM MODULATION
CIRCUITS
The
VCO
is
composed
of
the following
circuits:
VHF
RX,
UHF
RX,
VHF
TX,
and
UHF
TX.
A PD
signal
from
the
PLL
is
fed
to
the varactor diode connected
to
each
drain of
the
FETs
to
control the
VCO
frequency.
1.
Dual
Modulus
Prescaler
102
is
a dual
modulus
prescaler that divides the signal
generated by
the
VCO
by
either
64
or
65.
The
VHF
receive
range
is
102.125~119.125MHz and
the transmit range
is
140.00—
1
50.00MHz.
The
UHF
receive
range
is
409.
125—
419.
125MHz
and
the transmit
range
is
440.00—
450.00MHz.
101
is
a
CMOS
LSI chip
designed
for
use as a frequency
synthesizer.
It
incorporates a
6-bit
swallow
counter,
an
11
-bit
programmable
counter, a
phase
comparator, a charge
pump, and
a frequency
divider for the
reference frequency.
The
reference frequency from
Q1
is
fed
to
pin 15
on
101.
Here
the
frequency
is
divided by 1024, the
reference
frequency
becomes 5kHz
(6.25kHz
for
the
IC-3200E
version),
and
the
frequency
is
fed to pin 2
on
101
.
2.
VHF/UHF RX
VCO
Circuit
The
RX
VCO
is
a
Clapp
oscillator circuit
which
oscillates
in
the
VHF
range 107.125— 119.125MHz
or
in
the
UHF
range
409.125—
419.125MHz.
The
frequency
is
controlled
by
the
DC
voltage
from
VRXC
on
103.
The
drains
of
01
(VHF) and
Q4 (UHF)
receive a
positive
9V
while the tranceiver
is in
the
receive
mode
and 02 (VHF)
or
04 (UHF)
are turned
ON.
Thus
the
frequency
is
generated
when
the
FET
source
is
at
ground
level.
3.
VHF/UHF TX
VCO
Circuit
The TX
VCO
is
a
Clapp
oscillator circuit.
The
frequency
is
controlled by the
DC
voltage
from
V-VCO-C
or
U-VCO-C
from
IC3.
When
the drains
of
06
(VHF) or
03 (UHF)
receives
positive 9V,
04
(VHF)
or
03 (UHF)
turns
ON. The
VHF
oscillator
frequency (140— 150MHz)
is
fed
out through
C17
and
the
UHF
oscillator
frequency (440— 450MHz)
is
fed out
through
the
02
multiplier amplifier.
4.
Low-pass
Filter Circuit
The
local oscillator signal
from the
RX
VCO
(VHF:
102.125—
119.125,
UHF: 409.125MHz)
is
divided
by
2
by
the
02
multiplier amplifier.
The
VHF
local oscillator signal
is
fed
to
J2
on
the
MAIN UNIT
through
D13
and
a
low-pass
filter
consisting of L12, L13, C99,
C100 and
C101.
The
UHF
local
oscillator signal
is
fed
to
J4 on
the
MAIN
UNIT
through
D12
and
a
low-pass
filter
consisting of L10, L11, C94, C95,
and
C96.
