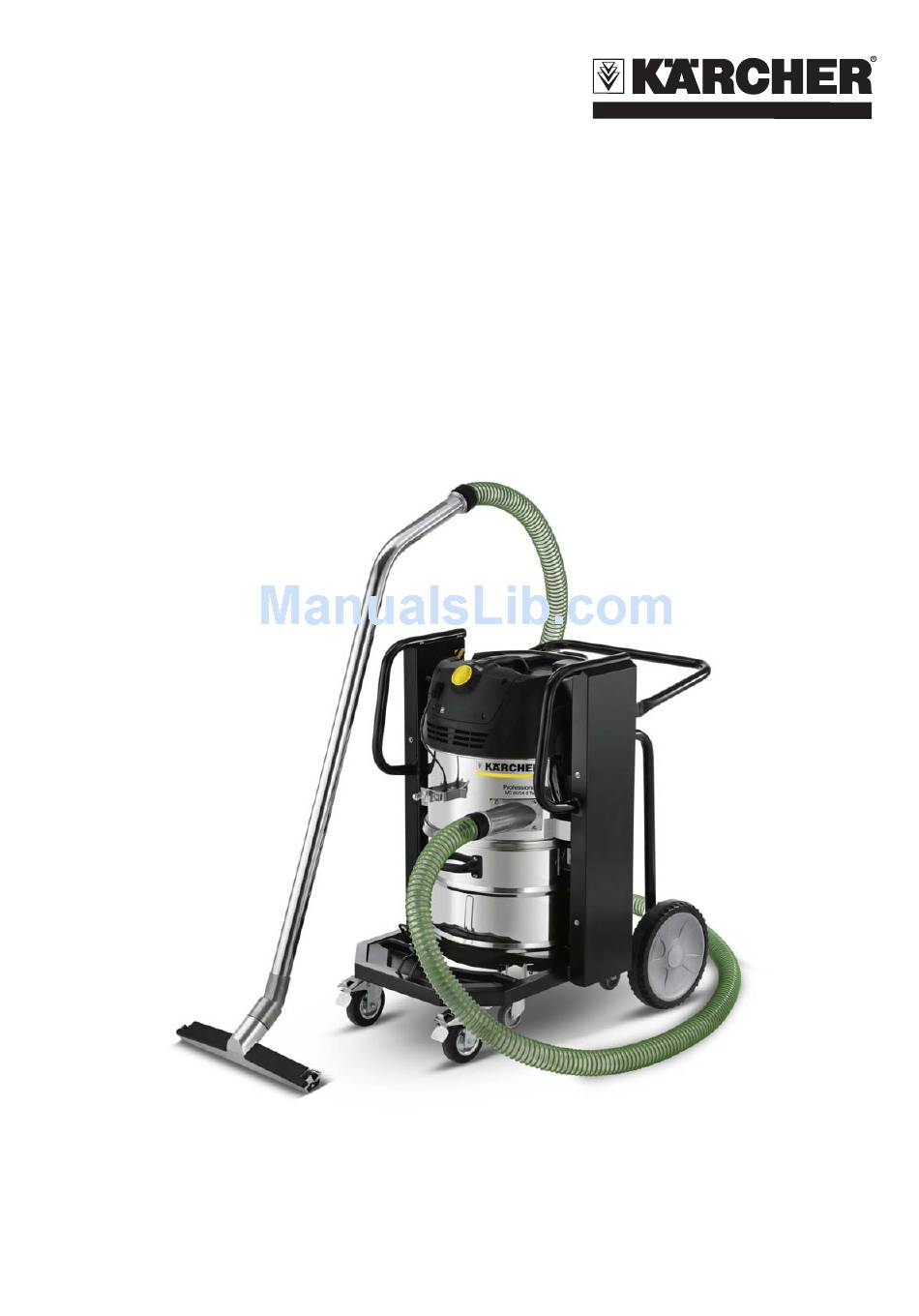

IVC 60/24-2 Tact²
Service Manual
1
English 5.906-757.0 Rev. 00 (10/15)

Advertisement

Table of Contents

   Summary of Contents for Kärcher IVC 60/24-2 Tact2

  • Page 1 IVC 60/24-2 Tact² Service Manual English 5.906-757.0 Rev. 00 (10/15)
  • Page 2: Table Of Contents

    Contents Preface Safety instructions Hazard levels Description in this service manual Service groups Functional group structure Textual description Technical Features Field of application Safety installations Type plate Parts of the system Front view AB Service group setup 010 Safety information 020 Overview 030 Function 040 Service activities...
  • Page 3 060 Error diagnosis 070 Peculiarities/ others Technical Documentation Technical specifications Circuit diagram English 5.906-757.0 Rev. 00 (10/15)
  • Page 4: Preface

    Preface Good service work requires extensive and practice-orient- If you should require supplements, have corrections or ed training as well as well-structured training materials. questions regarding this document, please address these Hence we offer regular basic and advanced training pro- citing the following subject to: grammes covering the entire product range for all service international-service@de.kaercher.com...
  • Page 5: Description In This Service Manual

    Description in this service manual Service groups Example: Install/uninstall ANRA wheel axle Install/uninstall wheel axle Service group Component Activity Observe the allocation of service groups to the appliance components in the overview diagram in Chapter "Overview over the service and functional groups". Functional group structure Safety instructions Overview...
  • Page 6: Parts Of The System

    Parts of the system Front view 1 Power switch 2 Instrument panel 3 Intermediate ring 4 Sediment container 5 Suction head AB Service group setup 010 Safety information WARNING Switch off the appliance and remove the plug from the socket. Observe general safety information! 020 Overview ABIT Uninstall / install instrument panel...
  • Page 7: 040 Service Activities

    040 Service activities Note Unless otherwise described, the installation takes place in reverse order. ABHA Uninstalling / installing cover  ABIT Uninstall / install instrument panel 1 Screw 2 Handle  Loosen screws.  Remove the handle. 1 Screws 2 Cover filter ...
  • Page 8: Abit Uninstall / Install Instrument Panel

    1 Instrument panel 2 Hood Note Mind the wiring when removing the cover.  Thread the instrument panel through the opening of the cover.  Remove the hood. Installation information Upon reinstallation, make sure that no cables are jammed! ABIT Uninstall / install instrument panel 1 Screws 2 Instrument panel ...
  • Page 9: Abzr Uninstall / Install Intermediate Ring

    ABZR Uninstall / install intermediate ring  ACSK Uninstall / install suction head 1 Screws 2 Intermediate ring 3 Side plate  Remove the sediment container.  Unscrew the screws.  Remove side plate. 1 Intermediate ring 2 Screws 3 Machine frame ...
  • Page 10: Ac Service Group Suction System

    AC Service group suction system 010 Safety information WARNING Switch off the appliance and remove the plug from the socket. Observe general safety information! 020 Overview ACTM Uninstall / install Tact magnets ACSK Uninstall / install suction head ACST Uninstall/ install suction turbine ACTE Uninstall / install Tact unit ACFF Uninstall / install flat fold filter 030 Function...
  • Page 11: Acst Uninstall/ Install Suction Turbine

    1 Lock latches 2 Suction head  Open lock latches.  Remove the suction hand. ACST Uninstall/ install suction turbine  ABHA Uninstalling / installing cover 1 Screws 2 Control electronics 2  Unscrew the screws.  Remove control electronics 2. 1 Screw ...
  • Page 12 1 Screws  Unscrew the screws. 1 Electrical socket plug connections (suction turbine 1) 2 Electrical socket plug connections (suction turbine 2)  Separate the electric connectors. Note Observe the connection diagram. 1 Screws 2 Casing suction turbine 3 Suction turbine ...
  • Page 13: Acff Uninstall / Install Flat Fold Filter

    ACFF Uninstall / install flat fold filter 1 Handle 2 Locking 3 Cover filter  Pull on the lock.  Open the cover of the filter. 1 Flat fold filter  Remove flat folded filter. ACTE Uninstall / install Tact unit ...
  • Page 14 1 Tact magnets 2 Tact unit  Remove tact magnets.  Remove tact unit. Opening / closing the Tact unit 1 Screwdriver 2 Locking nose 3 Casing cover Tact unit  Detach the Tact unit from the latches using a screwdriv- ...
  • Page 15: Actm Uninstall / Install Tact Magnets

    ACTM Uninstall / install Tact magnets  ABHA Uninstalling / installing cover 1 Screws 2 Cover Tact unit  Unscrew the screws.  Remove cover Tact unit. 1 Tact magnets 2 Electric socket plug connections 3 Electric screw connections  Separate the electric connectors. ...
  • Page 16: Ah Service Group

    AH Service group 010 Safety information WARNING Switch off the appliance and remove the plug from the socket. Observe general safety information! 020 Overview AHFS Uninstall / install filling level sensor AHGA Uninstall / install power switch AHSE Uninstall / install control electronics 1 AHSF Uninstall / install control electronics 2 030 Function No special functional characteristics.
  • Page 17: Ahga Uninstall / Install Power Switch

    1 Screw connection 2 Plug  Disconnect screw connection. 1 Level sensor 2 Union joint 3 Intermediate ring  Unscrew the covering nut.  Pull the filling level sensor out of the intermediate ring. AHGA Uninstall / install power switch ...
  • Page 18: Ahnk Uninstalling / Installing Mains Cable

    AHNK Uninstalling / installing mains cable  ABHA Uninstalling / installing cover 1 Power switch 2 Electric socket plug connections  Separate the electric connectors. 1 Screws 2 Cord grip 3 Mains cable  Unscrew the screws.  Remove strain relief. ...
  • Page 19: Ahsf Uninstall / Install Control Electronics 2

    AHSF Uninstall / install control electronics 2  AHSE Uninstall / install control electronics 1 1 Screws 2 Control electronics 2  Disconnect all electrical connections.  Unscrew the screws.  Remove control electronics 2. Note Observe the connection diagram. 050 Maintenance and inspection Service group does not contain any maintenance and in- spection points.
  • Page 20: Technical Documentation

    Technical Documentation Appliance type Appliance no. Operating instructions Spare parts list IVC 60/24-2 Tact² 1.576-100.0 5.963-949.0 5.971-299.0 Technical specifications IVC 60/24-2 IVC 60/24-2 Mains voltage 220-240 Frequency 1~ 50/60 1~ 50/60 Max. performance 2760 2450 Rated power 2400 2150 Container capacity Air volume (max.) 2x 74 2x 66...
  • Page 21: Circuit Diagram

    Circuit diagram English 5.906-757.0 Rev. 00 (10/15)
  • Page 22 Level sensor Terminal strip Indicator lamp Plug socket contacts filling level sensor Magnet Plug pin contacts filling level sensor Magnet Suction turbine Suction turbine Control electronics 1 Control electronics 2 Power switch Mains plug English 5.906-757.0 Rev. 00 (10/15)
