Wilbur Curtis Company ThermoPro Twin Service Manual

Hide thumbs

Advertisement

Quick Links

Models Included
TP2T – ThermoPro Twin
TP2S – ThermoPro Single
WARNING HOT LIQUID,
Scalding may occur.
Avoid splashing.
CAUTION: Please use
this setup procedure
before attempting to use
this brewer. Failure to follow the
instructions can result in injury or the
voiding of the warranty.
IMPORTANT: Equipment
to be installed to comply
with applicable federal,
state, or local plumbing/electrical
codes having jurisdiction.
CAUTION: DO NOT
connect this brewer to hot
water. The inlet valve is
not rated for hot water.
ISO 9001 REGISTERED
WILBUR CURTIS COMPANY
Montebello, CA 90640

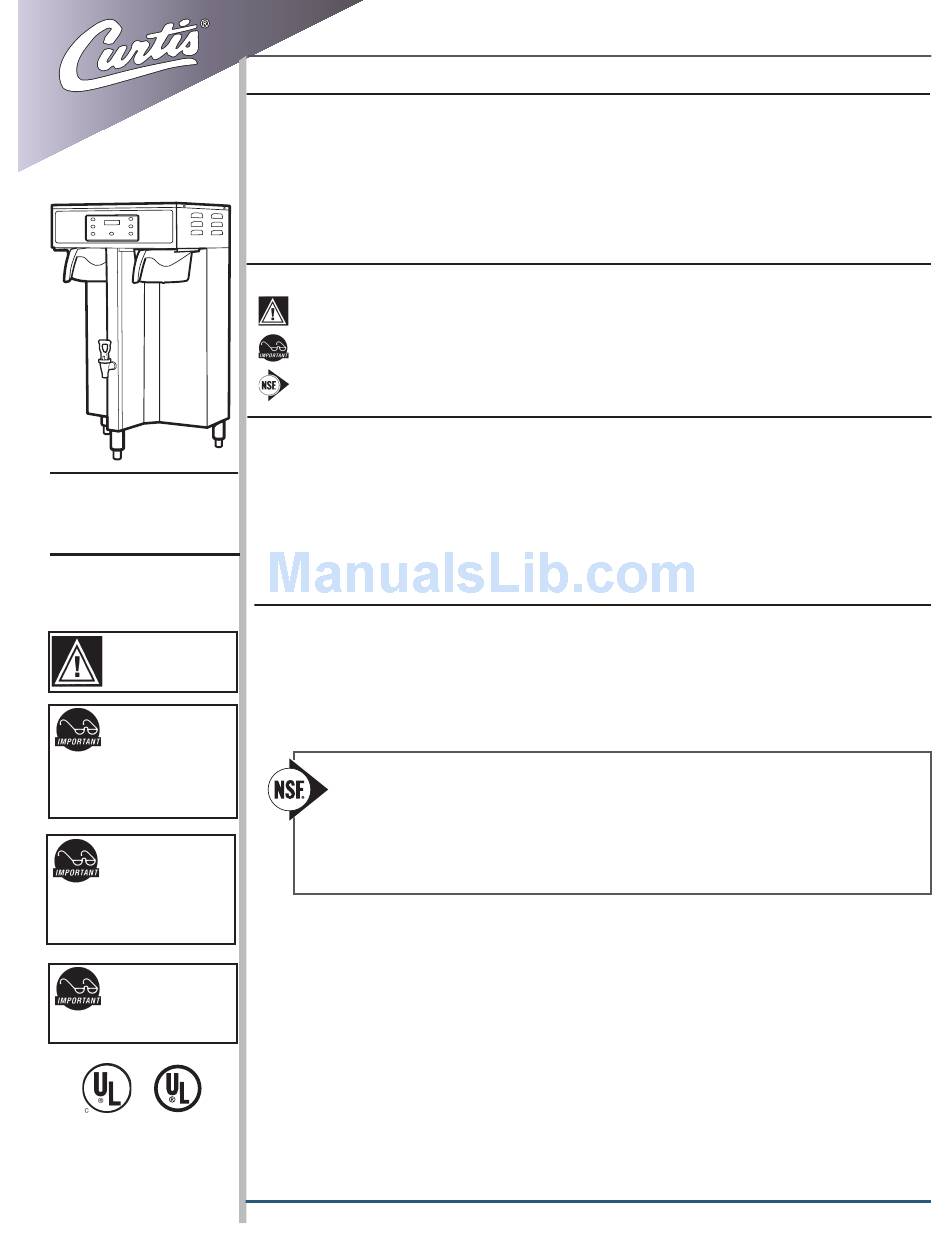

Service Manual – ThermoPro Twin & Single Brewers
Important Safeguards
This appliance is designed for commercial use. Any servicing other than cleaning and preventive maintenance should be
performed by an authorized Wilbur Curtis service technician.
• DO NOT immerse the unit in water or any other liquid
• To reduce the risk of fire or electric shock, DO NOT open service panels. No user serviceable parts inside.
• Keep hands and other items away from hot surfaces of unit during operation.
• Never clean with scouring powders, bleach or harsh chemicals.
Symbols
WARNINGS – To help avoid personal injury
Important Notes/Cautions – from the factory
Sanitation Requirements
This Curtis Generation 3 Unit is Factory Pre-Set and Ready to Go... Right from the Carton.
Following are the Factory Settings for your G3 Coffee Brewing Systems:
• Brew Temperature = 200°F
• Brew Volume = Set to Vessel Requirement.
System Requirements:
• Water Source 20 – 90 PSI (Minimum Flow Rate of 1 GPM)
• Electrical: See attached schematic for standard model or visit www.wilburcurtis.com for your model.
Setup Steps
The unit should be located on a solid counter top and leveled (left to right and front to back). Connect a water line from
the water filter to the brewer.
NOTE: A water filtration system must be installed to maintain a trouble-free operation. (In areas with extremely hard water,
we suggest that a sedimentary and taste & odor filter be installed.) This will prolong the life of your brewing system and
enhance coffee quality.
NSF International requires the following water connection:
1. A quick disconnect or additional coiled tubing (at least 2x the depth of the unit) so that the machine can
be moved for cleaning underneath the unit.
2. This equipment is to be installed with adequate back flow protection to comply with applicable federal,
state and local codes.
3. Water pipe connections and fixtures directly connected to a potable water supply shall be sized,
installed and maintained in accordance with federal, state, and local codes.
1. A 3/8"Flare x 3/8" Male pipe elbow is supplied with the brewer for water line connection. Use tubing sized sufficiently to
provide a minimum of 1.0 GPM.
2. Connect the unit to an appropriate electrical power circuit.
3. Turn on the toggle (STANDBY/ON) switch behind the unit. The heating tank will start to fill. When the water level in the
tank rises to the correct volume, the heating elements will energize automatically.
4. The heating tank will require 20 to 30 minutes to reach operating temperature (200°F), indicated when READY TO
BREW is displayed on the LCD screen.
5. Prior to brewing, dispense 12 ounces of hot water through the hot water faucet.
6. Brew a cycle of at least 12 ounces, to purge the water lines of any air that may be trapped after filling.
7. Prior to brewing, dispense 12 ounces of hot water through the hot water faucet.
8. Brew a cycle of at least 12 ounces, to purge the water lines of any air that may be trapped after filling.
9. The ThermoPro brewer is now ready for operation.
FOR THE LATEST SPECIFICATIONS AND INFORMATION GO TO WWW.WILBURCURTIS.COM
W
C
C
ilbur
urtis
ompany
, i
.
nC
• Water Bypass = On for LARGE & MEDIUM Brew Only
• Sleep Mode = Off
1

Advertisement

loading

  Summary of Contents for Wilbur Curtis Company ThermoPro Twin

  • Page 1 Service Manual – ThermoPro Twin & Single Brewers Important Safeguards This appliance is designed for commercial use. Any servicing other than cleaning and preventive maintenance should be performed by an authorized Wilbur Curtis service technician. • DO NOT immerse the unit in water or any other liquid • To reduce the risk of fire or electric shock, DO NOT open service panels. No user serviceable parts inside.
  • Page 2: Brewing Instructions

    Your Curtis ADS System is Factory Pre‑Set for Optimum Performance. After connection to water and power; the rear toggle switch must be on. You will hear a beep sound, indicating power is available to the controller. THERMOPRO WILBUR CURTIS WILBUR CURTIS The control displays . Press ON/OFF button and the screen will display . After three seconds, is displayed. WILBUR CURTIS FILLING . . . WILBUR CURTIS Water will fill the tank (approximately 2-3 minutes depending on water flow rate). When the proper level is reached will appear on the screen. HEATING . . . It takes approximately 20 minutes to reach setpoint temperature of 200°F. WILBUR CURTIS Control will display when temperature reaches the setpoint (200°F); unit is at brewing temperature. READY TO BREW BREWING INSTRUCTIONS 1. Brewer should be ON (Confirm at rear toggle switch, then press the ON/OFF button). Screen should read Ready-to-Brew. If connected to an InterLock grinder. Grinder should be on.
  • Page 3: Important Note

    ThermoPro Programming Guide IMPORTANT NOTE: All programming selections are performed with the three center buttons. The symbols below the buttons are: Scroll LEFT  SELECTION or ENTER to save new parameter Scroll RIGHT...
  • Page 4: Parts Diagram

    PARTS DIAGRAM THERMOPRO TWIN BREWER TP2T...
  • Page 5: Illustrated Parts List

    ILLUSTRATED PARTS LIST ITEM № PART № DESCRIPTION WC-5459 COVER, TOP WRAP THERMOPRO GEM-6 FILTER, 500/PKG (USE WITH WC-3417) TWIN BREWER WC- 37121* KIT, DUMP VALVE BREW LEFT TP2T WC- 844-101* VALVE, BY-PASS W/RESISTOR WC-39442 LABEL, UCM OVERLAY TP2T TWIN 3-BATCH CURTIS WC-39415 LABEL, UCM OVERLAY TWIN 2-BATCH CURTIS 5B WC-39414 LABEL, UCM OVERLAY TWIN 1-BATCH CURTIS WC-3417 BREW CONE,ASSY W/SPLASH POCKET BROWN COF WC-29050 SPRAYHEAD, ADVANCED FLOW WC-58037-101 COVER, CENTER WRAP TP 90º WC- 847* VALVE, WATER INLET 2GPM 120V 10W WC-2402P ELBOW, 3/8”FL x 3/8” NPT PLATED WC-37122* KIT, DUMP VALVE BREW RIGHT WC- 442 SOLENOID, LOCK BREW CONE RIGHT /LEFT 120V WC- 441 SOLENOID, LOCK BREWCONE LEFT (OLDER UNITS) WC-1825...
  • Page 6 PARTS DIAGRAM THERMOPRO SINGLE BREWER TP2S...
  • Page 7 ILLUSTRATED ITEM № PART № DESCRIPTION PARTS LIST WC-61509 COVER, TOP WRAP THERMOPRO GEM-6 FILTERS, 500/PKG (USE WITH WC-3417) SINGLE BREWER WC-3765L* KIT, INLET VALVE REPAIR USE ON WC-826L/WC-847 TP2S WC- 844-101* VALVE, ADJ BY-PASS WC-39444 LABEL, UCM OVERLAY TP2S 3-BATCH CURTIS WC-39417 LABEL, UCM OVERLAY TP2S 1-BATCH CURTIS 5B WC-39416 LABEL, UCM OVERLAY TP2S 2-BATCH CURTIS WC-3417 BREW CONE,ASSY W/SPLASH POCKET BROWN COF WC-29050* SPRAYHEAD ASSY, ADVANCED FLOW WC-58037-101 COVER, CENTER WRAP WC- 847* VALVE, WATER INLET 2GPM 120V 10W WC-1501 FUSE HOLDER W/5A FUSE WC-37122* KIT, DUMP VALVE BREW RIGHT WC-37132* KIT, DUMP VALVE WC-820WC-821,WC-844 WC-1825 FAUCET ASSY, HOT WATER TP2S/2T WC-8559*...
  • Page 10 Cleaning the ThermoPro Regular cleaning and preventive maintenance is essential in keeping your coffee brewer looking and working like new. To clean the coffee brewer and components, prepare a mild solution of detergent and warm water. CAUTION – Do not use cleansers, bleach liquids, powders or any other substance containing chlorine. These products promote corrosion and will pit the stainless steel. USE OF THESE PRODUCTS WILL VOID THE WARRANTY. DAILY CLEANING 1. Wipe exterior surfaces with a damp cloth, removing spills and debris. 2. Slide the brewcone out and clean it. Wipe the sprayhead area with a cloth soaked in a mild detergent solution. 3. Rinse and dry the brewcone and sprayhead area. 4. Drain drip trays of coffee. 5. Dry the tray. WEEKLY CLEANING 1. Turn off unit at the power switch, behind the unit. Allow the brewer to cool. 2. Clean the sprayhead and dome plate area. a. Remove the sprayhead, unscrewing counterclockwise from the dome plate. b. Thoroughly clean and rinse the dome plate area. c. Clean the brewcone rails with a brush soaked with a mild detergent solution. Rinse the area with a cloth soaked with clean water, removing any residual detergent.
  • Page 11 Page Intentionally Left Blank...
  • Page 12 This includes institutional and correctional facilities. The Wilbur Curtis Company will allow up to 100 miles, round trip, per in-warranty service call.
