Summary of Contents for Manta PA6528D

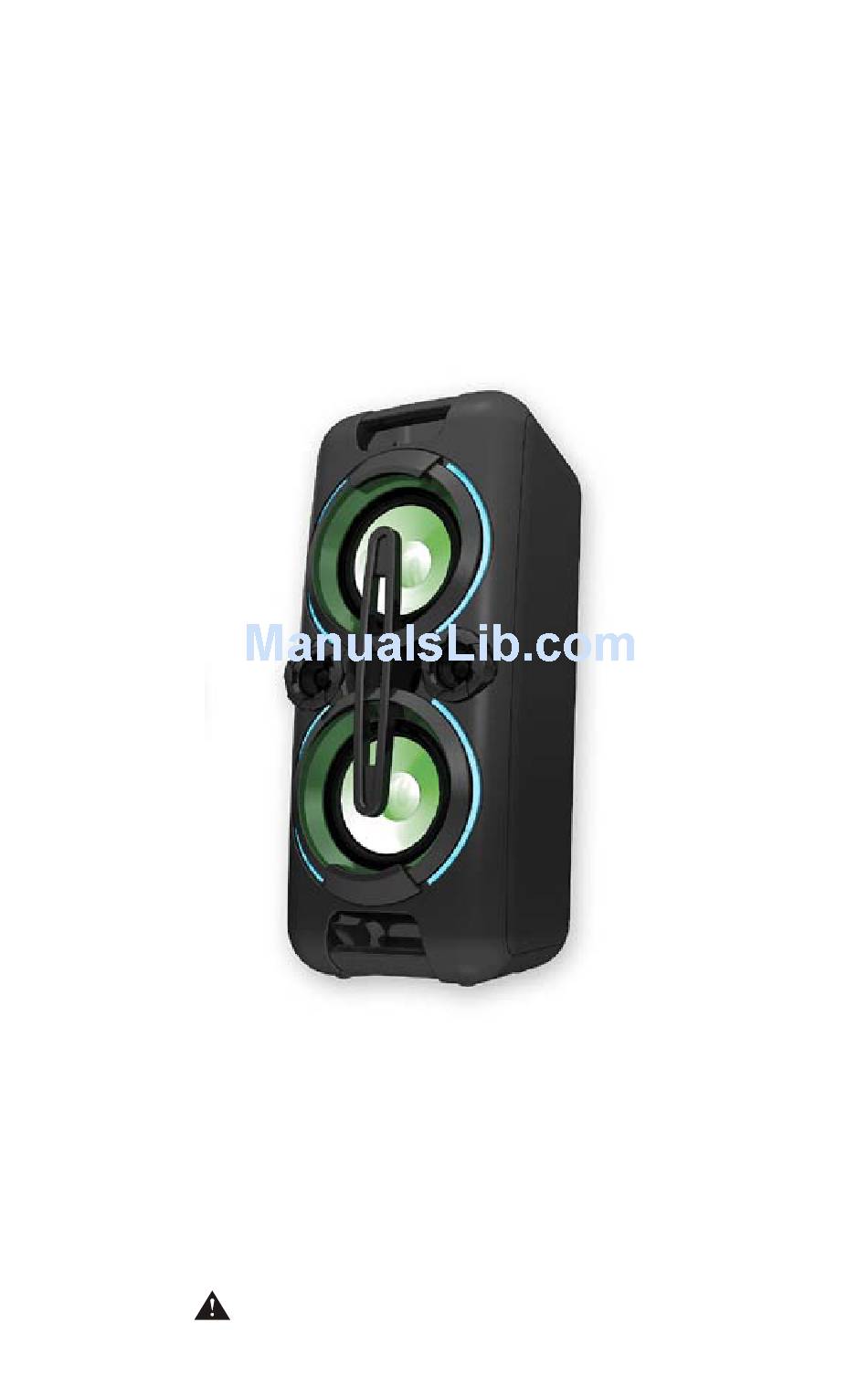

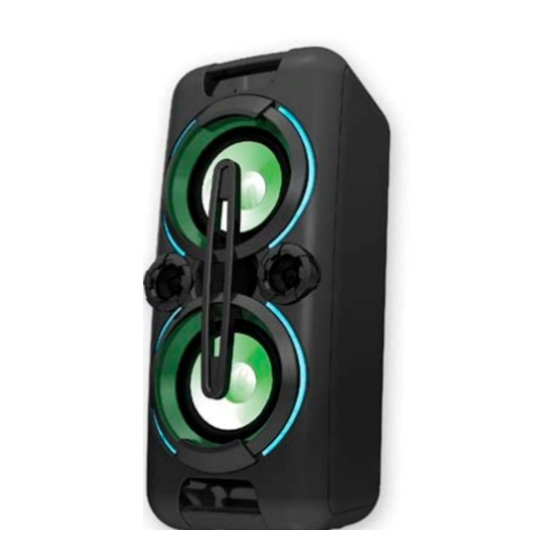

- Page 1 INSTRUCTION MANUAL USB/Bluetooth Speaker Box Model No.:PA6528D Read this booklet thoroughly before using and save it for future reference Unit must be fully charged before use...
-
Page 2: Safety Instructions
Safety information and Warnings CAUTION Symbol Definitions DANGER - Indicates an imminently hazardous situation, which, if not avoided, will result in WARNING: death or serious injury. This symbol appears only in the most extreme situations. TO PREVENT FIRE OR SHOCK HAZARD DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. -
Page 3: Fcc Notice
instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. - Page 4 CAUTION ON MODIFICATIONS Any changes or modifications not expressly approved by the grantee of this device may void the authority granted by the FCC to operate the equipment. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
-
Page 5: Top View
Guide to the Appliance Top View 1. 6.5mm AUX IN JACK 2. 6.3mm MIC JACK 1 3. 6.3mm MIC JACK 2 4. USB PORT 1 5. USB PORT 2 6.10/M./FOLD.+ BUTTON 7. LIGHT BUTTON 8. 10/M./FOLD.- BUTTON 9. ECHO BUTTON 10. -
Page 6: Power Source
POWER SOURCE This unit works with rechargeable lead-acid battery (the battery capacity 4000mAh). Fully charge the unit (around 7 hours) before using the product for the first time. The playback time has about 2hours after full charging. Unplug the AC Power cord from the AC socket to work on the battery pack after fully charged. -
Page 7: Radio Operation
E-3: Blue and red LED flashing alternatively. RADIO OPERATION Listen to FM radio broadcasts. Press the FUNCTION button on the unit, the display reads FM and the radio frequency. Note: in order to get the best reception, extend the FM ANT. on the rear of the unit before use to its full length. -
Page 8: Repeat Play
6. To search for a particular passage during playback, press and hold the button to scan the current playing track at high speed until desired point (passage) appears, then release the button for normal playback mode. 7. To select a song which track number exceeds 10, press the 10/M./FOLD.+ or 10/M./FOLD.- button each time to skip forward/backward 10 tracks, then press the button to select desired track. -
Page 9: Aux-In Operation
AUX-IN OPERATION 1. Press the FUNCTION button on unit to select the “AUX” mode. 2. Connect your audio device to the AUX IN jack on the top panel of the unit with an AUX IN cable.(audio cable is not included) 3. -
Page 10: Technical Specifications
Technical Specifications GENERAL Power Requirements AC100-240V~60/50Hz Power consumption Power output 30W X 2 FM frequency FM 87.5-108mHz AUX in jack 3.5mm Microphone jack 6.3mm Work temperature 5°C - +35°C Bluetooth Communication system Bluetooth Standard version 2.1+EDR Reception Range 10 meter (line-of-sight distance) Compatible Bluetooth profiles Advanced Audio Distribution Profile (A2DP) ACCESSORIES...
