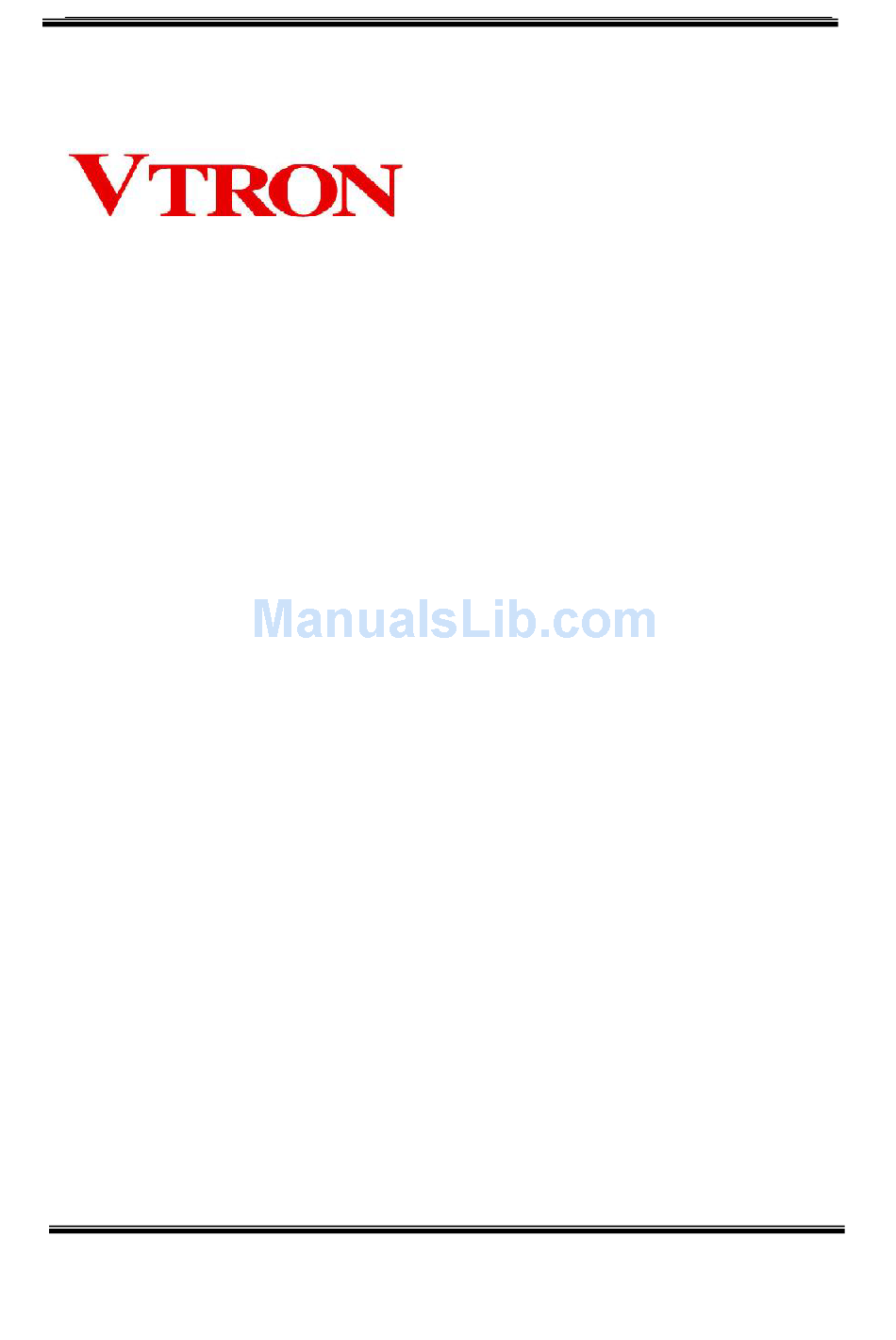

- Page 1 User Manual Digicom AP Series Multi-screen Processor V2.2 VTRON http :// www.vtron.com E-Mail: info @ vtron.com All rights reserved...
- Page 2 User manual for Digicom AP series multi-screen processor This manual is the copyright property of VTRON. Without a prior written approval from VTRON, no part of the text or graphics in this manual shall be copied illegally or distributed to any third party in any manner.
-
Page 3: Safety Precautions
User manual for Digicom AP series multi-screen processor Safety Precautions Please read carefully and make sure to comply with the following terms and conditions before operating VTRON Digicom AP series multi-screen processor: Ensure proper grounding (grounded as indicated in the figure) This product must be properly grounded to avoid dangers to ●... - Page 4 User manual for Digicom AP series multi-screen processor Keep away from corrosive chemical gas or agent Corrosive chemical gas or agent will damage the mechanical parts and electric circuits of the products and directly affect its service life. Avoid cleaning the appearance and inside of the product with highly volatile solvent, such as gasoline, thinner, acetone, etc.
-
Page 5: Table Of Contents
User manual for Digicom AP series multi-screen processor Contents 1. Overview ..........................1 1.1 About the Digicom AP series multi-screen processor ..........2 1.2 Features of Digicom AP series multi-screen processor ..........2 1.3 Naming rules of Digicom AP series processor ............5 2 Hardware introduction .......................6 2.1 Technical specifications .....................6... -
Page 6: Overview
User manual for Digicom AP series multi-screen processor 1. Overview Multi-screen processor, also called multi-screen display controller, is a dedicated image processing device based on certain operating system platform and offering multi-screen driving function to perform remote display and control on various types of signals through different modes. -
Page 7: About The Digicom Ap Series Multi-Screen Processor
SDI cards to achieve the acquisition, exchange, zooming and superimposition of the RGB, Video, HDMI, YPbPr and SDI signals. The Digicom AP series multi-screen processor adopts the Windows operating system and the second generation PCI Express non-block digital bus exchange technology, offering a large bandwidth capacity, high performance, high quality assurance and high reliability. - Page 8 Various powerful APLink input cards, realizing fast access and display of various signals APLink input cards rely on VTRON proprietary transmission & display technology to ensure they can transmit and display input signals in full frame manner. They can display various...
- Page 9 HDCP. ④ APLink YPbPr input card supports HD component (720P, 1080i, 1080p) video signal input; While working with various types of VTRON IP encoder devices, it can collect distributed signals from long distances and display quality images.
-
Page 10: Naming Rules Of Digicom Ap Series Processor
User manual for Digicom AP series multi-screen processor 1.3 Naming rules of Digicom AP series processor Digicom AP x □ y z It is filled with “0~9” or “blank”. When it is filled with digit, it, in conjunction with the “y”... -
Page 11: Hardware Introduction
User manual for Digicom AP series multi-screen processor 2 Hardware introduction 2.1 Technical specifications Digicom AP2000 Digicom AP5000 Multi-screen Processor Multi-screen Processor Intel multi-core CPU Intel multi-core CPU Internal memory 4GB (standard configuration) 8GB (standard configuration) Dual HD: 1TB ×2... - Page 12 Users should offer secondary development protocols (SDK) of IP videos that are used on WINDOW-based brand platforms. IP encoder While working with various types of VTRON IP encoder devices, it can collect (expandable) distributed signals from long distances and display quality images.
-
Page 13: Panel Introduction
Note: The figure below is for illustration only. For the specific product outline and configuration, please refer to the customer order. 2.2.1 Panel of AP2000 processor The Digicom AP series multi-screen processor adopts IPC 4U industry back plate enclosure and supports up to 6 PCIE slots. Power status indicator... - Page 14 User manual for Digicom AP series multi-screen processor Back panel: signal Signal input port output port RJ45 network port HDMI signal input port USB port Power module YPbPr Video /SDI PS/2 signal signal keyboar input input port d/mouse port port Note: The above figure is for illustration only.
-
Page 15: Panel Of Ap5000 Processor
User manual for Digicom AP series multi-screen processor 2.2.2 Panel of AP5000 processor LCD display LED indicator Heat dissipation hole Function keys Front panel of AP5000 series processor The following describes the LCD display, LED indicators, and function keys: 1. LCD Display The LCD backlight supports automatic protection. - Page 16 User manual for Digicom AP series multi-screen processor Power supply: On the LCD display, the modules are named by PWR+Number (such as “PWR1”, “PWR2”, and “PWR3”). When they are working normally, their working state is “OK”. If a fault occurs, their state changes to “NG” which is shown in white.
- Page 17 User manual for Digicom AP series multi-screen processor Function Indicating the clock calibration mode; when this mode is enabled, MODE time calibration can be accurate to minute. Used for time calibration Page switching Alarm clearance Real Panel of AP5000 Series Processor...
-
Page 18: Hardware Installation
The power socket of the Digicom AP series multi-screen processor is located at the lower left side of the back panel. When connecting the equipment power socket and the 220V plugboard, please use the cable delivered together with the equipment.Incompliant power... -
Page 19: Connection Of Display Equipment
Note: Digital signals have strict requirement on signal transmission, therefore, you are advised to use the signal cable provided by VTRON.Please consult VTRON or the agent if you have to use your own signal cable. 3.4 Connection to signal source... -
Page 20: Connection Of Network Cable
User manual for Digicom AP series multi-screen processor 3.5 Connection of network cable The Digicom AP series multi-screen processor can work in the network. You can also control the processor through network. In actual application, you need to connect the multi- screen processor to the network through exchange, that is, to connect the exchange to the network interface with network cable. -
Page 21: Software
4 Software 4.1 Standard software The Digicom AP series multi-screen processor is configured with all the standard software upon delivery, including Windows operating system, corresponding hardware drive and standard application software You can use the processor immediately after you have the relevant peripherals installed. -
Page 22: Display Wall Application Administration Software: Vwas (Optional)
4.2 Display wall application administration software: VWAS (optional) VWAS (VTRON Display Wall Administration System) is the application administration system developed by VTRON for the development, design and production of the display wall system and its multi-screen processing system. It is mainly used to provide control and management on hardware resources in the display wall system (e.g., the display unit, multi-... -
Page 23: Daily Maintenance
User manual for Digicom AP series multi-screen processor 5. Daily maintenance 5.1 Environment and cleaning Note: The equipment does not need any internal adjustment, and there is no user serviceable component in the equipment. To replace any part or repair the equipment, please contact the local authorized service center. -
Page 24: Routine Inspection
Turn the power switch of the power module to “ON” position, and then press the power switch of the multi-screen processor. If the problem still persists, please contact VTRON or the agent. We will give response to you as soon as possible. - Page 25 Check if the output signal cable of the multi-screen processor is properly connected to the display terminal; If the problem still persists, please contact VTRON or the agent. We will give response to you as soon as possible. 3. Keyboard/mouse fails Possible cause Non-original keyboard/mouse is used;...
- Page 26 You can also bypass the multi-screen processor to directly connect the signal to the display terminal to judge if it is the problem of the processor output. If the problem still persists, please contact VTRON or the agent. We will give response to you as soon as possible.
- Page 27 User manual for Digicom AP series multi-screen processor Close the window and restart the program. Run the program again after restarting the Windows OS. If the problem still persists, please contact VTRON or the agent. We will give response to you as soon as possible.
- Page 28 Check the network communication status, and replace the exchange when necessary. Close the windows not in use (especially the RGB windows that are not needed for the moment). Please contact VTRON or the agent. We will give response to you as soon as possible. 7. Image flashing...
-
Page 29: Contact Us
User manual for Digicom AP series multi-screen processor 6 Contact Us About after sales service matters please contact after sales department of VTRON GROUP CO.,LTD. VTRON GROUP CO.,LTD. No. 233 Kezhu Road, Guangzhou Hi-Tech Industrial Development Zone (Guangzhou Science City),...
