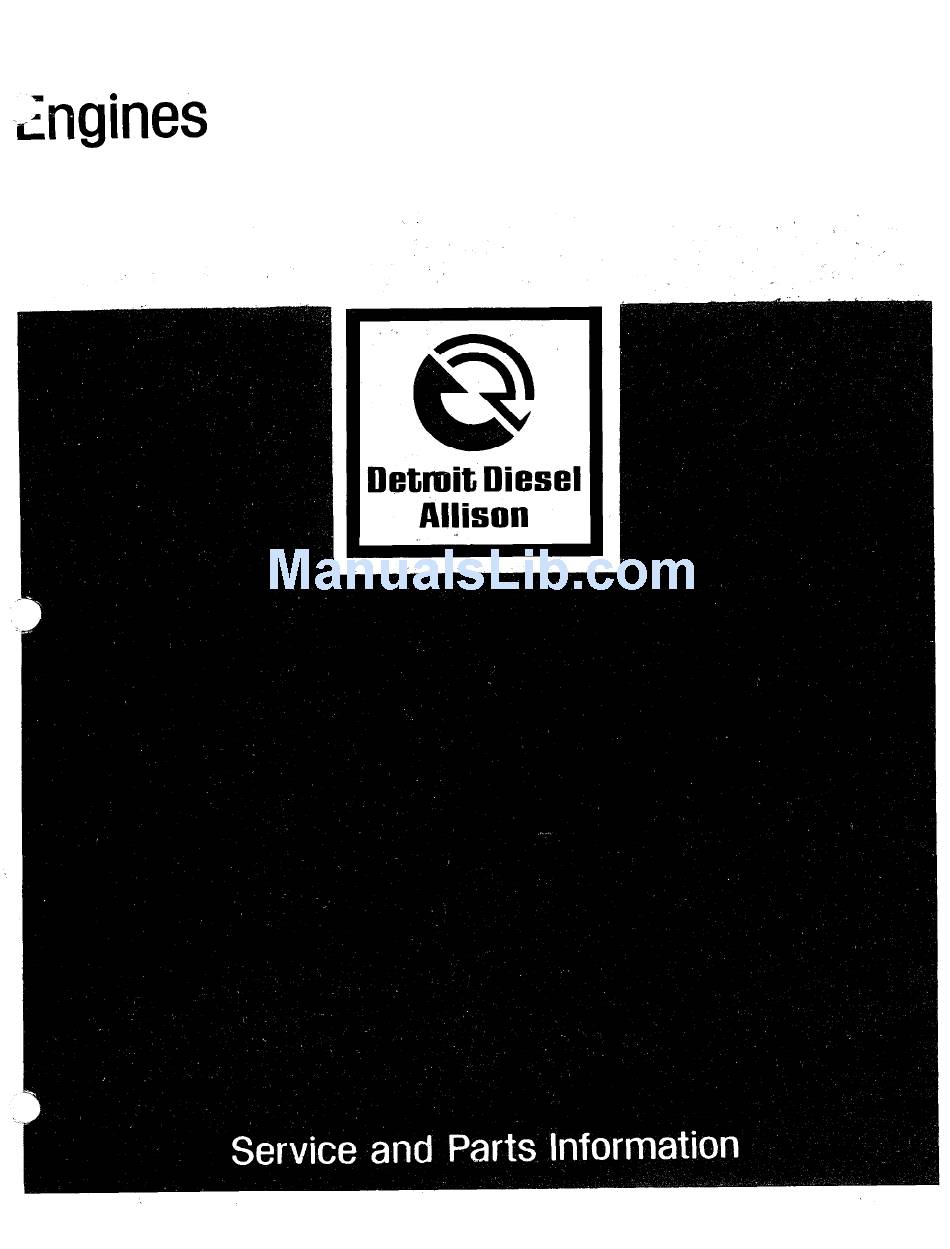

- Page 1 Detroit Diesel V-71 Operators Manual...
- Page 2 Detroit Diesel engine. *Time, money and effort have been invested in making your diesel engine a safe product. The dividend you realize from this investment is your personal safety. It should be remembered, however, that power-driven equipment is only as safe as the man who is at the controls.
- Page 3 Division of General Motors Corporation 1978 General Motors Corp.
- Page 4 Generally, this publication is reprinted annually. It is recommended that users contact an authorized Detroit Diesel Allison Service Outlet for information on the latest revision. The right is reserved to make changes at any time without obligation.
- Page 5 PAGE SUBJECT DESCRIPTION Principles of Operation G e n e r a 1 D e s c r i p t i o n Mode1 Description Genera1 Specifications Engine Mode1 and Serial Number Designation Built-In Parts Book Engine Views E N G I N E S Y S T E M S F u e l S y s t e m s Air System Lubricating System...
- Page 6 DETROIT DIESEL The diesel engine is an internal combustion power The unidirectional flow of air toward the exhaust unit, in which the heat of fuel is converted into work valves produces a scavenging effect, leaving the in the cylinder of the engine.
- Page 7 DETROIT DIESEL Description The V-71 engines (6, 8, 12 and 16 cylinder models) through the injectors, it serves to cool the injectors and covered by this manual have the same bore and stroke carry off any air in the fuel system.
